Product Overview

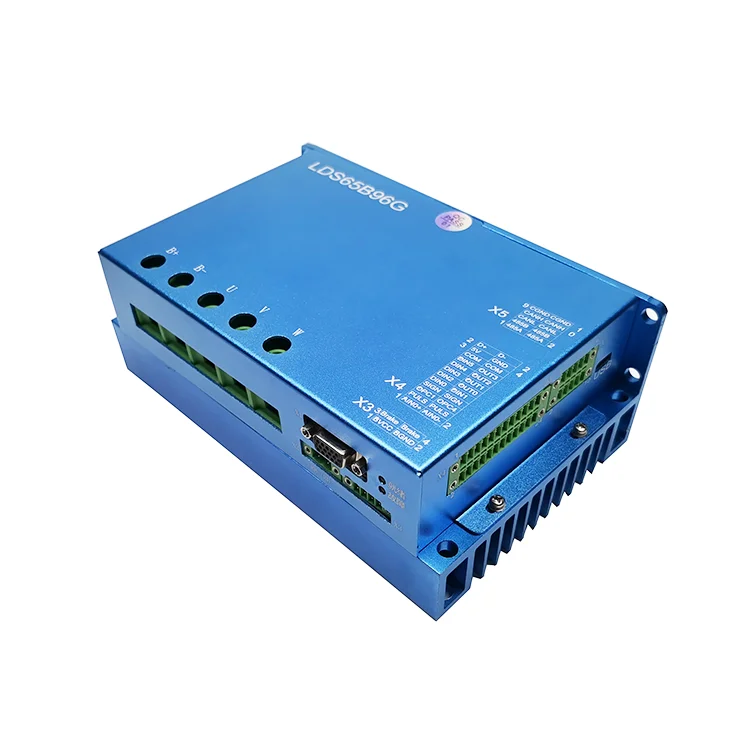

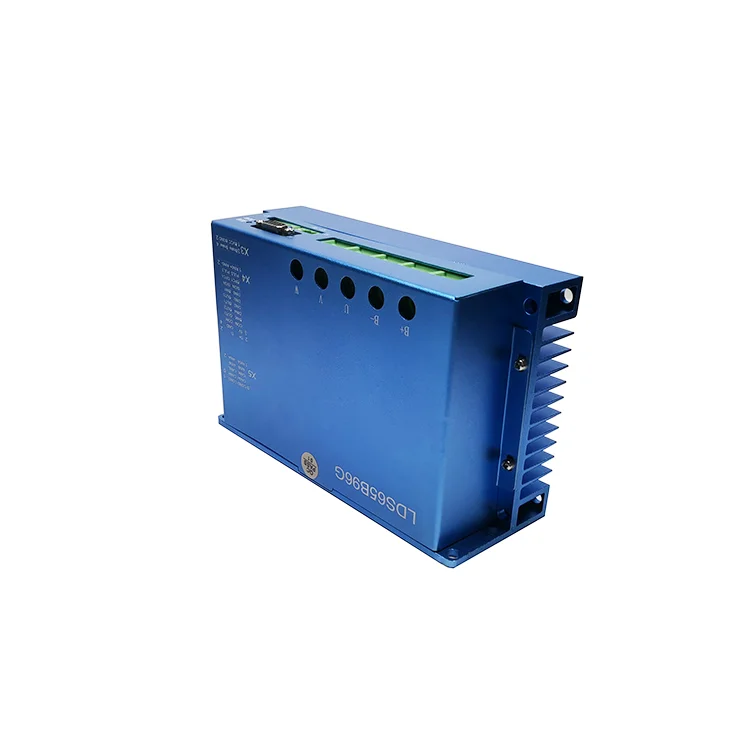

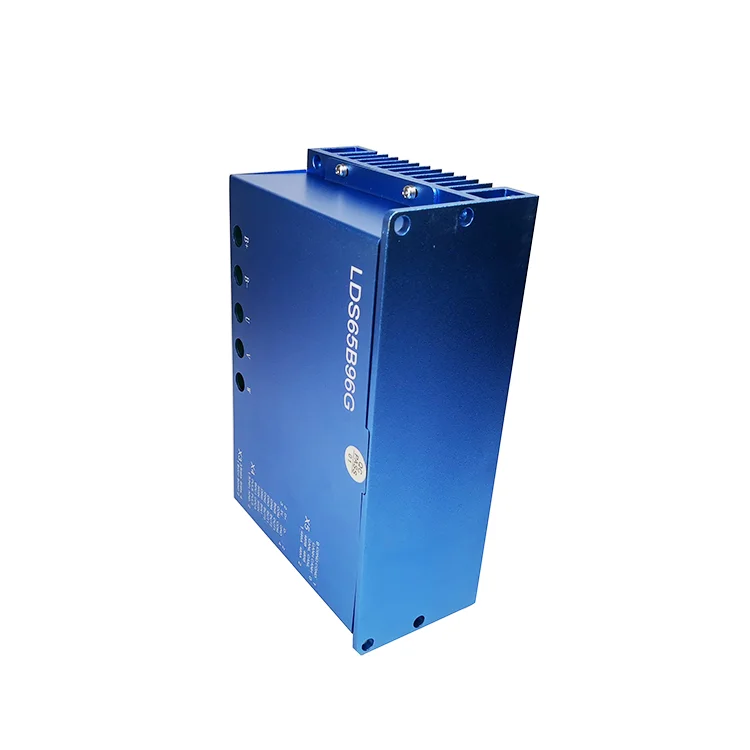

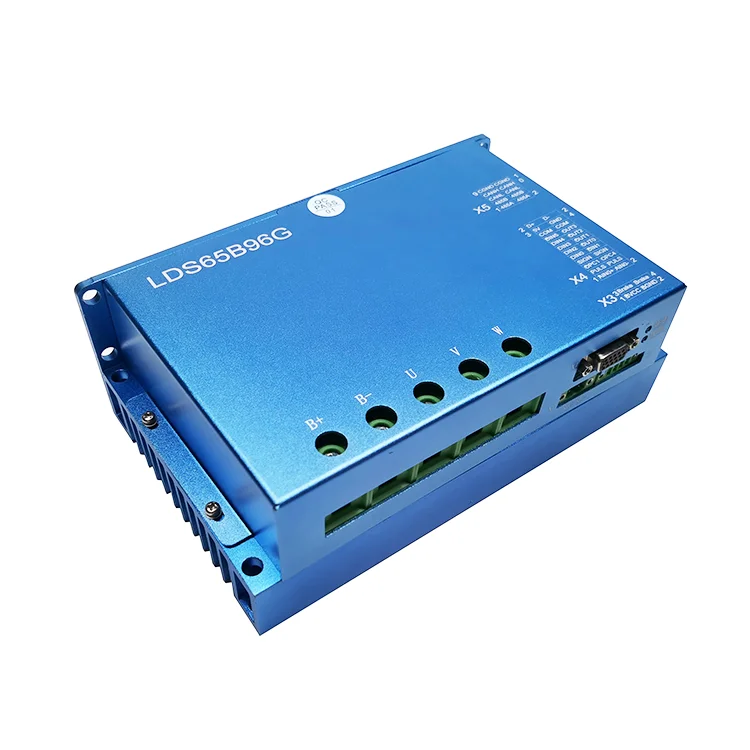

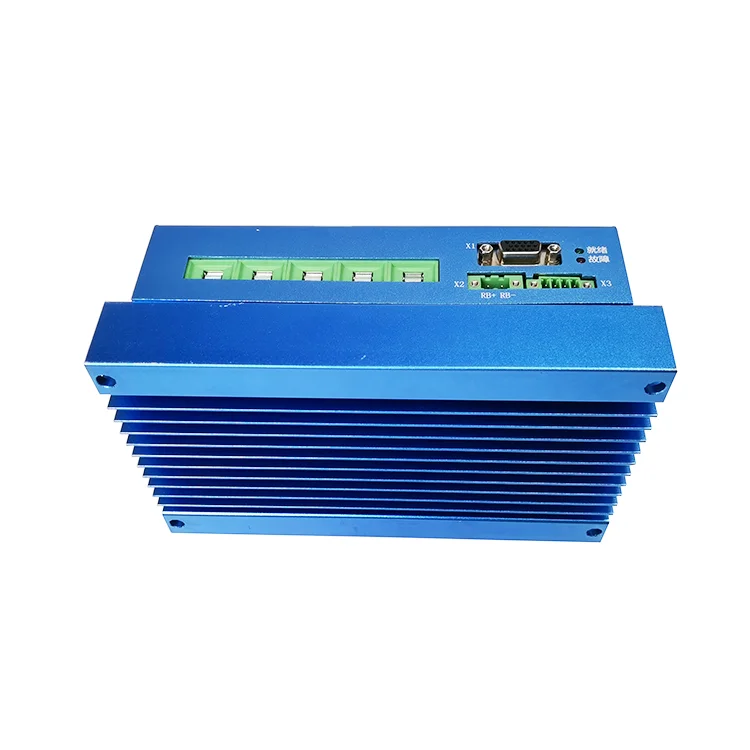

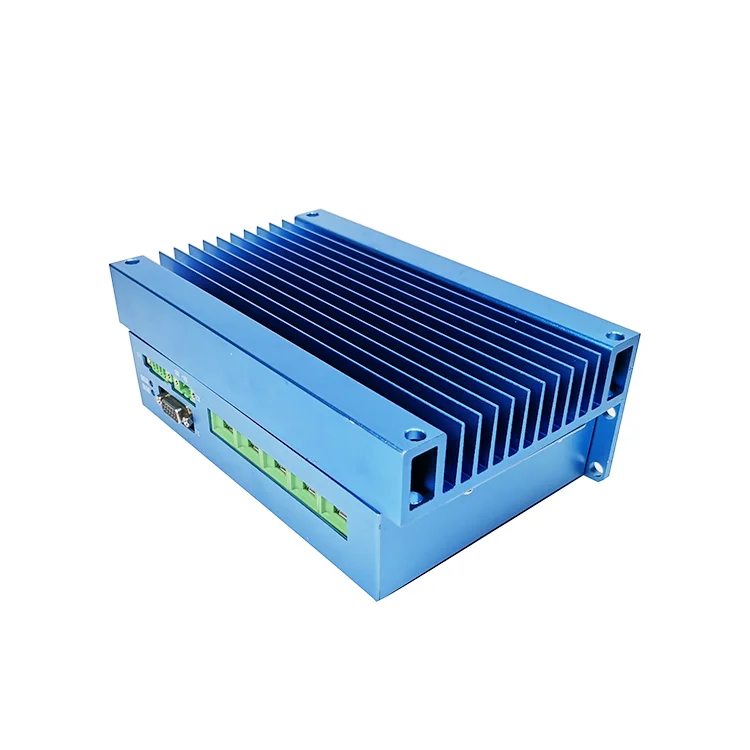

Single Channel Motor Driver LDS65B96G
LD series DC servo motor driver is a high-performance DC motor driver which has been introduced by senior experts after more than ten years of application experience in the robot industry, combined with leading motor control and current accurate detection technology. The powerful PID adjustment technology can perfectly control the motor's smooth forward and reverse rotation, commutation and braking. The output current can be adjusted in real time to prevent overcurrent. The motor speed and rotation position can be accurately controlled. The motor has a short response time and low recoil. We can provide 5A-200A high current, wide voltage input 12v-96v and other serialized products. This product is widely used in mobile cars, service robots, wearable exoskeleton robots and other products.
PRODUCT SPECIFICATIONS
Model | LDS65B96G |
Rated Current | 65Arms±1% |
Maximum Current | 130Arms±1% |
Maximum Overload Time | 6S |
Overload Recovery Time | 90S (without external heat dissipation) |
Limit Power Supply Range | 18 VDC～96 VDC |
Temperature Rise | Rated current operation 30min≤40K (refer to cooling mode) |
Drive Frequency | 6 ～ 21KHz±0.1KHz |
Cooling Method | The ventilation condition is good, and the installation surface needs to have some heat dissipation effect, such as iron plate, steel plate, etc. |
Rated Insulation Withstand Voltage | The leakage current of input and output to chassis DC 1000V is less than 3mA, |
Insulation Resistance of the Whole Machine | When the temperature is 40° and the humidity is 95%, ≥1M (no dew on the board) |
Mean Time Between Failures (MTBF) | ≥5000 hours |
Power Control Method | Vector control |
Protection Level | IP32 |
Advantages
* Flat, small size, wide voltage, light weight, high power density.
* Acceleration and acceleration mode control, fast positioning without shaking.
* Multiple hardware and software to protect the motor.
* Real-time reading current, speed, position.
* Real-time reading current, speed, position.
RS485 Communication
The above figure shows the schematic diagram of Rs485 communication wiring. The communication line of Rs485 communication should not be run together with the high-voltage line or high-current power line.
CAN Communication
The above figure shows the schematic diagram of CAN communication wiring.
●It is recommended to use shielded twisted pair connection, and two 120Ω terminal matching resistors are connected to both ends of the bus to prevent signal reflection.
●Use a multimeter to measure the resistance between CANL and CANH to confirm whether the field termination resistance is correct. The normal resistance value should be about 60Ω. (Two resistors in parallel)
●The maximum number of connected devices is 64.
●When CAN devices communicate over long distances, the common ground GND of different CAN circuits must be connected to each other to ensure that the reference potentials between different communication devices are equal.
●Do not run CAN communication lines with high-voltage lines or high-current power lines.
Structure Diagram
