Автоматический телескопический столб для безопасности дорог гидравлический подъемный столбик
- Категория: Traffic Barriers >>>
- Поставщик: Shenzhen,Tongdazhi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.51 $* | 0.68 $* |
| Aug-15-2025 | 0.48 $* | 0.24 $* |
| Jul-15-2025 | 0.86 $* | 0.74 $* |
| Jun-15-2025 | 0.5 $* | 0.14 $* |
| May-15-2025 | 0.71 $* | 0.54 $* |
| Apr-15-2025 | 0.86 $* | 0.62 $* |
| Mar-15-2025 | 0.89 $* | 0.27 $* |
| Feb-15-2025 | 0.6 $* | 0.89 $* |
| Jan-15-2025 | 0.33 $* | 0.53 $* |
Характеристики

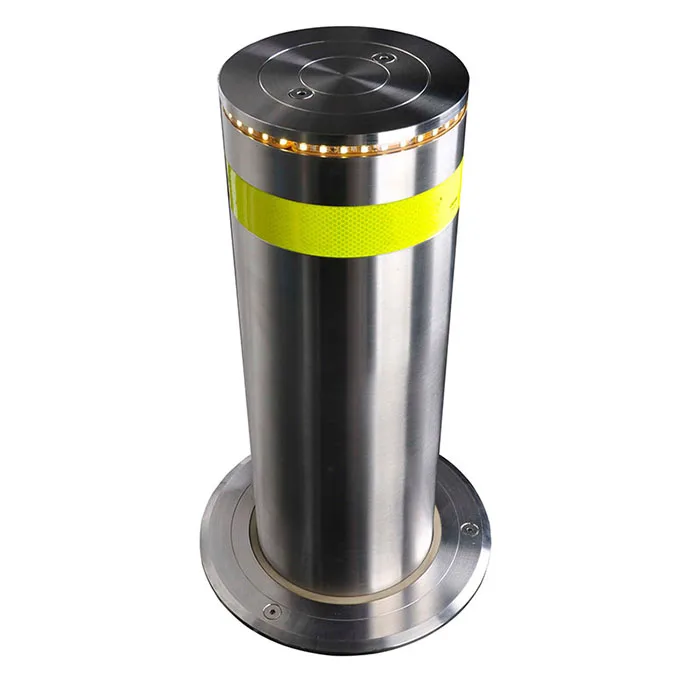

Automatic Telescopic Pole Roadway Safety Hydraulic Rising Bollard for driveway
product description
Functions:
Remote control; Desktop Button; Car recognition; Linkage; k12 grade Anti Collusion; Damping; waterproof IP 68 Grade;
Easy Insrallation.
SUS material; LED flashing Lights; Brush surface;Stainess steel cover.
Support customization:
1.Full automatic/semi automatic/manual/ fixed bollards are avaialable.
2.Logo can be printed on the bollards
3.The material thickness can be customized.
4.The individual and group control can be customized.
Diameter | φ273mm; |
Outer box size | φ450*1120mm |
Rising height | 600mm (customized: 800mm, 900mm, 1000mm) |
Thickness | 10mm (customized: 8mm, 6mm, ) |
Material | 304 Stainless steel |

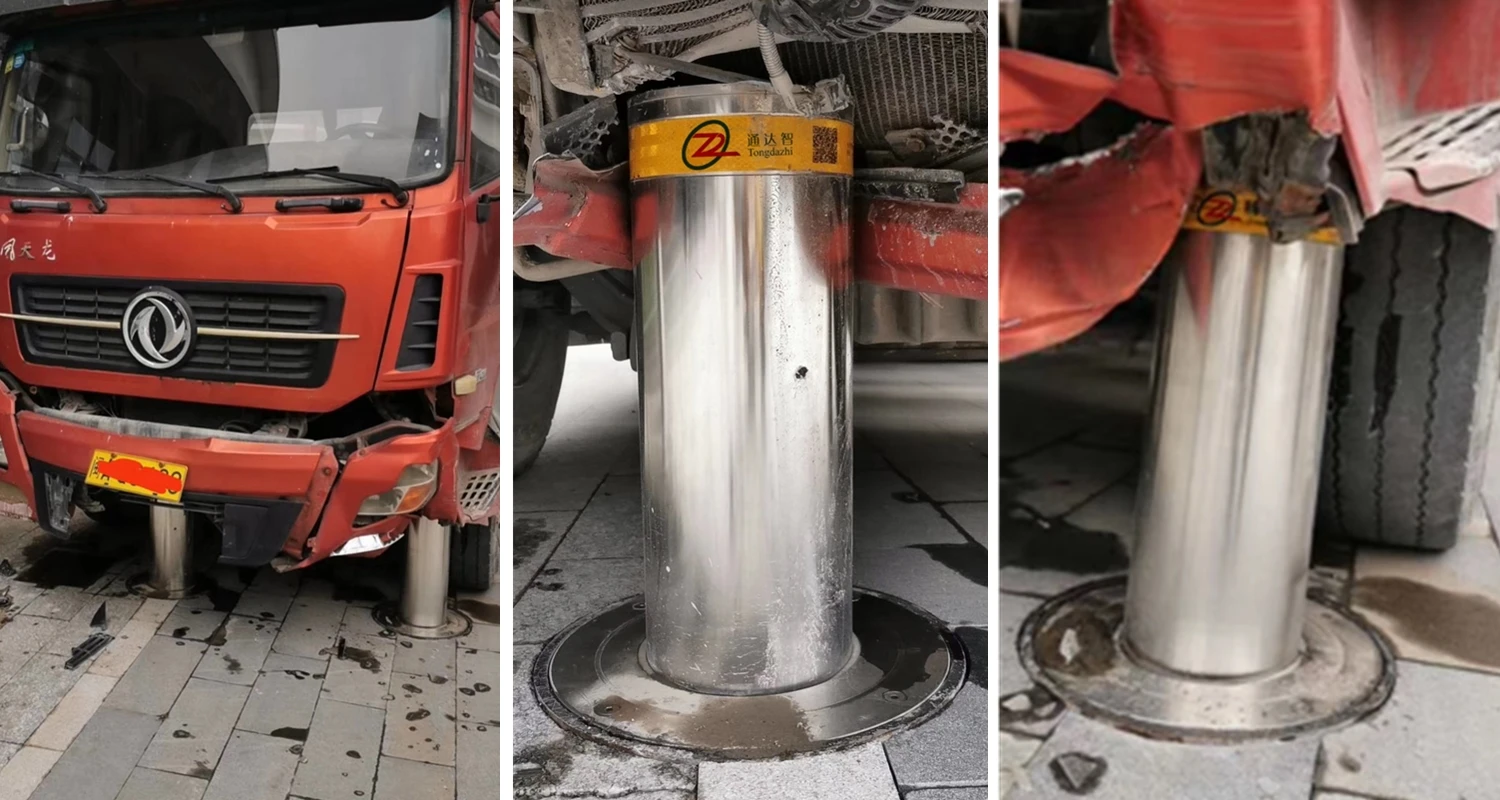

Through pressure | can bare more than 80 tons of container trucks |
Crash rating | K12 |
Rising / Falling speed | Rising speed: ≤ 3s (adjustable) Falling speed: ≤ 3s (adjustable) |
Power supply | 3 phase power 380V(control voltage 24V) |
System power | 3.7KW |
Level of protection | IP68 |
LED light | Ring LED light, Top LED light (optional) |
| Technical Parameters | ||||||||||
| Power supply:220V/380V | Emergency treatment:Electromagnetic pressure relief | |||||||||
| Frequency: 50HZ | Backup EPS, DC12V | |||||||||
| Power: 5W-350W | Working frequency: 1-2times/minute | |||||||||
| Rated speed: 2800rpm | Limit mode: Mechanically adjustable limit | |||||||||
| Current: 1.3A--1.6A | Service life:3 million times | |||||||||
| With Overcurrent and overvoltage protection | Manual disassembly Detachable | |||||||||
| Rise Time ≤4s | Minimum traffic pressure: 80 tons container truck | |||||||||
| Fall time ≤2s | Leading speed ≥120mm/s | |||||||||
| Stroke height: 600mm±10mm, | Compression speed ≥220mm/s | |||||||||
| customizable 750mmor800mm | Sealing method: One-piece seal | |||||||||
| Lifting force: 200kg | Drainage method: Natural drainage + external drainage system | |||||||||
| Diameter: φ168mm/φ219mm/273mm, ±1mm/customizable. | Operating temperature: -45℃--+75℃ | |||||||||
| Thickness of the cylinder: 6mm/8mm/10mm/12mm/15mm/20mm,±1mm | Protection level: IP68 | |||||||||
| Cylinder material: 304 stainless steel | Use humidity:100% | |||||||||
| Buried outer cylinder: Q235 material | Bollards weight: 120 KG | |||||||||
Quick Details
Economical choice compared to automatic bollards
Raised up by pneumatic spring
no power supply needed
All weather workable
- Economical choice compared to automatic bollards
- Raise up by pneumatic spring
- no power supply needed
- All weather workable
- Easy installation and maintainance
Company Information
Shenzhen Tongdazhi Technology Co., Ltd.
>Established in 2009.
>National high- tech enterprise integrating R&D, production, sales and service.
> One-stop service provider solutions for intelligent access control gate.
>Design&develop advanced access control systems.
>Independent import&export rights.
>Sold in more than 80 countries®ions.
Our Advantages:
1.Focus on solutions for entrance and exit control for 11 years.
2.Support pedestrian, access control, face recognition and software secondary development customization.
3.Provide non-standard turnstile design and customization.
4.Provide scenic spot ticketing system, smart campus, smart building solutions.
5.With high-tech enterprise certificate, ISO certificate, CE certificate,
There are 2 inventions of the main board of the turnstile and the main board of the access control;
36 patent certificates such as appearance, use of new tech, and software.
FAQ
1.Can machines be used outside?
With waterproof function, can be used outside well.
2.What is the warranty for the machine?
Whithin 12 months, if any problems, we will offer the accessories free.
3.When will you make the delivery?
Our production is 3-5 days. Bulk quantity may different.
4.How does your factory control the quality?
We have professional QC apartment. each order will be examined before delievery.
5.What is your MOQ?
Any quantity is acceptable.
6.Payment term?
30% by T/T, 70% by T/T before delivery. Paypal, Western union and Money Grame are acceptable.
