Suyeego 12V/24V оптовая продажа с фабрики ODM/OEM 10A 20A 30A LCD PWM контроллер солнечной панели двойным USB розетки инвертор
- Категория: Solar Energy Products >>>
- Поставщик: Guangzhou,Suyeego,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.35 $* | 0.79 $* |
| Aug-15-2025 | 0.13 $* | 0.85 $* |
| Jul-15-2025 | 0.62 $* | 0.96 $* |
| Jun-15-2025 | 0.10 $* | 0.74 $* |
| May-15-2025 | 0.59 $* | 0.8 $* |
| Apr-15-2025 | 0.68 $* | 0.90 $* |
| Mar-15-2025 | 0.83 $* | 0.8 $* |
| Feb-15-2025 | 0.58 $* | 0.56 $* |
| Jan-15-2025 | 0.91 $* | 0.86 $* |
Характеристики

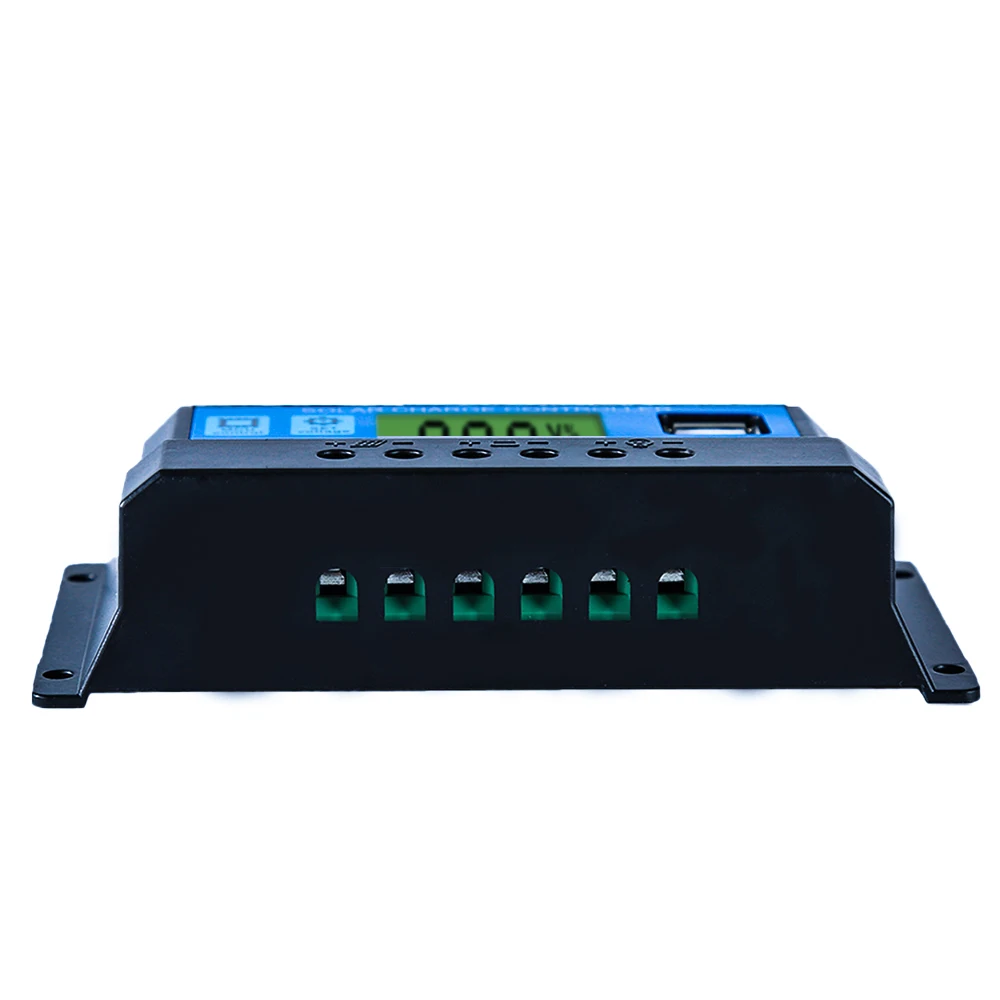

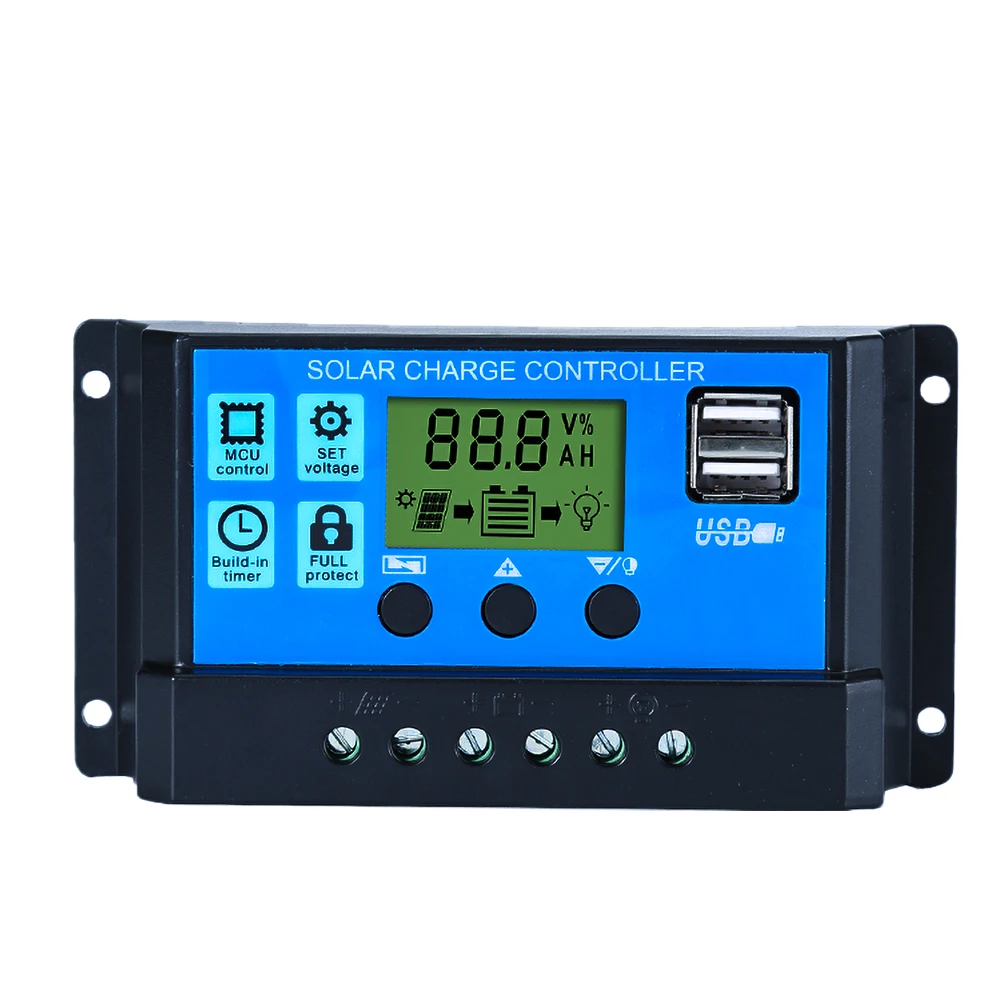

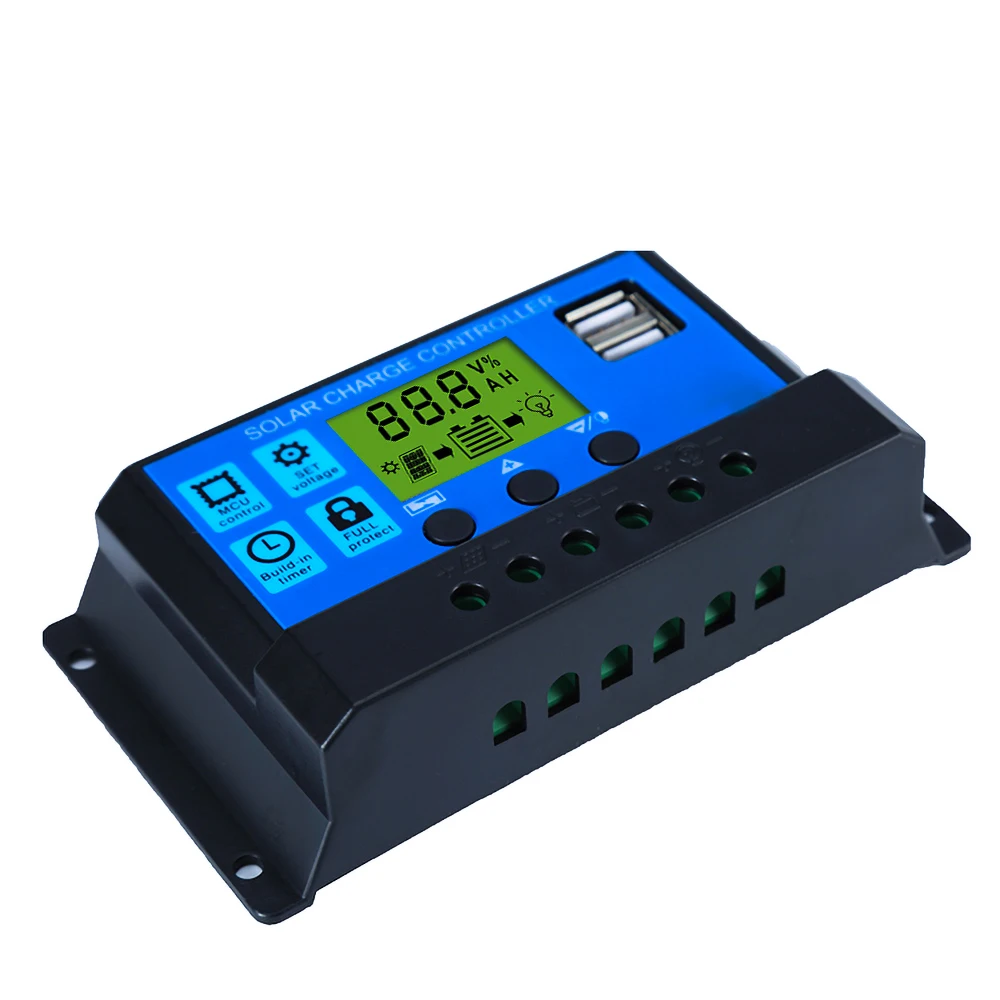

SUYEEGO 12V/24V Factory Wholesale ODM/OEM 10A 20A 30A LCD PWM Solar Panel Controller with
Dual USB Sockets Inverter Charger
Product Description
Features:
1,Build-in industrial micro controller.
2,One-key setting,digital display,auto memory function.
3,Fully 4-stage PWM charge management.
4,Build-in short-circuit protections,open-circuit protections,reverse protections,over-load protections.
5,Dual mosfet Reverse current protections ,low heat productions.
Product Paramenters
Model | SCB-10A | SCB-20A | SCB-30A | ||
System voltage | 12V/24V Automatic adaptation | ||||
Rated charging | 10A | 20A | 30A | ||
Rated discharge current | 10A | ||||
Maximum PV voltage | 12V system<23V/24V system<46V | ||||
Increase chargingvoltage | b1Sealed type | b2Gel type | b3Open type | ||
14.4V | 14.2V | 14.6V | |||
Floating charge voltage | 13.7,( Adjustable range: 12.7-15V) | ||||
Discharge cut-off voltage | 10.7v,( Adjustable range: 9V-11.3V) | ||||
Discharge recovery voltage | 12.6V,( Adjustable range: 11.5V-13V) | ||||
USB output | 5V/2A | ||||
Standby current | <10mA | ||||
Working temperature | -35~+60'C | ||||
Size 1 weight | 133*70* 35mm/132g | ||||
Product packaging
Selling Units:Single item
Single package size: 13.5X8X4 cm
Single gross weight:0.500 kg
Package Type:Kraft paper
Single package size: 13.5X8X4 cm
Single gross weight:0.500 kg
Package Type:Kraft paper
Client feedback
Company Introduction
FAQ
1. How does a power inverter work?
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
3. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
5. How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model:
AMPS x 120 = Watts
For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
3. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
5. How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model:
AMPS x 120 = Watts
For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
