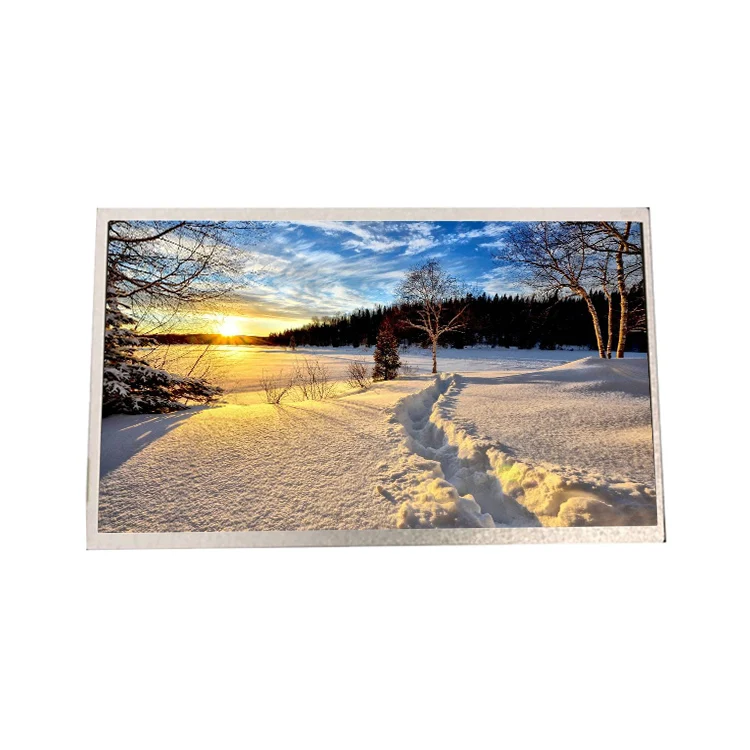

Хорошая цена IPS AUO lcd дисплей 21 5 Дюймов FHD G215HAN01.201 с 1920*1080 и lvds 30 контактов tft ЖК-панель для

Manufacturer

AUO

Model Name

G215HAN01.201

Screen Size

21.5 inch

Screen Type

LCM,a-Si TFT-LC

Pixel Number

1920(RGB)*1080   [FHD]

Arrangement

RGB Vertical Stripe

Active Area(mm)

476.064*267.786 mm (H×V)

Outline(mm)

497.6(W)*292.2(H) *11(D) mm

Bezel Area(mm)

476.064(W)*267.786(H) mm

Treatment

Haze , Hard coating (3H)

Luminance

300 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

Viewing Angle

89/89/89/89 ( Typ.)(CR≥10)Left/Right/Up/ Down

Response

14 (Typ.)(G to G); 20 (Typ.)(Tr+Td) ms

Good View at

All angle

Work Mode

AHAV, Normally Black ,Transmissive

Color Depth

16.7M , 99% sRGB

Backlight

 WLED , 50Khours , with driver

Net Weight

1740[Grams]

Used for

Industrial Application

operating frequency

60Hz

Max. Ratings

Storage Temp.:  -20 ~ 60°C

Operating Temp.:  0 ~ 60 °C

Package

As requirement

Touchscreen

Signal Type

30 pins   LVDS (2 ch, 8-bit) ,

Voltage Supply

5 V (Typ.)
