Плоский вертикальный резервуар из углеродистой стали для криогенного жидкого кислорода азота аргона СПГ
- Категория: Chemical Storage Equipment >>>
- Поставщик: Henan,Kaiyuan,Air,Separation,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 237941.8 $* | 249838.65 $* |
| Aug-15-2025 | 235941.88 $* | 247738.1 $* |
| Jul-15-2025 | 197951.88 $* | 207849.34 $* |
| Jun-15-2025 | 231942.19 $* | 243539.38 $* |
| May-15-2025 | 201950.84 $* | 212048.87 $* |
| Apr-15-2025 | 227943.63 $* | 239340.48 $* |
| Mar-15-2025 | 225944.94 $* | 237241.56 $* |
| Feb-15-2025 | 223944.23 $* | 235141.26 $* |
| Jan-15-2025 | 221945.98 $* | 233042.12 $* |
Характеристики
Product Description
Large cryogenic liquid storage tank and Large LNG tank
Large cryogenic liquid storage tanks have the characteristics of high cost performance and stability.Based on clients’ needs, it can be customized within 15~50Kpa working pressure and 200~5000m³ size.By strengthening the anti-leakage measures, the LNG tank is more secure and more space efficient.Based on clients’ needs,it can be customized within 15~50Kpa workiing pressure and 5000~30000m³ volume.
List of models and technical specifications of cryogenic liquid storage tank
| Model(CFL/W) | KY5 | KY10 | KY15 | KY20 | KY30 | KY50 | KY60 | KY100 | KY150 | KY200 | KY250 |
| Inner tank/outer tank material | S30408/Q345R(CO2inner tank:16MnR) | ||||||||||
| Operation pressure | 0.2/0.8/1.2/1.6/2.8 MPa | ||||||||||
| Volume (m3) | 5 | 10 | 15 | 20 | 30 | 50 | 60 | 100 | 150 | 200 | 250 |
| Inner tank size (m) | 1.4 | 1.8 | 1.8 | 2.0 | 2.2 | 2.5 | 2.7 | 3.0 | 3.3 | 3.5 | 3.6 |
| Outer tank size (m) | 1.9 | 2.3 | 2.3 | 2.5 | 2.7 | 3.0 | 3.2 | 3.5 | 3.8 | 4.0 | 4.1 |
| Daily evaporation | 0.4 | 0.36 | 0.35 | 0.33 | 0.29 | 0.23 | 0.21 | 0.16 | 0.14 | 0.13 | 0.12 |
Advantage of cryogenic vacuum storage tank:
1. Safe and reliable.
2. Automatic pressure regulation.
3. Low evaporation rate.
4. Liquid level display.
5. Energy-saving.

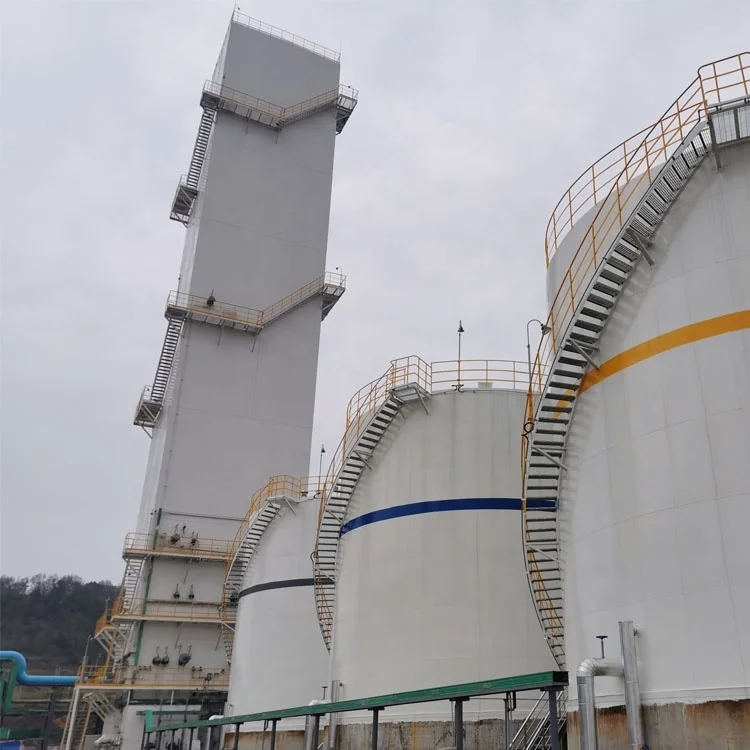

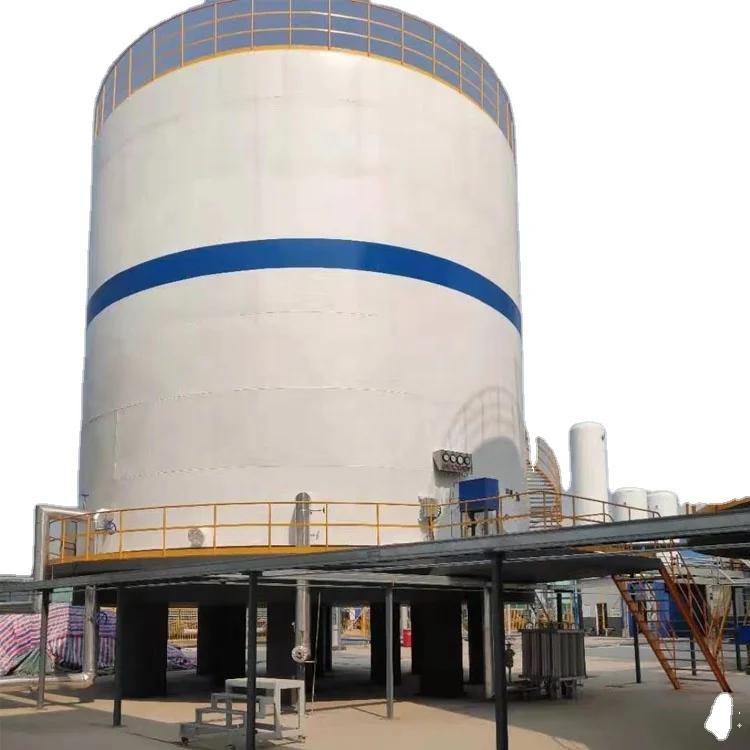

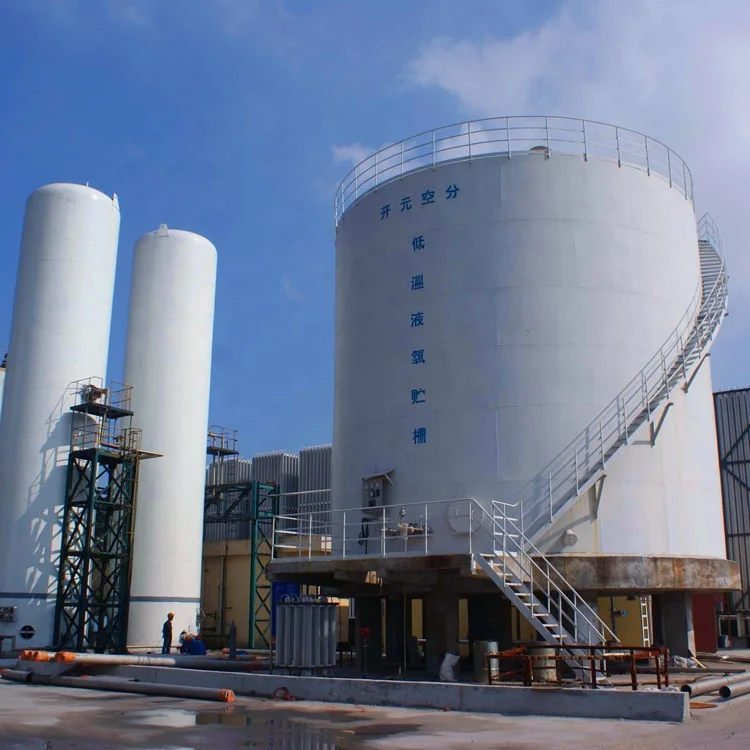

Product Display
