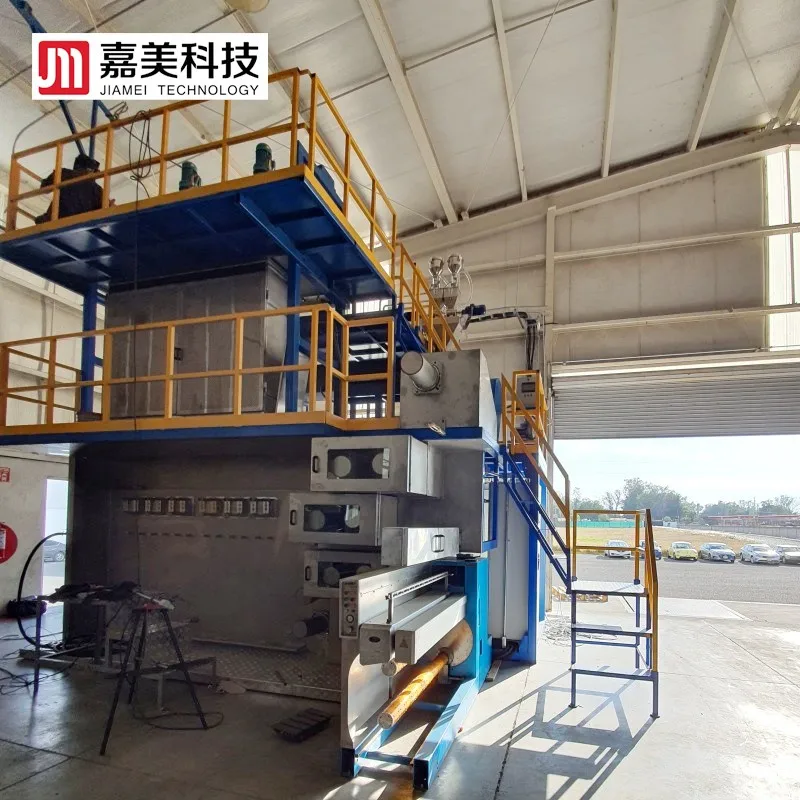

Fully Automatic PP Industrial FDY Yarn Multifilament Yarn Spinning Machine/ spin draw plant





FDY Yarn Multifilament Yarn Spinning Machin

Fully Automatic PP Industrial FDY Yarn Multifilament Yarn Spinning Machine/ spin draw plant mainly used for extrusion spinning fdy pp yarn, multi filament yarn , fibre ....



1. Production process of FDY pp yarn spinning machine

Chips→ extruder→ extruding head→Filter→melt pipe with static mixer→ spinning beam with oil heating →quenching delay→ quenching chamber → oiling system  →  feeding roller →migration nozzle→ Five pairs of hot godet →interlacing jets→ take-up winder →  final product

2. Details of pp yarn spinning machine

denier range:                      500D-4500D

Tenacity:                         >6.5-7g/d(white yarn)

                                    >5.5-6g/d (color yarn )

intermingle:                   15-30 and higher
3. capacity
No. of spinning position:   1/pos.
ends of spinning :          6ends /pos
efficiency:               97%

winding speed:         2200m/min

output:         1000d~ 2tons/day







spinning machine model

Item	JM261	JM241	JM811	JM161	JM141	JM131	JM121
Pos	2	2	1	1	1	1	1
Fibre denier	500-1500D( SINGLE YARN)
Spinneret/pos	6	4	8	6	4	3	2
Metering pump	12cc
Winder speed	2000-2400m/min
Capacity (900d)	3.5toms	2.3tons	2.3tons	1.7tons	1.2tons	0.8tons	0.6tons
Screw dia	120mm	105mm	90mm	90mm	70mm	70mm	55mm
Power	280kw	130kw	120kw	150kw	120kw	100kw	90kw
Machine size	5.5*5*6.5m





Fdy yarn making process

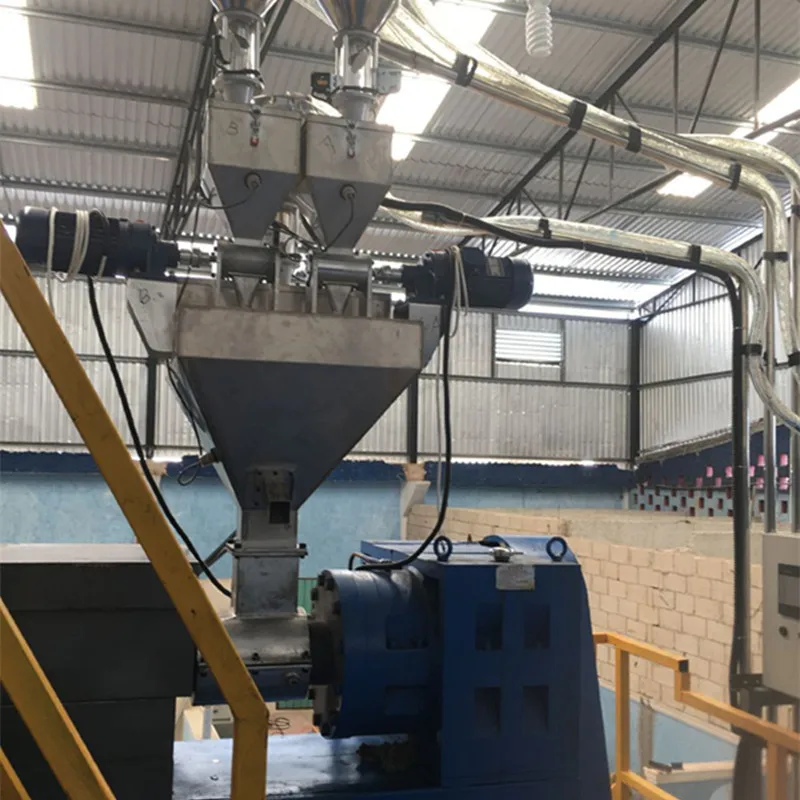

Pp chips--> automatic hopper& loader--> extrusion screw--> melting pipe--> metering pump--> spinning beam--> spinneret and loading units --> blower--> air device--> hot godets--> automatic bobbin change winder



 3layers steel frame deisgn





The daily output calculation:

Based on 1000denier,1 winders ,4cops of each winder,

winding speed2200m/min, efficiency 96%



         1000*1*4*2200*60*24*0.96

Q=   -------------------------------------=1.35(ton/day)(For reference)

                 9000*1000*1000



Fdy pp multifilament yarn application

fdy pp yarn spinning machine

1) needle loom for knitting webbing and belt

2) twisting machine( twister and M rope making machine) for twising rope,cordage, twine

3)braiding machine for braided rope, core-spun twisted rope for gift bag handle

4) reinforced concrete fiber, cement building fibre

5) sewing thread yarn for woven bag and sacks, JUMBO bag, flour bag, lifting handle, sacks, container bag etc

6) chemical filter cloth

Fully Automatic PP Industrial FDY Yarn Multifilament Yarn Spinning Machine/ spin draw plant





Certificate



 fdy pp yarn spinning machine



Compamy frofile



Taian Jiamei Machinery Technology Co. ,Ltd is specialized in extrusion technology machinery research ,design and manufacture . Have good experience of 30 years in machinery of extrusion technology .

Our main products include pp multifilament spinning line ,polyester multifilament spinning line , all kinds of plastic extruding machine .Our equipment is widely used in the industrial fields of braiding/knitting products ,construction reinforce fiber ,sewing thread ,rope ,narrow fabric etc .So far , many customer have gain very good economical benefits with our equipments .

Recent years , we start to develop international market , the machines have been exported to Spain, Romania, Russia ,Ukraine, India, Indonesia, Thailand, Africa etc .





Fdy machine delivery

pp multifilament yarn spinning machine

our machine require 1*40HP+1*20GP, main steel frame is nude, outside with plastic film to protect, winder etc and all spares will packed in wooden case





fdy pp multifilament yarn machine installation

pp multifilament yarn spinning machine

1. we arrange engineer to set up pp miltifilament spinning machine , need 12-15days

2. we offer professional trainning, skilled operator from china to guide you how to operate

3. Fast response for after -sales service, we have professional express agent and also through train to delivery the sapres, more convenient









Related machine

we have helped several client to do A~Z solutions , like plastic rope and twine making, webbing kintting , and concrete fiber making , weaving filter cloth , sewing yarn making line , let’s cooperate!

1) ring twister and two for one twister  2) rope making machine 3)spool winder  4) braiding machine 5)knitting needle loom

6)fiber cutting machine  7) net making machine  8) yarn twisting machine

1) fiber cutting machine, for cutting concrete fibre , carbom fiber







2) aty machine





3) yarn twisting machine
