Высокая эффективность Половина Cut сотовый 144 подойдет как для повседневной носки так 535W 540W 545W 550W 555W Солнечные фотоэлектрические панели панель солнечной батареи из
- Категория: Solar Energy Products >>>
- Поставщик: Shenzhen,Gsl,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.61 $* | 0.27 $* |
| Aug-16-2025 | 0.80 $* | 0.88 $* |
| Jul-16-2025 | 0.35 $* | 0.82 $* |
| Jun-16-2025 | 0.43 $* | 0.58 $* |
| May-16-2025 | 0.27 $* | 0.66 $* |
| Apr-16-2025 | 0.4 $* | 0.7 $* |
| Mar-16-2025 | 0.97 $* | 0.85 $* |
| Feb-16-2025 | 0.3 $* | 0.14 $* |
| Jan-16-2025 | 0.51 $* | 0.62 $* |
Характеристики
Product Description

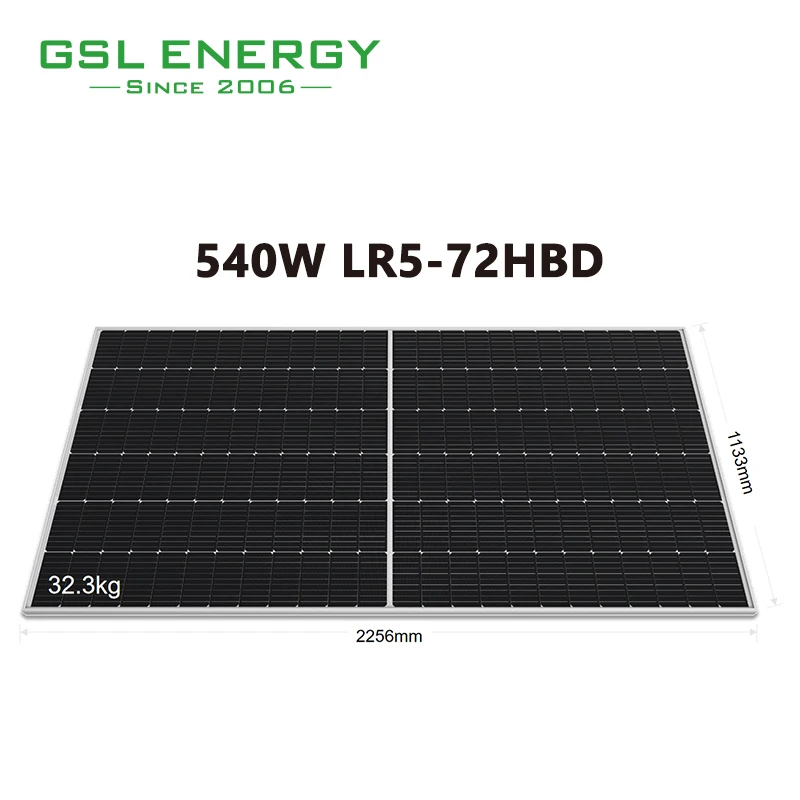

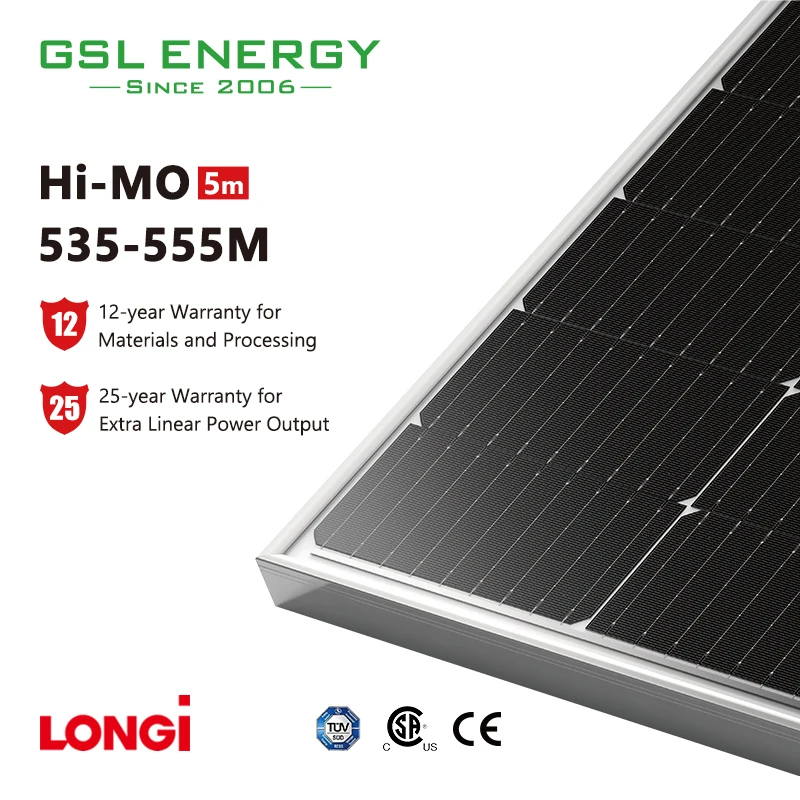

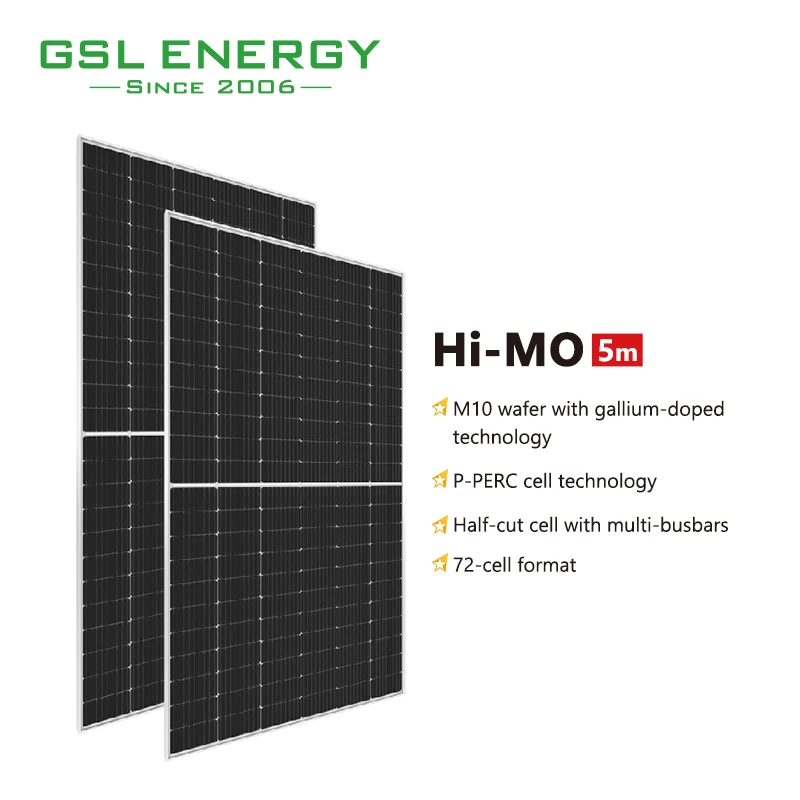

High Efficiency Half Cut Cell 144 Cell Mono 535W 540W 545W 550W 555W Photovoltaic Panel Monocrystalline Solar Module Solar Panel
| Mechanical Parameters | |
| Cell Orientation | 144 (6x24) |
| Junction Box | IP68, Three Diodes |
| Output Cable | 4mm², +400, -200mm/±1400mm length can be customized |
| Glass | Single Glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 27.2kg |
| Dimension | 2256x1133x35mm |
| Packaging | 31pcs per pallet / 155pcs per 20' GP / 620pcs per 40' HC |
| Electrical Characteristics | ||||||||||
| STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m² 20℃ 1m/s Test uncertainty for Pmax: ±3% | ||||||||||
| Module Type | LR5-72HPH -535M | LR5-72HPH -540M | LR5-72HPH -545M | LR5-72HPH -550M | LR5-72HPH -555M | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power (Pmax/W) | 535 | 399.9 | 540 | 403.6 | 545 | 407.4 | 550 | 411.1 | 555 | 414.8 |
| Open Circuit Voltage (Voc/V) | 49.35 | 46.40 | 49.50 | 46.54 | 49.65 | 46.68 | 49.80 | 46.82 | 49.95 | 46.97 |
| Short Circuit Current (Isc/A) | 13.78 | 11.14 | 13.85 | 11.20 | 13.92 | 11.25 | 13.98 | 11.31 | 14.04 | 11.35 |
| Voltage at Maximum Power (Vmp/V) | 41.50 | 38.55 | 41.65 | 38.69 | 41.80 | 38.83 | 41.95 | 38.97 | 42.10 | 39.11 |
| Current at Maximum Power (Imp/A) | 12.90 | 10.38 | 12.97 | 10.43 | 13.04 | 10.49 | 13.12 | 10.56 | 13.19 | 10.61 |
| Module Efficiency (%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.7 | |||||

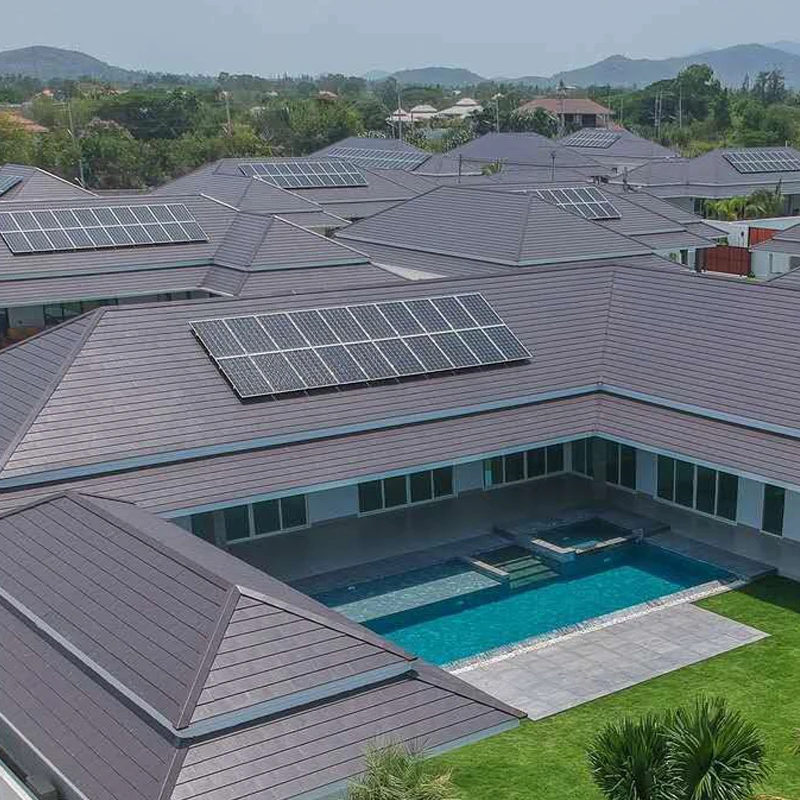

Project
Factory Introduction
GSL ENERGY is ed on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, GSL ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.
• Over 500 workers in 12000 sqm2 battery cell production and pack manufacturing base.
• Passing all certificates CE, VDE, IEC62133, IEC62219, UN38.3, MSDS, etc.
Exhibition
Through years development and experienced international sales team in Shenzhen, GSL ENERGY green solar and lithium battery products have been sold to clients all over the world.
High Efficiency Half Cut Cell 144 Cell Mono 535W 540W 545W 550W 555W Photovoltaic Panel Monocrystalline Solar Module Solar Panel
For more details and price, please send us an enquiry below ⇓⇓⇓
