Характеристики
Product Description

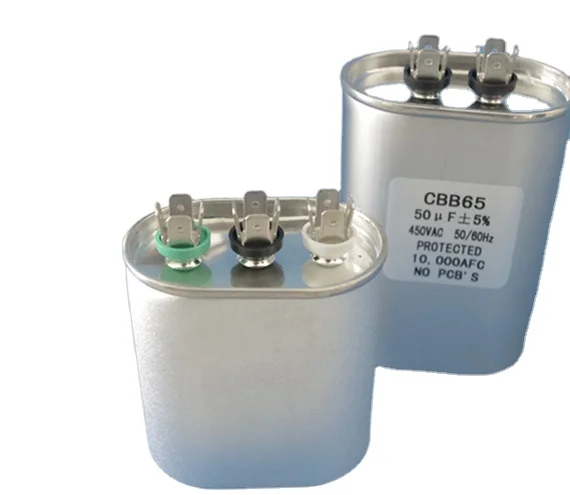

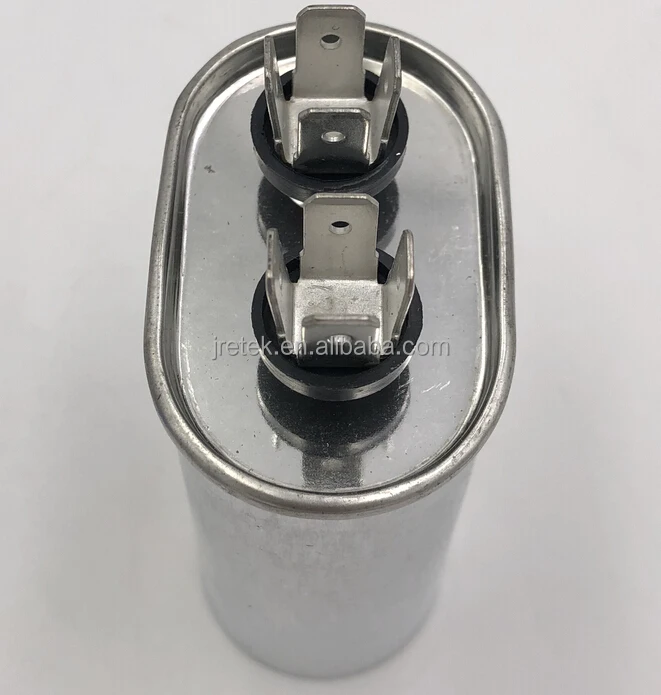

CBB65 Oil Filled air conditioning Run Capacitor for Motor
Specifications
1.Used widely in motors,air conditioner ,water pump etc
2.High performance & Long life Capacitor.
3.work well even in hot area

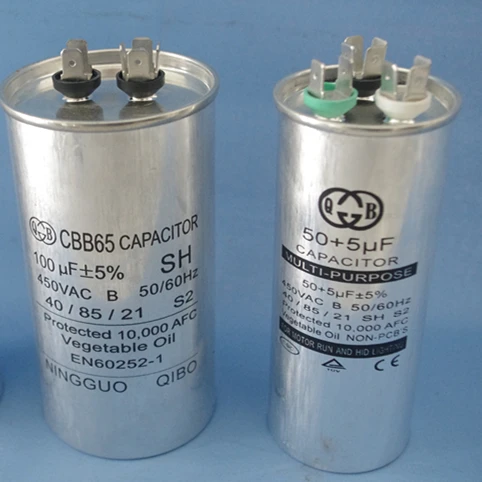

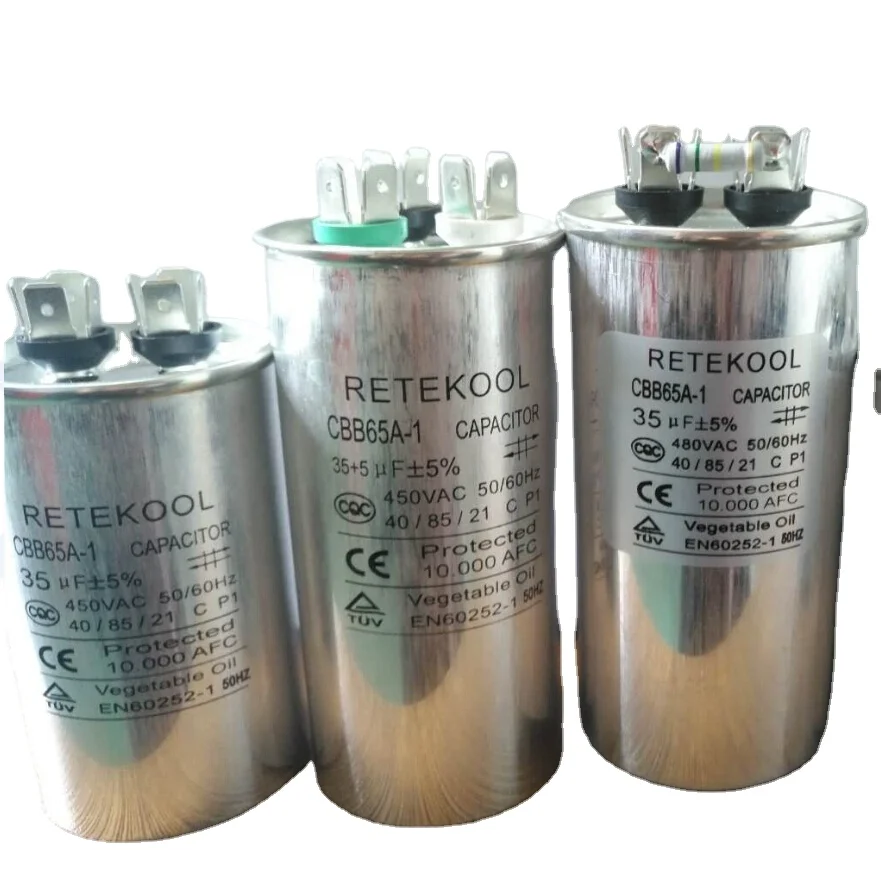

CBB65 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.

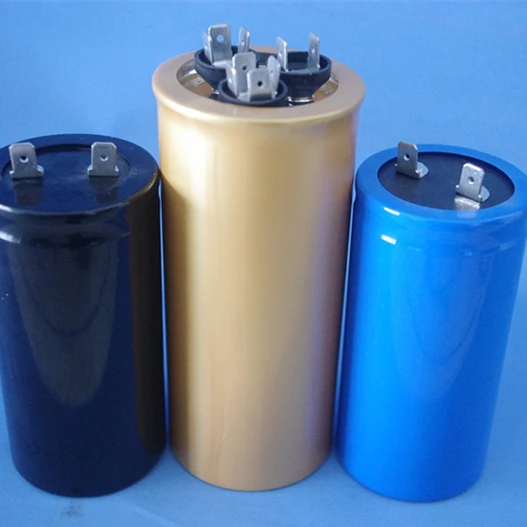

CD60-B MOTOR START CAPAClTORS
Main Feature:
1.Bakelite case
2.Voltages from 110V AC to 330V AC
3.UL Recognized Capacitors
Applicable Scope :
To start and run single phase m0tors in alternating current usage,
And it suit for single phase A.C. motors with frequency of 50/60Hz.
General Specifications:
Operating Temperature:-25~+65°C
Voltage Range:110~330V AC
Capacitance Range:21~1280μf
Capacitance Tolerance:+/-20%
Operate Frequency:50/60Hz
Case Size:8 Standard Size from
1 437"x2.750" ~2 562"x4.375"/36mm x 70mm~65mm x111mm
Termination:1/4 " Quick Disconnect Terminals(Std.
Case size of Standard Products (mm)
Note:All other types of products in form can be fulfilled at the request of customers.
Specifications
1.Used widely in motors,air conditioner ,water pump etc
2.High performance & Long life Capacitor.
3.work well even in hot area
CBB65 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection constrution.
CD60-B MOTOR START CAPAClTORS
Main Feature:
1.Bakelite case
2.Voltages from 110V AC to 330V AC
3.UL Recognized Capacitors
Applicable Scope :
To start and run single phase m0tors in alternating current usage,
And it suit for single phase A.C. motors with frequency of 50/60Hz.
General Specifications:
Operating Temperature:-25~+65°C
Voltage Range:110~330V AC
Capacitance Range:21~1280μf
Capacitance Tolerance:+/-20%
Operate Frequency:50/60Hz
Case Size:8 Standard Size from
1 437"x2.750" ~2 562"x4.375"/36mm x 70mm~65mm x111mm
Termination:1/4 " Quick Disconnect Terminals(Std.
Case size of Standard Products (mm)
| Rated Voltage Capacitance Range | 110-125V | 165V | 220-250V | 330V |
| D X H | ||||
| 21-25 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 |
| 25-30 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 |
| 30-36 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 |
| 43-53 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 |
| 53-64 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 |
| 67-77 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 |
| 88-108 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 | 46.02 x85.72 |
| 124-149 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 | 52.37 x111.12 |
| 161-193 | 36.5 x69.85 | 36.5 x85.72 | 52.37 x85.72 | 52.37 x111.12 |
| 200-240 | 36.5 x69.85 | 46.02 x85.72 | 52.37 x85.72 | 52.37 x111.12 |
Note:All other types of products in form can be fulfilled at the request of customers.
