Высокопоточный портативный клапан cga540 медицинский кислородный регулятор для мини-кислородных
- Категория: Pressure Regulators >>>
- Поставщик: Jiangsu,Minsheng,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 24.89 $* | 24.9 $* |
| Jul-17-2025 | 20.93 $* | 20.0 $* |
| Jun-17-2025 | 24.95 $* | 24.79 $* |
| May-17-2025 | 24.25 $* | 24.77 $* |
| Apr-17-2025 | 19.80 $* | 19.95 $* |
| Mar-17-2025 | 23.33 $* | 23.63 $* |
| Feb-17-2025 | 23.78 $* | 23.32 $* |
| Jan-17-2025 | 23.95 $* | 23.62 $* |
Характеристики
Product Description

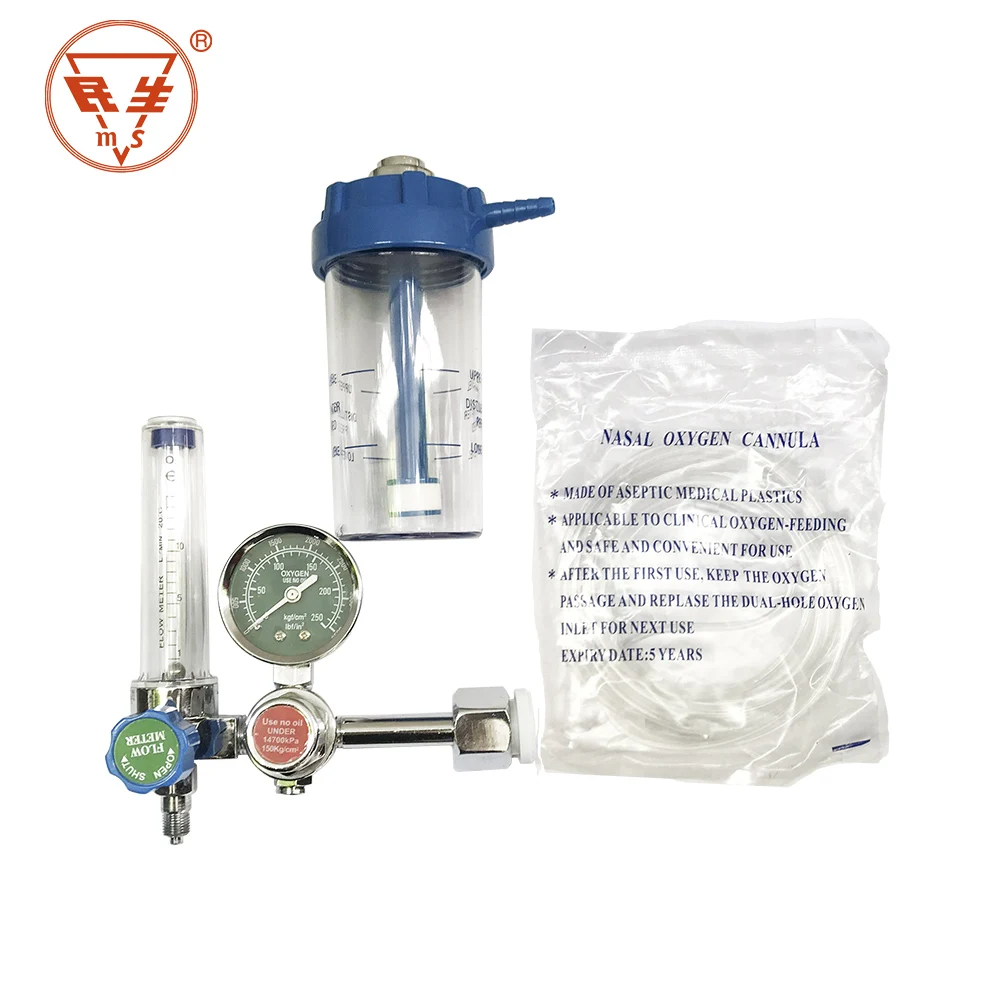

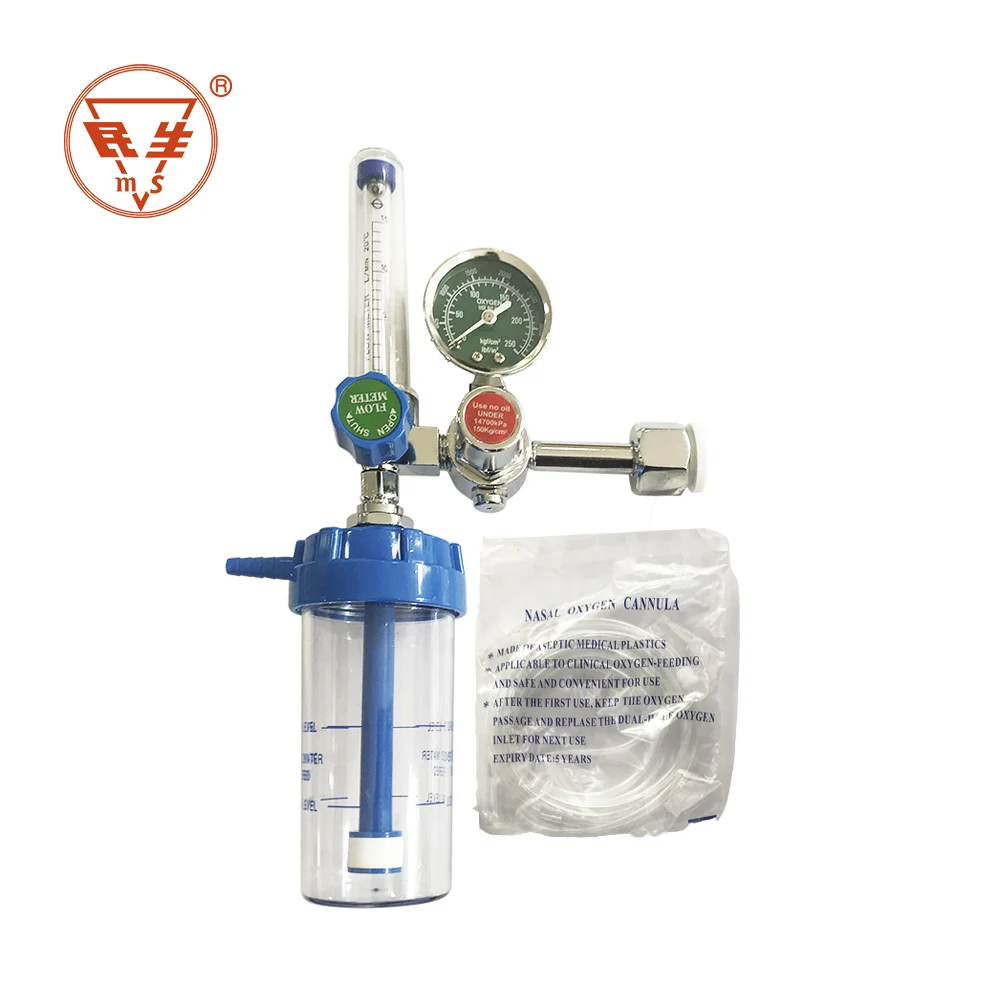

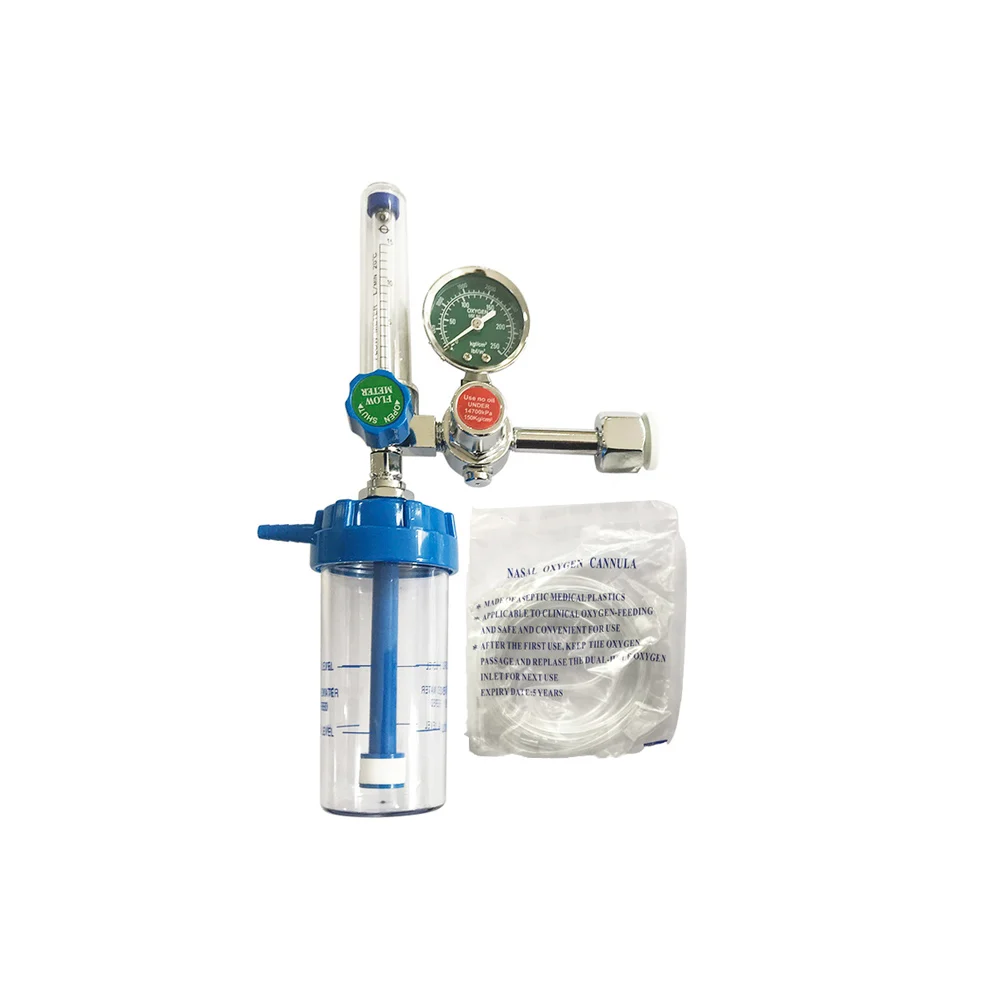

High flow portable cga540 valve medical oxygen regulator for mini oxygen bottles
Medical Oxygen Regulator
1.Flow rate: min 1L-10L; min 1L-15L
2.Input pressure:＜15Mpa
3.Output pressure: 0.2Mpa-0.3Mpa
4.Safety valve pressure contorl: 0.35±0.05Mpa
1) metering range (L/min): 1-10, 1-15;
2) accuracy: grade 4;
3) entrance Pressure(MPa): 12MPa 15MPa;
4) exit pressure(MPa): 0.2-0.3MPa;
5) entrance connection screw thread: G5/8-14-RH; CGA540-RH; G3/4-14-RH;
6) output connection screw thread: 8mm
2.Input pressure:＜15Mpa
3.Output pressure: 0.2Mpa-0.3Mpa
4.Safety valve pressure contorl: 0.35±0.05Mpa
1) metering range (L/min): 1-10, 1-15;
2) accuracy: grade 4;
3) entrance Pressure(MPa): 12MPa 15MPa;
4) exit pressure(MPa): 0.2-0.3MPa;
5) entrance connection screw thread: G5/8-14-RH; CGA540-RH; G3/4-14-RH;
6) output connection screw thread: 8mm
Type | Gas Type | Input Pressure | Output Pressure | Control Pressure Of Safety Valve | Flowmeter Control Range | Material | Conecting Thread |
MS-C | Oxygen | 150bar | 2bar-3bar | 3.5bar±0.5bar | 1L/min-10L/min | Brass | Female G5/8 Male G3/8G3/4 |
MS-C1 | |||||||
MS-C2 | |||||||
MS-C3 | |||||||
MS-C4 | |||||||
MS-C5 | |||||||
MS-C6 | |||||||
MS-C7 | |||||||
MS-C8 | |||||||
MS-C9 | |||||||
MS-C10 | |||||||
MS-C11 |
Detailed Images

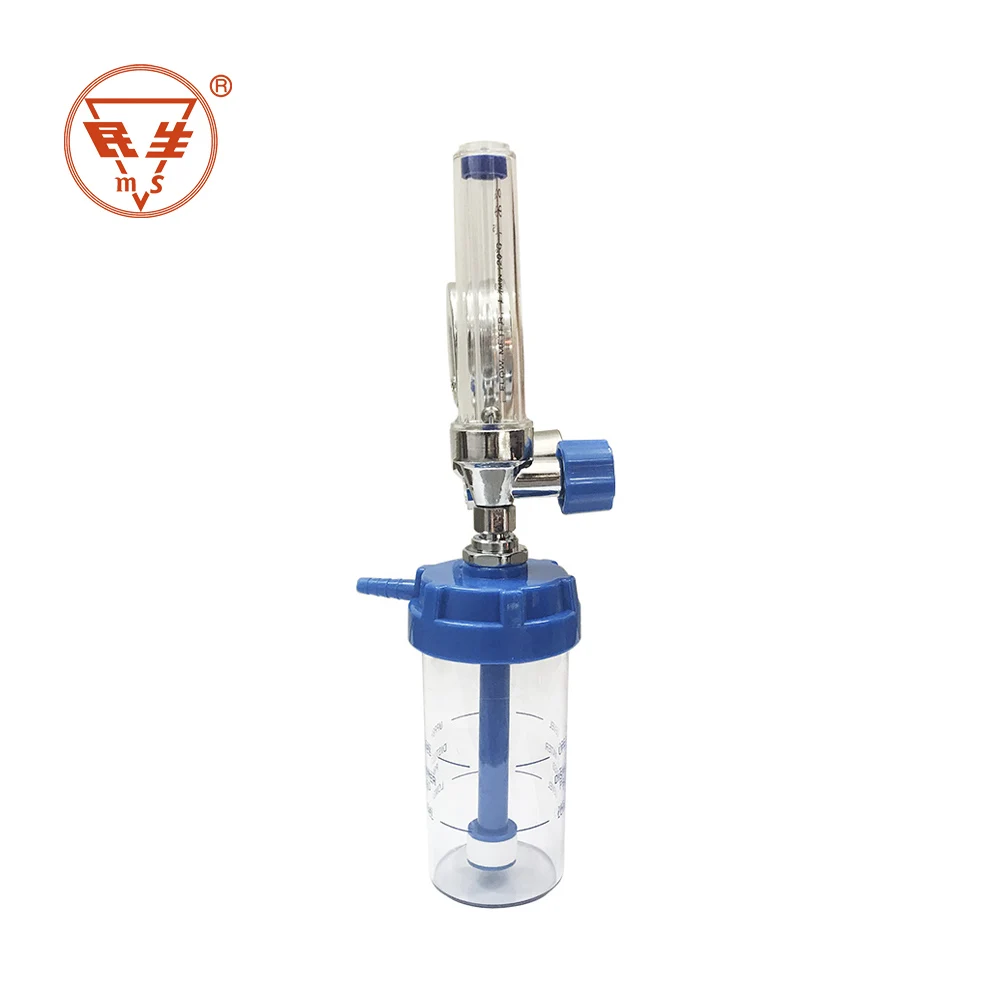

Minsheng Produce Top Quality Medical Regulator Details View
copper valves to prevent air leakage
Safety Valve, when the pressure is greater than the rated pressure of 1.3 times, the pressure-relief Valve automatically opened
the valve deflated
the valve deflated
The dial is strong and durable
Medical Oxygen Regulator Application

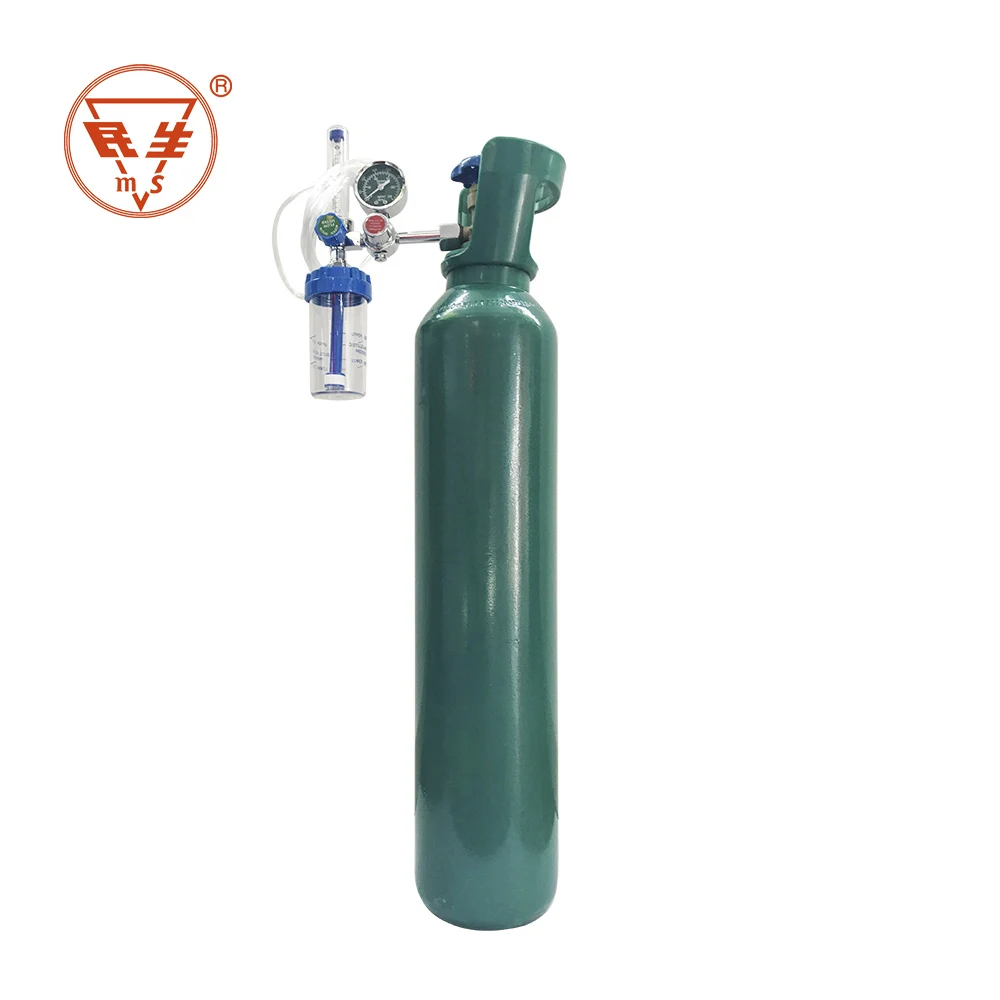

Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use.
