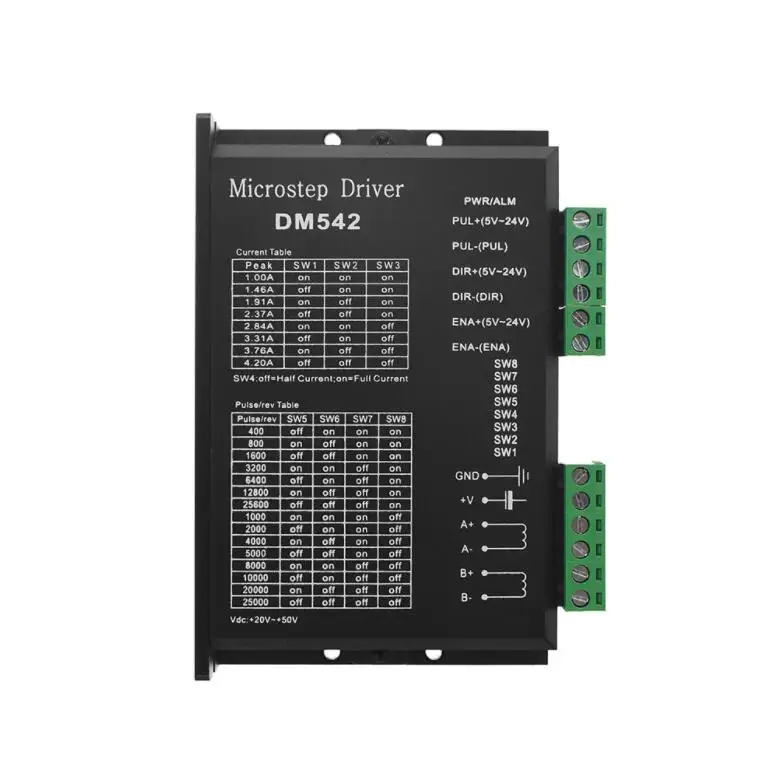

DM542 Stepper Motor Driver 2 phase 4.2A for 42 57 86 Stepper Motor 17/23/34 Controller Can Replace TB6600 DM556








1. Electrical parameters:




Input voltage:  DC 24~50V input




Output current:  less than 4 amperes




Output current:  1.0A~4.2A




Power consumption: power consumption: 80W; internal insurance: 6A




Temperature:  working temperature -10~45℃; storage temperature -40℃~70℃




Humidity:  no condensation, no water droplets




Gas:  non-flammable gas and conductive dust




Weight:  200 grams





2. Control signal interface:





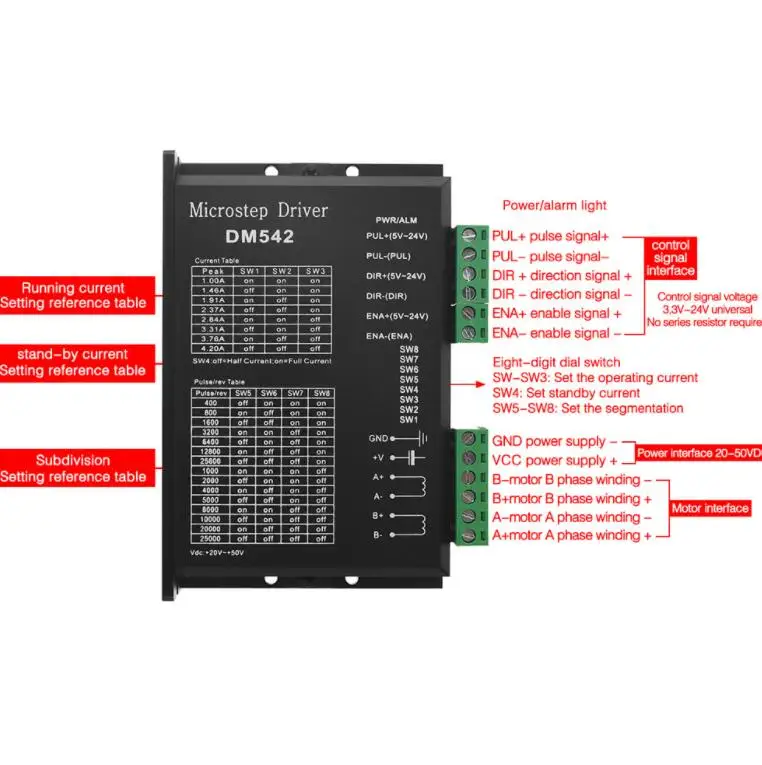

1. Definition of control signal




PLS+: Step pulse signal input positive terminal or positive step pulse signal input positive terminal




PLS-: Step pulse signal input negative terminal or positive step pulse signal input negative terminal


DIR+: Step direction signal input positive terminal or reverse step pulse signal input positive terminal




DIR-: Step direction signal input negative terminal or reverse step pulse signal input negative terminal




ENA+: Offline enable reset signal input positive terminal




ENA-: Offline enable reset signal input negative terminal




When the offline enable signal is valid, the drive fault is reset, any valid pulse is prohibited, the output power element of the drive is turned off, and the motor has no holding torque


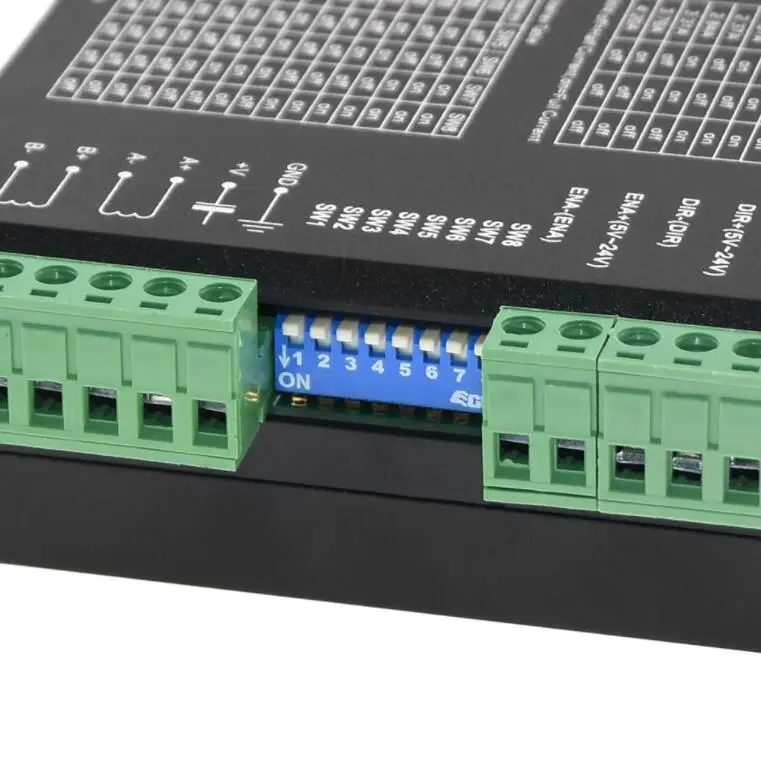

2. Control signal connection




The control signal of the host computer can be effective at high level or at low level. When high is effective, connect the negative ends of all control signals together as the signal ground, when low, connect the positive ends of all control signals together as the signal common end. Now take the open collector and PNP output as an example, the interface circuit diagram is as follows:





Drive wiring:


A complete stepper motor control system should contain stepper drives, DC power supplies and controllers (pulse sources).

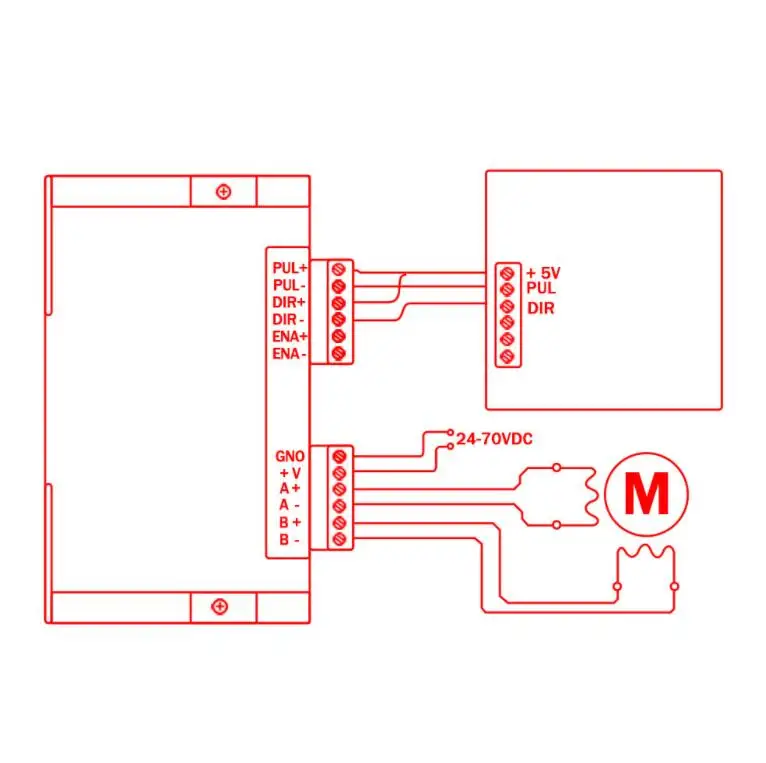

The following is a typical system wiring diagram:
