ЖК-панель IPS 4 3 5 7 8 9 10 1 дюймов сенсорный экран ЖК-дисплей с платой
- Категория: Touch Screen Monitors >>>
- Поставщик: Hangzhou,Hongxiao,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.85 $* | 0.83 $* |
| Aug-19-2025 | 0.35 $* | 0.60 $* |
| Jul-19-2025 | 0.31 $* | 0.78 $* |
| Jun-19-2025 | 0.85 $* | 0.84 $* |
| May-19-2025 | 0.14 $* | 0.79 $* |
| Apr-19-2025 | 0.83 $* | 0.18 $* |
| Mar-19-2025 | 0.91 $* | 0.41 $* |
| Feb-19-2025 | 0.69 $* | 0.92 $* |
| Jan-19-2025 | 0.99 $* | 0.82 $* |
Характеристики
Customized Solution
Grahowlet- China P-CAP & TFT Manufacturer
• PCAP size from 1.3”-65”
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
• CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
• CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<

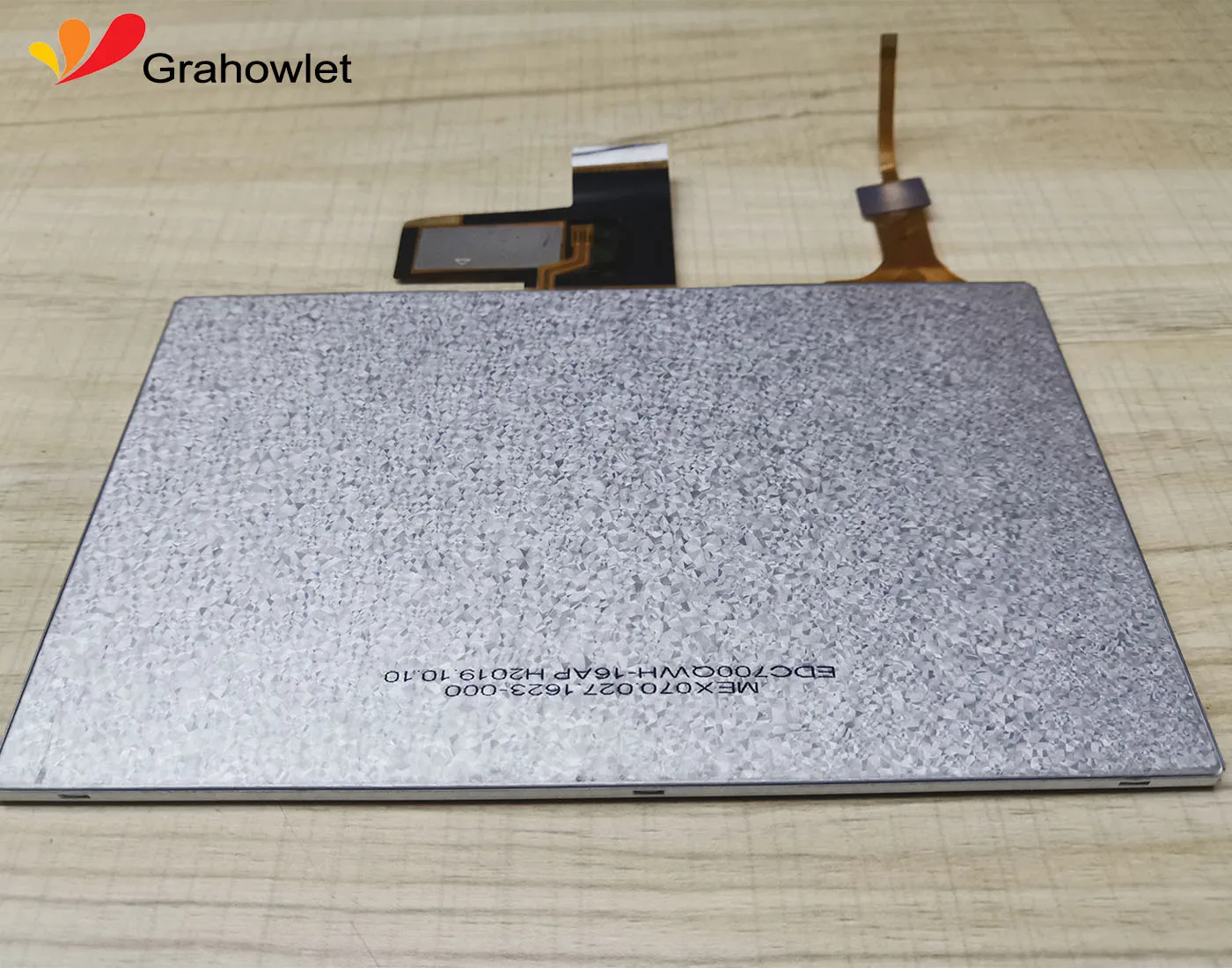

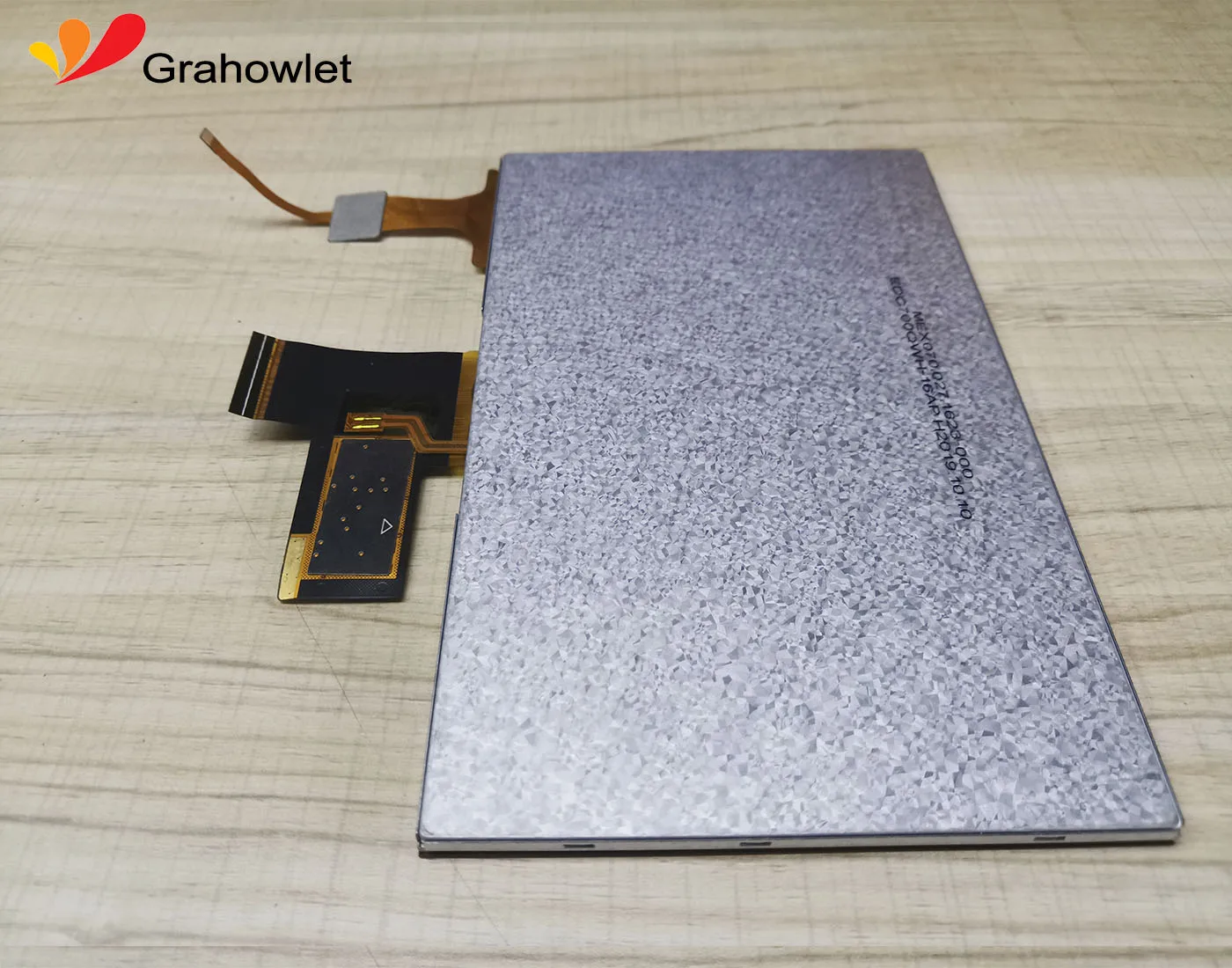

Products Description
Product Name | HX0701820 |
Brand | Grahowlet |
Size | 7.0 inch |
Operating Temperature | -20℃ ~ 70℃ |
Storage Temperature | -30℃ ~ 80℃ |
Outline Dimension | 165.00x100.00x5.35 mm |
Viewing Area | 154.88(W)x86.72(H) mm |
Active Area | 154.21(W)x85.92(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
PCAP Interface Type | USB/IIC(6 pins) |
Structure | G+G |
Controller IC | Cypress |
Touch Points | 10 Points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Power Supply Voltage | 2.8V ~ 3.3V |
Resolution | 1024X600 |
TFT Interface Type | LVDS(40 pins) /HDMI/VGA |
Luminance | 500-1000 cd/m² |
Viewing Angle | ALL |
Related Products

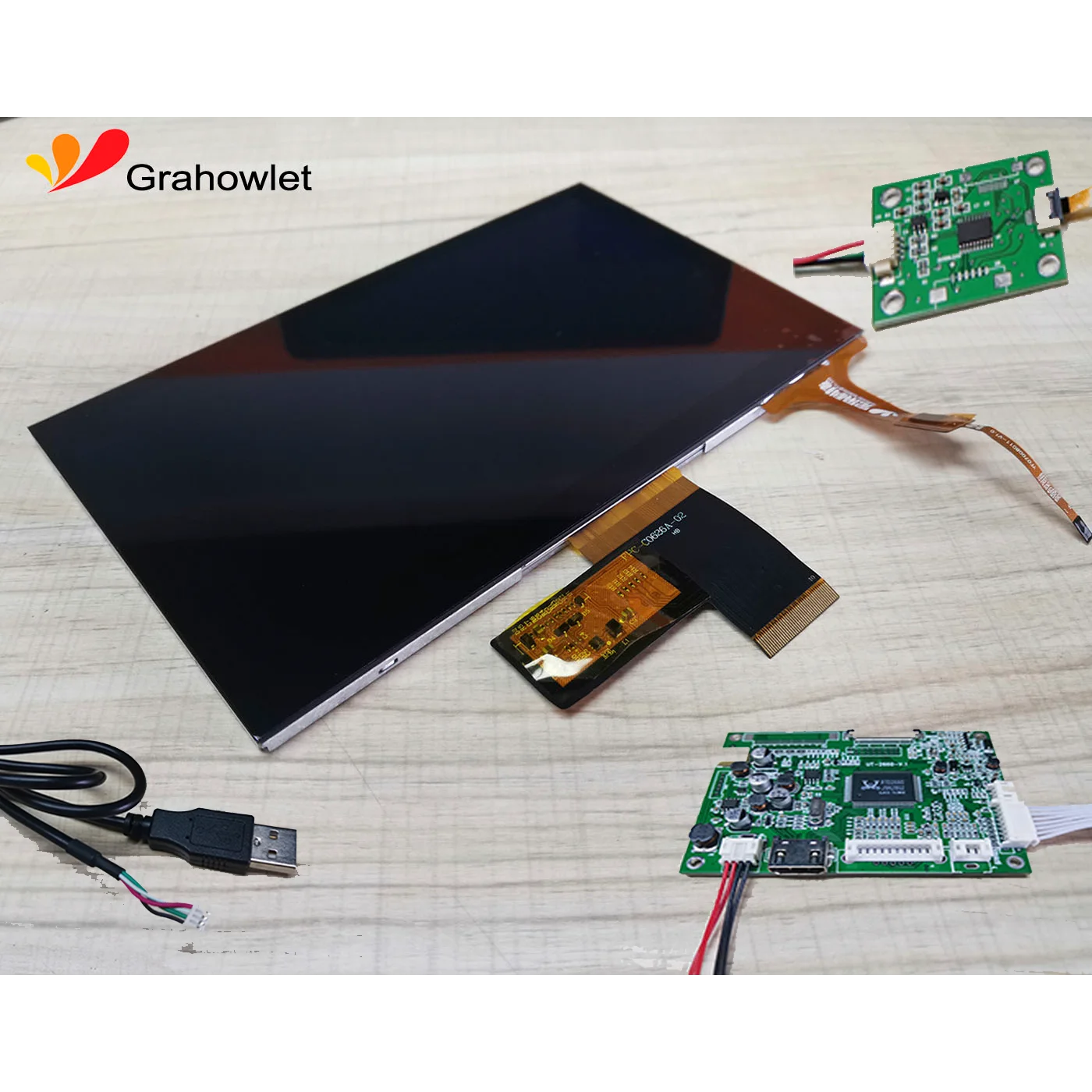

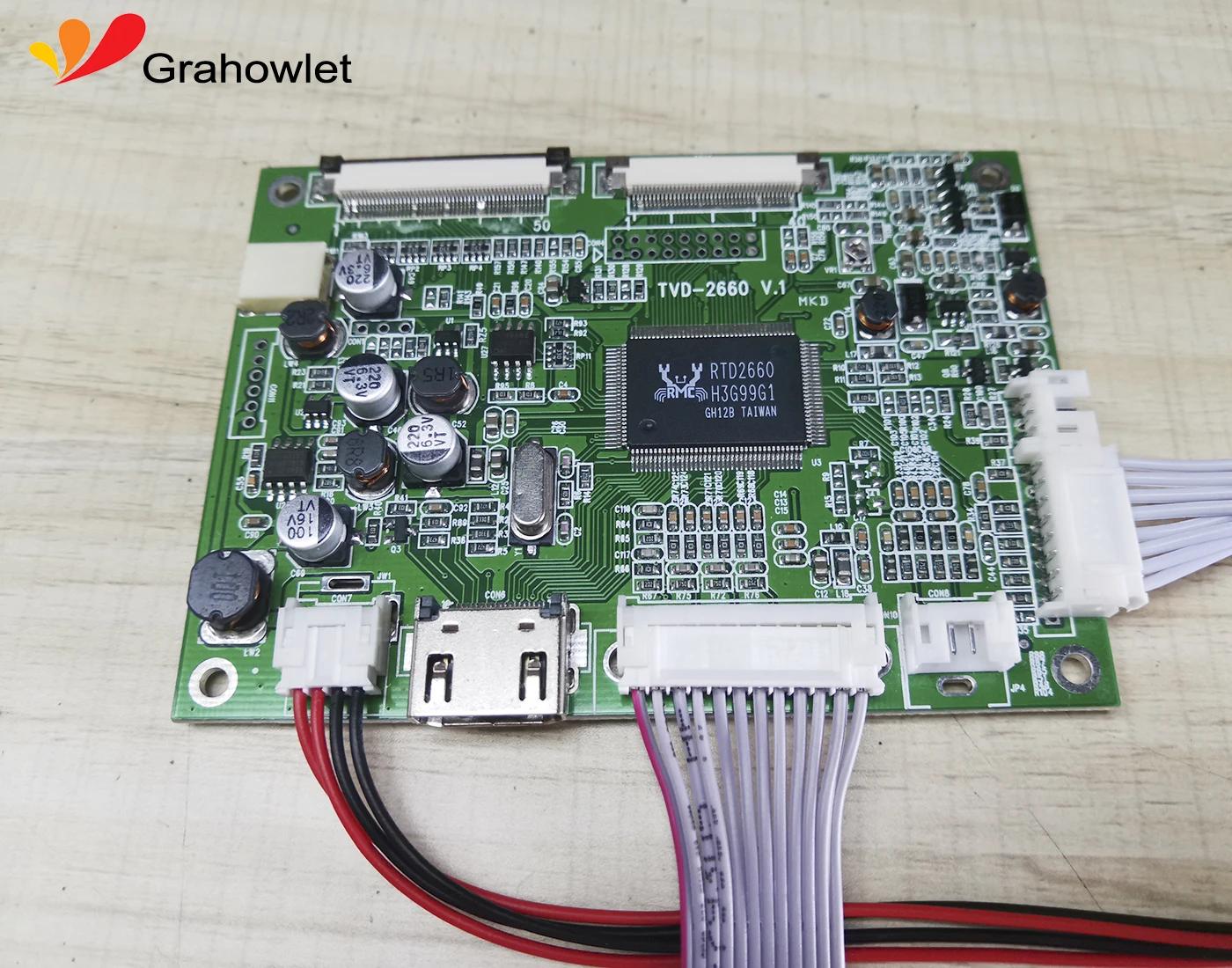

We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Our Company
Hangzhou Grahowlet Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Grahowlet supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI,FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Application
Industrail Control
Touch Panel solution
1.G+G structure,2.0 thick Corning tempered glass cover with surface AF processed.
2.Cypress program with FPC screened.
3. Convenient for TP and TFT Assembly ..........
1.G+G structure,2.0 thick Corning tempered glass cover with surface AF processed.
2.Cypress program with FPC screened.
3. Convenient for TP and TFT Assembly ..........
Intelligent Household
Touch screen solution
1.G+G Structure, thick tempered glass cover with surface AF processed
2.Cypress or Atmel program with good anti-interfernce......
1.G+G Structure, thick tempered glass cover with surface AF processed
2.Cypress or Atmel program with good anti-interfernce......
Medical Equipment
Touch Panel solution
1.G+G structure,Asahi glass cover with surface AF processed.
2.Cypress, fifth series progarm with good anti-interference performance..........
1.G+G structure,Asahi glass cover with surface AF processed.
2.Cypress, fifth series progarm with good anti-interference performance..........
Outdoor Equipment
Touch screen solution:
Capacitive touch screen glove function and water function, service life, visibility in the sun, impact resistance is generally comcerned, so stable G+G structure is usually recommeded........
Cover Lens
Materials:Glass,PMMA
Shape:Support for specialcut, drillhole (minimum aperture 0.8 mm)Color:Different colors of silkprint and LOGO screen print(UV-proof ink optional)
Brand:Options: AGC,Corning,CG etc.
Thickness:Thickness option: 0.55,
0.7,1.0,1.1,1.8,2.0,3.0,4.0,5.0,6.0mm etc.
0.7,1.0,1.1,1.8,2.0,3.0,4.0,5.0,6.0mm etc.
Sensor Features
Materials:Glass,fiilm,film+film
Thickness:0.005mm,0.125mm,0.4mm,0.55mm,0.7mm,1.1mm
FPC:shape design optional
IC:Cypress,Ilitek,Atmel,Focaltech,Goodix,EETI,etc
Interface:IIC,USB,RS232
Thickness:0.005mm,0.125mm,0.4mm,0.55mm,0.7mm,1.1mm
FPC:shape design optional
IC:Cypress,Ilitek,Atmel,Focaltech,Goodix,EETI,etc
Interface:IIC,USB,RS232
Display
Partners: BOE, AUO, LNNOLux, TianMa, IVO, etc.
Category: TFT-LCD, OLED
Optical Bonding:OCA,OCR
Category: TFT-LCD, OLED
Optical Bonding:OCA,OCR
Interface:MCU,SPI,RGB,MIPI,LVDS,EDP,HDMI,VGA, ect.
Frame Adhension
Frame Adhension
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -12mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem through
converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
AF processing is adding on the cover glass a king of coating that
could increases surface smoothness, reduces surface sliding resistance , residual water
and fingerprints on the surface significantly and improves feeling and clarity.
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers;
The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers;
The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
