DC 5V-12V 6V Драйвер шагового двигателя мини 2-фазный 4-проводной 4-фазный 5-проводной Многофункциональный Шаг регулятор скорости вращения зарядная Модульная
DC 5V-12V 6V Драйвер шагового двигателя мини 2-фазный 4-проводной 4-фазный 5-проводной Многофункциональный Шаг регулятор скорости вращения зарядная Модульная
DC 5V-12V 6V Драйвер шагового двигателя мини 2-фазный 4-проводной 4-фазный 5-проводной Многофункциональный Шаг регулятор скорости вращения зарядная Модульная
DC 5V-12V 6V Драйвер шагового двигателя мини 2-фазный 4-проводной 4-фазный 5-проводной Многофункциональный Шаг регулятор скорости вращения зарядная Модульная
DC 5V-12V 6V Драйвер шагового двигателя мини 2-фазный 4-проводной 4-фазный 5-проводной Многофункциональный Шаг регулятор скорости вращения зарядная Модульная
DC 5V-12V 6V Драйвер шагового двигателя мини 2-фазный 4-проводной 4-фазный 5-проводной Многофункциональный Шаг регулятор скорости вращения зарядная Модульная

DC 5V-12V 6V Драйвер шагового двигателя мини 2-фазный 4-проводной 4-фазный 5-проводной Многофункциональный Шаг регулятор скорости вращения зарядная Модульная


Поделиться:


Цена:3,20 $ - 3,55 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-20-2025 4.1 $* 4.68 $*
Jul-20-2025 3.42 $* 3.84 $*
Jun-20-2025 4.41 $* 4.3 $*
May-20-2025 4.39 $* 4.18 $*
Apr-20-2025 3.93 $* 3.22 $*
Mar-20-2025 4.55 $* 4.14 $*
Feb-20-2025 4.61 $* 4.9 $*
Jan-20-2025 4.35 $* 4.62 $*

Характеристики



Product Description


[Size] ：59.5mm*44mm
[Voltage range] DC5V-12V
[rated current] ≤ 800mA
[Power reverse connection protection] yes
[Overcurrent protection] yes
[overheat protection] yes

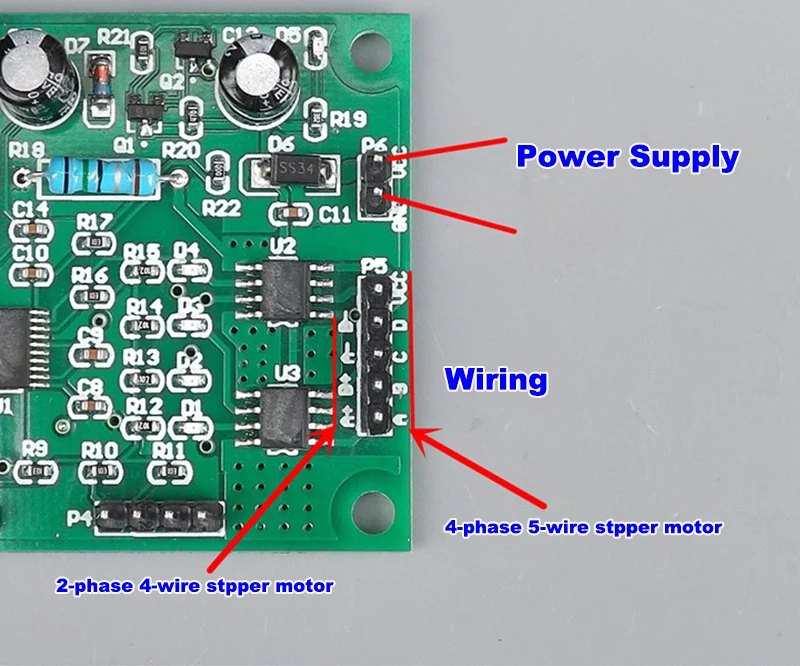

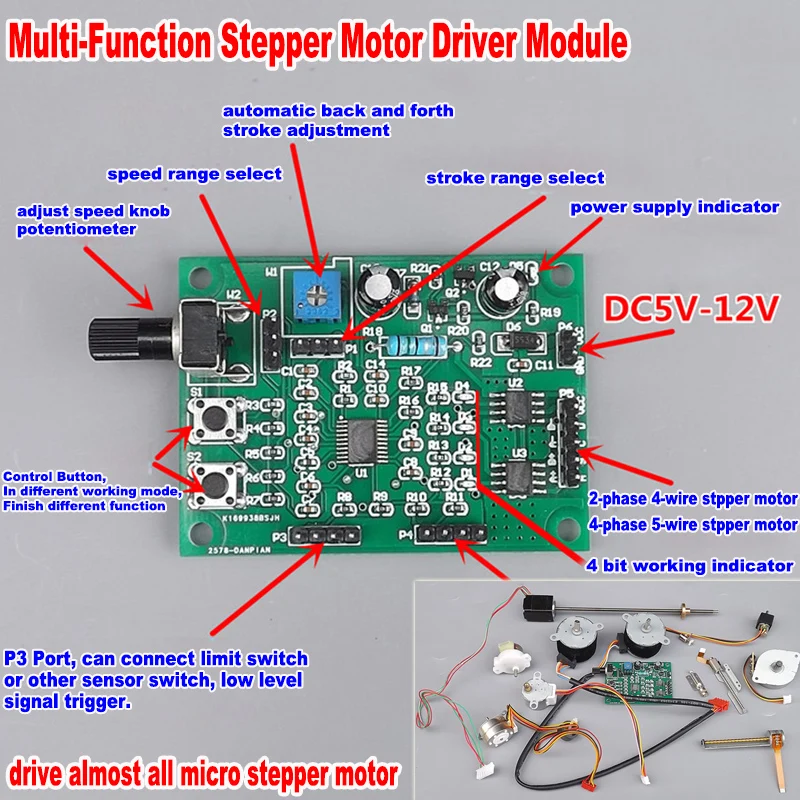

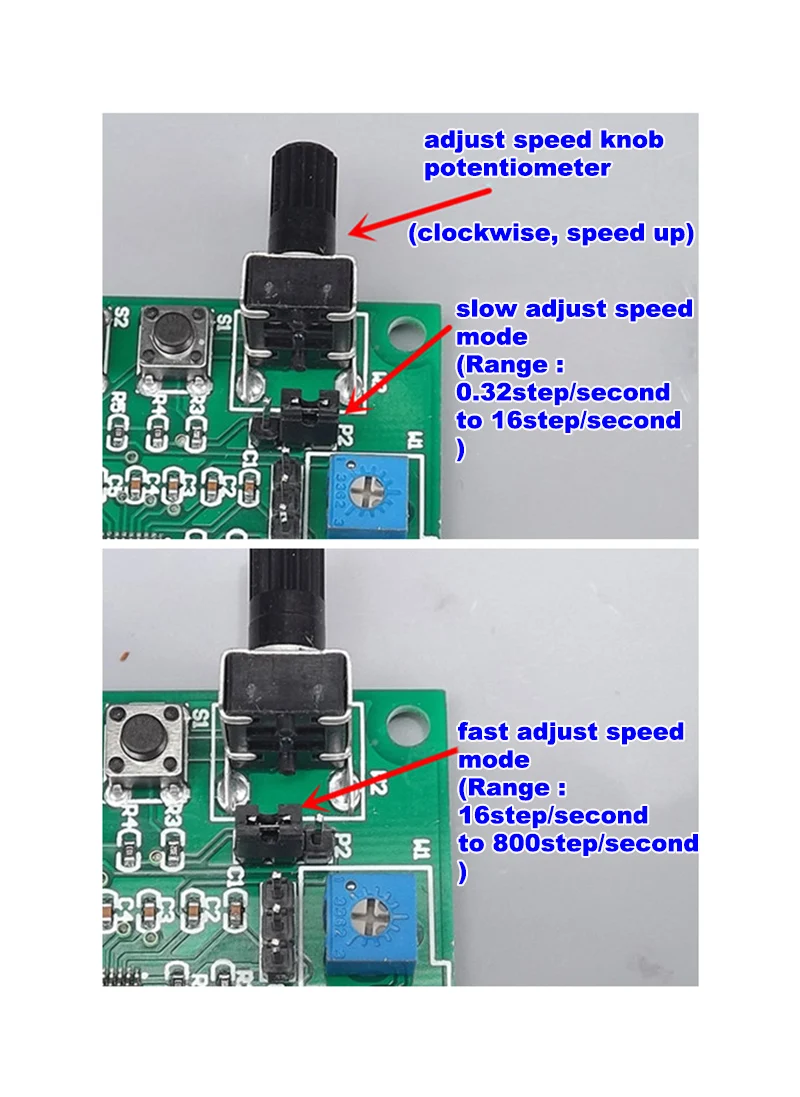

[1] Normal mode 1: S1 start/stop button, S2 forward/backward button, W2 potentiometer speed control. If limit reversal is
required, two limit switches can be connected to the P3 pin, and the motor motion shaft is mounted with contacts, so that the
motor will reciprocate within the stroke between the two limit switches.

[2] Normal mode 2: Click S1 button to start forwards, S2 backwards, click any button again to stop. W2 potentiometer speed
regulation. If the limit stop is required, two limit switches can be connected to the P3 pin, so that the motor will stop moving
when it touches the limit switch, and the motor will reverse after the opposite button is clicked.

[3] Jog mode: S1 presses the forward rotation, releases the stop, S2 presses the reverse rotation, releases the stop, and the W2
potentiometer adjusts the speed. If a limit stop is required, the upper limit switch can be connected to P3.

[4] Automatic round-trip mode: S1 starts and stops, S2 is reversed, W2 potentiometer speeds, and W1 potentiometer adjusts the
automatic round-trip steps. After starting, the motor automatically runs back and forth within the number of steps adjusted by W1.
