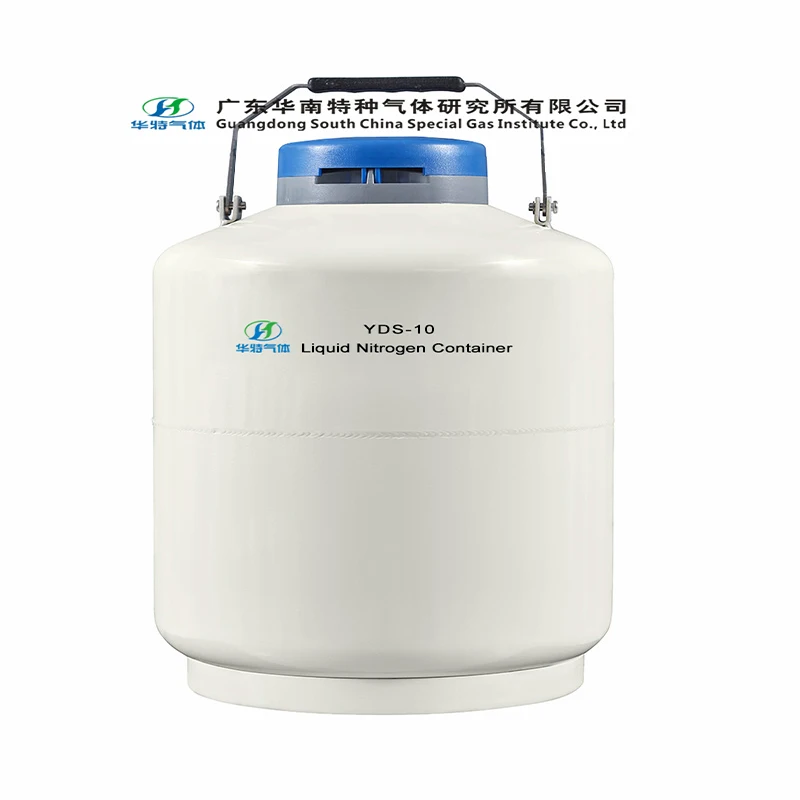

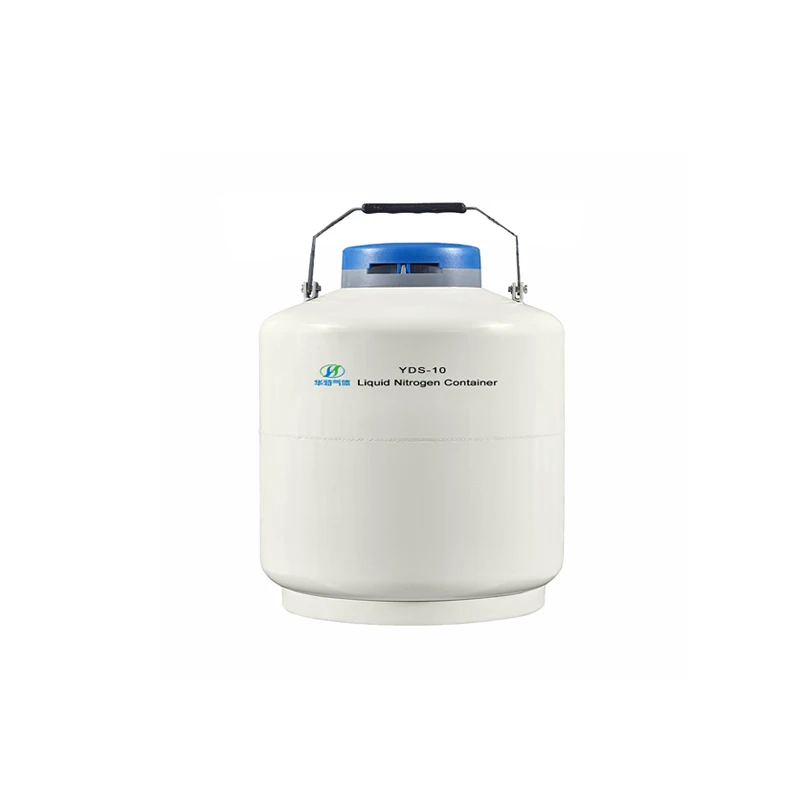

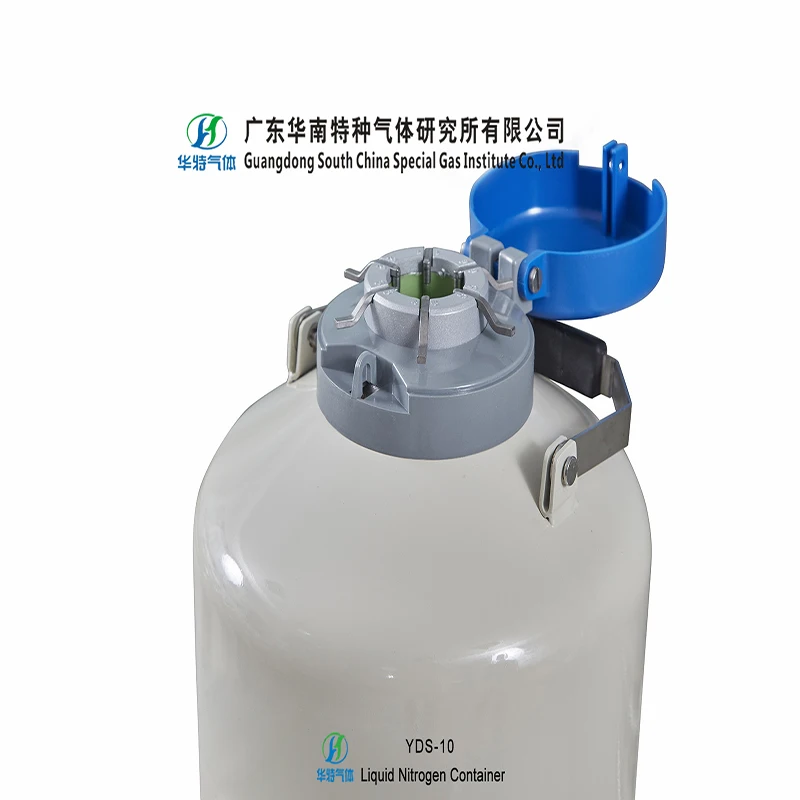

Резервуар для хранения семян жидкий азот 10

Категория: Chemical Storage Equipment >>>
Поставщик: South,China,Special,Gas,Institute,Co.,Ltd.

Цена:165,00 $ - 180,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	210.53 $*	214.19 $*
Jul-18-2025	170.23 $*	173.25 $*
Jun-18-2025	206.47 $*	210.60 $*
May-18-2025	205.8 $*	209.99 $*
Apr-18-2025	163.82 $*	166.70 $*
Mar-18-2025	201.71 $*	205.94 $*
Feb-18-2025	200.13 $*	204.67 $*
Jan-18-2025	198.20 $*	202.97 $*

Характеристики

Model Specification

Laboratory Series

Laboratory series dewar flask vessel combines the advantages of low liquid nitrogen consumption and medium storage capacity. light weight, less space occupation and high effiviency storage of large sample freezing. It can meet the differnent needs of laboratory professionals. All models include freeze shelves and PC freeze boxes to ensure easy storage of sample.

Model	YDS-10-125-F	YDS-30-125-F	YDS-35-125-F	YDS-47-127-6Y	YDS-50B-125-F
Ln2 Capacity (L)	10	31.5	35.5	47	50
Neck opening (mm)	125	125	125	127	125
Outer Diameter (mm)	300	462	462	508	462
Over height (mm)	554	704	748	718	818
Empty weight (kg)	6.3	13	14.6	18.2	17.3
Static evaporation rate (L/Day)	0.42	0.35	0.36	0.36	0.45
Static holding time (day)	24	90	97	130	110

Portable Storage Series

Portable storage serie dewar container vessel is an economical and practical small liquid nitrogen tank specially designed for
biogical samples that need to be stored regularly. The series is small in size and light in weight. It is made of high strength light aluminum ally and contains multi-layer super strong heat insulation layer. It realizes the safety, lightness and efficiency of the product and has many accessories to choose from.

Model NO.	YDS-2-30	YDS-2-35	YDS-2	YDS-3	YDS-6	YDS-10
LN2 Capacity (L)	2	2	2	3	6	10
Neck Openning (mm)	30	35	50	50	50	50
Outer Diameter(mm)	223	204	223	223	300	300
Over height （mm）	399	428	385	435	482	552
Static Evaporation rate (L/day)	0.07	0.08	0.10	0.12	0.12	0.12
Static Holding Time (day)	28	24	20	26	52	86
Empty Weight (KG)	2.8	2.6	2.7	3.1	4.8	6.1

Static Storage Series

Static storge series dewar container is an economical small liquid nitrogen tank for Laboratory use. It is specially designed for biological samples that need long time static storage. It has two types of products: large capacity and super-long storage period, this
series is made of high strength and light weight aluminum alloy with multi-layer and super-strong insulation layer. It realizes
the safty, lightness and efficiency ect.good Performance and has a variety of accessories to choose from.

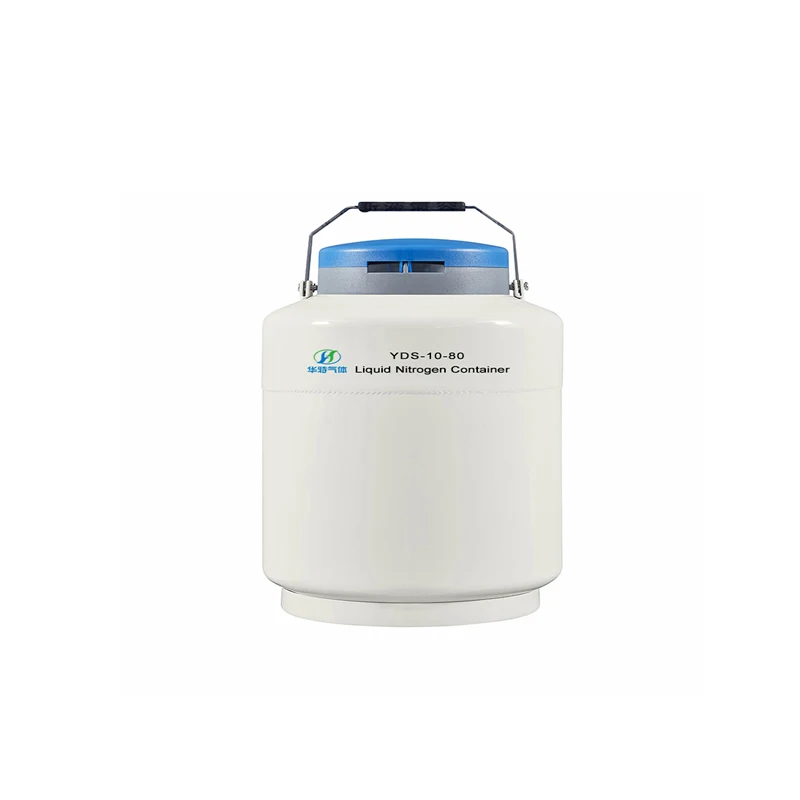

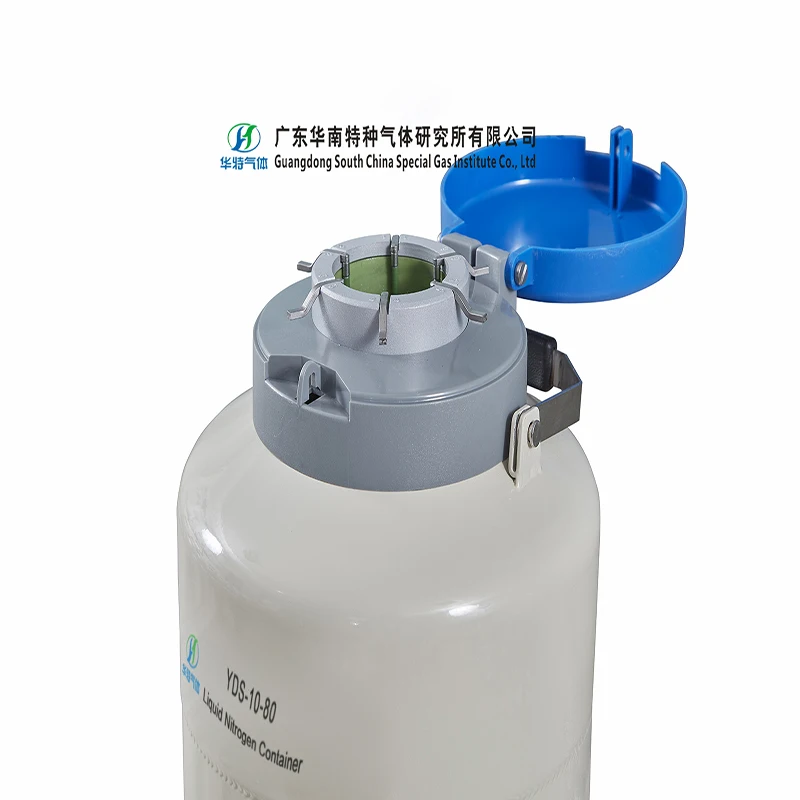

Model NO.	YDS-10-80	YSD-13	YSD-15	YSD-20	YSD-25	YSD-30	YSD-35	YSD-50B
LN2 Capacity (L)	10	13	15	20	25	31.5	35.5	50
Neck opennning (mm)	80	50	50	50	50	50	50	125
Outer Diameter (mm)	300	310	394	394	394	462	462	462
Over Heigh （mm）	557	623	591	672	700	705	749	818
Static Evaporation Rate (L/day )	0.21	0.12	0.11	0.12	0.14	0.12	0.12	0.45
Static Holding Time (day)	48	109	134	168	180	254	286	110
Empty Weight (kg )	6.2	6.3	8.5	9.5	10.7	12.9	14.2	17.3

Dry Shiper Serials

Dry shipper series is suitable for cryogenic environment(vapor storage and temperature below -190 ℃transportation for samples. It
could avoid the risk of the liquid nitrogen releasing during transportation, especially designer for short-term air transport. The
interal liquid nitrogen adsorbent, can absorb and save liquid nitrogen, even if the container falls down, liquid nitrogen would not pour out. It uses special stainless steel mesh to separated storage space and absorption material, to avoid liquid nitrogen absorption materal mixed into the sample, mainly used for laboratory users and short-term delivery of small number samples.

Model No.	YSD-3H	YSD-6H-80	YSD-10H-125	YSD-25H-216
LN2 Capacity(L )	1.3	2.9	3.4	9
Neck openning (mm )	50	80	125	216
Outer diameter(mm)	223	300	300	394
Over height (mm)	435	487	554	716
Static Evaporation rate （L/d）	0.16	0.20	0.43	0.89
Static Holding time （d）	20	37	23	29
Empty Weight (kg )	3.2	4.9	6.7	15
