JY302 Тракторная автоматическая система рулевого управления GPS
- Категория: Computer Hardware & Software >>>
- Поставщик: SZFP,(Shenzhen),Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7140.83 $* | 7497.61 $* |
| Aug-20-2025 | 7080.65 $* | 7434.56 $* |
| Jul-20-2025 | 5940.52 $* | 6237.12 $* |
| Jun-20-2025 | 6960.98 $* | 7308.89 $* |
| May-20-2025 | 6060.16 $* | 6363.26 $* |
| Apr-20-2025 | 6840.25 $* | 7182.30 $* |
| Mar-20-2025 | 6780.55 $* | 7119.3 $* |
| Feb-20-2025 | 6720.67 $* | 7056.25 $* |
| Jan-20-2025 | 6660.11 $* | 6993.30 $* |
Характеристики
What is Agriculture Navigation
Agriculture navigation system is born for intelligent farming which help farmer enhance the productivity. There are Guidance system,land leveling system and auto steering system for options.
Auto steering system is positively introduced because its creative technology for agriculture.

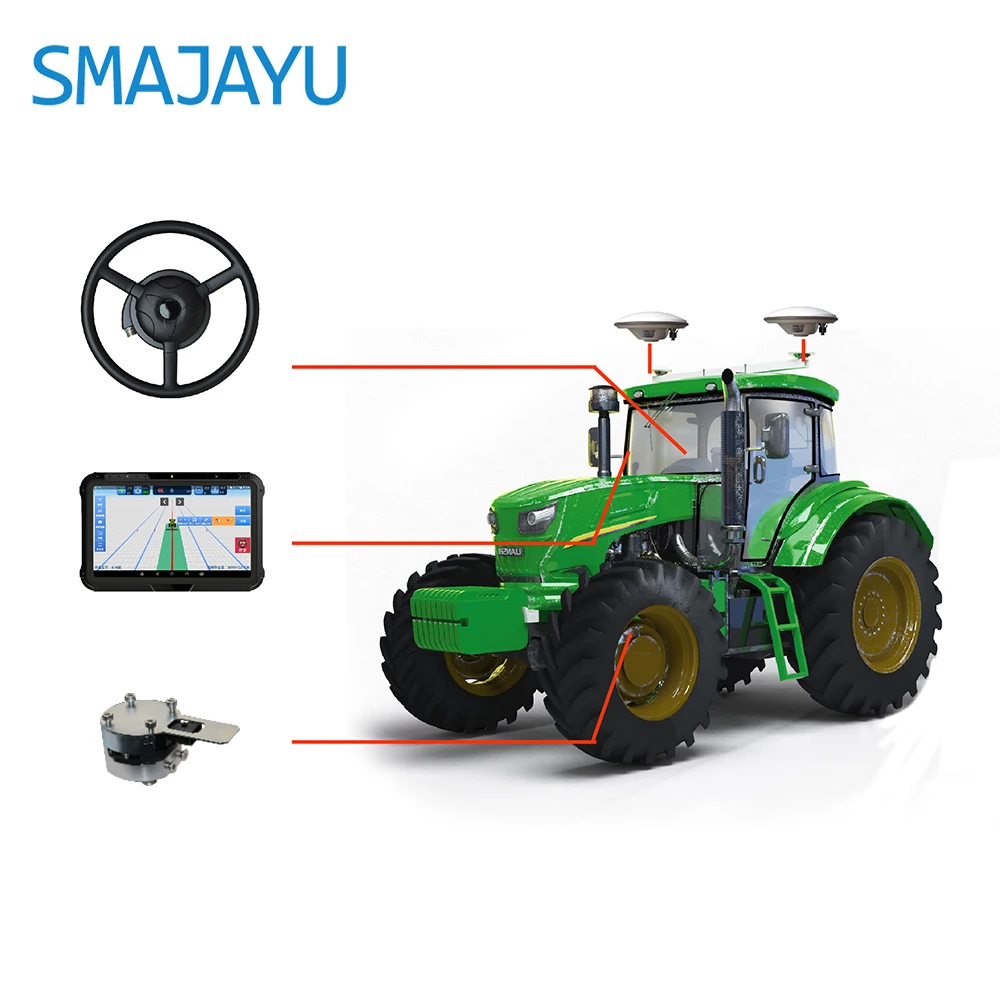

The system consists of a base station and a vehicle control part.

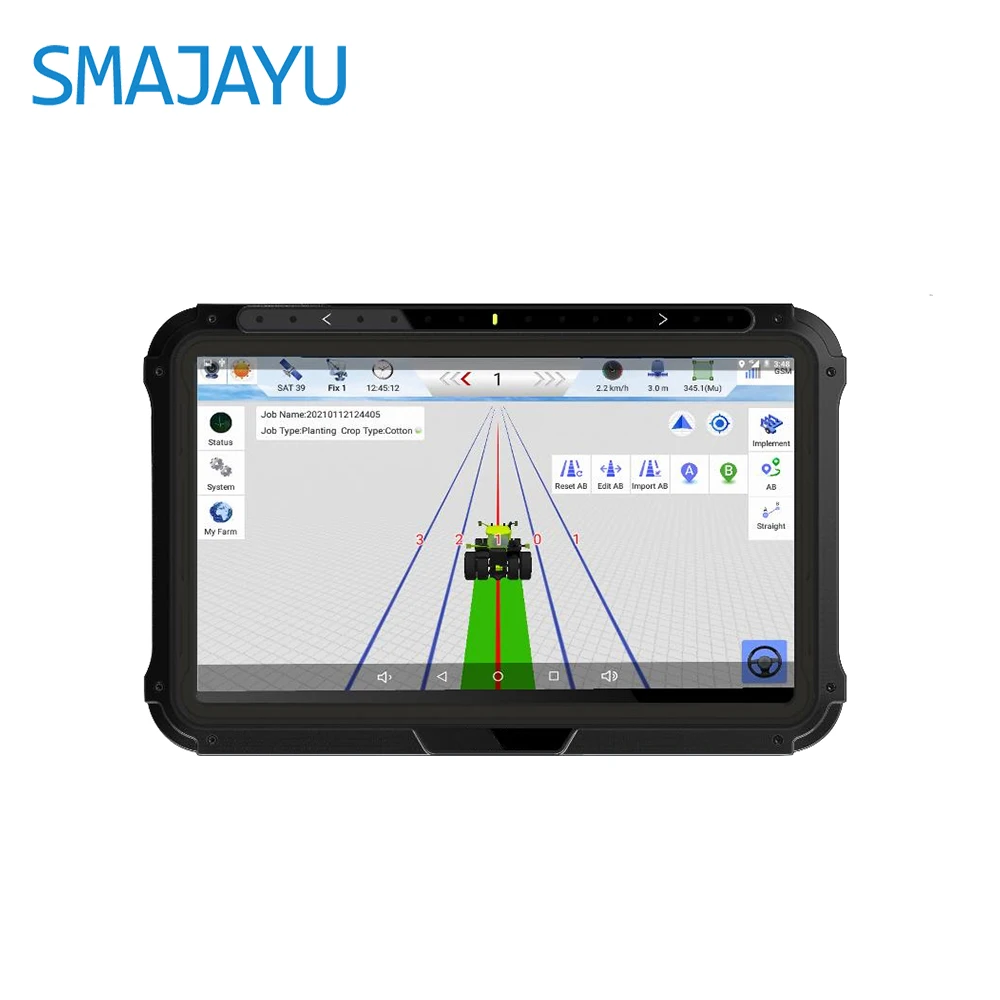

The vehicle control part includes a control tablet integrated with a high - precision GNSS board , a steering wheel motor with a built-in controller , and an angle sensor. It can be widely used for tractor guidance, land leveling, sowing , cultivating , trenching , ridging ,spraying pesticide , transplanting , land Angle Sensor consolidation , harvesting , and other work sceneries.
If you have a Tractor, you can install this system to make your tractor driveless on farm for precision farming.
If you have a Tractor, you can install this system to make your tractor driveless on farm for precision farming.
Product Description
Specification
JY302 | item | value |
JYS100 Control Tablet | Operating System | Android |
CPU | Quad-Core 1.5GHz | |
Memory | 2GB RAM + 16GB ROM | |
External Flash | T-Flash, up to 64GB | |
LCD | 10.1’’ Capacitive Touch Screen | |
Resolution | 1024x600 pixels | |
Dustproof & Waterproof | IP-65 | |
Dimension | 281mmx181mmx42mm | |
Weight | 1.5kg | |
JYA10 GNSS Antenna | Frequencies | GPS L1,L2;GLONASS L1,L2; BeiDou B1,B2,B3 |
Polarization | RHCP | |
Axial Ratio | ≤3dB | |
Azimuth Coverage | 360° | |
Dimension | 152x62.2mm | |
Connector | TNC Female | |
Weight | 374g | |
EMS2 Motor Wheel | Rated speed | 100 rpm |
Rated torque | 10 N-m | |
supply voltage | 8V~16V DC | |
Rated current | 10A | |
Stall current | 25A | |
Rated voltage | 12V | |
Dimension | 187x100.2mm (motor),410x32mm (steering wheel) | |
Weight | 6.35kg (motor only) | |
Material | Aluminum alloy |
FAQ
1. who are we?
SMAJAYU is A brand of SZFPTECH registered in America and born for Agriculture navigation system. SZFPTECH has12 years expert in pos terminal industry. SMAJAYU Agriculture system is combile hardware and software to serce farmer for precision and intelligent farm.
2. how can we guarantee quality?
IP67 level protection
24hours online support if you need help during using.
2years warranty
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
POS Terminal,Mobile POS,EFT POS,android pos,windows POS, And PDA solution with agriculture system
4. why should you buy from us not from other suppliers?
Smajayu Agriculture Navigation system is the first and the largest one in China agriculture field.
Experienced team in Agriculture navigation system.
5. what services can we provide?
Accepted Delivery Terms: EXW,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
24hours online service for help.
SMAJAYU is A brand of SZFPTECH registered in America and born for Agriculture navigation system. SZFPTECH has12 years expert in pos terminal industry. SMAJAYU Agriculture system is combile hardware and software to serce farmer for precision and intelligent farm.
2. how can we guarantee quality?
IP67 level protection
24hours online support if you need help during using.
2years warranty
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
POS Terminal,Mobile POS,EFT POS,android pos,windows POS, And PDA solution with agriculture system
4. why should you buy from us not from other suppliers?
Smajayu Agriculture Navigation system is the first and the largest one in China agriculture field.
Experienced team in Agriculture navigation system.
5. what services can we provide?
Accepted Delivery Terms: EXW,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
24hours online service for help.
