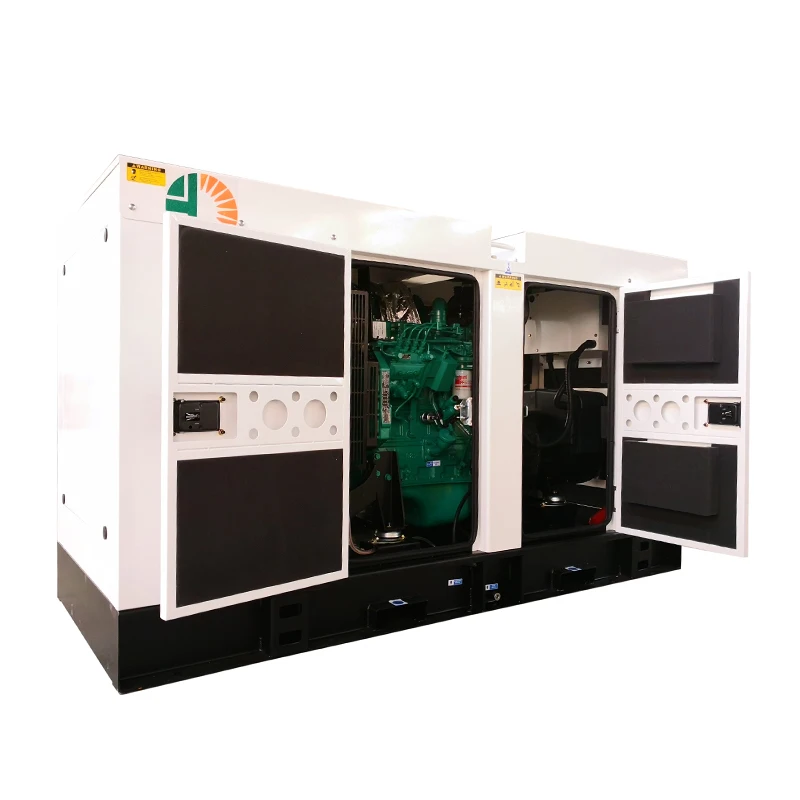

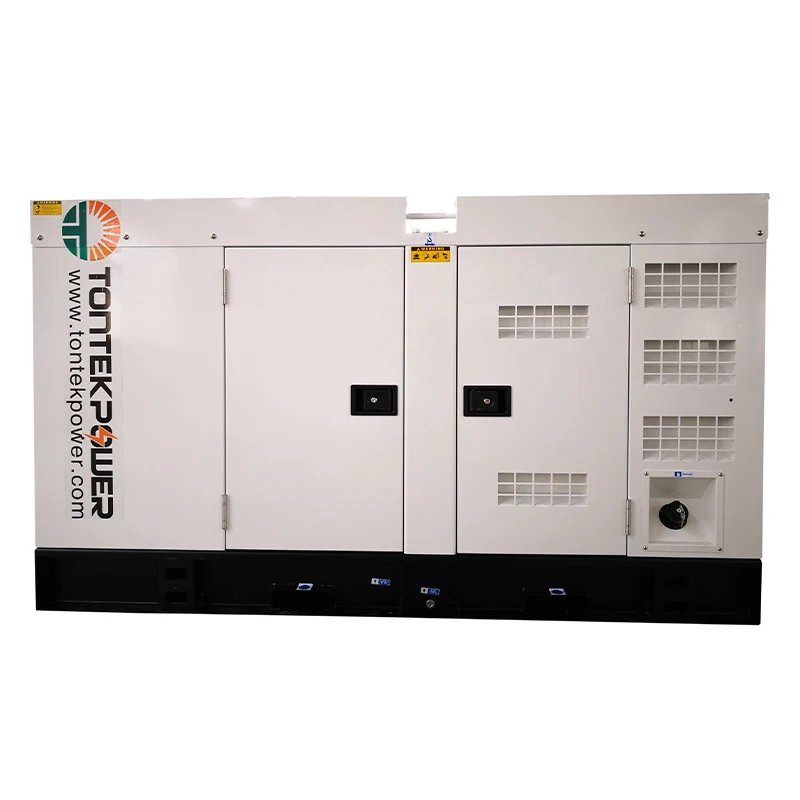

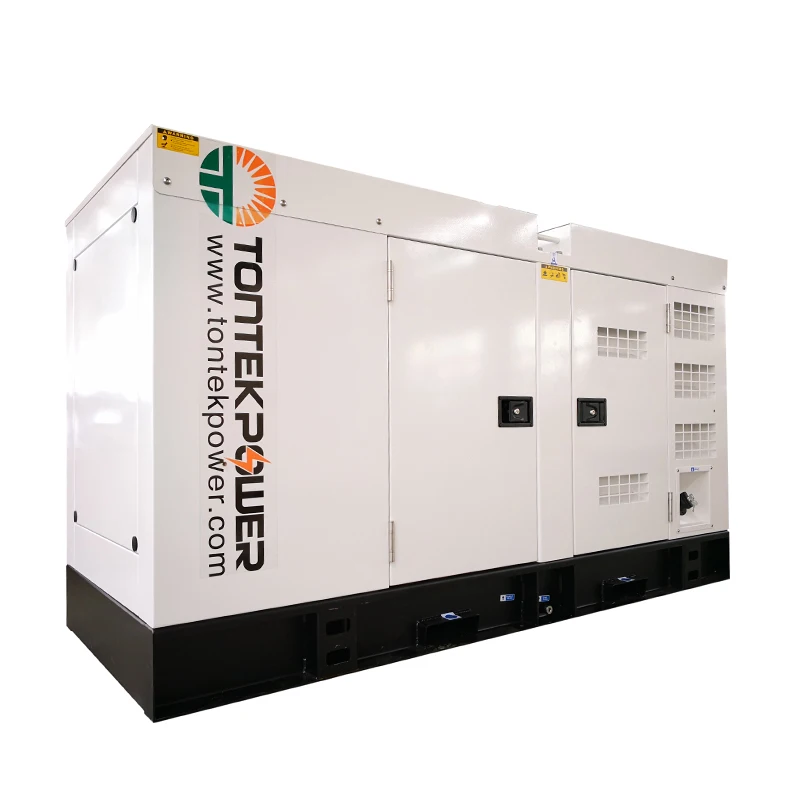

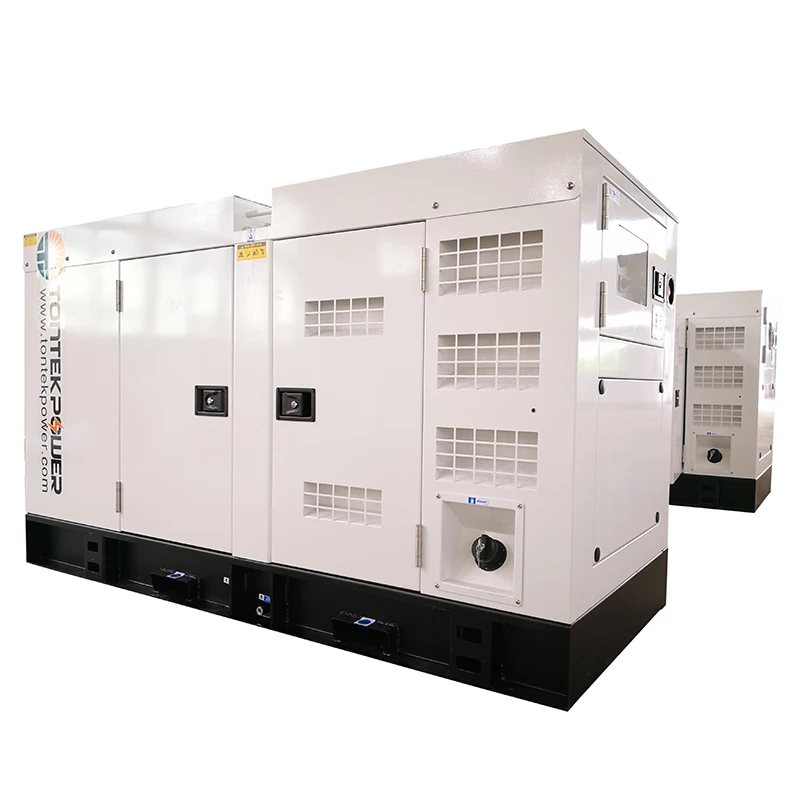

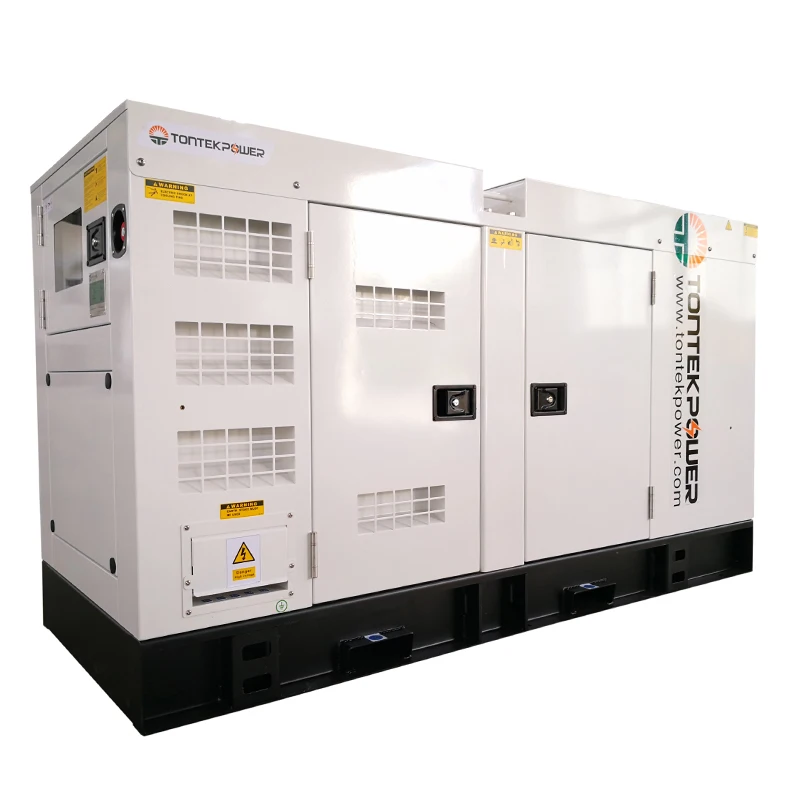

Промышленный 30kw к 38kva питания ATS безшумный дизельный генератор с двигателем Cummins 4 цилиндровый
- Категория: Diesel Generators >>>
- Поставщик: Jiangsu,Vantek,Power,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.13 $* | 0.49 $* |
| Aug-20-2025 | 0.67 $* | 0.56 $* |
| Jul-20-2025 | 0.31 $* | 0.84 $* |
| Jun-20-2025 | 0.60 $* | 0.79 $* |
| May-20-2025 | 0.3 $* | 0.9 $* |
| Apr-20-2025 | 0.21 $* | 0.86 $* |
| Mar-20-2025 | 0.42 $* | 0.60 $* |
| Feb-20-2025 | 0.94 $* | 0.38 $* |
| Jan-20-2025 | 0.61 $* | 0.34 $* |
Характеристики
DIESEL GENERATOR DATA: | |||
Generator set model | : TPD38C5-2 | ||
Generator rated power | : 30KW/38KVA | ||
Generator standby power | : 33KW/41KVA | ||
Rated frequency | : 50HZ | ||
Rated voltage | : 400/230V (Can be adjusted) | ||
Rated speed | : 1500RPM | ||
Fuel consumption | : 9.3L/h | ||
Silent type size | : 2400x1000x1560 MM | ||
Silent type weight | : 1200 Kg | ||
ENGINE DATA: | |||
Engine model: | : 4BT3.9-G2 | ||
Engine brand | : CUMMINS | ||
Engine rated power | : 36KW/45KVA | ||
Engine standby power | : 40KW/50KVA | ||
Engine speed | : 1500RPM | ||
Bore & Stroke | : 102 × 120 mm | ||
Displacement | : 3.9 L | ||
Compression ratio | : 18.0:1 | ||
Fuel consumption at 100% load | : 214 g/kW.h | ||
Type | : In line,4 cylinders,4 stroke | ||
Aspiration | : Turbocharged | ||
Governor | : Electronic | ||
Cooling method | : Water cooled by radiator | ||
ALTERNATOR DATA: | |||
Alternator model | : PI 144J | ||
Alternator brand | : STAMFORD | ||
Rated power | : 32KW | ||
Frequency | : 50HZ | ||
Speed | : 1500RPM | ||
Voltage | : 400/230V (Can be adjusted) | ||
Power factor | : 0.8 (lagging) | ||
Phase and wire | : 3 phase 4 wires | ||
Excite type | : Single Bearing, Close coupled. Brushless, self-exciting,AVR | ||
Protection class | : IP23 | ||
Insulation class | : H | ||
Q: What is the power range of your generator sets?
A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the lead time?
A: 7 working days against the 30%T/T deposit
Q:What is your MOQ?
A: Our MOQ is 1 unit
Q:What about your warranty?
A:13 months or 1000 working hours,whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight.
Q: What is your company's production capacity?
A:150 Sets per month
Q: Can you supply OEM service
A: YES
