1.APPLICATIONS

Automatic Welding Machine chicken cage bird cage pet cage net welding machine XY axis Spot Welder

Widely used in various mesh welding, shelf welding, supermarket shopping cart welding, shopping rack welding, pet cage welding, various sheet metal welding, etc .;





 2.MAIN FEATURES

100kVA chicken cage bird cage pet cage net welding machine XY axis Spot Welder

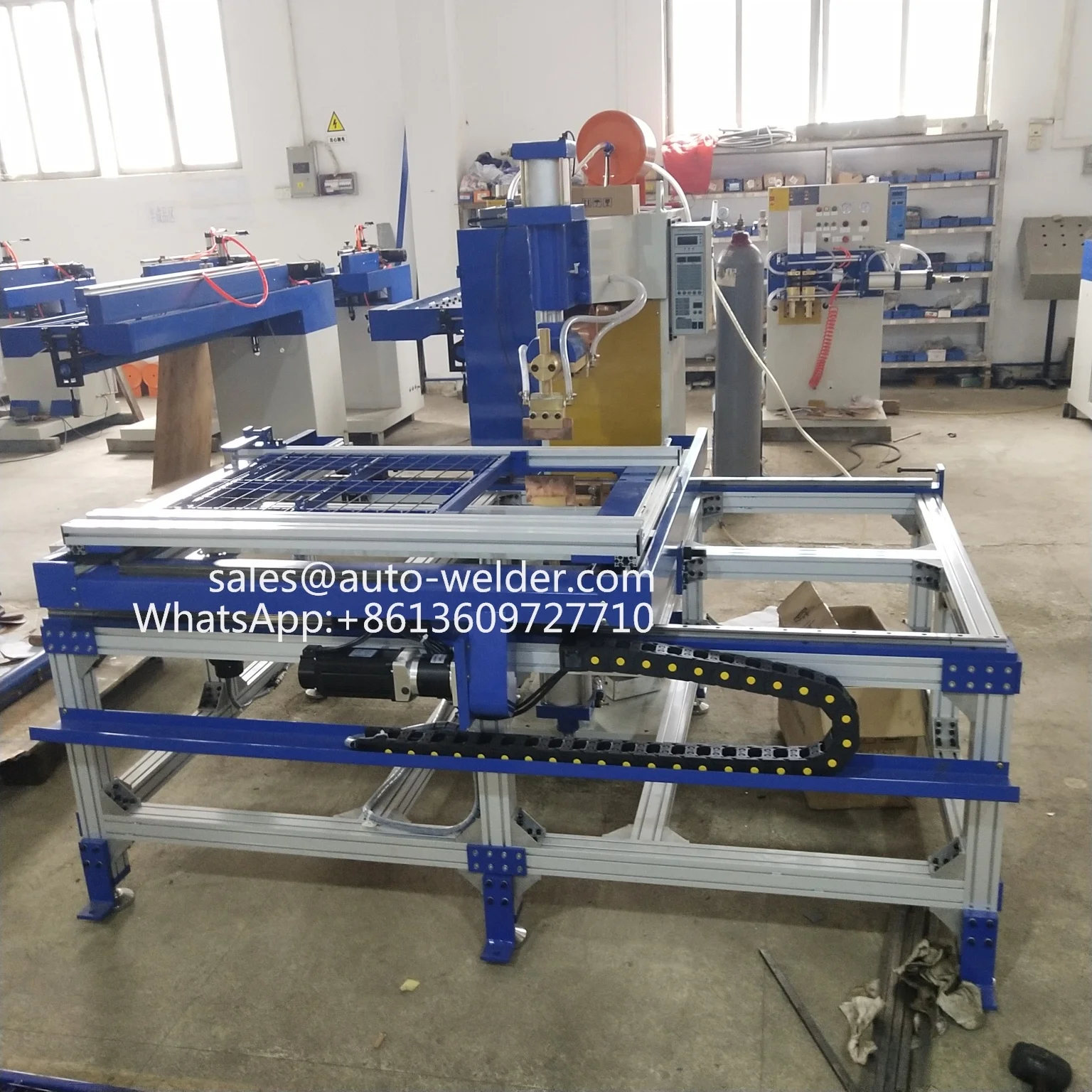

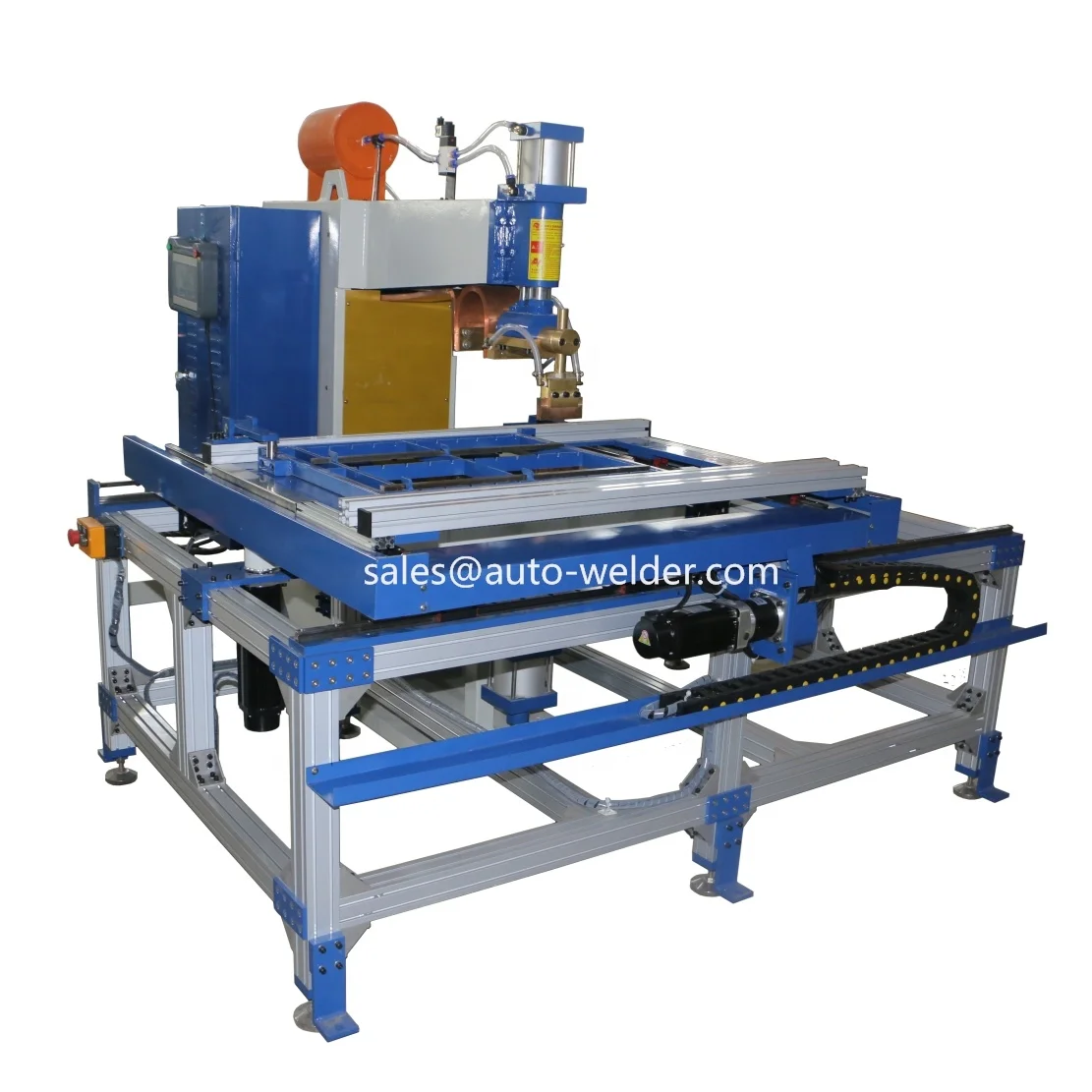

l  The X-axis automatic Multi-Point Spot Welding Machine includes two parts: a welding machine and a worktable. The welding machine can be equipped with AC pulse power supply or an energy-saving and environmentally friendly medium frequency inverter DC power supply. Single-head and multi-head long arm spot welding Or raw welding structure, equipped with a welding mold that automatically moves along the XY axis, only need to input the coordinate data of the welding product position, welding power supply and other datas, After the equipment is started, the welding of the product can be completed, and only the manual placement and removal of the workpiece are required;

l The structure of the equipment is flexible and the combination is convenient. It can be matched with different welding equipment;





3.TECHNICAL PARAMETERS

100kVA chicken cage bird cage pet cage net welding machine XY axis Spot Welder

Model	Rated capacity	Rated Primary voltage	Rated frequency	Max. Secondary  Current	Rated duty cycle	Arm length	Maximum Force	Machine dimension	Work table dimensions	Max.Welding Range
	KVA	V	Hz	A	%	mm	N	mm	mm	mm
DN-75K-600MM	75	380	50/60	25000	50	600	6280	1300*650*1750	1400*2000	600*800
DN-100K-600MM	100	380	50/60	30500	50	600	6280	1300*850*1750	1400*2000	600*800
DN-100K-800MM	100	380	50/60	30500	50	800	6280	1500*850*1750	1600*2450	8000*1000
DN-100K-1000MM	100	380	50/60	30500	50	1000	6280	1800*850*1750	2000*3000	1000*1500
DN-150K-1000MM	150	380	50/60	38500	50	1000	9800	1800*850*2000	2000*4000	1000*2000





 4.ABOUT"DRAGON WELDING"



Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Wire Mesh Welding Machines,Sink Producing Line,Automatic Argon Arc Seam Welding Machines,High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipments.





Our machine will be strictly inspected before packing and shipping out to insure that they could be satisfied with you, and our packing box is very strong.

 The delivery time for standard machine is about 15-20days.(By Sea,by Air or by Express Way can be choosed)

Q1: What does your factory produce ?

  A: We produce and export all kinds of automatic welding machine and induction heating machine. We also

can design and develop the welding machines according to your requirements.



Q2: What about your standard delivery date ?

  A: Usually 15-20 days. Our company provide just-in-time delivery



Q3:Do your factory sale directly ?

 A:YES,it is our factory sale directly,competitive price with high quality and excellent after-sale service.

Our quality products have been export to many countries,such as Germany,Russia,USA,Canada, Argentina,

Peru,Turkey,Bazil,Spain,South Asia and Middle East countries.



Q4: Do you have CE Certificate?

  A: YES,we have.



Q5: Can you export machines by your factory?

  A; YES,we can.



Q6: Where are your factory?

  A: Our factory located in Nansha District , Guangzhou City, Guangdong Province, China.







  We will provide same good after-sale service as the pre-sale service, any of your questions,

we will be replied within 12 hours.
