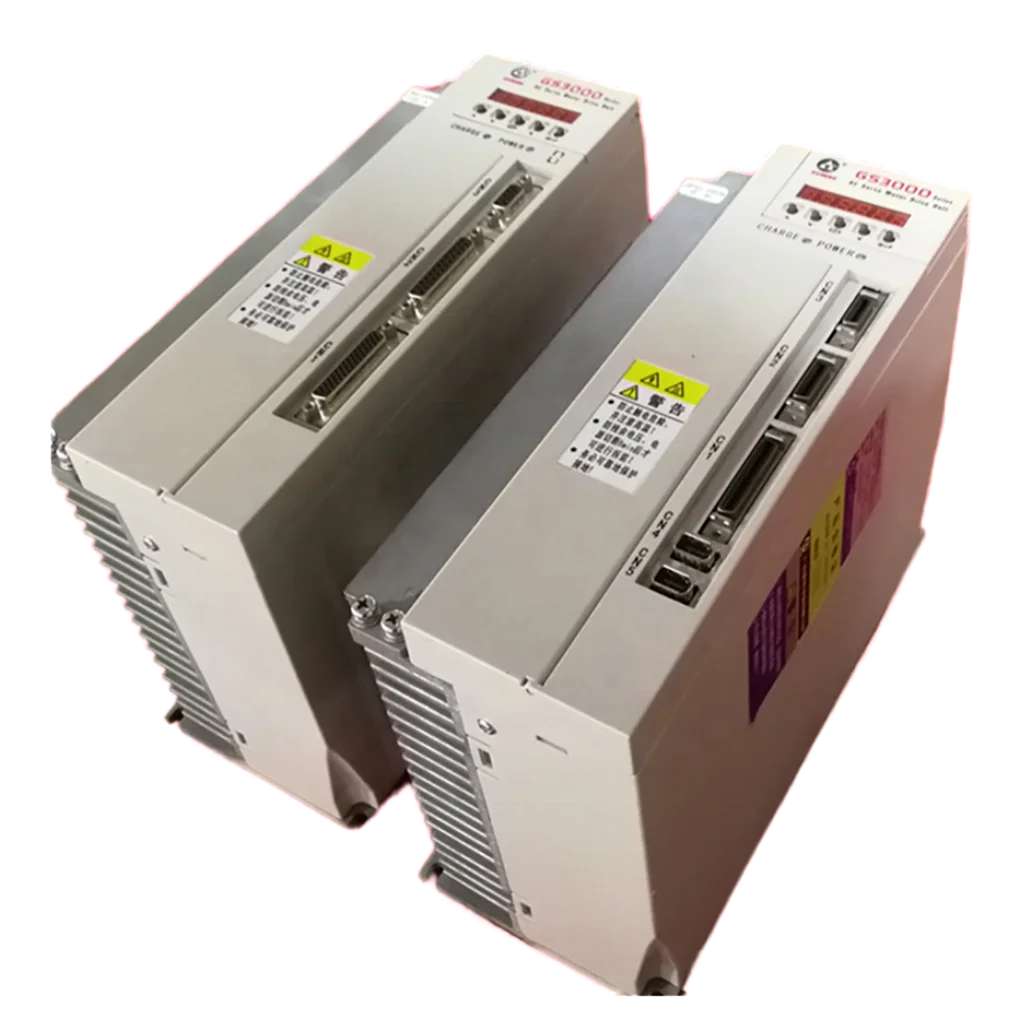

Контроллер сервопривода GSK GS3100 для токарного станка с ЧПУ и

Контроллер сервопривода GSK GS3100 для токарного станка с ЧПУ и

Категория: Motor Driver >>>
Поставщик: Fancy,machinery,Co.,Ltd.

Цена:1 182,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	1407.74 $*	1477.59 $*
Aug-16-2025	1395.55 $*	1465.86 $*
Jul-16-2025	1170.90 $*	1229.12 $*
Jun-16-2025	1371.27 $*	1440.34 $*
May-16-2025	1194.48 $*	1254.62 $*
Apr-16-2025	1347.33 $*	1414.31 $*
Mar-16-2025	1336.57 $*	1403.76 $*
Feb-16-2025	1324.53 $*	1390.94 $*
Jan-16-2025	1312.25 $*	1378.54 $*

Характеристики

Products Description

CLICK HERE TO CONTACT US

Since the GS series AC servo drive unit came out in 2011, relying on GSK advanced technology and strict production process, with superior product performance and high reliability, it can adapt to and give full play to the excellent performance of economical and popular CNC machine tools, and has won long-term success. favored by users. Adapt to three power levels, 45KW maximum output power, to meet the various needs of users.

Adopt D-SUB socket, support digital pulse, analog voltage input, the first and second position feedback input are suitable for incremental encoder, no bus interface, suitable for economical and popular numerical control system.

Drive model	GS-N
communication bus	No bus
Working mode	Test run, jog, speed, position, internal speed, speed/position switching
Position control	Pulse + direction, CCW pulse + CW pulse, A/B phase quadrature pulse three pulse differential signal input
		Maximum pulse frequency: 1MHz
		Position command electronic gear ratio: (1～32767)/(1～32767)
Speed control	Speed command input: -10V～+10V or 0V～10V
		Speed command electronic gear ratio: (1～32767)/(1～32767)
		Speed range: 1～5000rpm (feed servo)
		Orientation function: 4-point orientation can be realized, and 4 orientation angles set by parameters can be selected by external input signal
First position feedback	A/B/Z three pairs of differential signal input, feed servo adaptation 5000p/r, 2500p/r
Second position feedback	Feed servo optional interface, A/B/Z three pairs of differential signal input, suitable for 1024~8192p/r incremental encoder.
Position feedback output	1:1 output A/B/Z differential signal based on the first or second position feedback input signal
DI/DO	Input 11 points: servo enable, CCW start, CW start, speed/position switching, orientation start, orientation/speed selection
		1. Orientation/speed selection input; 2. Second speed gain selection, spindle clamping interlock signal, zero-speed clamping, alarm reset
		Output 7 points: ready, zero speed output, position and speed arrival, orientation completion, alarm output, speed position status, encoder zero point (Z pulse)

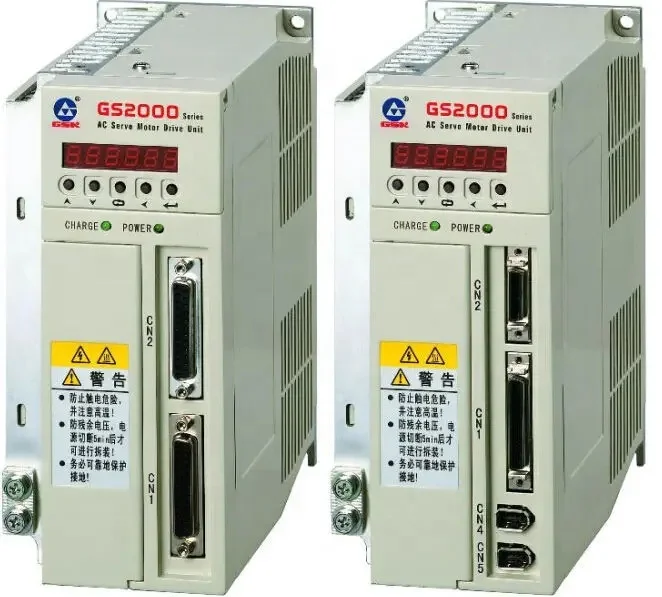

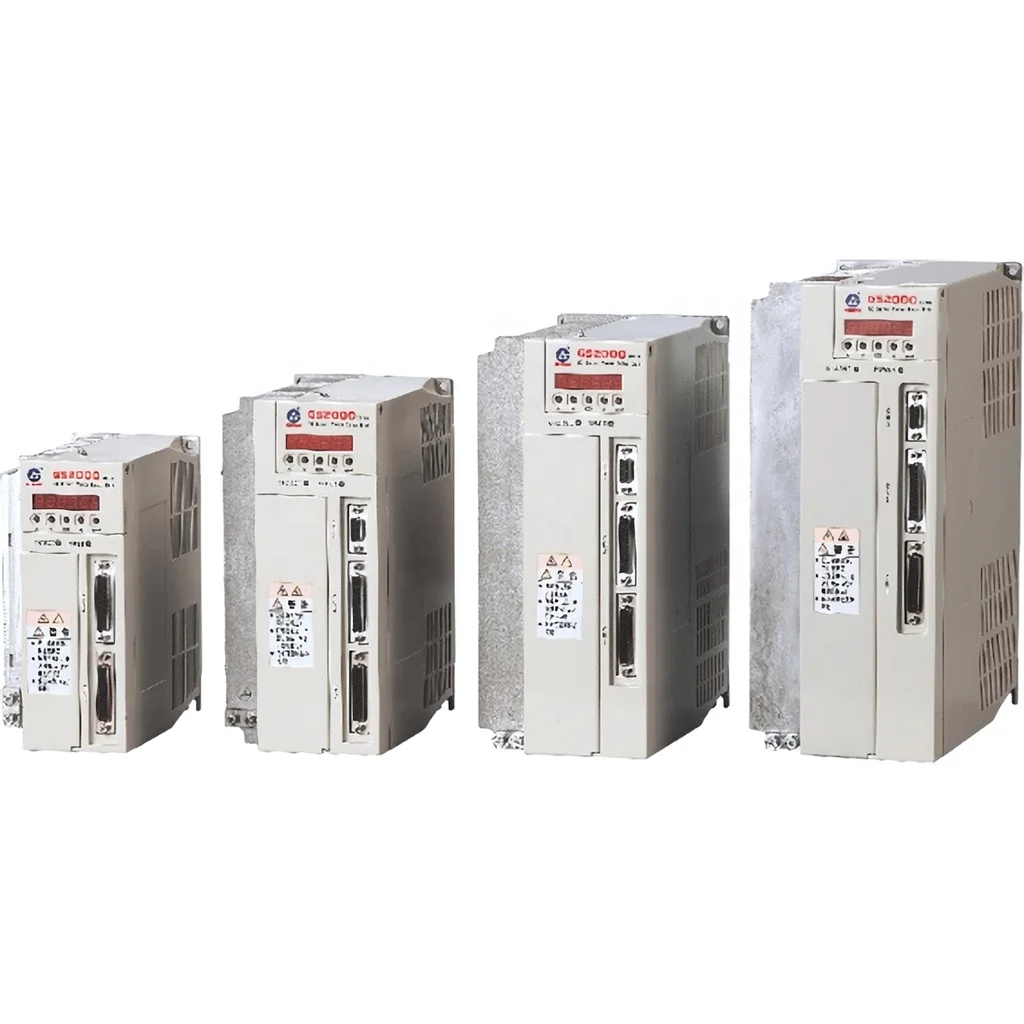

Drive unit model

GS2024

GS2030

GS2045

GS2050

GS2075

GS2100

GS2148

GS2200

Rated output current

12A

14A

22A

32A

43A

63A

Max instantaneous output current

13A

17A

25.5A

28.3A

42.4A

56.6A

84A

113A

Braking resistor

Built-in braking resistor (optional external braking resistor)

External braking resistor

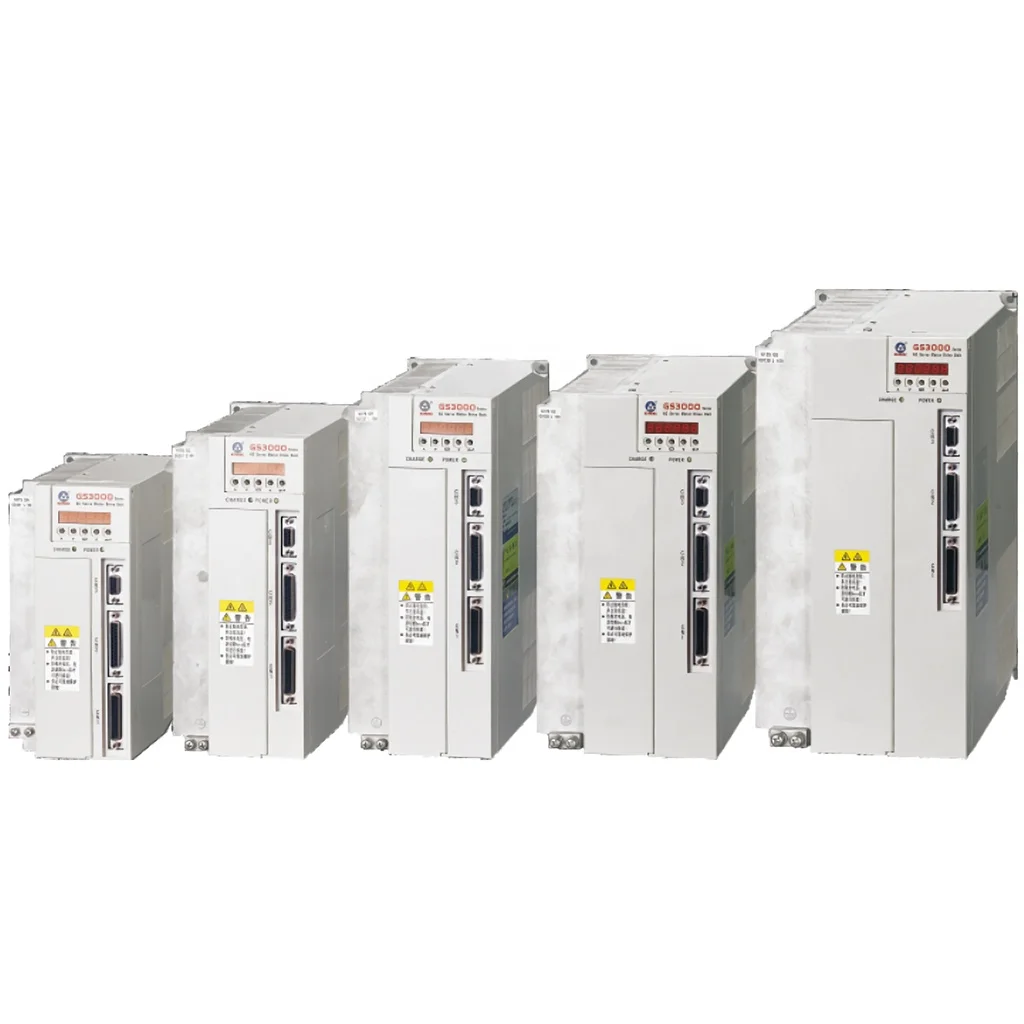

Drive unit model

GS3048

GS3050

GS3075

GS3100

GS3148

GS3150

GS3198

GS3300

Rated output current

13A

14.1A

26A

42.4A

48A

58A

102A

Max instantaneous output current

28.3A

42.4A

56.6A

84.9A

113A

168A

Braking resistor

External braking resistor

Product Model	A	B	C	D	F	E
GS2024	55	175	179	165±0.25	43±0.25	φ6
GS2030/GS2045	91.6	190	182	178±0.25	78±0.2	φ6
GS2050/GS3048	112	230	182	218±0.25	100±0.2	φ6
GS2075/GS3050	120	270	218	258±0.25	108±0.2	φ6
GS2100/GS3075/GS2148	130	305	248.5	293±0.25	118±0.2	φ6
GS3100/GS3148/GS2200	160	305	273.5	293±0.25	148±0.2	φ6
GS3150/GS3198	172	350	288	334±0.25	155±0.2	φ7

List of GS series servo drives adapted to SJT series servo motors
	Motor Specifications							Encoder	Adapter drive model
	Motor model	Rated power kW	Rated torque N·m	Rated speed rpm	Rated current A	A2			Adapter drive model
1	80SJTA-M024C	0.5	2.4	2000	2.5	√	GS2024T
2	80SJTA-M024E	0.75	2.4	3000	3.8	√
3	80SJTA-M032C	0.66	3.2	2000	3.2	√
4	130SJT-M040D	1.0	4	2500	4	√
5	80SJTA-M032E	1.0	3.2	3000	5.5	√	GS2030T
6	110SJT-M040D	1.0	4	2500	4.5	√
7	110SJT-M040E	1.2	4	3000	5	√
8	130SJT-M050D	1.3	5	2500	5	√
9	130SJT-M060D	1.5	6	2500	6	√
10	130SJT-M100B	1.5	10	1500	6	√
11	110SJT-M060D	1.5	6	2500	7	√	GS2045T
12	110SJT-M060E	1.8	6	3000	8	√
13	130SJT-M050E	1.57	5	3000	7.2	√
14	130SJT-M060E	1.88	6	3000	7.8	√
15	130SJT-M075D	1.88	7.5	2500	7.5	√
16	130SJT-M075E	2.36	7.5	3000	9.9	√	GS2050T
17	130SJT-M100D	2.5	10	2500	10	√
18	130SJTB-M150B	2.4	15	1500	10	√
19	175SJT-M150B	2.4	15	1500	11	√
20	175SJT-M120E	3	9.6	3000	13	√	GS2075T
21	175SJT-M150D	3.1	12	2500	14	√
22	175SJT-M180B	2.8	18	1500	15	√
23	130SJTE-M150D	3.9	15	2500	19.5	√	GS2100T
24	175SJT-M180D	3.8	14.5	2500	16.5	√
25	175SJT-M220B	3.5	22	1500	17.5	√
26	175SJT-M220D	4.5	17.6	2500	19	√
27	175SJT-M300B	4.7	30	1500	24	√
28	175SJT-M300D	6	24	2500	27.5	√	GS2148T
29	175SJT-M380B	6	38	1500	29	√	GS2148T
30	130SJTG-M040GH	1.7	4	4000	4.8	√	GS3048T
31	130SJTG-M050GH	2.1	5	4000	6	√
32	130SJTG-M060GH	2.5	6	4000	7.2	√
33	130SJTG-M075GH	3.1	7.5	4000	7.5	√
34	130SJTG-M100GH	4.2	10	4000	10	√	GS3050T
35	175SJTG-M120EH	3.8	12	3000	10.5	√	GS3050T
36	175SJTG-M150EH	4.7	15	3000	12.5	√	GS3075T
37	175SJTG-M180EH	5.7	18	3000	15.5	√
38	175SJT-M380BH	6	38	1500	15	√
39	175SJTG-M220EH	6.9	22	3000	18.5	√	GS3100T
40	175SJT-M500BH	7.8	50	1500	20	√	GS3100T
41	175SJTG-M300EH	9.4	30	3000	25	√	GS3148T
42	175SJTG-M380EH	11.9	38	3000	32	√
43	175SJT-M380DH	7.9	38	2500	26	√
44	175SJT-M500DH	10.5	40	2500	33	√
Note: The GS-N series feed servo drive unit is equipped with a 5000-line incremental encoder servo motor as standard; if you need a servo motor with a power-off brake and other outlet methods, please refer to the GSK servo motor ordering guide
