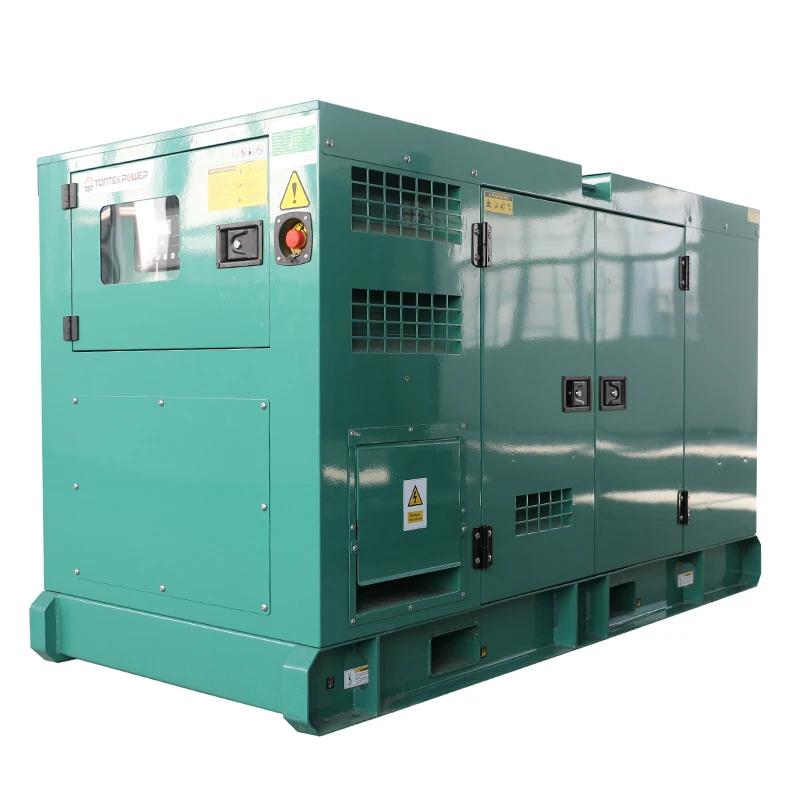

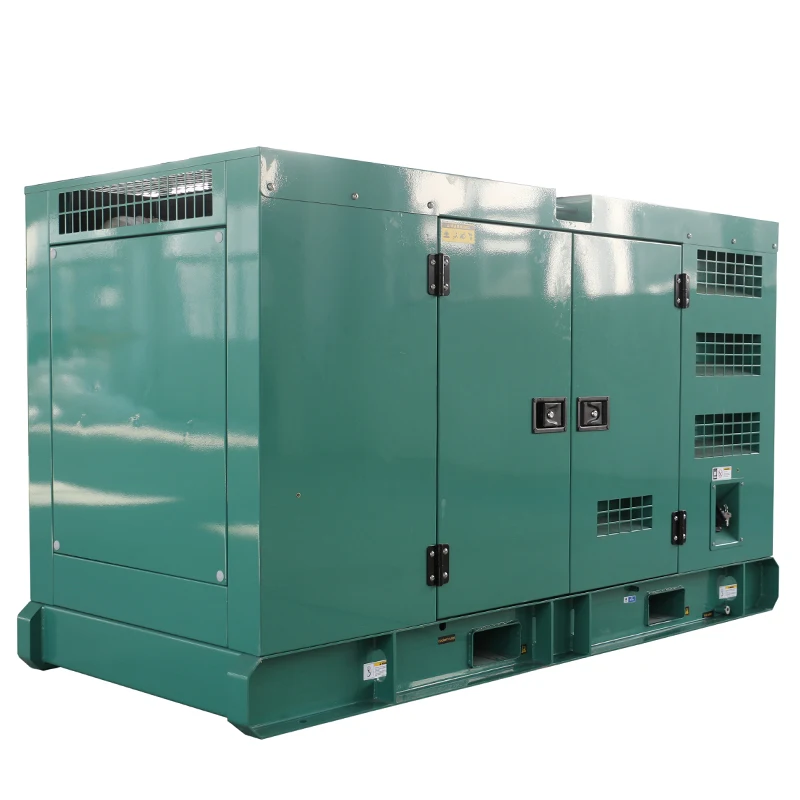

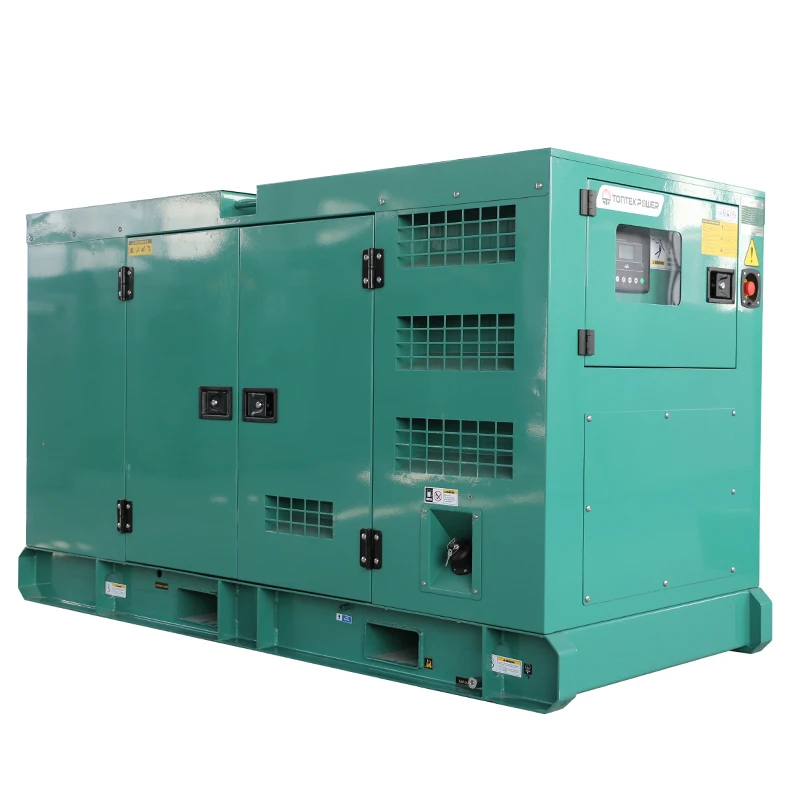

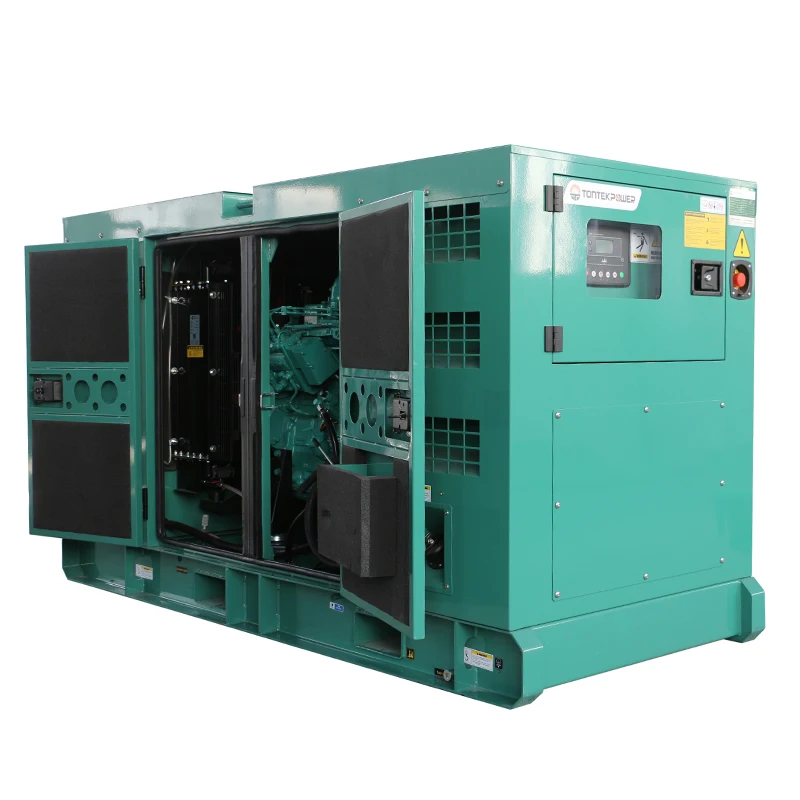

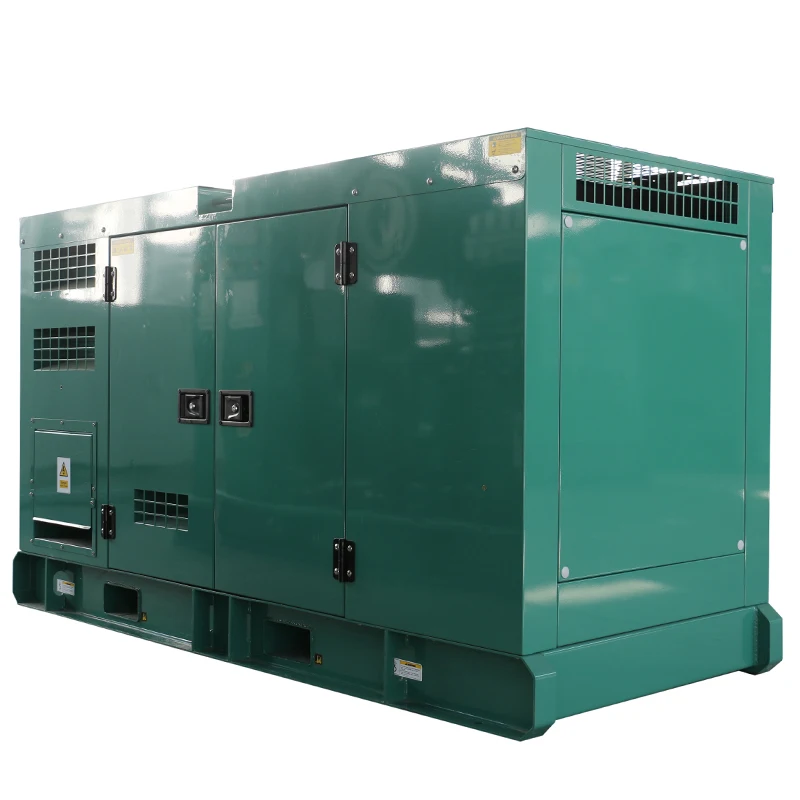

Дизельный генератор 30 кВт/40 кВА 44 с двигателем cumm-ns. Электрический Бесшумный Генератор для домашнего использования
- Категория: Diesel Generators >>>
- Поставщик: Jiangsu,Vantek,Power,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.32 $* | 0.83 $* |
| Aug-20-2025 | 0.56 $* | 0.44 $* |
| Jul-20-2025 | 0.9 $* | 0.42 $* |
| Jun-20-2025 | 0.28 $* | 0.36 $* |
| May-20-2025 | 0.55 $* | 0.3 $* |
| Apr-20-2025 | 0.37 $* | 0.20 $* |
| Mar-20-2025 | 0.43 $* | 0.6 $* |
| Feb-20-2025 | 0.78 $* | 0.43 $* |
| Jan-20-2025 | 0.11 $* | 0.30 $* |
Характеристики
DIESEL GENERATOR DATA: | ||
Generator set model | TPD38C5-1 | |
Generator rated power | 30KW/38KVA | |
Rated frequency | 50HZ | |
Rated voltage | 400/230V (Can be adjusted) | |
Rated speed | 1500RPM | |
Fuel consumption | 10L/h | |
Silent type weight | 1200 Kg | |
ENGINE DATA: | ||
Engine model: | 4BT3.9-G1 | |
Engine brand | CUMMINS | |
Engine rated power | 36KW/45KVA | |
Bore & Stroke | 102 × 120 mm | |
Displacement | 3.9 L | |
Compression ratio | 17.3:1 | |
Type | In line,4 cylinders,4 stroke | |
Aspiration | Turbocharged | |
Governor | Mechanical | |
Cooling method | Water cooled by radiator | |
ALTERNATOR DATA: | ||
Alternator model | : PI 144J/GM-30-4/TP-30-4 | |
Alternator brand | : STAMFORD/MARATHON/TONTEK | |
Rated power | : 32KW/30KW/30KW | |
Frequency | : 50HZ | |
Speed | : 1500RPM | |
Voltage | : 400/230V (Can be adjusted) | |
Power factor | : 0.8 (lagging) | |
Phase and wire | : 3 phase 4 wires | |
Excite type | : Single Bearing, Close coupled. Brushless, self-exciting,AVR | |
Protection class | : IP23 | |
Insulation class | : H | |
Q: What is the power range of your generator sets?
A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the lead time?
A: 7 working days against the 30%T/T deposit
Q:What is your MOQ?
A: Our MOQ is 1 unit
Q:What about your warranty?
A:13 months or 1000 working hours,whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight.
Q: What is your company's production capacity?
A:150 Sets per month
Q: Can you supply OEM service
A: YES
A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the lead time?
A: 7 working days against the 30%T/T deposit
Q:What is your MOQ?
A: Our MOQ is 1 unit
Q:What about your warranty?
A:13 months or 1000 working hours,whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight.
Q: What is your company's production capacity?
A:150 Sets per month
Q: Can you supply OEM service
A: YES
