Сварная стальная труба мельница трубы производственная линия по изготовлению труб
- Категория: Building Material Machinery >>>
- Поставщик: Foshan,YXH,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 19992.95 $* | 20992.45 $* |
| Aug-18-2025 | 19824.10 $* | 20815.12 $* |
| Jul-18-2025 | 16632.5 $* | 17464.20 $* |
| Jun-18-2025 | 19488.92 $* | 20462.74 $* |
| May-18-2025 | 16968.60 $* | 17816.10 $* |
| Apr-18-2025 | 19152.70 $* | 20110.75 $* |
| Mar-18-2025 | 18984.49 $* | 19933.9 $* |
| Feb-18-2025 | 18816.59 $* | 19757.27 $* |
| Jan-18-2025 | 18648.71 $* | 19580.26 $* |
Характеристики
Products Description
Model | Stronger ZG 40 Pipe Making Machine |
Pipe Material | stainless steel , carbon steel , galvanized steel |
Round Pipe Dia. | 15.88-50.8mm |
Round Pipe Thickness | 0.2-2.0mm |
Square Pipe Dia. | 10×10—40×40mm |
Square Pipe Thickness | 0.3—1.5mm |
Rectangle Pipe Dia. | 10x20—30×50mm |
Rectangle Pipe Thickness | 0.3—1.5mm |
Factory Price Stainless Steel/Ms Pipe Tube Mill Machine Making SS Square/Round Pipes
S-ZG40 Stainless Steel Tube Mill is designed to produce welded round pipes, with the characters of advance, steady, perfect and maturity etc. The mill line is newly designed based on practical producing and acquiring the advantages of equipment home and abroad，which is also convenient in operation and maintenance.
Part 1: Un-coiler
Manual operation with adjustable brake
Two sides, coil adapting cone with loading weight: ≤1T per side
Part 2: Forming Section
Feeding equipment: 2 roller guide apparatus
3 break down+3 by-pass+3 fin pass
Horizontal Stands shaft dia.: 40mm
Vertical Stands shaft dia.: 25mm
3 break down+3 by-pass+3 fin pass
Horizontal Stands shaft dia.: 40mm
Vertical Stands shaft dia.: 25mm
Arrangement:
3-3-1-4 or 4-4-1-4 or customized
Horizontal Stand:

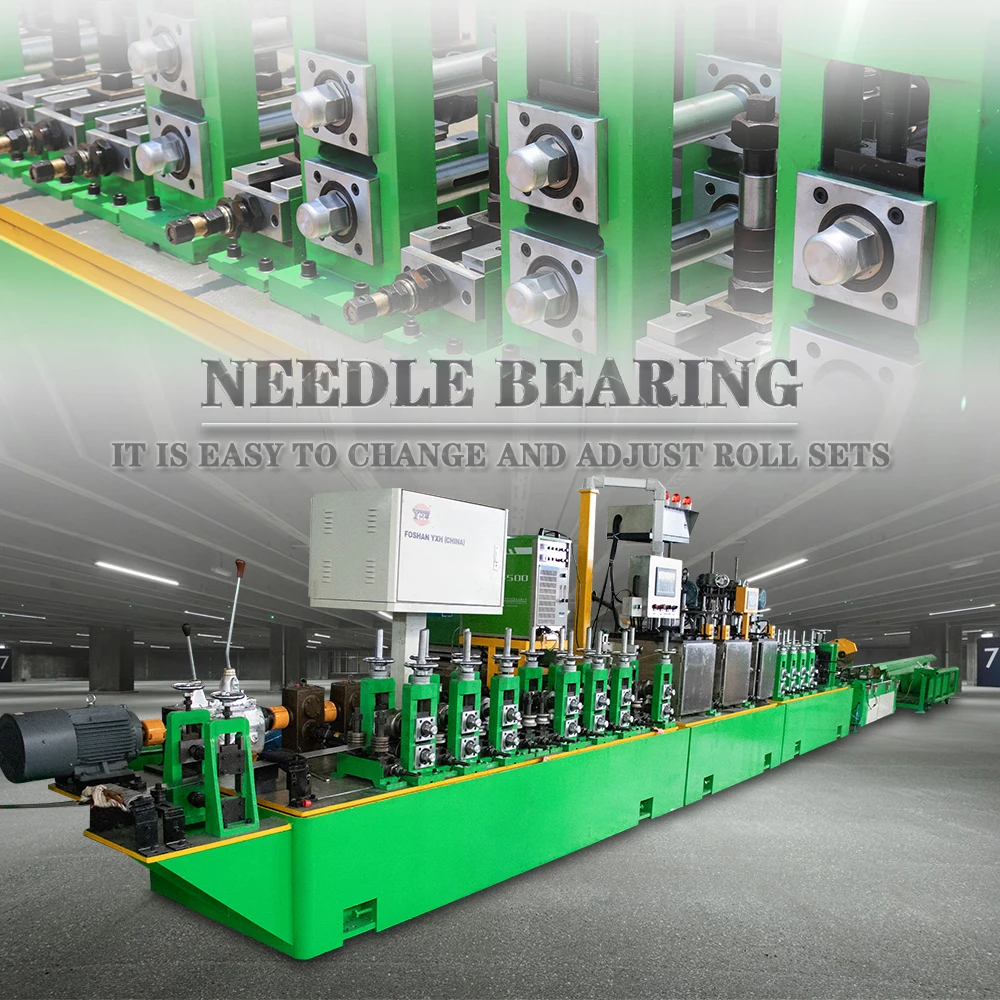

Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets

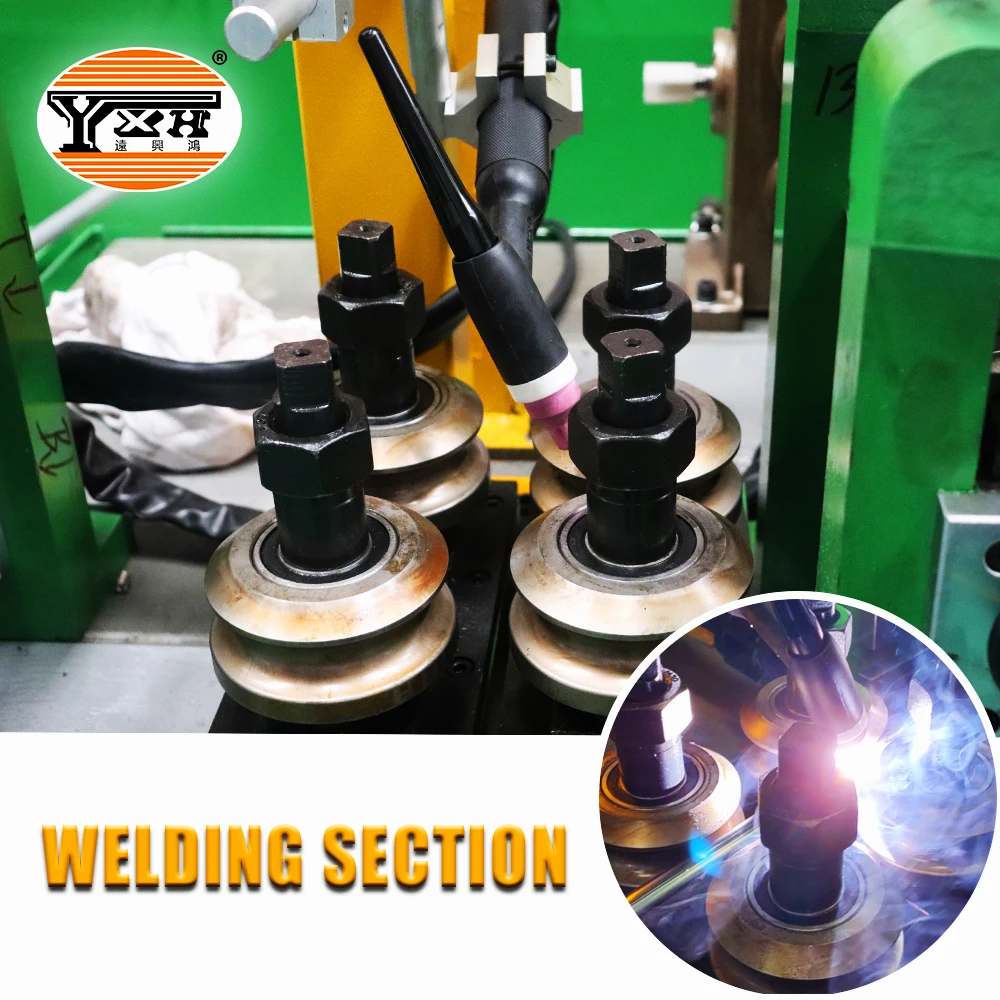

Part 3: Welding Section
Welding Torch: Single
2 sets squeezing Rollers
2 sets squeezing Rollers
Advantage for UT Welder:
(1) Dust proof, to protect the machine
(2) Pipe Welding quality will be much better than TIG Welder;
(3) It saves about 30% Argon Gas Consumption;
(4) It will improve production speed about 30%
(1) Dust proof, to protect the machine
(2) Pipe Welding quality will be much better than TIG Welder;
(3) It saves about 30% Argon Gas Consumption;
(4) It will improve production speed about 30%
Part 4: Seam Polishing Section
Totally enclosed automatic Grinding head
In automatically pressing down polishing system by electric motor, one engineer can operate five set tube mill. And it can make grinding section cleaner and grinding more stable.Totally Enclosed box with grinding head can make grinding section cleaner.
Part 5: Sizing &Turk-Head
Straightening and sizing for pipes
To reset the roundness of pipesTurk Head: 2 Units
Part 6: Cutting Section
Friction Saw Cutter
Auto-mechanical

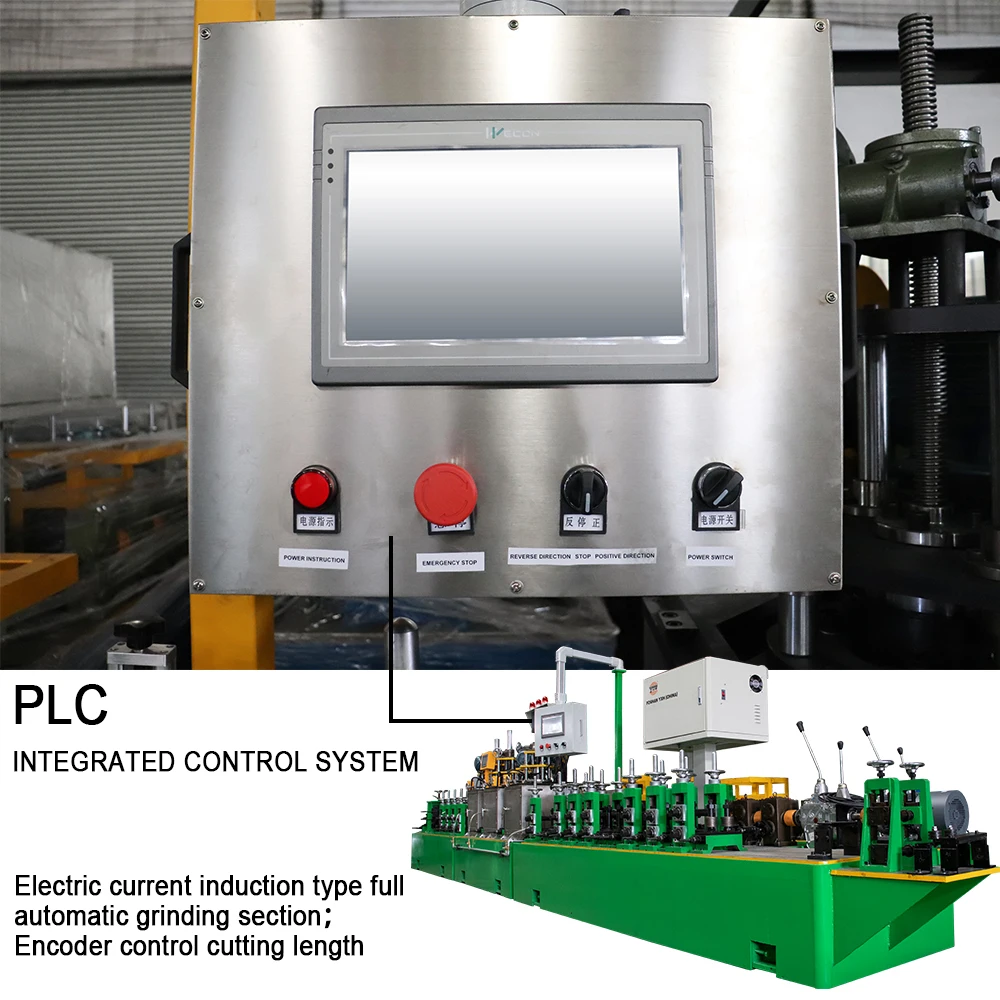

Operational panel
Cutting length: 4-10m
Auto-mechanical
Operational panel
Cutting length: 4-10m

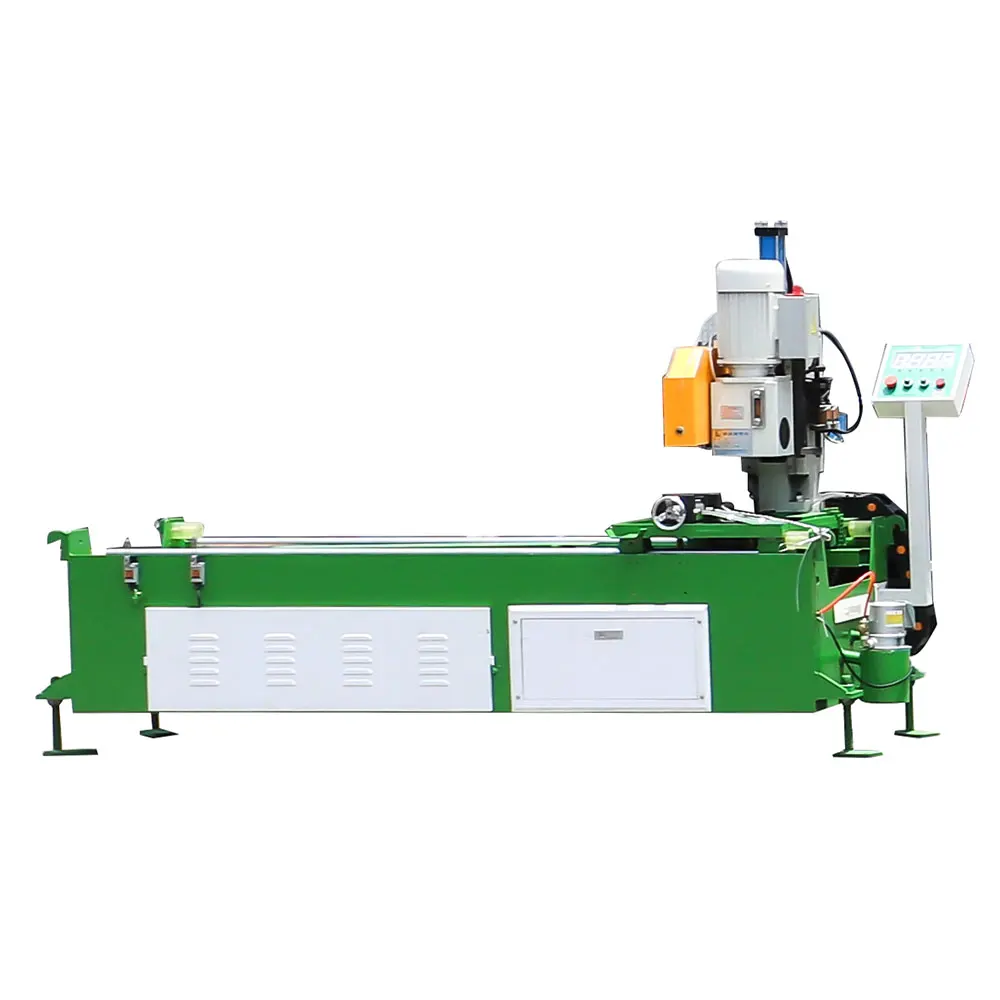

Metal Saw Cutter
Less burr in the end of the pipe
Part 7: Run-out table
IncludedL: 6m
More specifications

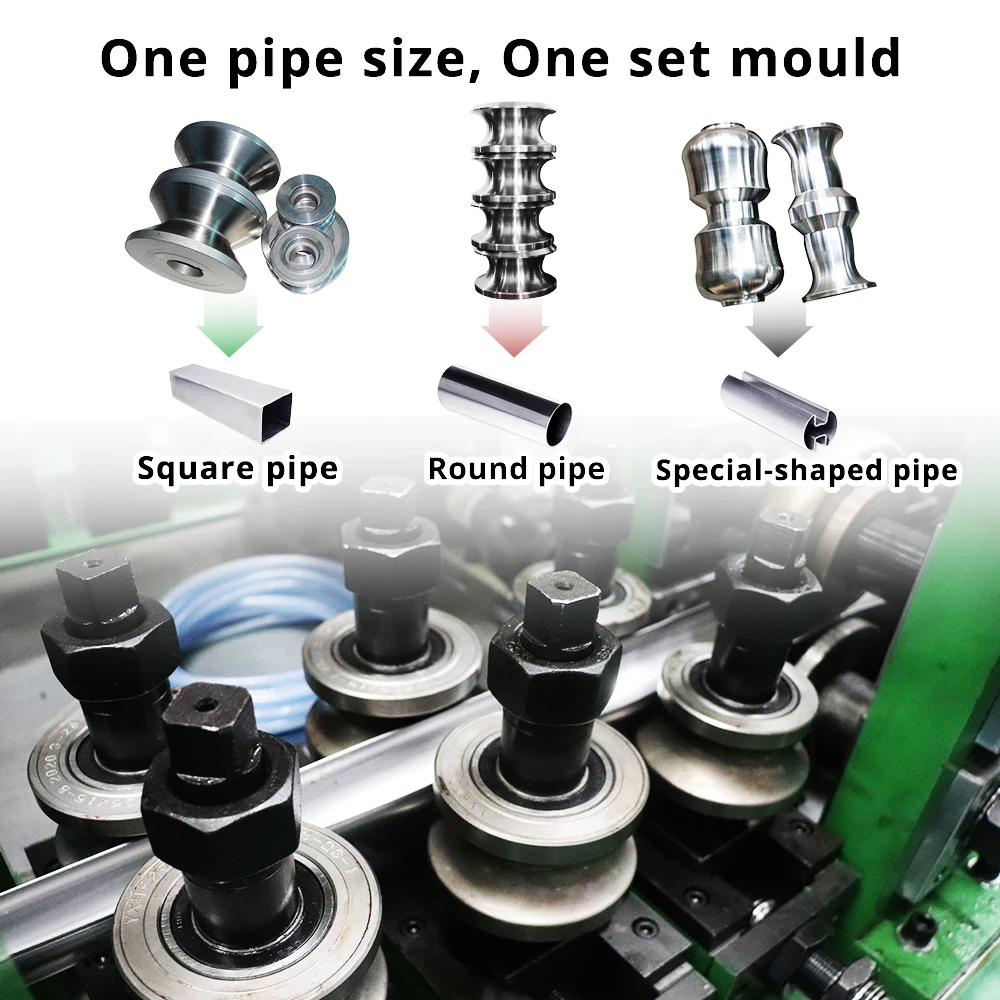

Stainless Steel Pipe Making Machine, covering range from 4.8mm to 325mm,and thickness is 0.18mm to 6.0mm. The pipe production machine mainly produces stainless steel pipe, carbon steel pipe. And this pipe making machine not only can make round pipe, square pipe, rectangle pipe, oval pipe and other irregular pipe as well.
Model | Pipe Diameter | Pipe Thickness | Capacity | Major Power |
S-ZG40 | 6-31.8mm | 0.2-1.2mm | 1-20m/min | 5.5KW |
ZG40 | 8-50.8mm | 0.2-1.5mm | 1-15m/min | 7.5KW |
B-ZG40 | 12.7-63.5mm | 0.3-2.0mm | 1-10m/min | 11KW |
ZG50 | 25.4-76.2mm | 0.4-2.5mm | 1-7m/min | 15KW |
ZG60 | 38.1-114mm | 0.5-3.0mm | 1-5m/min | 18.5KW |
ZG80 | 76.2-168mm | 1.0-4.0mm | 1-3m/min | 22KW |
ZG100 | 159-325mm | 1.0-6.0mm | 1-15m/min | 30KW |
Product Advantage
What We Can Provide
Welcome To Contact us
If you are interested in our tube mill machine, please don’t be hesitated to contact us. All the staff in our company are looking forward to hearing from you soon.
Packing & Delivery
Company Profile
As one of the leading enterprises in stainless steel tube mill machine industry, YXH has been specializing in producing steel pipe making machine, tube polishing machine and Rollers etc.In last 20 years.To ensure the finished tube mill product quality,YXH controls every production process by professional teams, such as design, purchasing of raw material, prouction, process and quality inspection. High quality, competitive price, we are pretty sure that we will be your best choice.
