Воздушный Шабер воздуходувки сопла сжатого воздуха Супер воздушного шабера пневматические инструменты занавес сушки насадка для охлаждения горячая

Material: Aluminum Alloy, Stainless Steel

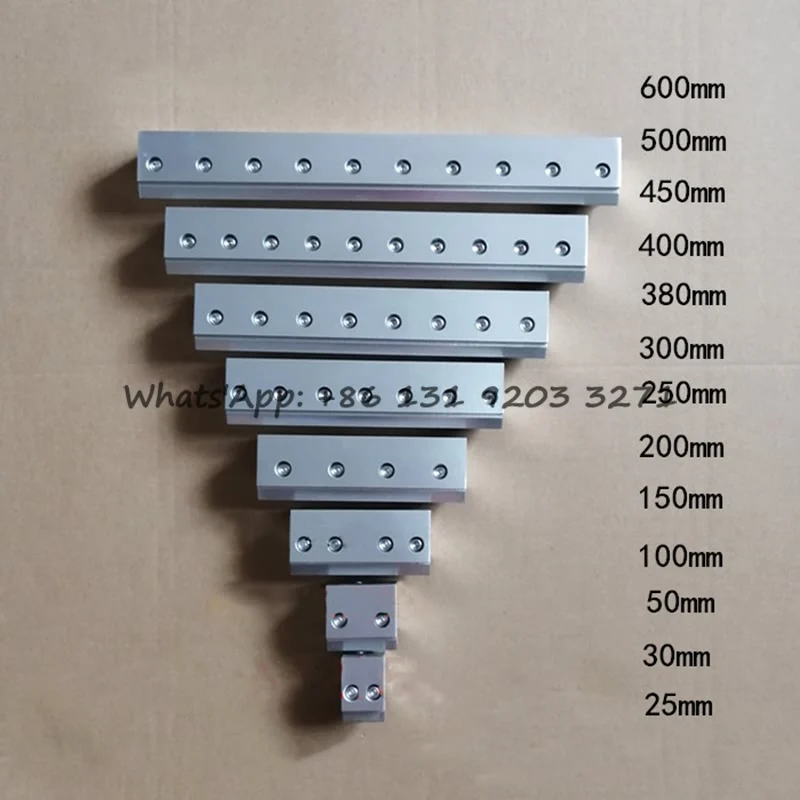

Length: 25 mm to 2100 mm(Customizable)

Air Inlet Thread Size: 1/4" Female

Products Introduction:
Super air knife, also known as air knife, bar air knife, super air knife, annular air knife, air curtain knife and air flow amplifier, etc.
It is specially used to blow out a strong airflow to blow out dust, dry water stains and cool down.
It is widely used to blow off the surface of steel plates, aluminum alloy profiles, etc., as well as the water on the surface of beverage bottles, packaging cans, etc., and can also be used to blow off impurities, dust, residual liquid, moisture and conveyor belt cleaning on the surface of products.

Working Principle:

When compressed air passes through the air inlet:

1. Enter the high pressure chamber of the air knife, and the air flow passes through the narrow and thin nozzle.

2. Afterwards, a balanced airflow sheet is formed in the length direction of the air knife.

3. Since the compression ratio of the chamber to the high-pressure airflow is 40:1, the airflow velocity loss is the smallest, and the pressure is the largest, so an airflow with a strong impact force and a small shear force is generated.

Product Parameters:

Product Features:
1. No moving parts, no electricity, safety is guaranteed.
2. No moving parts, compact structure, easy to install.
3. No maintenance, not easy to damage, long service life.
4. Low noise, balanced airflow, saving compressed air.
5. The surface of the aluminum alloy material is extremely anodized, which is more durable.
6. Can replace the traditional blower and blowpipe.

Product Application:
1. Cooling and drying of parts after cleaning process.

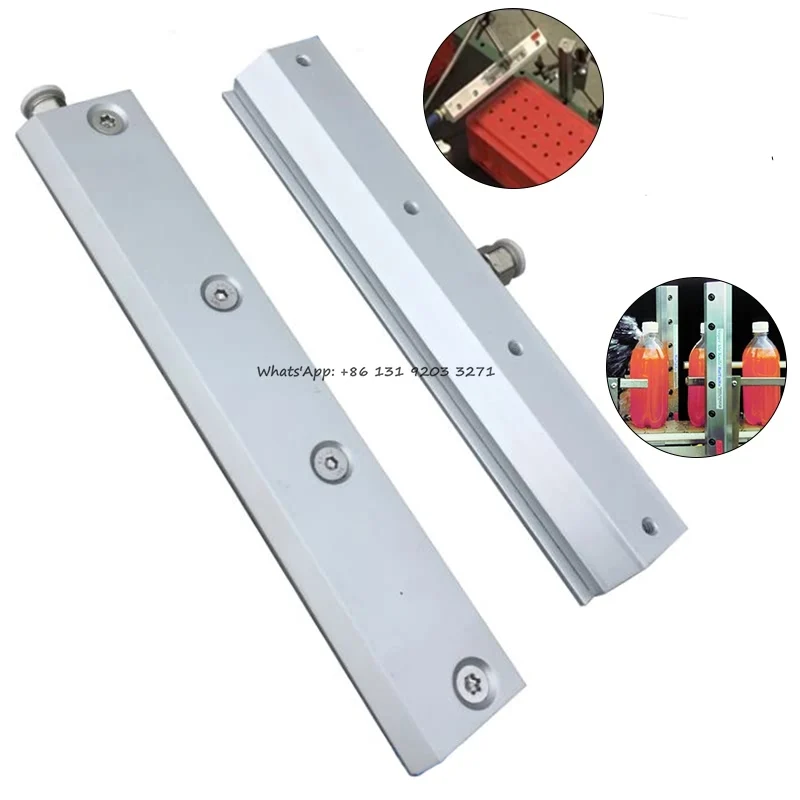

2. After the beverage filling process, it is dried by high pressure air and then labelled.
3. Sheet cleaning with fresh mill.
4. Conveyor belt cleaning, smoke exhaust during engine test.
5. Dewatering and drying of vegetables and fruits before packing.
6. Fabric drying or cleaning.
7. Cleaning up the working environment on the production line.
8. Pretreatment before electroplating or painting.
9. Coating machines for paper and printing industries.
10. The opening of the packaging bag during the operation of the packaging machine.
