Специальный дизайн широко используемый Электрический велосипед/скутер 48 в 60 бесщеточный контроллер постоянного
- Категория: Motor Controllers >>>
- Поставщик: Anhui,Fumei,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 19.19 $* | 19.81 $* |
| Jul-18-2025 | 15.67 $* | 15.88 $* |
| Jun-18-2025 | 19.65 $* | 19.61 $* |
| May-18-2025 | 19.79 $* | 19.83 $* |
| Apr-18-2025 | 15.2 $* | 15.43 $* |
| Mar-18-2025 | 18.67 $* | 18.73 $* |
| Feb-18-2025 | 18.91 $* | 18.45 $* |
| Jan-18-2025 | 18.97 $* | 18.61 $* |
Характеристики
Product Description
1. Blocking function
The controller automatically limits the current when the motor is blocked
2. Switch between
soft and hard Soft start Hard start fast and strong start
3. Undervoltage protection
When the battery voltage is lower than the limit voltage, stop the output and enter the protection state
4. Overtemperature protection
When the temperature is too high, the controller automatically powers off and enters the protection state
5. Car protection
Prevent bad speed or malfunction caused by flying
6.Mute protection
Reduce noise according to the characteristics of brushless motor.
Product Paramenters
item | value |
Warranty | 3months-1year |
Place of Origin | AnHui China |
Brand Name | HANYUN |
Model Number | HY15T800w |
Input Voltage | 48VDC/60VDC |
Rated Power | 800W |
Application | Electric Vehicle Electric bicycle electric motorcycle electric tricycle electric car forklift sanitation car |
Product name | DC Motor Controller |
Size | 23*14*7 |
MOSFET | 15Tubes |
COLOR | Silver |
Material | Aluminum |
Type | Brush-less Controller |
Function | Swift three Speeds/Button three speeds, Alarm, LCD Meter/ |

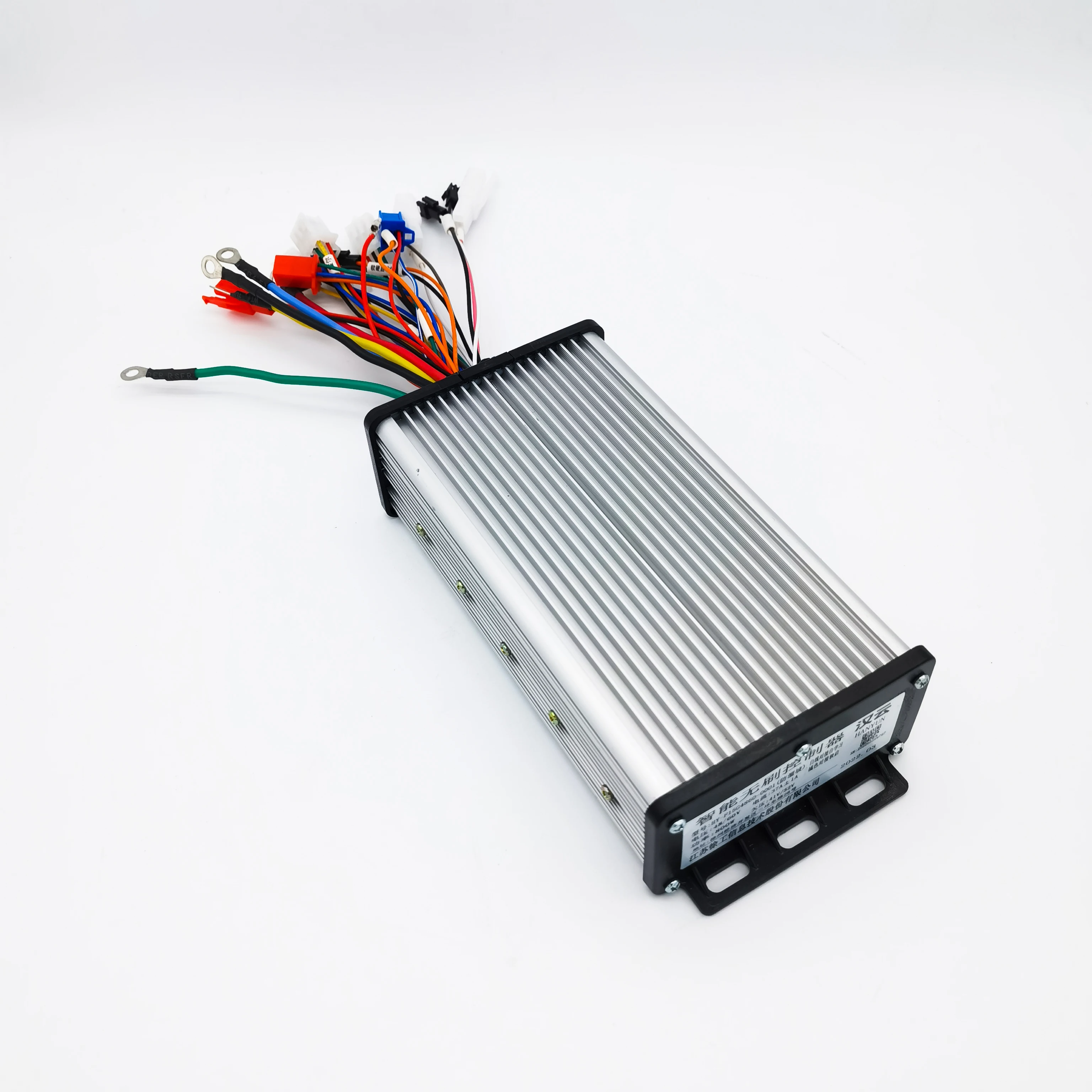

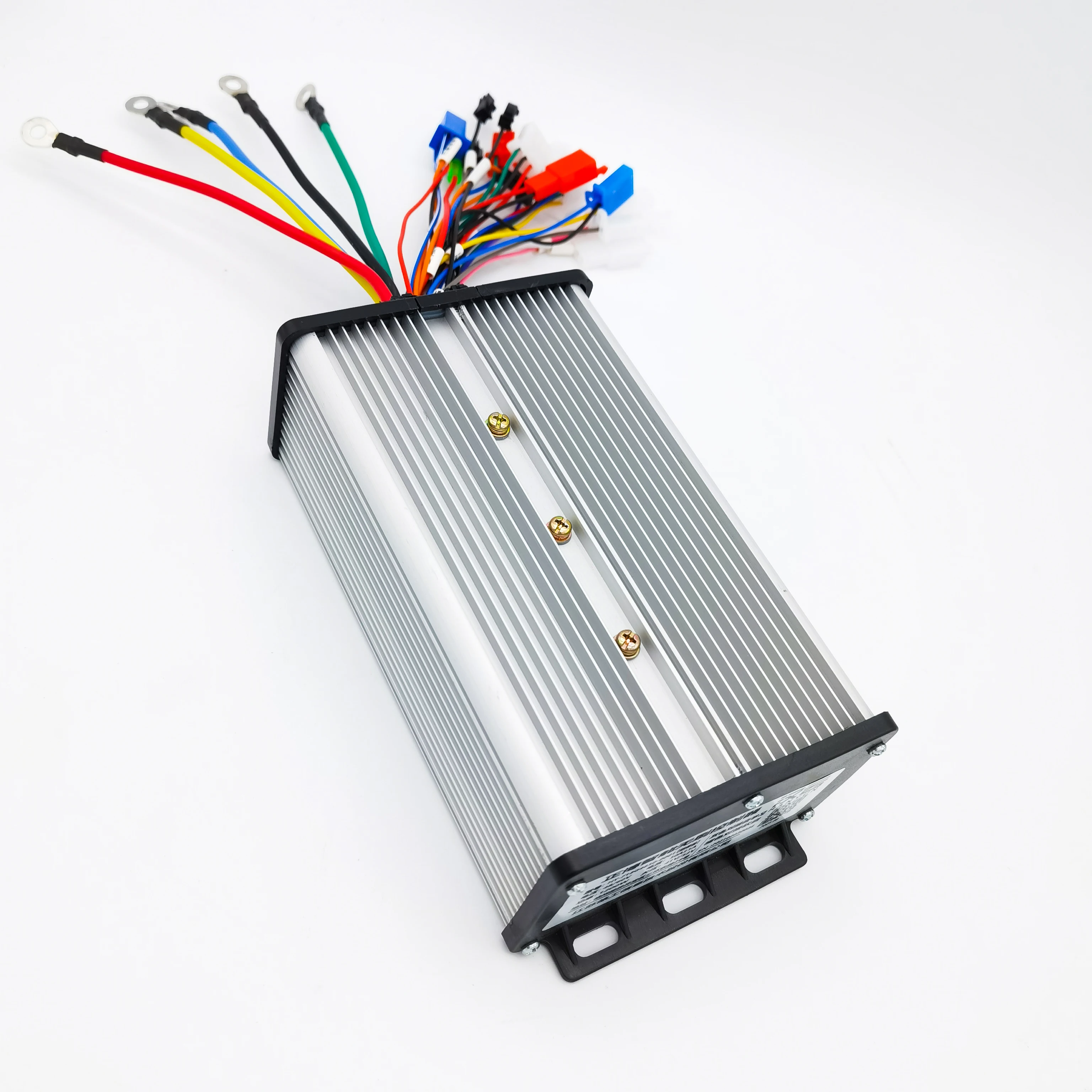

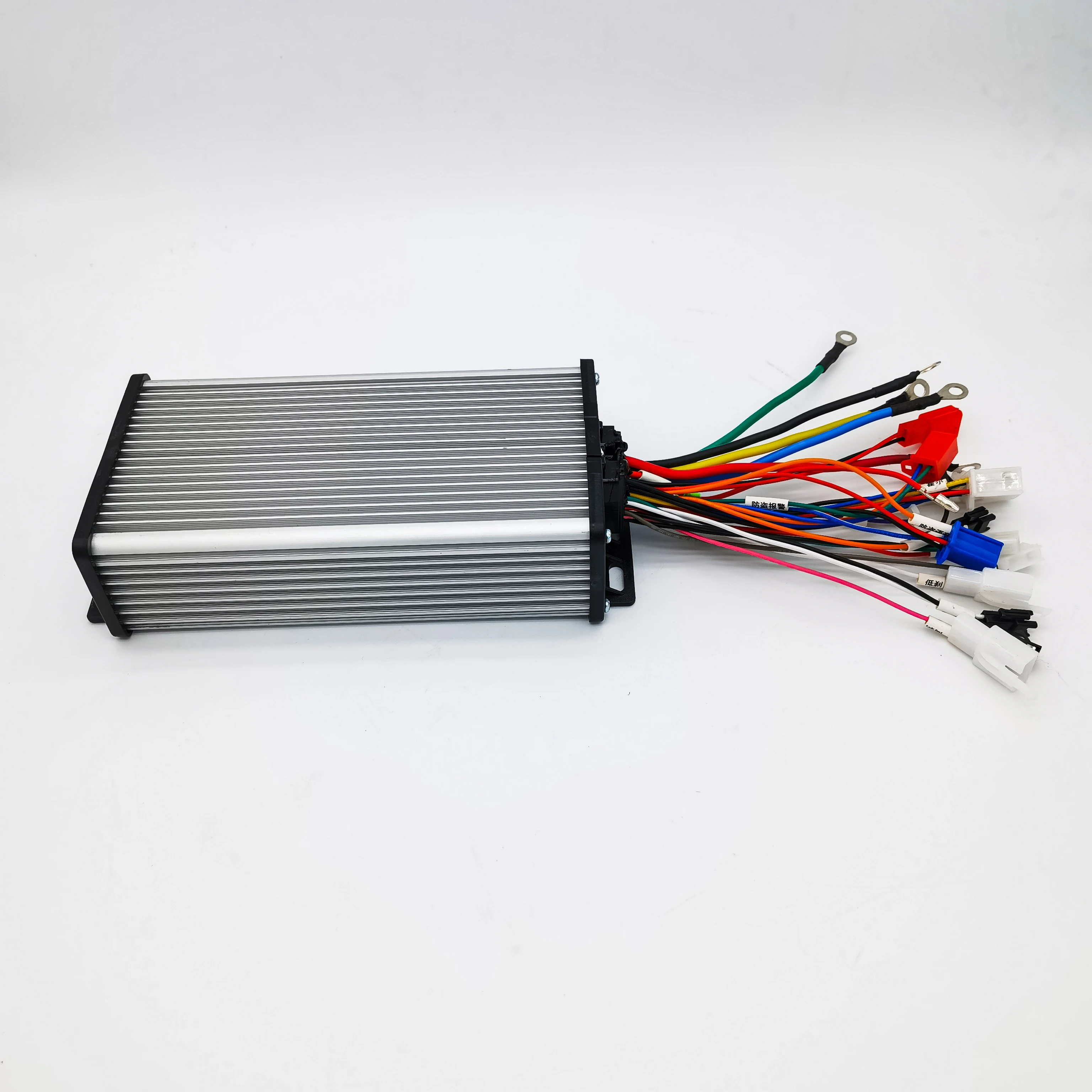

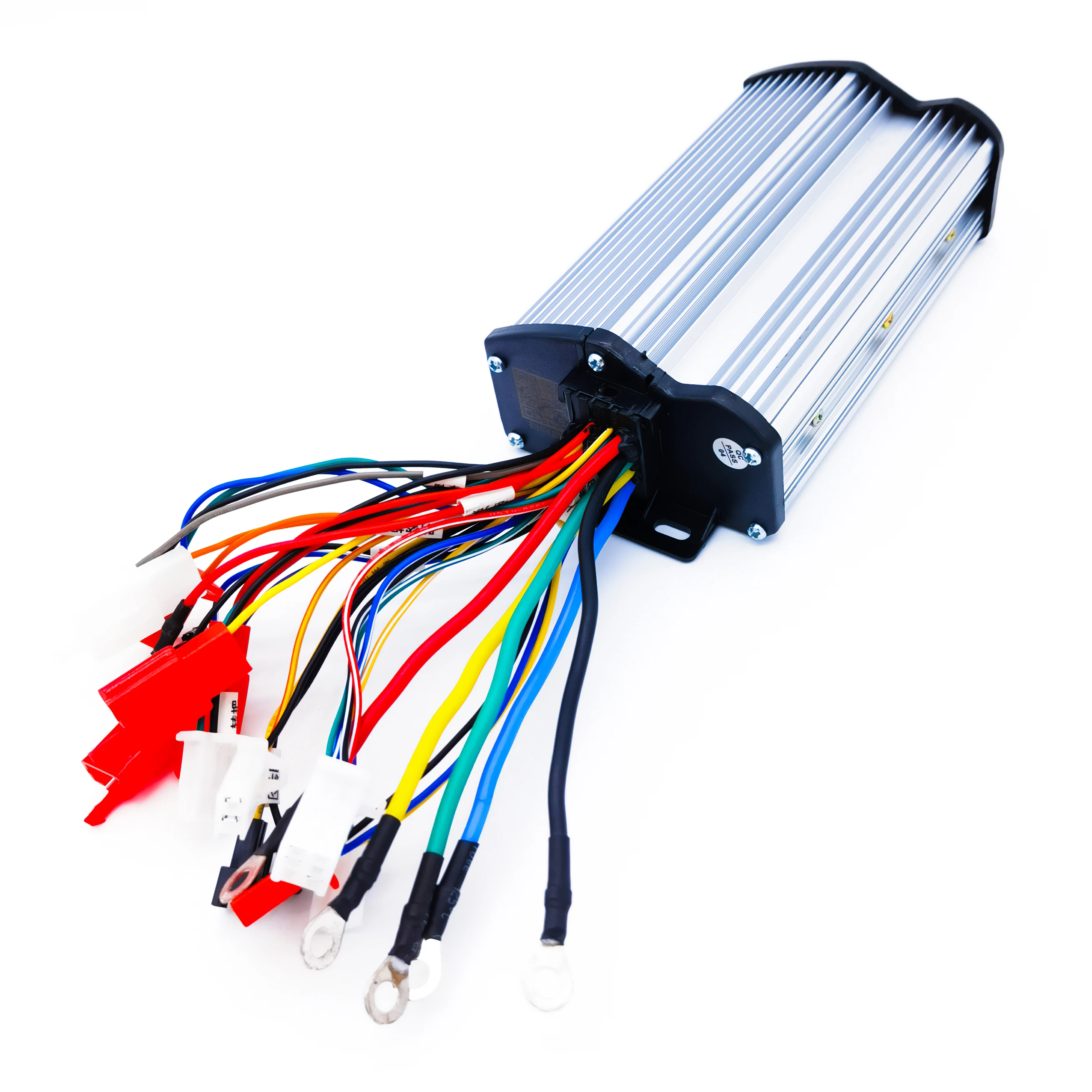

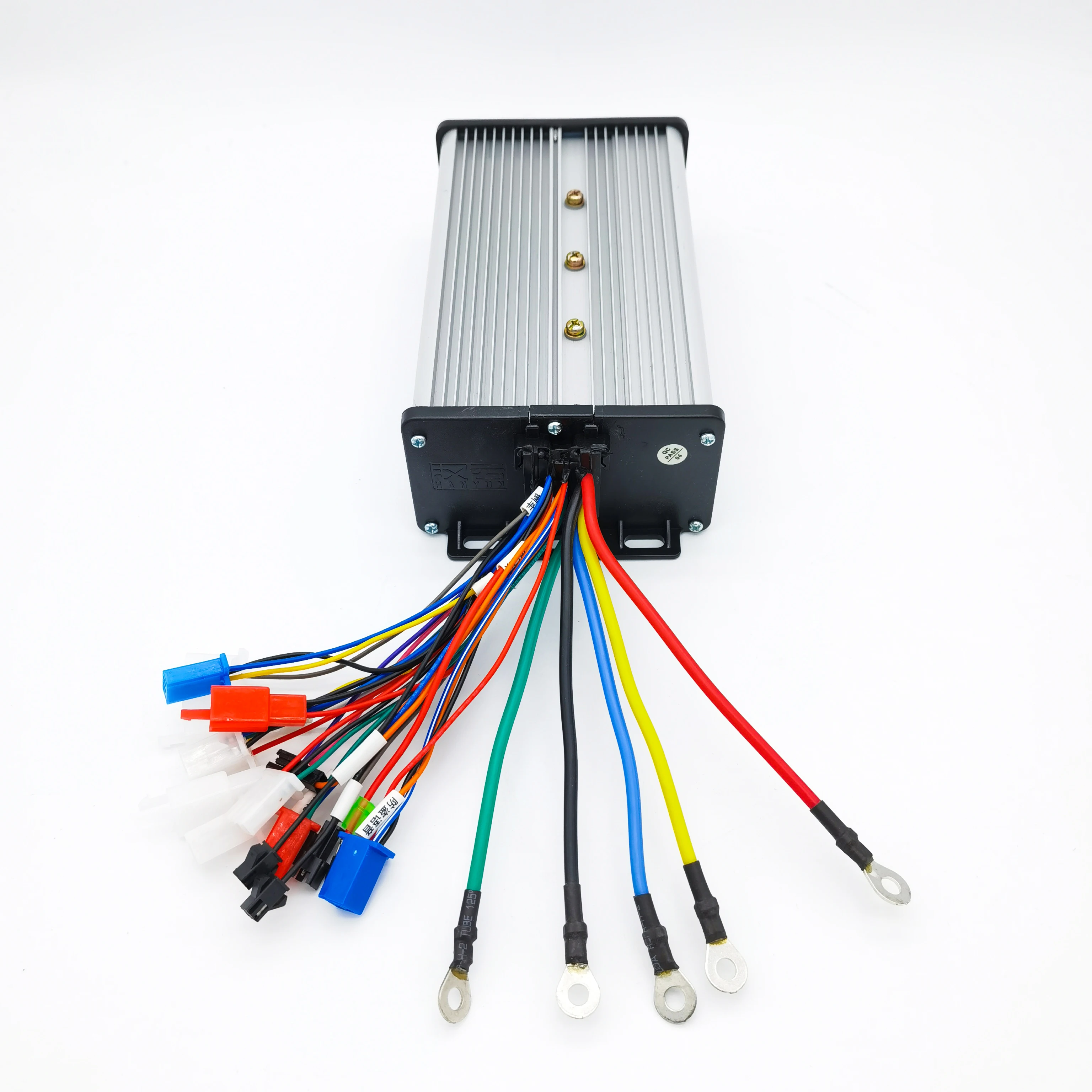

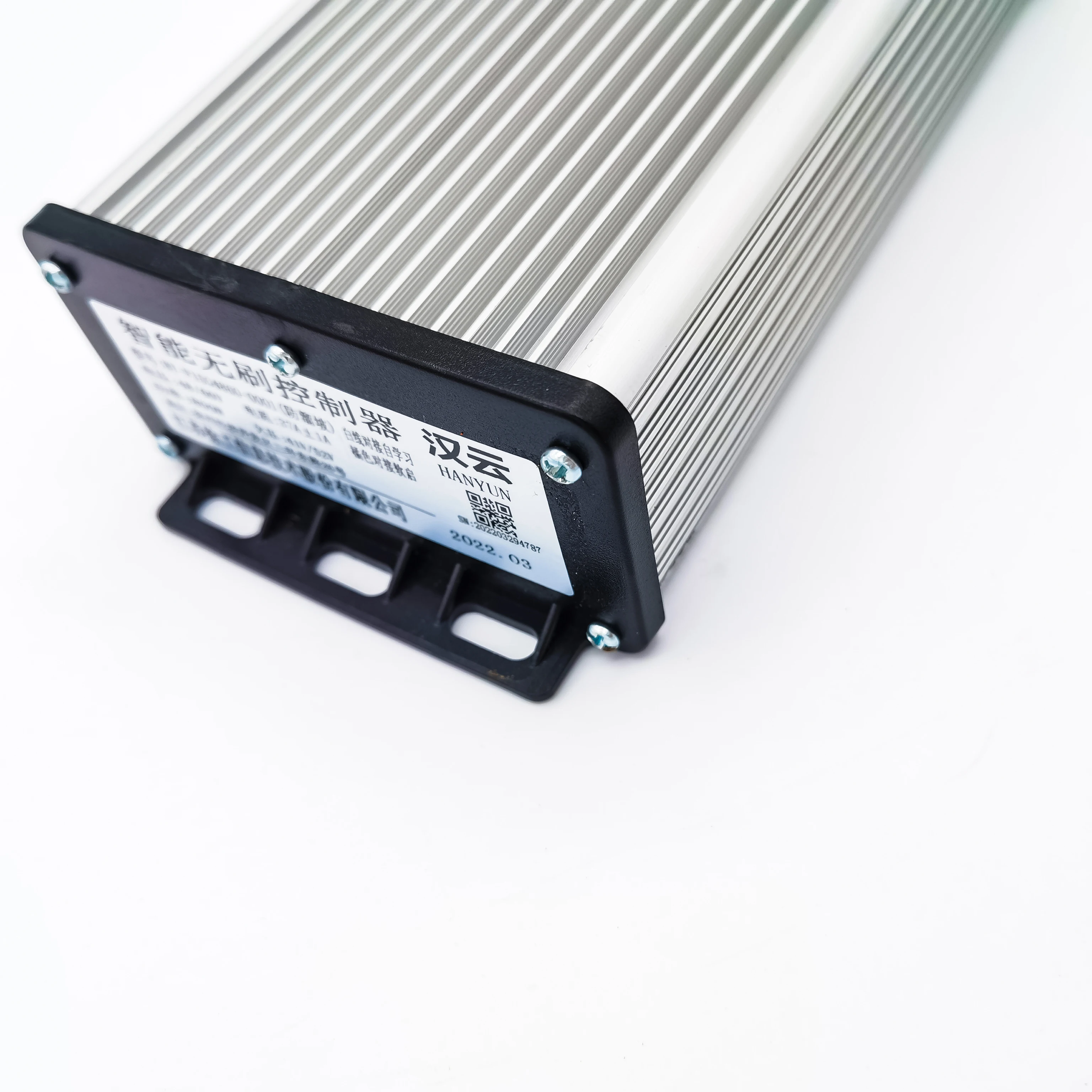

Details Images
Stable operation
good heat dissipation
excellent performance
