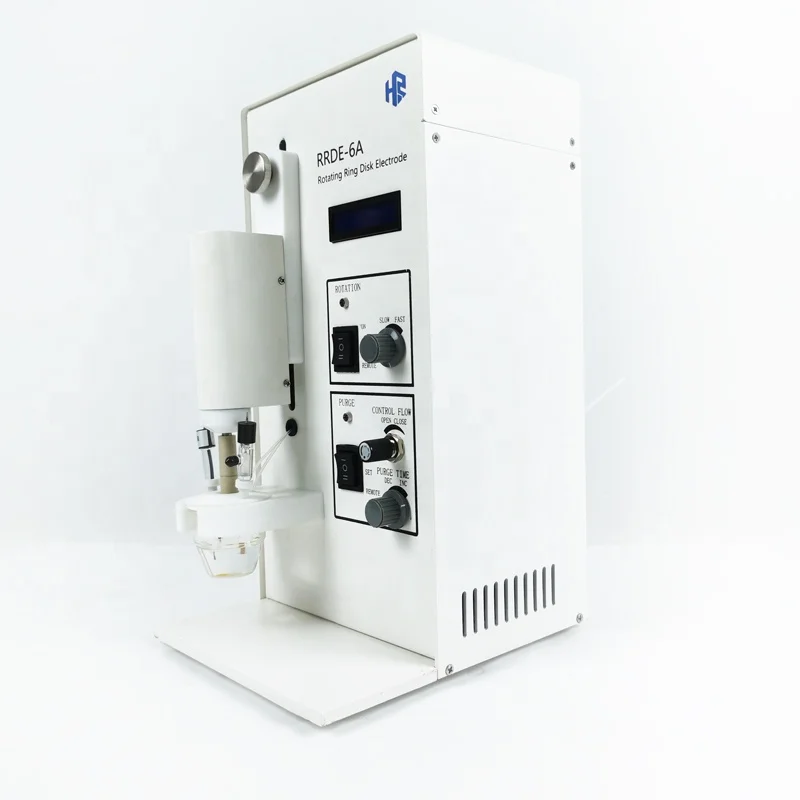

OEM/ODM RRDE настраиваемый вращающийся кольцевой диск электрод испытательные инструменты для материала
- Категория: Other Test Instrument >>>
- Поставщик: Taizhou,Herui,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11186.10 $* | 11745.97 $* |
| Aug-19-2025 | 11092.78 $* | 11647.19 $* |
| Jul-19-2025 | 9306.57 $* | 9771.57 $* |
| Jun-19-2025 | 10904.44 $* | 11449.51 $* |
| May-19-2025 | 9494.24 $* | 9969.62 $* |
| Apr-19-2025 | 10716.20 $* | 11252.83 $* |
| Mar-19-2025 | 10622.96 $* | 11153.73 $* |
| Feb-19-2025 | 10528.90 $* | 11054.64 $* |
| Jan-19-2025 | 10434.27 $* | 10956.36 $* |
Характеристики
Product Description
Specification
1 | Dimensions | 210 (w) x 260 (d) x 400 mm (h) |
2 | Weight | 8.5 kg |
3 | Rotation range: | 10 ~9500 rpm, the speed can be displayed and continuously adjustable, and the speed can be adjusted by using an external voltage signal |
4 | Accuracy Error | error < 1% when speed < 1000 rpm，error < 0.5% when speed >= 1000 rpm |
5 | Bandwidth | 60 Hz @ 3,500 rpm baseline and 1,000 rpm peak-to-peak modulation |
6 | Material of rotation axis | stainless steel |
7 | Motor | 24V, Low Inertia DC Servo Power supply < 100VA 100-240 VAC, 50/60 Hz |
8 | Working temperature: | 10~50℃ |
9 | Intake pressure: | maximum 5 psi |
10 | remote control | 1 V is equivalent to 1000 rpm, the output voltage is proportional to the speed |
11 | Matched ring disk electrode | Ring:Platinum. Disk : glass carbon. Surface coat: PEEK. Collection factor: 42.5% |
Packing & Delivery
12345678901233456780
Company Profile
0912345
FAQ
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.
Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others.
Samples will be 20%-30% higher than the cargo.
Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.
Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Delivery date?
A: 5-15 days
Q8: Payment Method?
A: L/C at sight, T/T
Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
1. By air (For sample orders.)
2. By sea (15-45days), port of loading: Shanghai
3. By domestic logistics to your forwarder. (2-3days)
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.
Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others.
Samples will be 20%-30% higher than the cargo.
Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.
Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Delivery date?
A: 5-15 days
Q8: Payment Method?
A: L/C at sight, T/T
Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
1. By air (For sample orders.)
2. By sea (15-45days), port of loading: Shanghai
3. By domestic logistics to your forwarder. (2-3days)
