Bioevopeak Ахроматический/Ахроматический оптический металлургический
- Категория: Other Test Instrument >>>
- Поставщик: Bioevopeak,Jinan,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.14 $* | 0.74 $* |
| Aug-16-2025 | 0.9 $* | 0.89 $* |
| Jul-16-2025 | 0.67 $* | 0.12 $* |
| Jun-16-2025 | 0.60 $* | 0.8 $* |
| May-16-2025 | 0.86 $* | 0.33 $* |
| Apr-16-2025 | 0.12 $* | 0.28 $* |
| Mar-16-2025 | 0.91 $* | 0.42 $* |
| Feb-16-2025 | 0.93 $* | 0.46 $* |
| Jan-16-2025 | 0.30 $* | 0.98 $* |
Характеристики

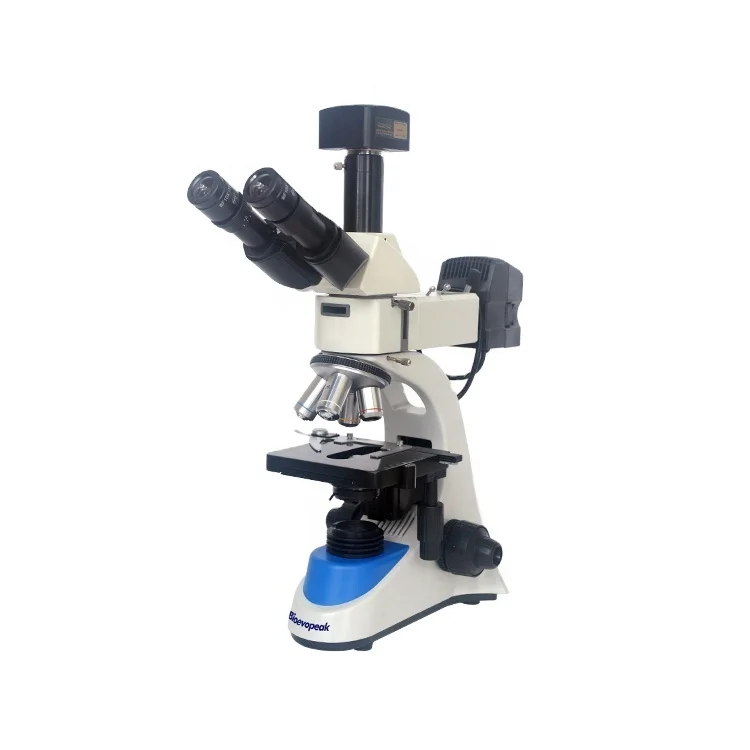

Bioevopeak Achromatic/ Plan Achromatic/ Infinity Plan Achromatic Objective Metallurgical Microscope
Features
Specially designed for materials exploration, it can meet the needs of surface microscopic inspection and screening of metallic materials, nonmetallic materials and geological materials. Mechanical structure stable, compact, ergonomic design, reasonable layout, comfortable use. The use of infinite optical system, long working distance, reliable imaging, high contrast.
Specifications
| Model | MSC-M208T |
| Optical System | Infinite Optical System |
| Viewing Head | Seidentopf Binocular Head/Seidentopf Trinocular Head, Inclined at 30°, Interpupillary 55-75mm |
| Eyepiece | WF10×18mm |
| Achromatic/ Plan Achromatic/ Infinity Plan Achromatic Objective | 5X 0.12 WD23.6mm |
| 10X 0.25 WD17.7MM | |
| 20X 0.40 WD10.4MM | |
| 50X 0.55 WD7mm | |
| Nosepiece | Quadruple Nosepiece/*Quintuple Nosepiece |
| Stage | Double Layers Mechanical Stage 150×140mm/ 75X50mm |
| Condense | Abbe Condenser N.A. 1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm |
| Incident Light | Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen lamp, brightness adjustable |
| Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 3W LED illumination, Brightness adjustable | |
| Transmitted Light | 6V 20W Halogen Lamp, Brightness Adjustable |
| LED Illumination, Brightness Adjustable | |
| Filters | Blue, green, yellow, ground glass |
| Optional | Fluorescent Attachment; |
| Microscope Camera/win10 Pad/Digital display | |
| Optional configuration | |
Packaging & Shipping
Certificates
About us
FAQ
Q: How about quality of the goods?
A:l All the running products comply with CE standards.
l Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
l Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:l Timely reply to pre-sales enquiries
l Real-time update of manufacturing and shipment status
l Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days
