Берегового ZJ 20 скид буровой установки и буровое оборудование

Берегового ZJ 20 скид буровой установки и буровое оборудование

Категория: Oil Field Equipment >>>
Поставщик: Dongying,Kangya,Petroleum,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.16 $*	0.12 $*
Aug-16-2025	0.96 $*	0.68 $*
Jul-16-2025	0.71 $*	0.10 $*
Jun-16-2025	0.8 $*	0.14 $*
May-16-2025	0.57 $*	0.63 $*
Apr-16-2025	0.50 $*	0.8 $*
Mar-16-2025	0.52 $*	0.66 $*
Feb-16-2025	0.54 $*	0.66 $*
Jan-16-2025	0.16 $*	0.3 $*

Характеристики

Product Description

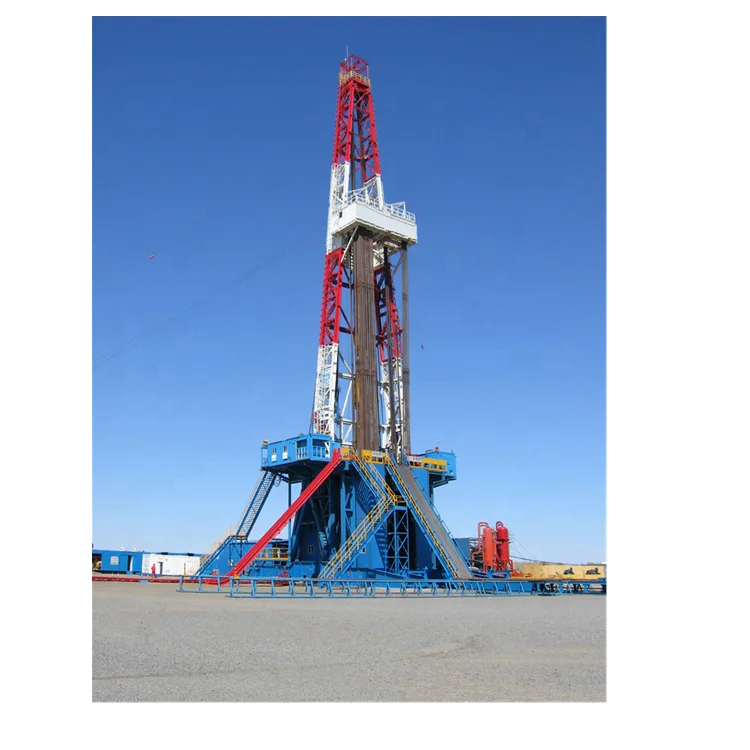

Skid-Mounted Drilling Rig and Drill Equipment

1. Drilling rig drive can be divided into mechanical drive, alternating current drive, direct current drive, compound drive and
other forms, with reasonable power matching, high transmission efficiency and reliability. The machine layout is reasonable, the
use of standardized, modular design, a variety of combinations of versatility, interchangeability, high degree of integration,
installation, transport fast. 2. The derrick structure is in the form of type A, type K, etc., which is assembled in sections,
connected by bolts or pin shafts. The lifting is divided into vertical lifting in sections or overall rotating lifting, and
equipped with buffer device in place to ensure stable and safe positioning. 3. The substructure is in the form of spiral lift,
double lift, box stacked, telescopic and so on. 4. The main brake adopts band brake or hydraulic disc brake, the auxiliary brake
adopts pneumatic water-cooled push-disk brake, electromagnetic eddy current brake, or the auxiliary brake is made by energy

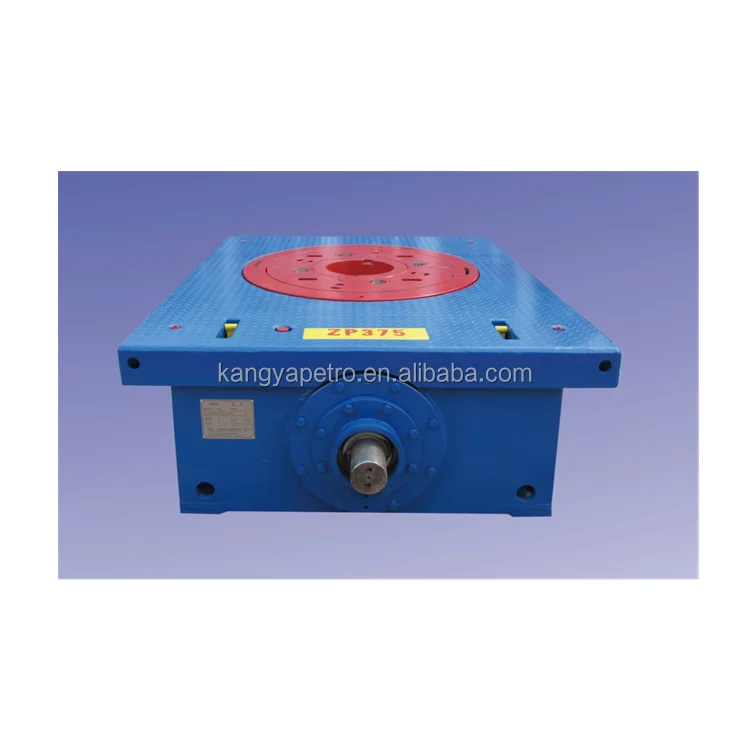

consumption braking of ac frequency conversion motor. 5. Rotary table drive is divided into combined mechanical drive and
independent ac or dc drive, which can realize the positive rotation, reverse, suspension, release of the rotary table, equipped
with reverse torque release device, to ensure the safe release of rotary table drilling string torque. 6. Complete peripheral
equipment such as solid control, well control, high-pressure pipe manifold, electronic control system, mud pump group, oil and
water tank, etc. Modular design, standardized interface, can be arbitrary matching, can be customized..

Model

ZJ10/600

ZJ20/1350

ZJ30/1800

ZJ40/2250

ZJ50/3150

ZJ70/4500

ZJ90/6750

Max Hook Load (kN)

600

1350

1800

2250

3150

4500

6750

Nominal Drilling Depth（114 mm）m

500～1000

1200～2000

1600～3000

2500～4000

3500～5000

4500～7000

6000～9000

Drawworks Power (kW)

110～200

335～510

410～710

746～1120

1100～1492

1492～2240

2200～2985

Lines

8，10

14，16

Wire line Dia, (mm)

29，32

Mast height (m)

31，33

33，41，43

41，43

45，46，48

Max hook speed (m/s)

1.5

Substructure height (m)

4.5

5，6

6，7.5

7.5，9

10.5

RT Hole Dia. (mm)

444.5

444.5，520.7

520.7，698.5

698.5

952.5

952.5，1257.3

Main Brake

band brake

band and disc brake

disc brake

auxiliary brake

224WCB

324WCB，FDWS30

324WCB，FDWS40，dynamic braking

DS50，DSF50，dynamic

DS70，dynamic

Dynamic

braking

*Mud pump power hp×qty

500×1

800×2

1000×2，1300×2

1300×2

1300×3，1600×2

1600×3

1600×3，2200×3

*engine power (kW)×qty

230×1

470×1

402×2，810×3

810×3，1310×2

810×3，1310×3

1310×4

1310×5

Certifications

Company Profile

Dongying Kangya Petroleum Equipment Co.,Ltd.is a professional manufacturer and supplier of all types of petroleum equipment.The company is located in Dongying, the beautiful petroleum city at Yellow River Delta, covers an area of more than 330 million square meters.

And we have many years of history in the petroleum equipment industry.Our main products include drilling equipment,oil production equipment,wellhead equipment,well control equipment,downhole tools,OCTG pipe,\tvavle & pipe fitting and oilfield tools.

Currently,our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.

Our company has always focused on research, development and innovation.Kangyapetro will initiate the second phase of our development strategy.Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
