Новый заземляющий медный зажим
- Категория: Other Security & Protection Products >>>
- Поставщик: Zhejiang,Huadian,Lightning,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.75 $* | 1.66 $* |
| Jul-15-2025 | 1.39 $* | 1.9 $* |
| Jun-15-2025 | 1.48 $* | 1.21 $* |
| May-15-2025 | 1.33 $* | 1.32 $* |
| Apr-15-2025 | 1.42 $* | 1.81 $* |
| Mar-15-2025 | 1.55 $* | 1.32 $* |
| Feb-15-2025 | 1.0 $* | 1.39 $* |
| Jan-15-2025 | 1.76 $* | 1.86 $* |
Характеристики
HUA DIAN NEW GROUND ROD EARTHING COPPER CLAMP
PRODUCT INTRODUCTION
Earth outlet is manufactured from brass. It provides an excellent earth point when connected to continious reinforcing bars. Earth outlet is widely used in earthing project with it's Strong corrosion resistance, Good conductivity, and long use life.
|
PRODUCT FEATURES
1.Materials | Brass |
2. Function: | Provides an excellent earth point when connected to continious reinforcing bars. |
3. Advantage: | Strong corrosion resistance, Good conductivity, and 50 years use life |
4. Operating: | Very simple and convenient |

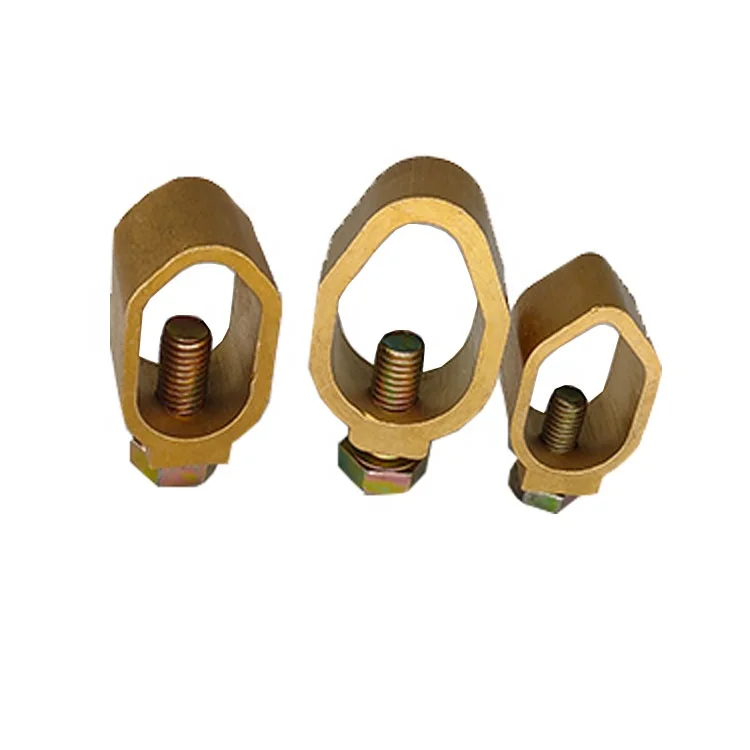

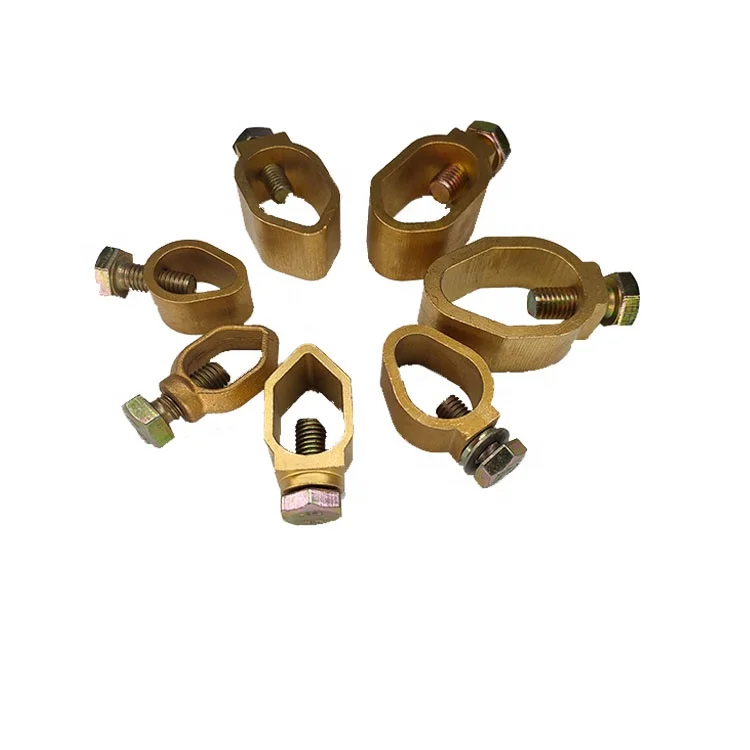

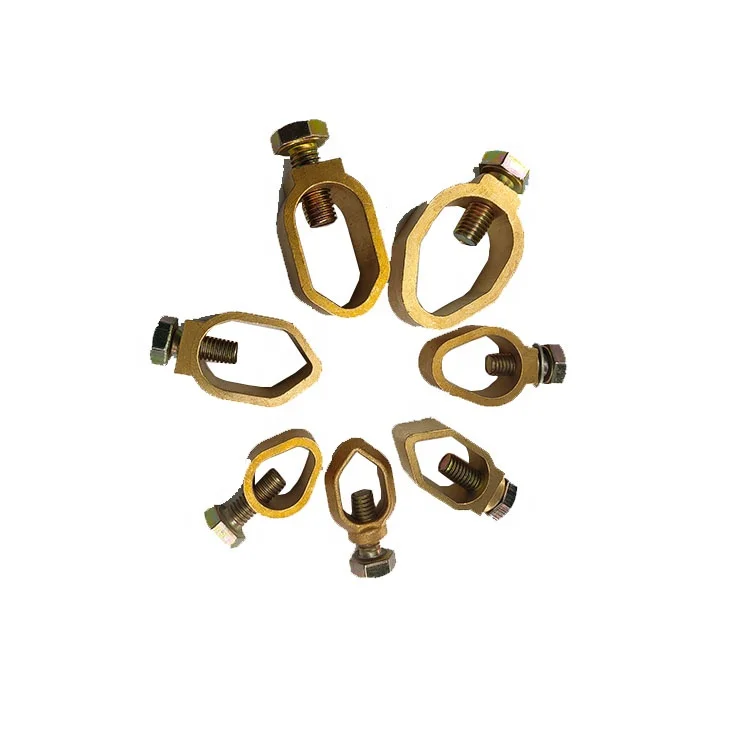

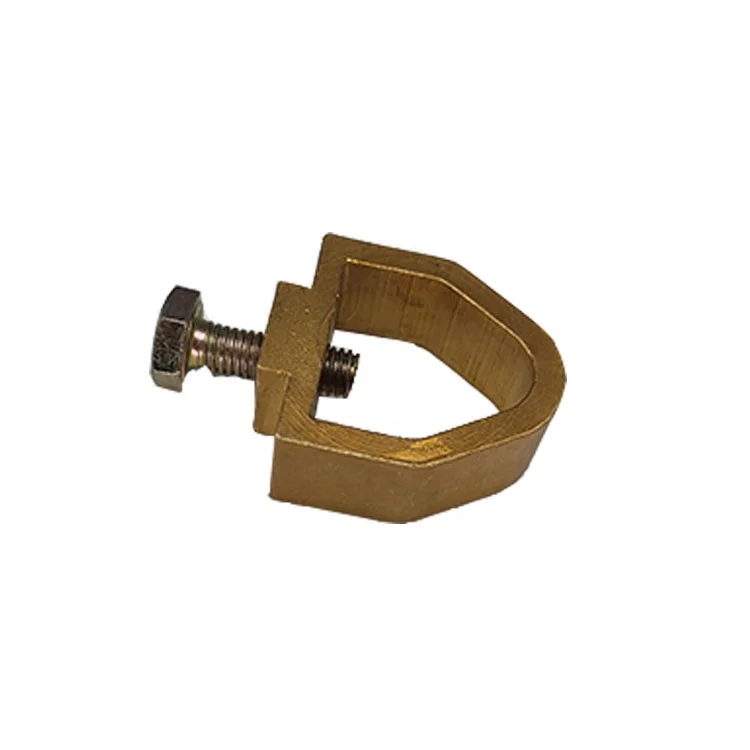

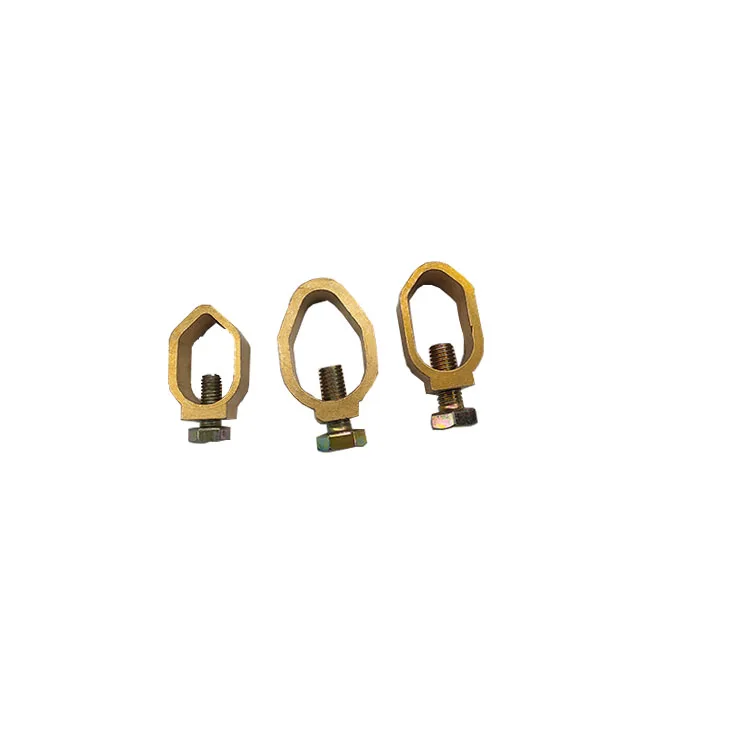

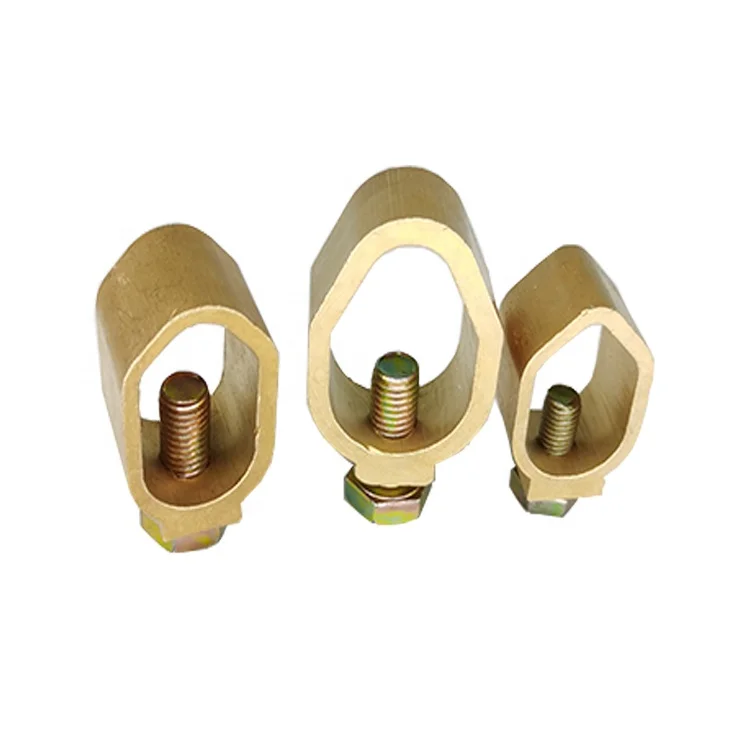

PRODUCT PICTURES
PRODUCT SPECIFICATION
| Part No. | Fix Hole No. | Application of cable size |
| HD-WB401-95 | M10X4 | 95mm2 |
| HD-WB201-95 | M10X2 | 95mm2 |
*HD-WB201-95
1) Material: 58# Cu ( copper content: 58%)
2) dimensions: Length: 84mm* Width: 44mm*thickness: 8.5mm,
stem Diameter: 10.7mm, stem length:70mm
3) Hole dimension: M12*25mm
4) materials of bolts and screw caps: 58# Cu ( copper content: 58%)
5) Net weight: 0.48kg( including weights of two bolts and two screw caps and two washers)
*HD-WB401-95
1) Material:58# Cu ( copper content: 58%)
2) dimensions:Length: 84mm* Width: 84mm*thickness: 8.0mm,
stem Diameter: 18mm, stem length:70mm
3)Hole dimension: M12*25mm
4) materials of bolts and screw caps: 58# Cu ( copper content: 58%)
5) Net weight: 0.94kg( including weights of four bolts and four screw caps and four washers)
PRODUCT APPLICATION
The product can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.
