Прецизионная точечная сварка Автоматическая Горячая
- Категория: Other Welding Equipment >>>
- Поставщик: Guangzhou,Minder-Hightech,Co.,Ltd.Guangzhou,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 716946.25 $* | 752793.32 $* |
| Aug-18-2025 | 710922.50 $* | 746468.44 $* |
| Jul-18-2025 | 596451.6 $* | 626274.87 $* |
| Jun-18-2025 | 698872.67 $* | 733816.51 $* |
| May-18-2025 | 608501.93 $* | 638926.85 $* |
| Apr-18-2025 | 686823.85 $* | 721164.57 $* |
| Mar-18-2025 | 680798.8 $* | 714838.93 $* |
| Feb-18-2025 | 674773.42 $* | 708512.91 $* |
| Jan-18-2025 | 668748.29 $* | 702185.76 $* |
Характеристики
Product Description
Hot bar soldering machine

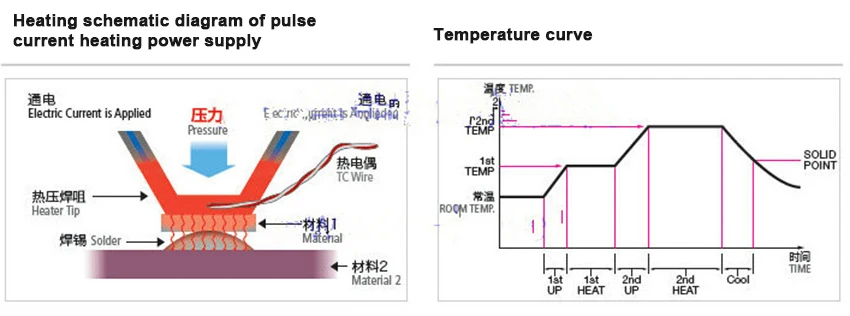

Pulse heating system with thermocouple temperature feedback and current precision djustment. Accurate welding temperature and heating time.
Two stage heating and constant temperature control, low heat impact on worl piece,good welding quality.

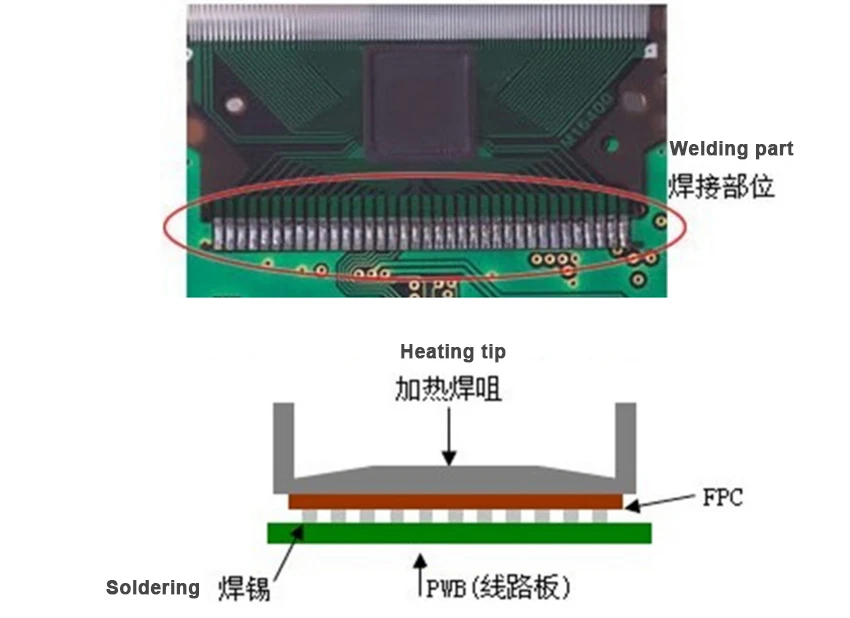

Display temperature curve and temperatures of each stage Suitable for joining ACF, FPCetc.
Two stage heating and constant temperature control, low heat impact on worl piece,good welding quality.
Display temperature curve and temperatures of each stage Suitable for joining ACF, FPCetc.
Advantage
1. IGBT inverter with 4kHz frequency.
2. Temperature closed loop control, feed back every 0.25ms.
3. Real time display temperature curve.
4. Upper and lower monitor of the temperature.
5. Easily operating.
6. Overheat protection, overvoltage/undervoltage protection.
7. High precisely heating control system.
8. Two steps heating with upslope.
9. Ease for automation.
10. The temperature can be +- 4 centigrade.
Saving power, 50% off than traditional AC soldering power.
2. Temperature closed loop control, feed back every 0.25ms.
3. Real time display temperature curve.
4. Upper and lower monitor of the temperature.
5. Easily operating.
6. Overheat protection, overvoltage/undervoltage protection.
7. High precisely heating control system.
8. Two steps heating with upslope.
9. Ease for automation.
10. The temperature can be +- 4 centigrade.
Saving power, 50% off than traditional AC soldering power.
Specification
Type | JYR-O1L | JYR-02L | JYR-O3L |
Input voltage (V) | 220V | 220V | 220V |
Rating capacity (kVA) | 4 | 6 | 10 |
Temperature setting (℃) | 50-600 | 50-600 | 50-600 |
Duty cycle (%) | 10 | 10 | 10 |
Inverting frequency (kHz) | 4 | 4 | 4 |
Heating stage | 2 | 2 | 2 |
Schedules | 20 | 20 | 20 |
Dimensions (L*B*H) (mm) | 435*185*320 | 435*185*320 | 435*185*320 |
Weight (kg) | 18 | 20.5 | 22 |

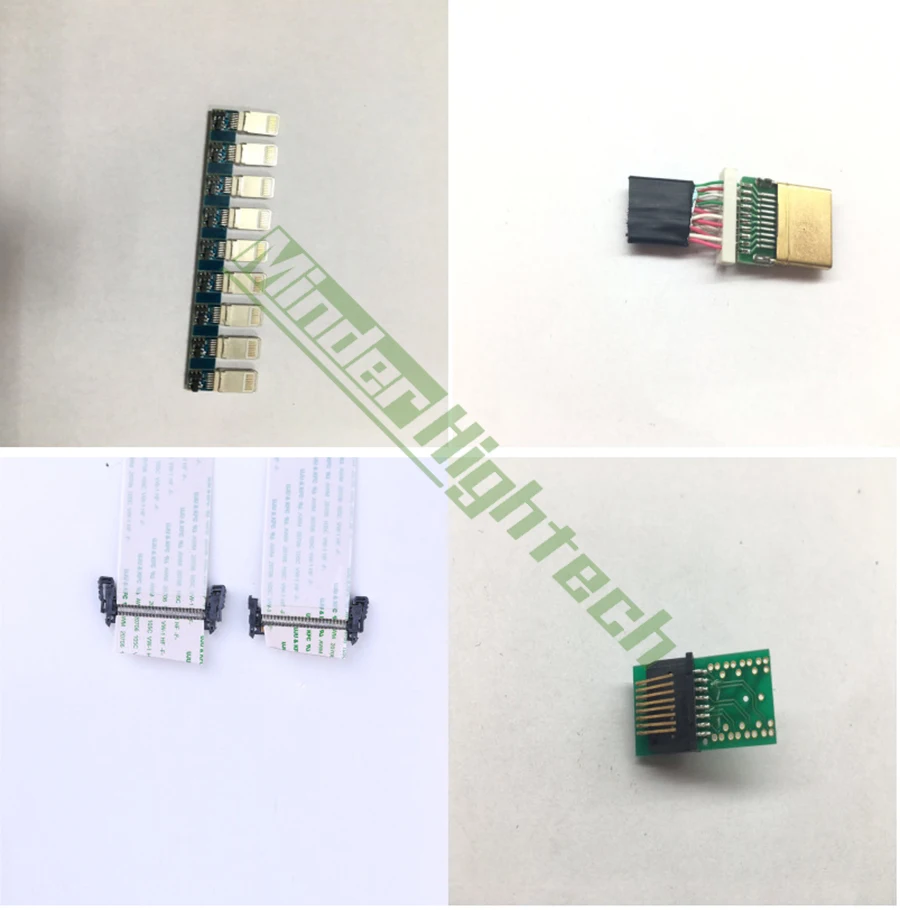

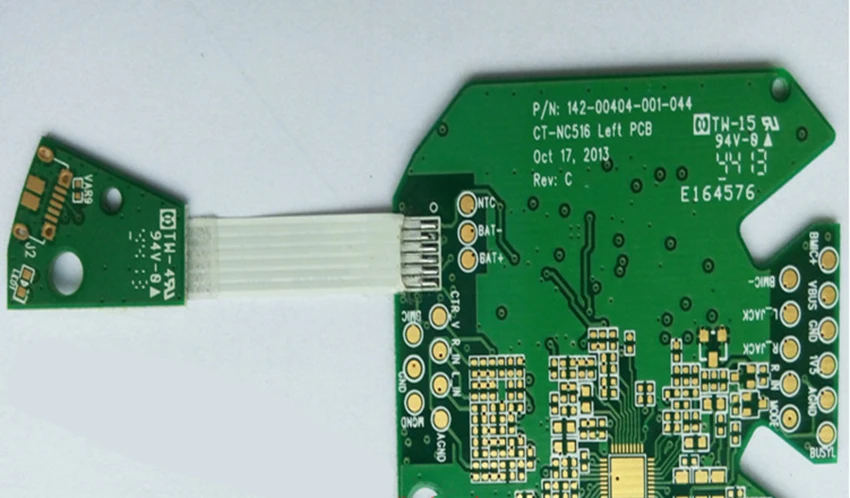

Sample

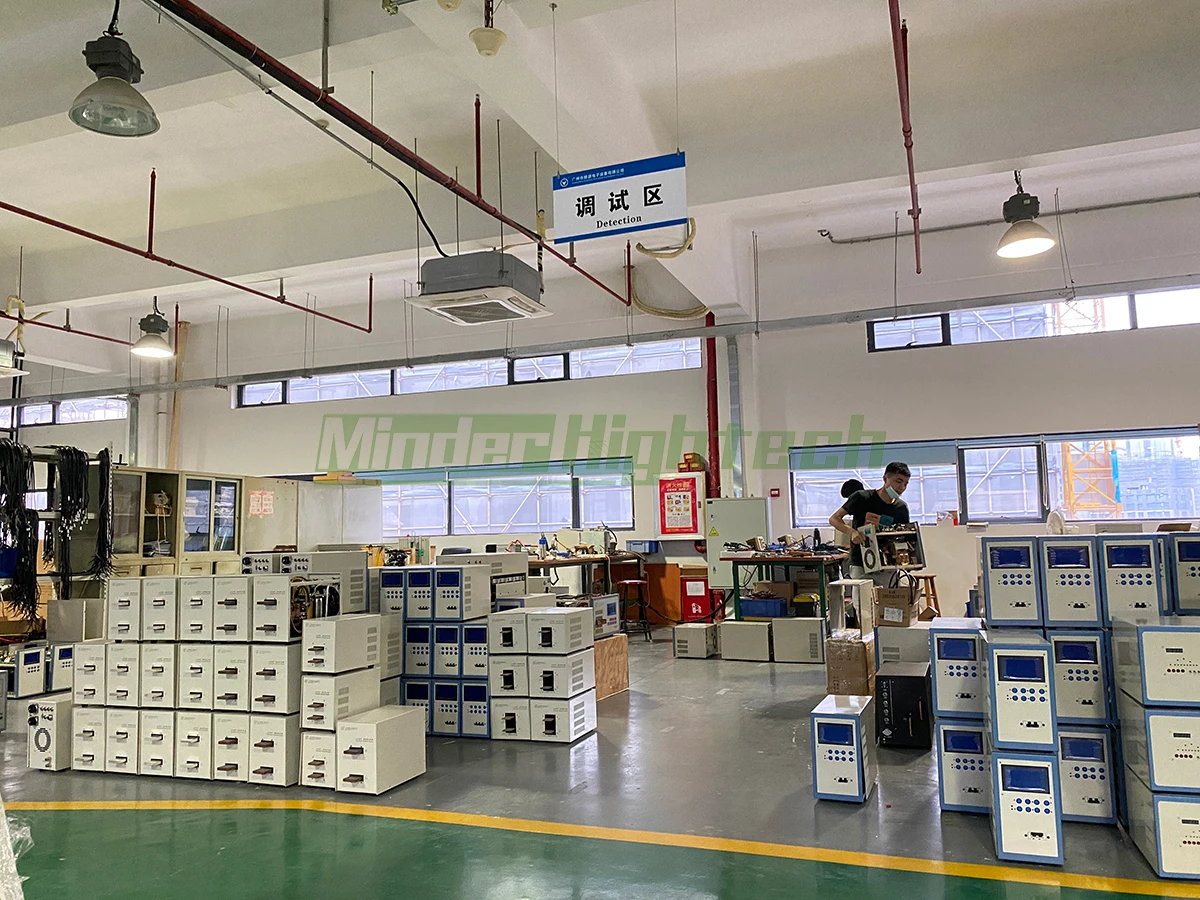

Factory
Packing & Delivery
If you want to konw more,please contact our sales engineer:
