Учебное оборудование для школы лаборатории уроки физики фотоника учебный набор LA-1001 лазерный
- Категория: Educational Equipment >>>
- Поставщик: Photonic,Technology,Systems,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 6545.89 $* | 6872.73 $* |
| Aug-16-2025 | 6490.63 $* | 6815.74 $* |
| Jul-16-2025 | 5445.9 $* | 5717.65 $* |
| Jun-16-2025 | 6380.25 $* | 6699.41 $* |
| May-16-2025 | 5555.35 $* | 5833.23 $* |
| Apr-16-2025 | 6270.79 $* | 6584.62 $* |
| Mar-16-2025 | 6215.41 $* | 6526.44 $* |
| Feb-16-2025 | 6160.99 $* | 6468.79 $* |
| Jan-16-2025 | 6105.19 $* | 6410.38 $* |
Характеристики
Specification
Product Description
Photonics Education Kit

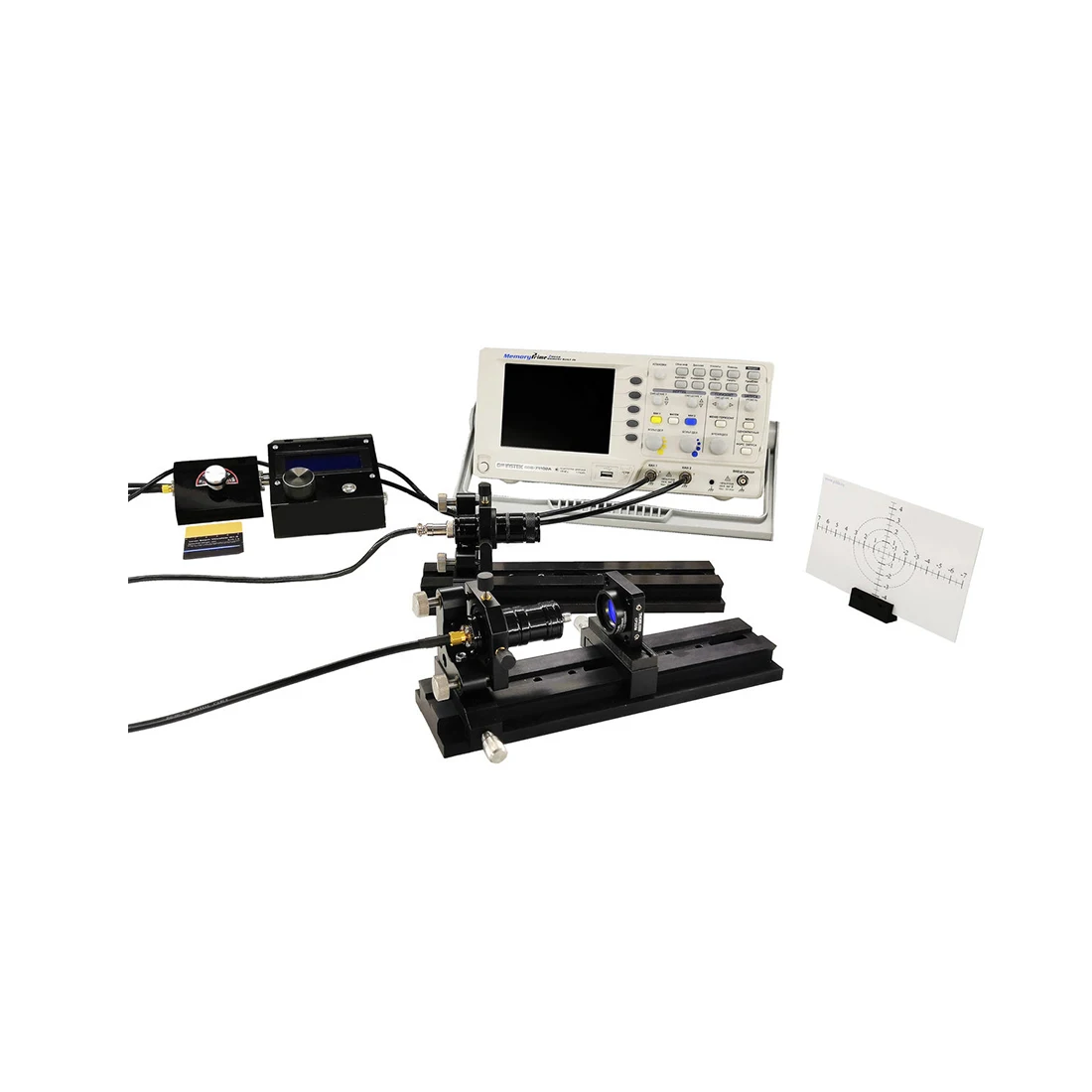

LA-1001 Laser Rangefinder
· Determining the distance to the object.
· Speed of light.
· Nanosecond laser pulses.
· Modulation and synchronization of radiation.
· Radiation detection.
· Light scattering.
· Speed of light.
· Nanosecond laser pulses.
· Modulation and synchronization of radiation.
· Radiation detection.
· Light scattering.
The laser rangefinder is a device for measuring distances with a laser beam. These devices are widely used in geodesy, topographic surveying, special equipment, navigation, and astronomical research. Laser rangefinders are distinguished by the principle of action on pulsed and phase. The educational kit will introduce students to the work of the impulse rangefinder. It consists of a pulsed laser with a wavelength of 905 nm and a photodetector of radiation. The pulse duration is 50 ns, the peak power is 40 W, and the repetition rate is adjustable from 1 Hz to 12 kHz. The method of measuring distance is to measure the time during which the beam travels to the reflector and back, and knowing the value of the speed of light, the distance between the laser and the reflecting object is calculated. During the assembly and tuning of the laser rangefinder, students will gain skills in working with various optical lenses, detecting radiation, and synchronizing signals.
Components:
1) Pulsed 905 nm Laser Diode Module in holder, 1 pc.
2) Diode laser controller, 1 pc.
3) Collimator lens in holder, 1 pc.
4) Focusing lens f=100 mm in holder, 1 pc.
5) Optical rail 25 cm, 2 pcs.
6) Optical rail carriers, 7 pcs.
7) Photodetector in holder, 1 pc.
2) Diode laser controller, 1 pc.
3) Collimator lens in holder, 1 pc.
4) Focusing lens f=100 mm in holder, 1 pc.
5) Optical rail 25 cm, 2 pcs.
6) Optical rail carriers, 7 pcs.
7) Photodetector in holder, 1 pc.
8) Laser beam visualizer IR1-1, 1 pc.
9) Diffusing screen, 1 pc.
10) Alignment targets, 2 pcs.
11) Set for optics cleaning, 1 pc.
12) Manual, 1 pc.
13) Packing case with lodgement, 1 pc.
9) Diffusing screen, 1 pc.
10) Alignment targets, 2 pcs.
11) Set for optics cleaning, 1 pc.
12) Manual, 1 pc.
13) Packing case with lodgement, 1 pc.
Optionally:
1) Digital Oscilloscope, 100 MHz, 2 channels, 1 pc.
2) Diffusion screen 20x20 cm from the laser beam visualizer IR1-1, 1 pc.
3) Laser beam splitter, 1 pc.
4) Photodetector in holder, 1 pc.
2) Diffusion screen 20x20 cm from the laser beam visualizer IR1-1, 1 pc.
3) Laser beam splitter, 1 pc.
4) Photodetector in holder, 1 pc.
Specification
Brand Name | Photonic Technology Systems |
Model Number | LA-1001 |
Application | Photonics Education Kits |
Customized support | OEM, ODM |
Place of Origin | Russia, Mordovia republic, Saransk city |
Packing & Delivery
Each educational set is packed into Protective packing box.
We deliver orders with help of these International shipping services:
FAQ
1. Can I get samples?
Yes, we will send test samples. Sending a test batch is under discussion.
2. Can I have my own customized product?
Yes, we will send test samples. Sending a test batch is under discussion.
2. Can I have my own customized product?
We can custom-design products. We can discuss all the conditions with you, just write to us.
3. How long does it take to calculate the shipping cost?
The average shipping cost estimate takes 1 to 3 business days.
3. How long does it take to calculate the shipping cost?
The average shipping cost estimate takes 1 to 3 business days.
Company Profile
Welcome to Photonic Technology Systems
The research and production company "Photonic Technology Systems" was founded by a group of scientists in 2017 with funding by the Foundation for Assistance to Small Innovative Enterprises. The company is located in the National Research Mordovia State University (Saransk, Russia)
PhotonTechSystems LLC manufactures educational photonics kits, laser beam visualizers, laboratory furniture for laser experiments, optomechanical components and other high-tech products. Our goal is to integrate the results of scientific and educational activities in the field of photonics and business. PhotonTechSystems are based on the spirit of partnership, continuous development and high quality.
Why to choose us?
◙ Unique photonics educational kits for universities and schools
◙ Own production and ware house
◙ High customer focus and competitive pricing
◙ Own production and ware house
◙ High customer focus and competitive pricing
◙ PhotonTechSystems are based on the spirit of partnership, continuous development and high quality.
◙ Our goal is to integrate the results of scientific and educational activities in the field of photonics and business.
