Сплит CT 100A/5A AC трехфазный тороидальный внутренний сплит-сердечник E-meter

Сплит CT 100A/5A AC трехфазный тороидальный внутренний сплит-сердечник E-meter

Категория: Transformers >>>
Поставщик: Henan,Compere,Smart,Technology,Co.,Ltd.

Цена:7,00 $ - 9,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	9.98 $*	9.40 $*
Jul-19-2025	7.26 $*	7.86 $*
Jun-19-2025	9.79 $*	9.97 $*
May-19-2025	9.62 $*	9.44 $*
Apr-19-2025	7.87 $*	7.26 $*
Mar-19-2025	9.19 $*	9.94 $*
Feb-19-2025	8.51 $*	8.66 $*
Jan-19-2025	8.55 $*	8.6 $*

Характеристики

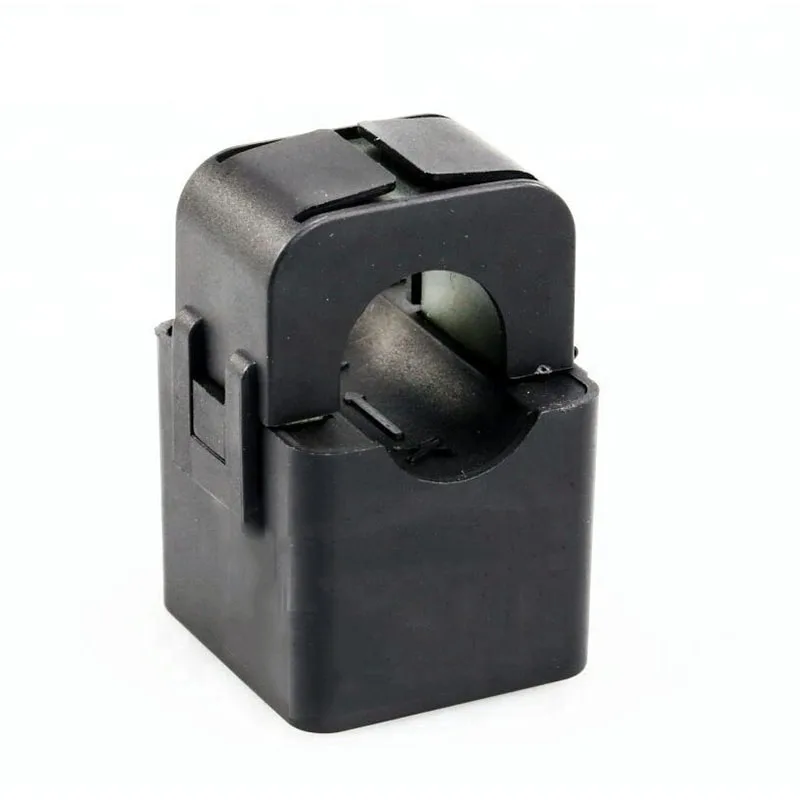

Split CT 100A/5A AC Three Phase Toroidal Indoor Split-Core E-meter Current Transformer

Details Images

Main features of Split core current transformer

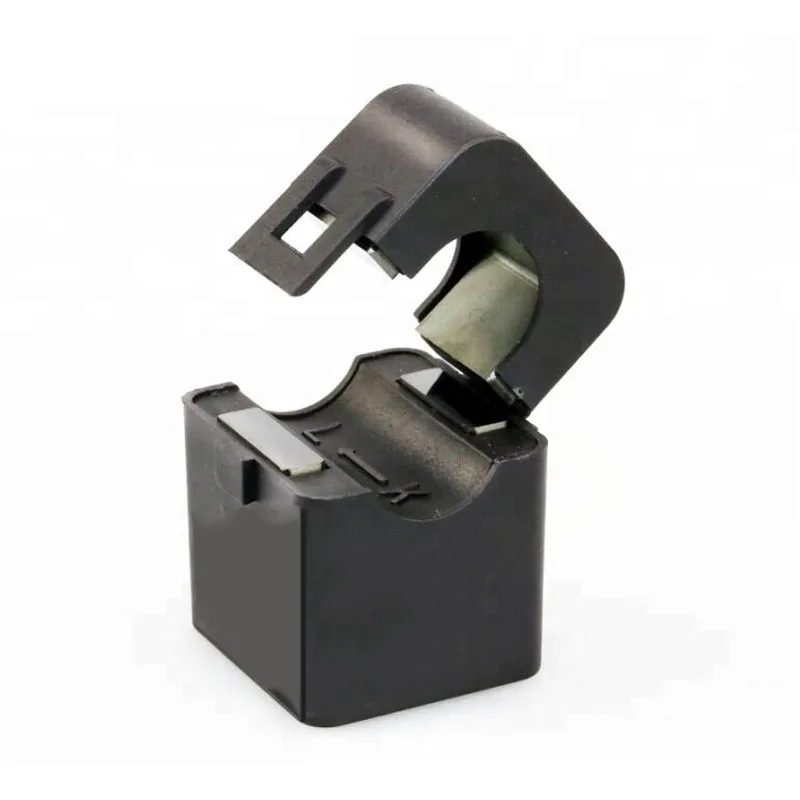

1. Open-close type installation, easy to install and disassemble.
2. Stable performance, light weight, multiple core size for option, 10/16/24/36/50mm.
3. Open-close type installation, no to need to cut off the power.

Product Paramenters

ITEM MODEL	rated input current	rated output current	length of stay	Nonlinearity error (5%-120%)
ITEM MODEL	rated input current	rated output current	length of stay			F(I)%	δ(I)°
KP-YCT-T36	0~600A	0~200mA Customized	2464 Sheathed cable	≤1.5%	≤1°
KP-YCT-T36 100A/5A	100A	5A	2.5 square/1m	≤0.5%	≤0.7%
KP-YCT-T36 150A/5A	150A	5A	2.5 square/1m	≤0.5%	≤0.5%
KP-YCT-T36 200A/5A	200A	5A	2.5 square/1m	≤0.5%	≤0.2%
KP-YCT-T36 250A/5A	250A	5A	2.5 square/1m	≤0.5%	≤0.2%
KP-YCT-T36 300A/5A	300A	5A	2.5 square/1m	≤0.5%	≤0.2%
KP-YCT-T36 400A/5A	400A	5A	2.5 square/1m	≤0.5%	≤0.2%
KP-YCT-T36 500A/5A	500A	5A	2.5 square/1m	≤0.5%	≤0.2%
KP-YCT-T36 600A/5A	600A	5A	2.5 square/1m	≤0.5%	≤0.2%
