Производитель маршрутизатор PCBA/машина для подсчета печатных плат/Электронный сепаратор
- Категория: Electronics Production Machinery >>>
- Поставщик: Guangzhou,Minder-Hightech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.3 $* | 0.85 $* |
| Aug-18-2025 | 0.26 $* | 0.24 $* |
| Jul-18-2025 | 0.54 $* | 0.22 $* |
| Jun-18-2025 | 0.0 $* | 0.38 $* |
| May-18-2025 | 0.22 $* | 0.91 $* |
| Apr-18-2025 | 0.98 $* | 0.96 $* |
| Mar-18-2025 | 0.19 $* | 0.99 $* |
| Feb-18-2025 | 0.53 $* | 0.47 $* |
| Jan-18-2025 | 0.96 $* | 0.91 $* |
Характеристики
Product Description

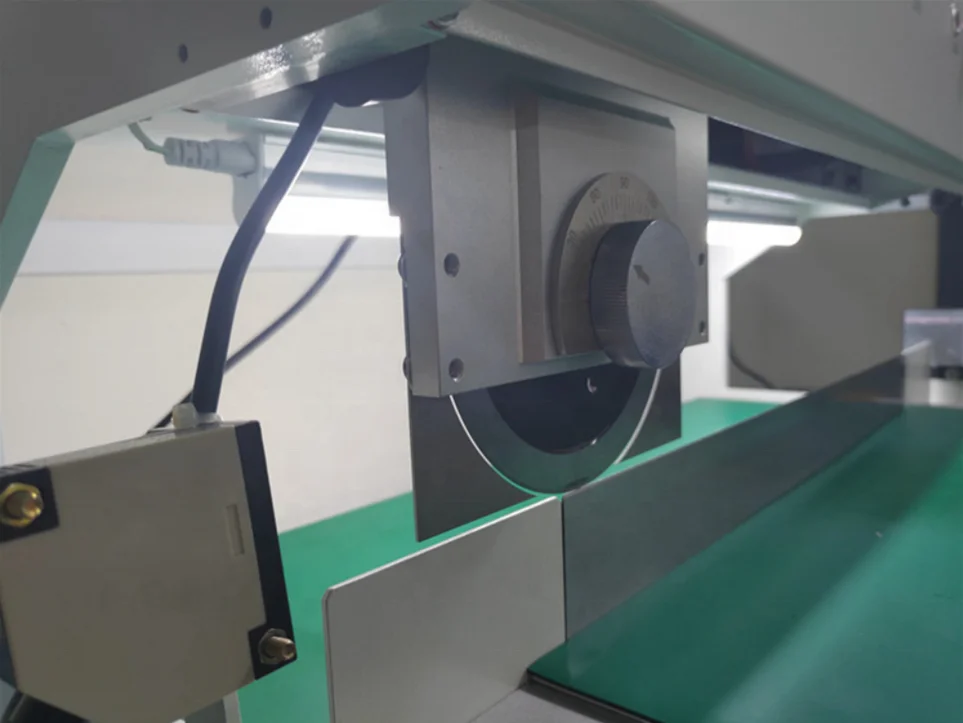

Detail
Application range:
SMT/EMS, military industry, automotive, semiconductor, medical, communication, 3C, white goods, LED, circuit board, etc.
SMT/EMS, military industry, automotive, semiconductor, medical, communication, 3C, white goods, LED, circuit board, etc.
Features and advantages:
■ Adopt the latest gas-electric lightweight design, especially suitable for cutting precision SMD thin plates;
■ Non-hob cutting, small cutting stroke, not easy to damage the product, and has its own operation safety and fool-proof function;
■ The cutting tool is made of imported high-speed rigid precision grinding, which can be re-ground and used repeatedly, and is suitable for PCB boards/aluminum substrates of various thicknesses;
■ Tailoring down-cutting minimizes the internal stress generated when cutting the board and avoids tin cracking;
■ The distance between the upper and lower cutters can be adjusted accurately to avoid the loss of cutters due to the difference in the depth of the V groove;
■ the maximum part of the slitting V-groove edge is 70mm
■ the distance between V-groove and parts is allowed to be as close as 0.5mm
■ Adopt the latest gas-electric lightweight design, especially suitable for cutting precision SMD thin plates;
■ Non-hob cutting, small cutting stroke, not easy to damage the product, and has its own operation safety and fool-proof function;
■ The cutting tool is made of imported high-speed rigid precision grinding, which can be re-ground and used repeatedly, and is suitable for PCB boards/aluminum substrates of various thicknesses;
■ Tailoring down-cutting minimizes the internal stress generated when cutting the board and avoids tin cracking;
■ The distance between the upper and lower cutters can be adjusted accurately to avoid the loss of cutters due to the difference in the depth of the V groove;
■ the maximum part of the slitting V-groove edge is 70mm
■ the distance between V-groove and parts is allowed to be as close as 0.5mm
Specification
Model | MD-330 |
Dimension | 689*240*400mm |
Max cutting length | 330mm |
Cutting thickness | 0.6-3.5mm |
Working pressure | 0.5-0.7Mpa |
Power supply | 110V/220V |
Weight | 140kg |
Packing & Delivery
Our services
