Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс
Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс
Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс
Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс
Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс
Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс
Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс

Драйвер шагового двигателя низкоуровневый уровень шума низкая вибрация низкотемпературный рост 8/16/32/64 деление 12-24 в 0-2 А ШИМ-импульс


Поделиться:


Цена:15,00 $ - 25,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 19.64 $* 19.36 $*
Jul-19-2025 15.90 $* 15.46 $*
Jun-19-2025 19.70 $* 19.14 $*
May-19-2025 19.41 $* 19.96 $*
Apr-19-2025 15.78 $* 15.36 $*
Mar-19-2025 18.78 $* 18.43 $*
Feb-19-2025 18.98 $* 18.84 $*
Jan-19-2025 18.9 $* 18.49 $*

Характеристики



Product Description

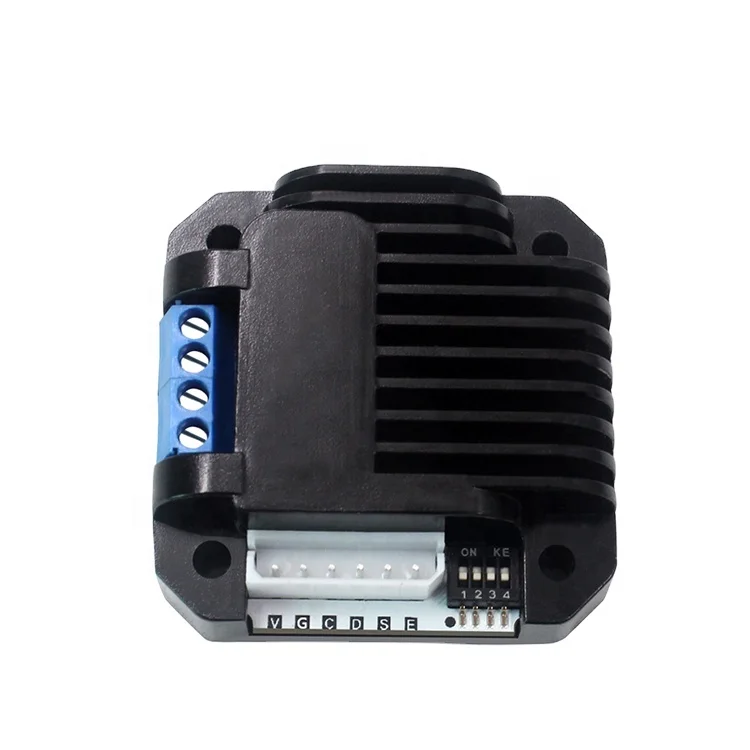

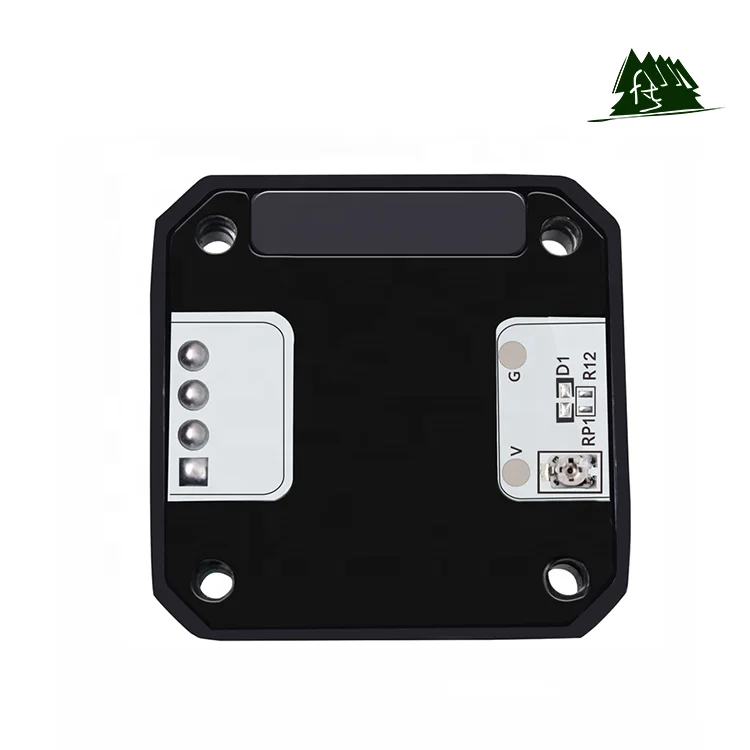

Micro Integrated Stepper Motor Driver
RQSM240A is a micro high-performance stepper motor driver. It is characterized by small size and strong driving ability, which can drive 20/28/35/42/57 stepper motors. After adding the corresponding flange, it can be directly fixed to the 57/60 motor. It provides 0-2A adjustable peak current.



Its high-speed current compensation can compensate for the influence of back electromotive force when the motor is running at high speed. Low-speed ultra-low noise, high-speed anti-shake. Use 12-24V current for power supply. The driver shell is made of all aluminum alloy castings, which is sturdy and durable, and has good heat dissipation performance.


Features



Micro Integrated design

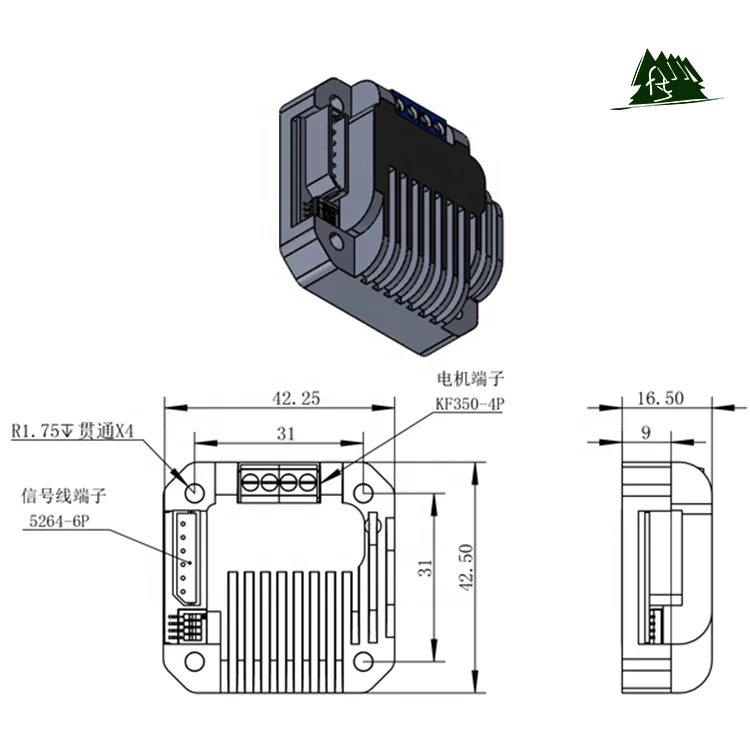

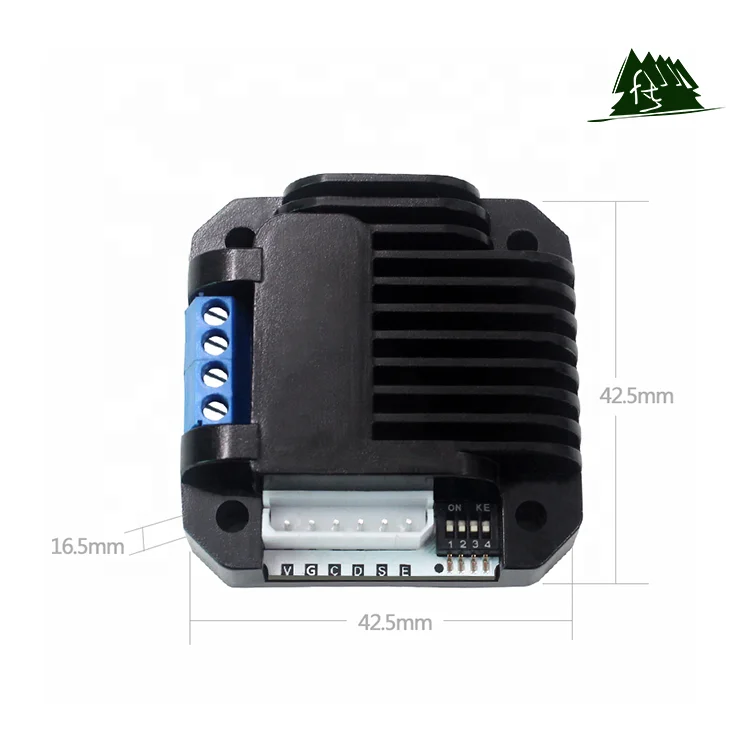

-Dimension: 42.3mmx42.3x16.5mm
-Integrated design with motor, or to work separately
-Precision-cast aluminum alloy shell, sturdy and durable, easy to dissipate heat
Motor drive characteristics
-Low-noise low-vibration low temperature rising
-Overheating protection
-Load-related current control, energy saving up to 75%
-Low power consumption, very low RDSON and synchronous rectification


Application
-Laboratory automation
-Pumps and valves
-Medical equipment
-Liquid handling etc.
Where quiet and vibration requirements are particularly high

Suitable for various instruments and equipment, such as: biochemical analyzers, blood analyzers, water quality detectors, atomic fluorescence analyzers and other automated equipment, drones, robots, landscape equipment, toys, printing presses, smart homes and other financial equipment, like sorting machine, bill machine, card machine, etc.




Specification


item
value
Warranty
1year
Place of Origin
China
Brand Name
RQ
Model Number
RQSM240A
Product name
PWM Micro stepper motor driver
Power supply voltage
12-24VDC
Output motor current
0-2A
Drive mode
Constant phase current PWM control

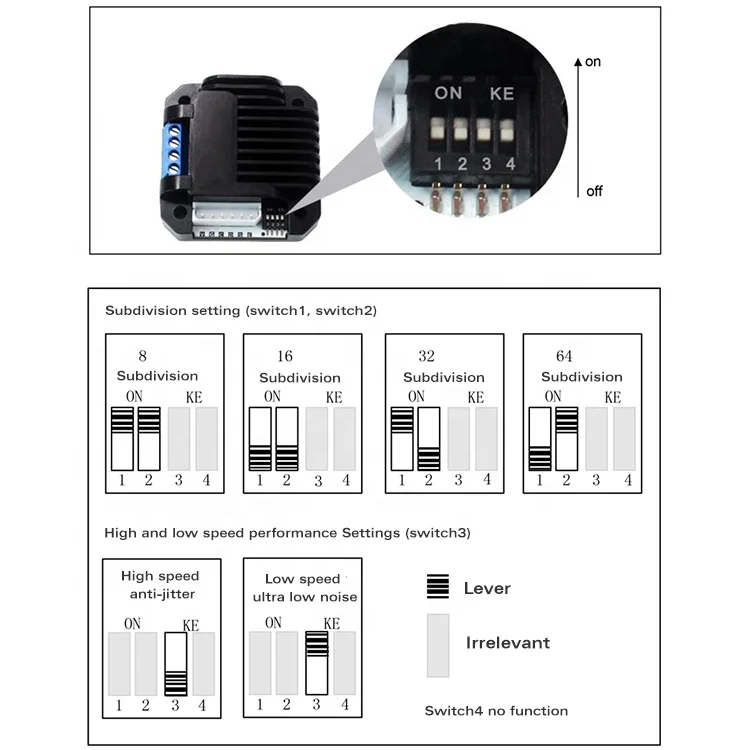

Subdivision
8/16/32/64 subdivision
Support signal voltage
3.3V-24V

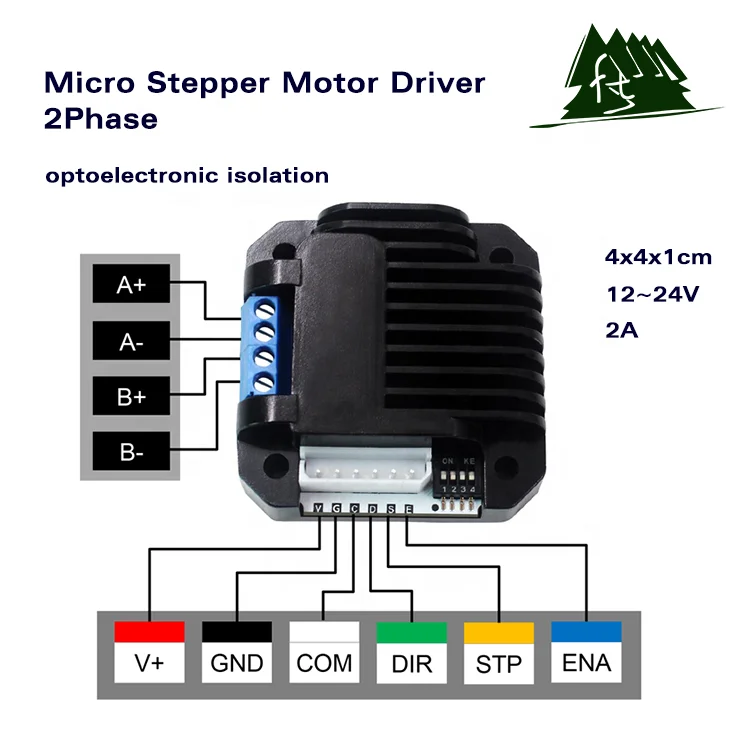

Parallel communication
Step pulse, direction and offline
Dimensions
42.3mmx42.3x16.5mm
Operating Tempreture
-40℃-+85℃
Operating vibration
3GMAX


Packing & Delivery




BOX


Company Profile




Five Trees Electronics Co., Ltd is also professional in Motor field, for stepper motor, we have motor driver, motor controller, motor+encoder+driver integrated all in one solution.
Please contact with any of your request and we will have our professional experienced team to support you.

Quality is a crucial parameter which differentiates Five Trees from our competitors. As a result, we are continuously challenged to improve all aspects of our business throughout our supply chain. In addition to working with our external suppliers and customers, our internal team has adapted a culture of Continuous Improvement to ensure our products and processes adhere to all government and industry standards and regulations.

We love receiving feedback from our customers on how we can improve customers' experience and our service.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2021,sell to Domestic Market(30.00%),North America(20.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Western Europe(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Microcontroller,IGBT,Capcitor,Resistor,Crystal and oscillator

4. why should you buy from us not from other suppliers?
20+years of rich industry experience supporting OEM/ODM customers, supplying worldwide famous brands, such as TI, ADI, NXP, ST, SAMSUNG, TDK, MURATA, ON SEMI, Renesas, INFINEON, WeEn, Microchip and so on.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DDU；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,Cash,Escrow;
Language Spoken:English,Chinese
