Машина для обработки деревянных мебель 4 стороны линейная Шлифовальная полировки поверхности ленточные шлифовальные машины
- Категория: Woodworking Machinery >>>
- Поставщик: Foshan,Yowing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 17255.62 $* | 18118.20 $* |
| Aug-19-2025 | 17110.98 $* | 17966.5 $* |
| Jul-19-2025 | 14355.98 $* | 15073.25 $* |
| Jun-19-2025 | 16820.98 $* | 17661.53 $* |
| May-19-2025 | 14645.49 $* | 15377.0 $* |
| Apr-19-2025 | 16530.92 $* | 17357.95 $* |
| Mar-19-2025 | 16385.82 $* | 17204.25 $* |
| Feb-19-2025 | 16240.18 $* | 17052.29 $* |
| Jan-19-2025 | 16095.97 $* | 16900.13 $* |
Характеристики
Specification
Door Frame , Mouldings, Decoration Lines, 1-2-3-4 sides sanding Machine for raw wood, primer wood, lacquer wood, all sanding. Welcome to customize your sanding machines!

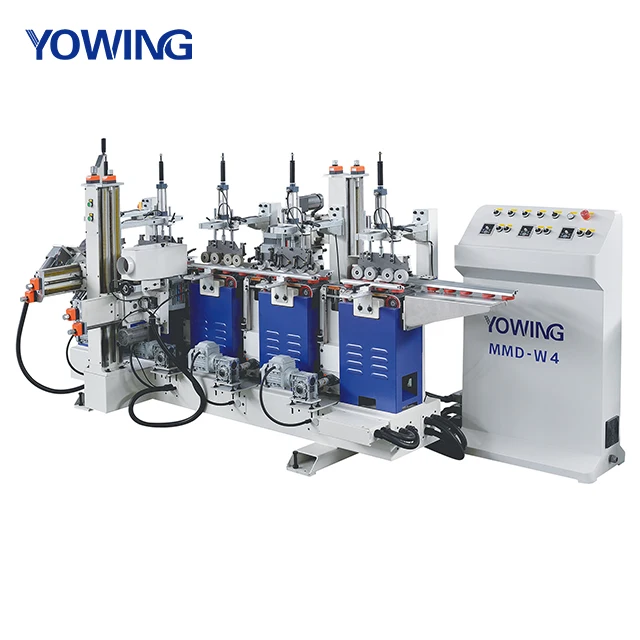

Model | MMD-W2 | MMD-W4 | MMD-W6 | MMD-W8 | |||
Sanding heads | 2 pcs | 4 pcs | 6 pcs | 8 pcs | |||
Working width | 20-220mm or customized | ||||||
Working thickness | 100mm maximun | ||||||
Working length | ≧320mm | ||||||
Multifunction sand motor | 1.1kw*2 | 1.1kw*4 | 1.1kw*6 | 1.1kw*8 | |||
Oscillation motor | 0.09kw*2 | 0.09kw*4 | 0.09kw*6 | 0.09kw*8 | |||
Total power | approx 3KW | approx 6.5KW | approx 8.5KW | approx 10KW | |||
Weight | 21200kgs | 1600kgs | 1800kgs | 2000kgs | |||
Product Description
Our Team for Installation and Debugging
Discussing in our team.
RD department team are discusssing!
Checking problem closely.

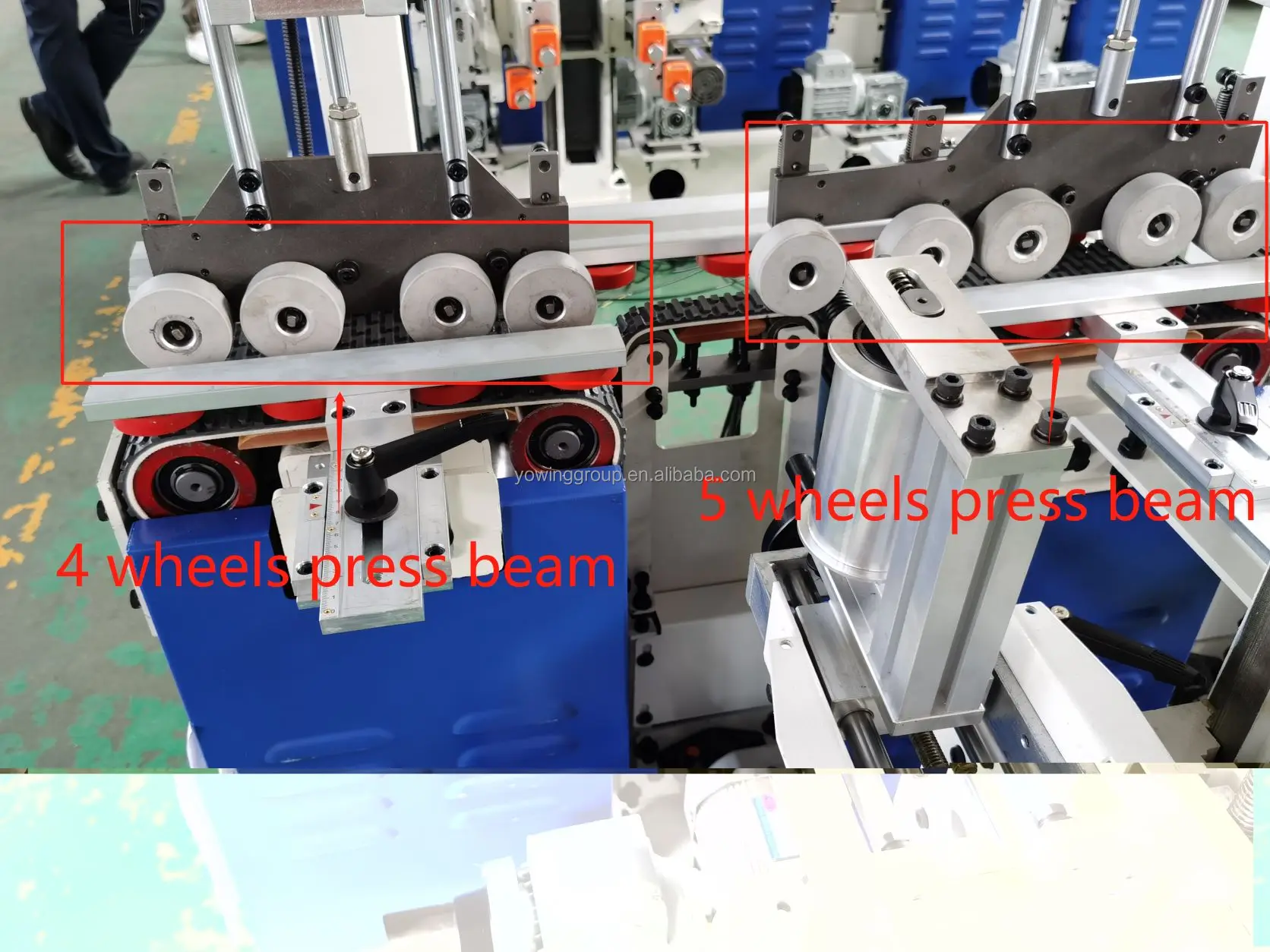

In this photo, the problem is with the press beam moving. Seeing it and then solving it.
Dedicated
Professional and dedicated Workers for installation!

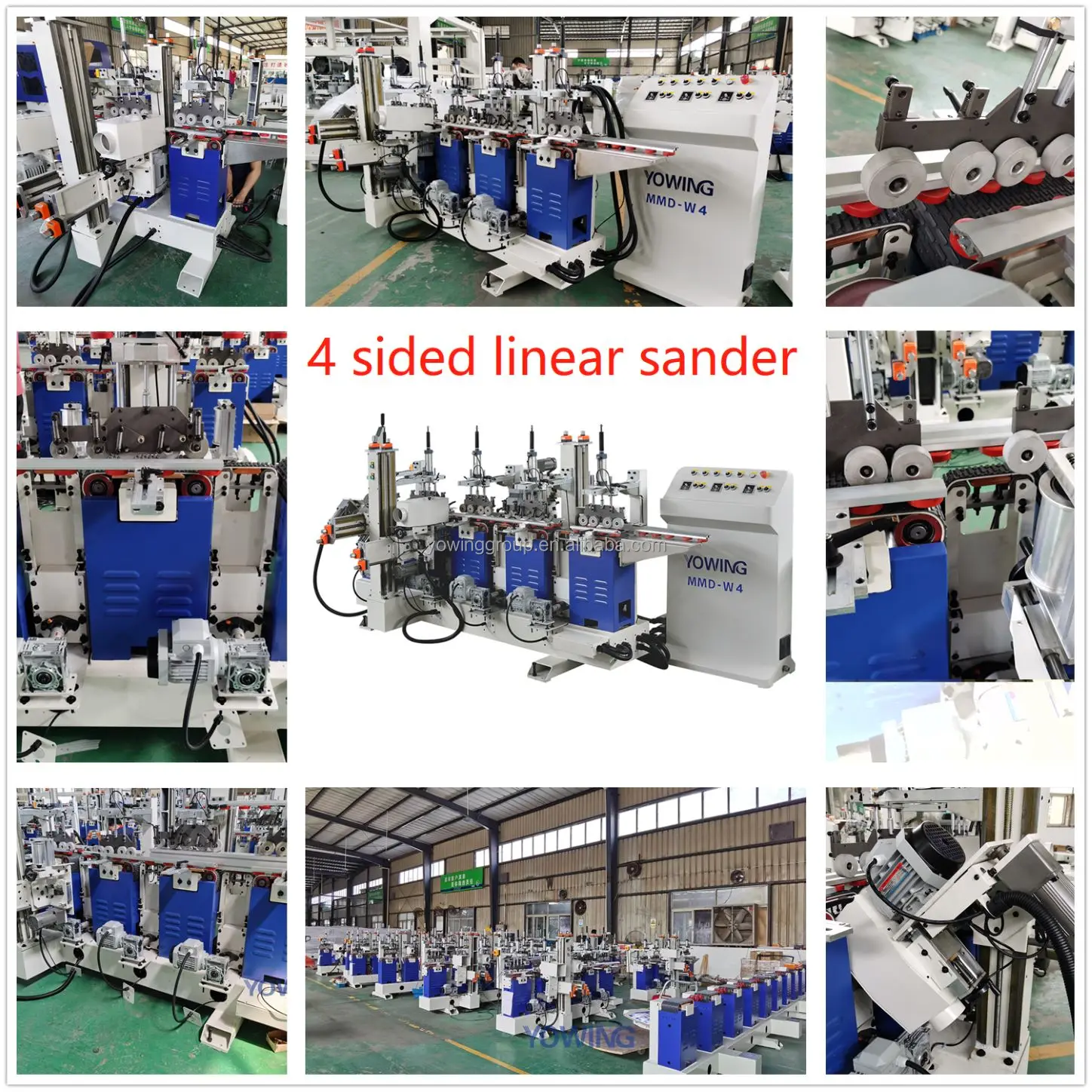

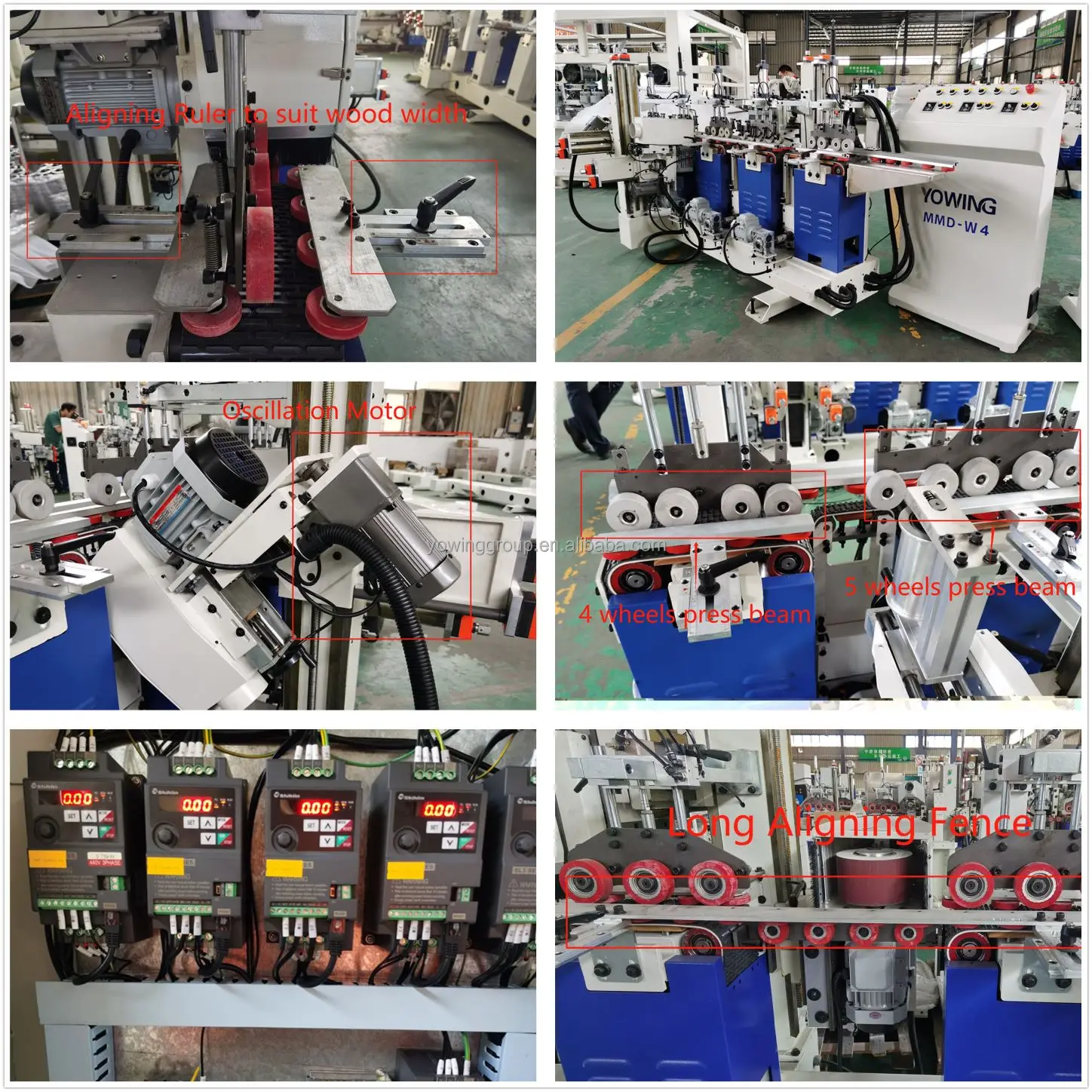

Machine Details
Heavy Duty Machine Base.
Thick steel plate welding for base ,make sure strong and stable for long time uses.
Strong Machine Frame.
Strong and stable for longtime uses.
Bottom Sponge Wheel Sand.
Bottom sand is to sand the bottom surface of wood if need.
Top Triangle Sand.
Top Triangle Sand for top surface sanding!
Long Aligning Fence
Long Aligning fence fixed beween two sands,to ensure short wood can pass smooth and sand well.
Aligning Ruler for adjust width.
These are aligning fence with rulers to adjust working width to suit different wide wood.

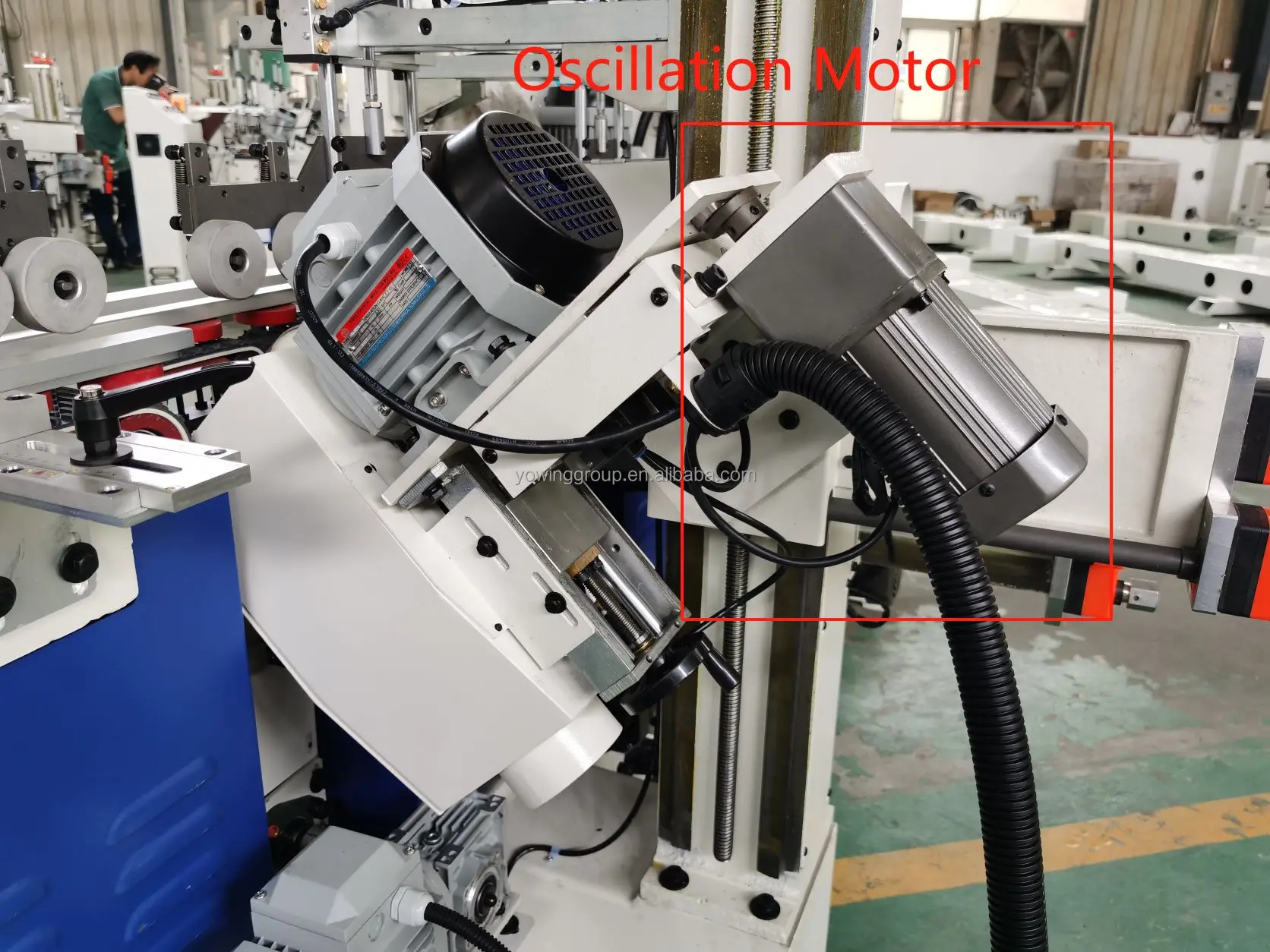

Oscillation Motor for sanding
Sand with oscillation can remove sanding slips , so get better sanding function.
250mm wide or more wider option.
Always welcomed customation!
Sanding Heads can be:
Sanding unit.
This machine is with triangle sand and multifunction sand.
Triangle sand is working with press module and sand belt, it is quite hard for rough sanding.
Multifunction sand can be with brush sand, sponge wheel sand, profile sand and also octagonal sand.
Chinese profile sand.
It is used to make profile on it and sand profiles , can sand raw wood and primer wood.Made in China and economicl.
Imported profile sand.
It can be many type of profile wheel, it is durable and easy to make profile on it. Imported and worthy.
Taiwan Sponge wheel.
It is used to sand straight edges , can be working with different grit sanding belt and sand raw wood and primer.
Brush sand.
It is used to polish whole surface for second or final sand.
Octagonal papers
It is with many papers together and can touch grooves very well.
Triangle sand.
We can also help change to Triangle sand if necessary, It is used to roughly sand straight wood.
Related Products

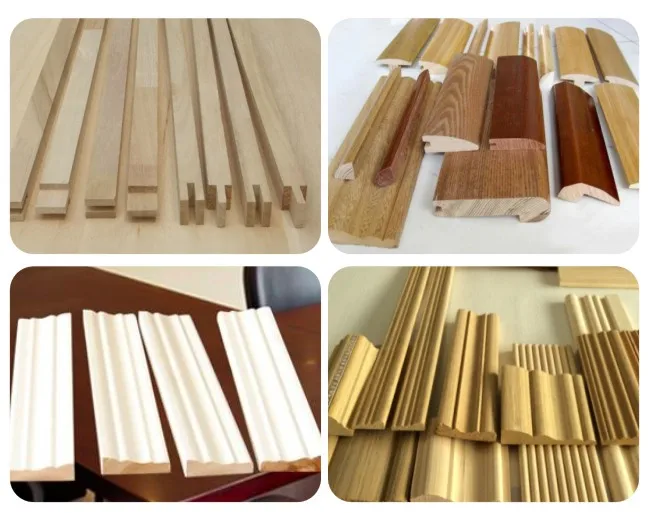

Processing Wood Samples
Processing samples.
Mostly for door frames, mouldings, linear wood with shapes, can be customized for 1-2-3-4 sides.And change different papers for raw wood, lacquer sanding.
Company Profie
"YOWING MACHINERY,Located in China woodworking machinery important town: Lunjiao, Focusing on the development of full range of furniture and wooden door machinery equipment,providing furniture and wood door companies with solutions for whole factory planning and automatical production lines,presenting our customers with excellent quality,efficient and stable products and high-quality service.
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 20 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019，Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!"
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 20 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019，Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!"
Packing & Delivery
