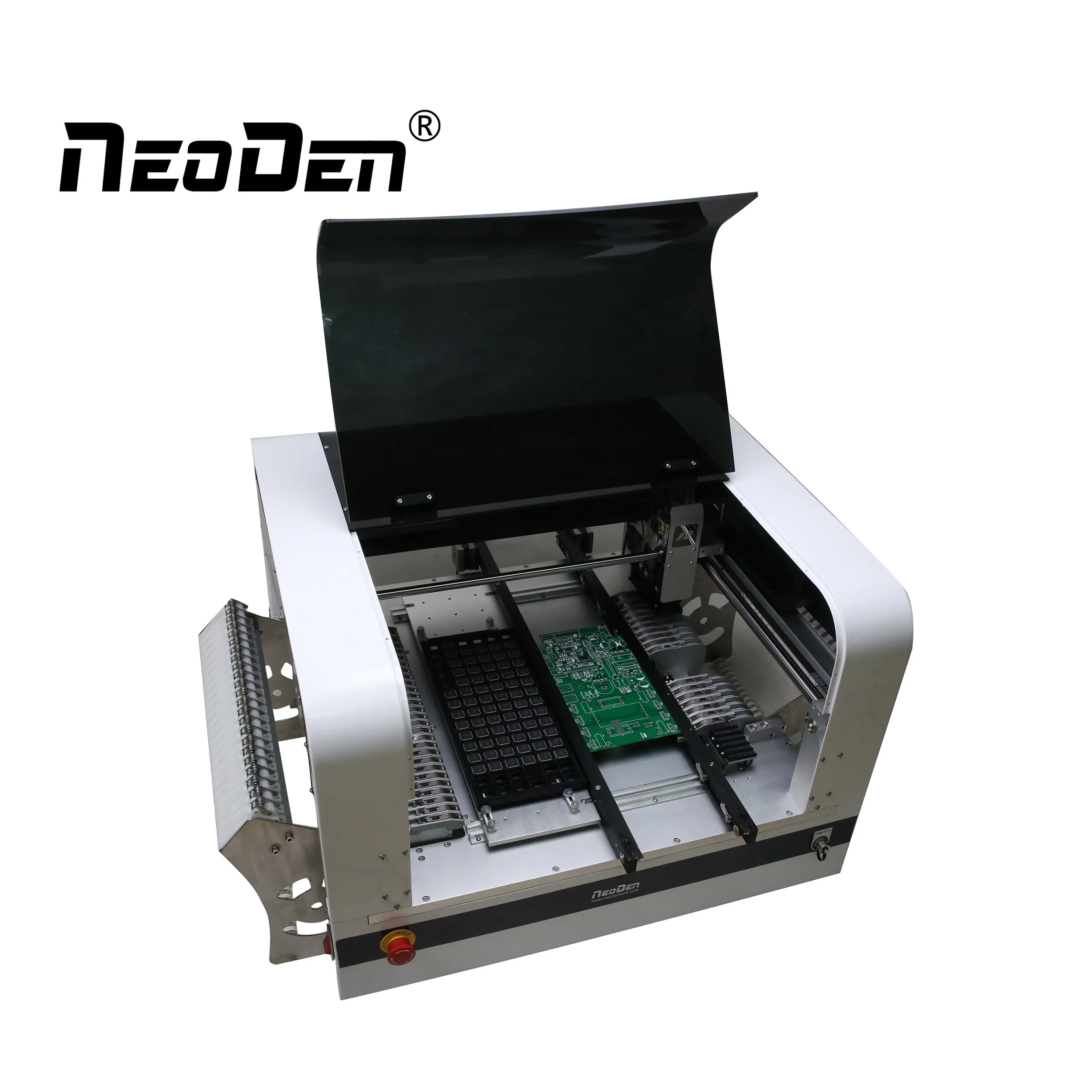

Smt Small Pick And Place Machine NeoDen4
Product Description
NeoDen4 is a flexible pick and place machine for all types of products.
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and high speed to meet the demands of an ever-changing market.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and high speed to meet the demands of an ever-changing market.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
Note
There are two versions of NeoDen4, with rails and without rails. The main difference between these two models is fixation method.
The version without rails will use magnetic pins and bars to fix board, the version with rails could use auto rails to advance
board automatically.
The maximum PCB size of with rails version is 310*1,500mm, without rails version is 350*400mm.
The advantage for with rails version is that it could help to handle max 1.5m long board and connect with a conveyor to achieve a
continuous SMT line, if you board is not that long, both versions will be workable.
There are two versions of NeoDen4, with rails and without rails. The main difference between these two models is fixation method.
The version without rails will use magnetic pins and bars to fix board, the version with rails could use auto rails to advance
board automatically.
The maximum PCB size of with rails version is 310*1,500mm, without rails version is 350*400mm.
The advantage for with rails version is that it could help to handle max 1.5m long board and connect with a conveyor to achieve a
continuous SMT line, if you board is not that long, both versions will be workable.

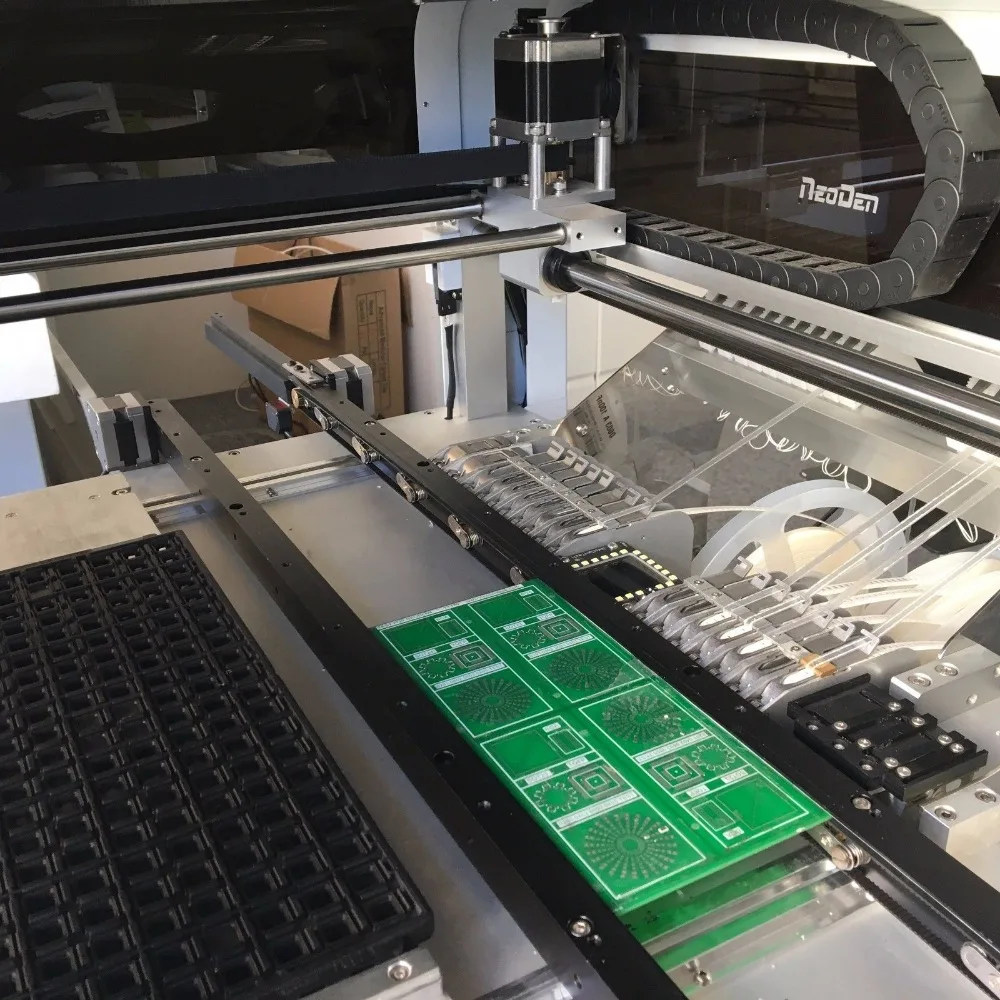

Rails and Feeders
Please kindly note auto rails & feeders are selectable, they will be charged separately.
Please kindly note auto rails & feeders are selectable, they will be charged separately.

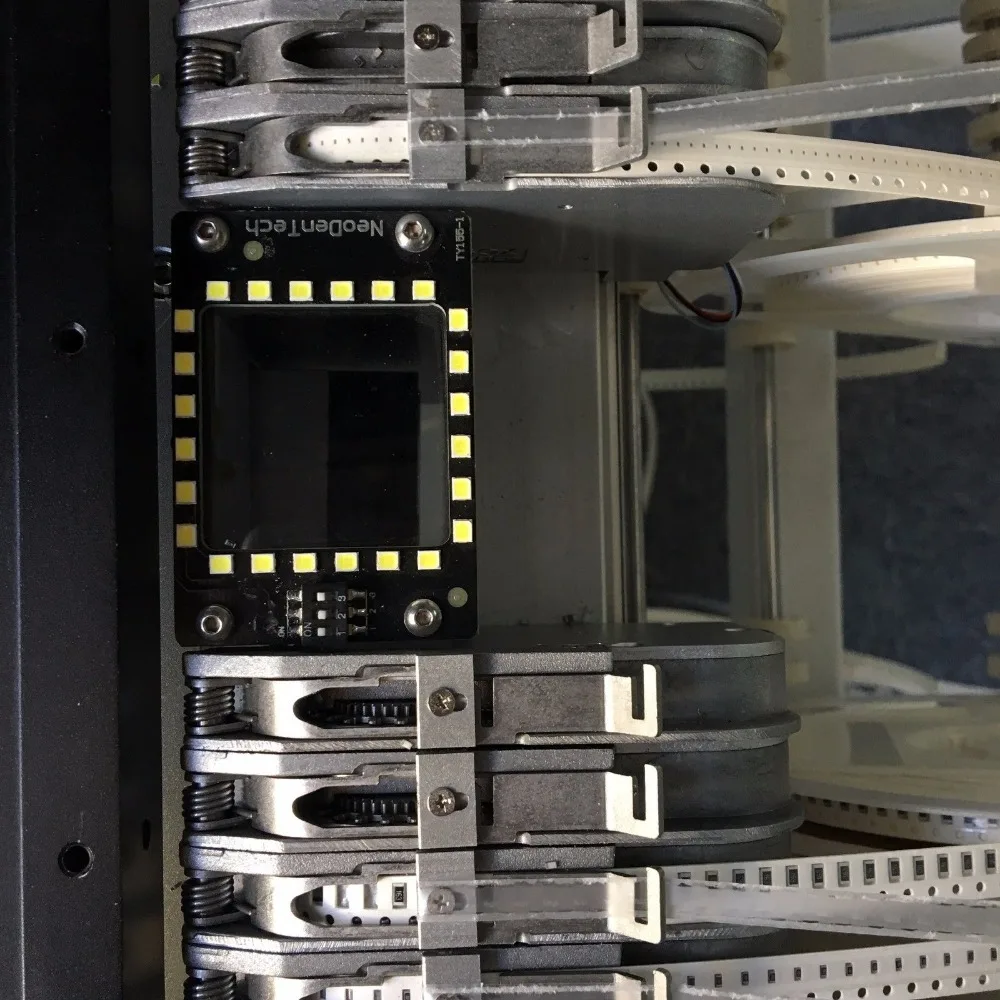

1. Dual vision system(up-looking and down-looking cameras), identify and calibrate the different components at one time, improves the accuracy of placement from 0201 to BGA;
2. Automatic electric feeders, reduce the feeding deviation;
3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving
4. Four placement heads can pick up and calibrate components at one time.
5. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you.
2. Automatic electric feeders, reduce the feeding deviation;
3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving
4. Four placement heads can pick up and calibrate components at one time.
5. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you.
Specification
Model | NeoDen4 | ||||||
Machine style | Single gantry with 4 heads | ||||||
Alignment | Stage Vision | ||||||
Placement Rate | Vision on: 4,000CPH Vision off: 5,000CPH | ||||||
Feeder Capacity | Tape feeder: 48 (all 8mm) Vibration feeder: 5 Tray feeder: 5 | ||||||
Component Range | Smallest Size: 0201 Largest Size: 32x32mm (Lead Pitch 0.5mm) Largest Size: 5mm | ||||||
Rotation | ±180° | ||||||
Placement Accuracy | ±0.02mm | ||||||
X-Y Repeatability | ±0.02mm | ||||||
Board Dimension(mm) | Maximum: 310 x 1500mm(Without waffle Tray), 140 x1500mm(With 1 waffle Tray), 350 x 400mm(Without rails) | ||||||
Main Control | GUI | ||||||
Electricity Supply | 110V/220V | ||||||
Power | 180W | ||||||
External Dimensions(mm) | Machine size: 870(L)x680(W)x480(H) Packing size: 940(L)x740(W)x600(H) | ||||||
Weight | Net Weight: 60kgs Gross weight: 80kgs | ||||||
Nozzle Information

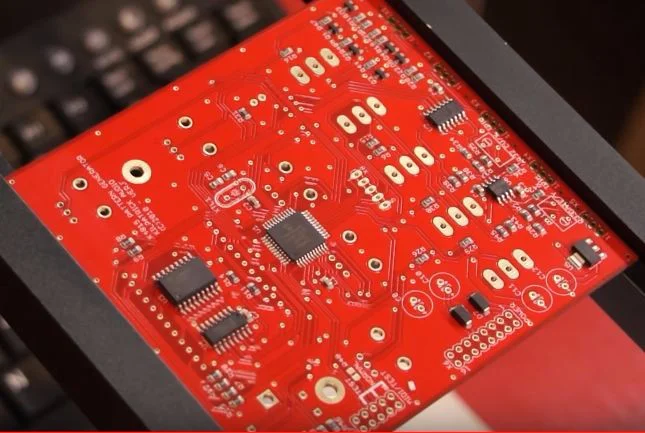

Placement Effect
Packing & Delivery
Related Products
Manual Solder Printer FP2636
SMT Pick and Place Machine
NeoDen K1830
SMT Pick and Place Machine
NeoDen9
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show
Workshop
Exhibition
Certification
Payment & Shipping
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
