Оригинальный дизельный генератор Cummin s QSK60 G4/G6/G8/G22 2000KVA 2250KVA 2500KVA
- Категория: Diesel Generators >>>
- Поставщик: Guangzhou,Jiuan,Mechanical,And,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.5 $* | 0.93 $* |
| Aug-18-2025 | 0.7 $* | 0.45 $* |
| Jul-18-2025 | 0.19 $* | 0.86 $* |
| Jun-18-2025 | 0.17 $* | 0.24 $* |
| May-18-2025 | 0.11 $* | 0.2 $* |
| Apr-18-2025 | 0.55 $* | 0.23 $* |
| Mar-18-2025 | 0.92 $* | 0.50 $* |
| Feb-18-2025 | 0.24 $* | 0.65 $* |
| Jan-18-2025 | 0.79 $* | 0.89 $* |
Характеристики

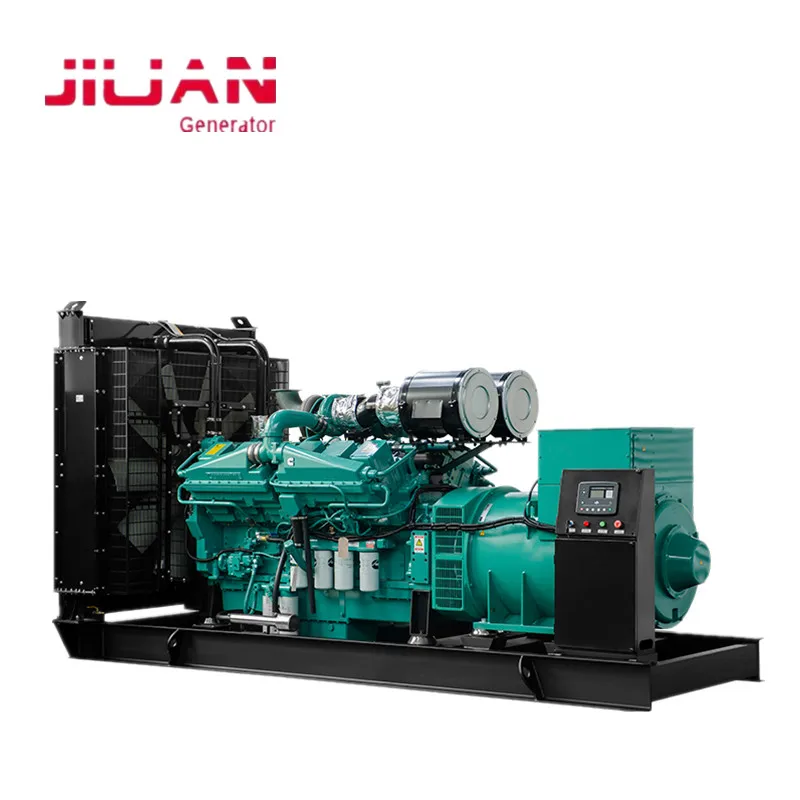

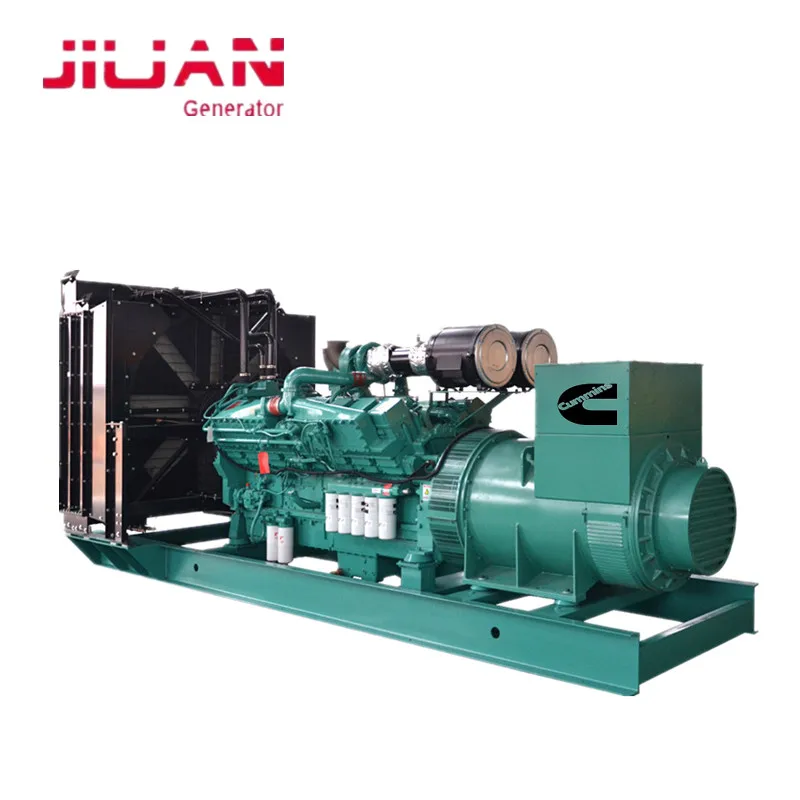

Original Cummins engine QSK60 G4/G6/G8/G22 2000KVA 2250KVA 2500KVA 2750KVA diesel generator
Cummin s Diesel Generating Set - Model CDC2500KVA
MODEL | CDC2500KVA |
Powered by Cummin s Engine | |
Prime Power (50HZ) | / |
Standby Power (50HZ) | 2500KVA |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | Cummin s QSK60-G8 |
Cylinders | 16 |
Cylinder Arrangement | V |
Bore x Stroke(mm) | 159X 190 |
Compression Ratio | 14.5:1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Alternator Model | Leroy Somer LSA52.3 S7 |
Voltage | 380/220V |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 19200 |
Dimensions (L x W x H) mm | 1200*2330*2330 (S) |
Controller | Smartgen HGM6120N or Deepsea DSE6020 |
Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) |
Professional OEM diesel generator factory in Guangzhou

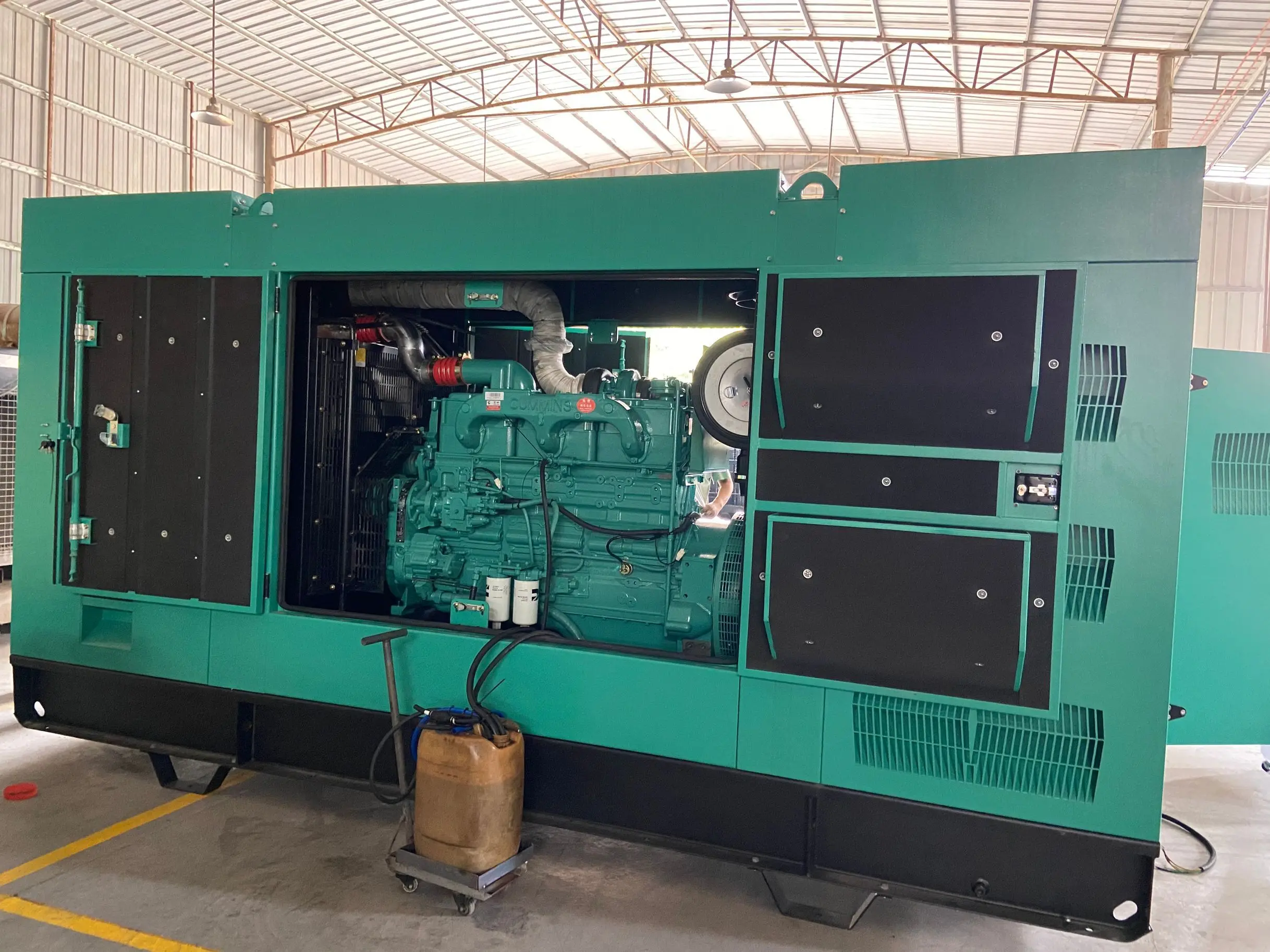

*Diesel Generator open type or silent type (soundproof type)
*Generator Diesel Engine: Cummins,UK Perkin,Deutz,Mitsubishi,DooSan,WeiChai, Yangdong, Kubota, etc.
*Generator with alternator: Stamford, Leroy Somer,Marathon, MECC,etc.
*Diesel Generator Rated output: 5kVA - 2000kVA
*Rated frequency 50/60 Hz
*Rated voltage 230/400, 220/380, according to customers
*Power factor: 0.8(lag)
*Super Silent type Noise level at 7m ≤ 65DB
*Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
*Starting system: Electric start 12V/24V
*Protection System: High water temperature protection, Engine oil alarm, Over load Protection
*Overfrequency protection, Emergency stop
*Control System: Digital Control Panel; Meter Panel
JIUAN Diesel Generator Set Advantage
*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel
*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)
All ratings are at sea level!!!
After-sales Service
*1 year or 1800 running hours subject to the earlier one.
Our Diesel Generator Set Production Range is as follows
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkin (UK) 8kVA - 2000kVA
4. 1SUZU (Japanese) 20kVA - 40kVA
5. Mitsubishi (China) 750kVA - 2200kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. SDEC Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
11.DooSan Engine 60KVA-800KVA
12.Baudouin Engine 500KVA-2500KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)

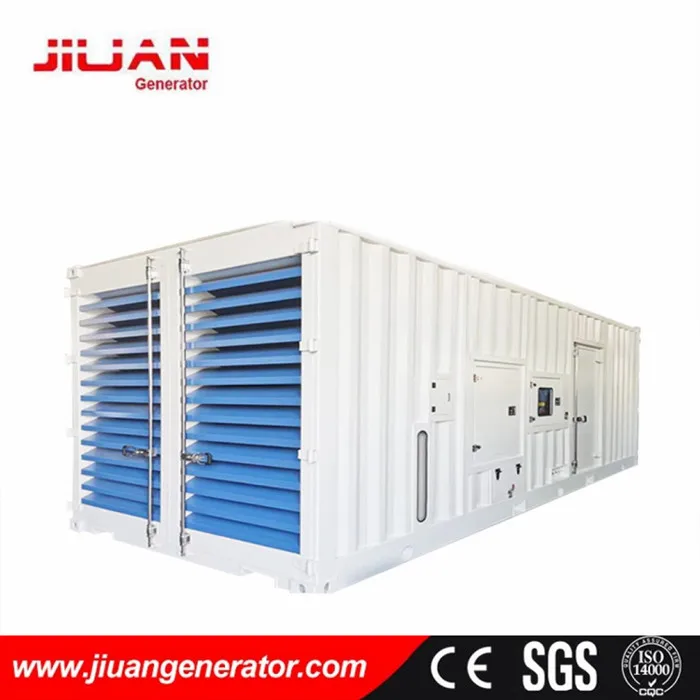

5. Container Type
6. Parallel System
Terms of Payment
T/T ,Western Union,Cash
