Машина для переработки пп гранулятор ПП нетканых
- Категория: Plastic Raw Material Machinery >>>
- Поставщик: Zhangjiagang,City,Purui,Plastics&Rubber,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 54740.41 $* | 57477.39 $* |
| Aug-16-2025 | 54280.39 $* | 56994.92 $* |
| Jul-16-2025 | 45540.71 $* | 47817.46 $* |
| Jun-16-2025 | 53360.98 $* | 56028.54 $* |
| May-16-2025 | 46460.6 $* | 48783.1 $* |
| Apr-16-2025 | 52440.0 $* | 55062.49 $* |
| Mar-16-2025 | 51980.91 $* | 54579.16 $* |
| Feb-16-2025 | 51520.27 $* | 54096.54 $* |
| Jan-16-2025 | 51060.40 $* | 53613.18 $* |
Характеристики
PURUI only focus on producing plastic recycling machine, our team has accumulated rich production experience to produce high quality plastic recycling machine for you
Send inquiry to us for BEST price. ^o^
PURUI plastic foamed PS photo frame profile pelletizing recycling machine
Final Products
Waste plastic granulating.
Plastic particles can be divided into many different types and have applications in various industries.Plastic particles can also be divided into raw materials and re - raw materials, raw materials is new material, and re - raw materials is recycling has been used new material or discarded plastic, through the production of plastic particles formed after granulation
Product Description
Plastic granulating extruder.
A specialized single screw extruder applied to gently melt the pre-compacted material. The plastic scraps will be well melted, plasticized in a 36D processing section. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with water content.
Products details

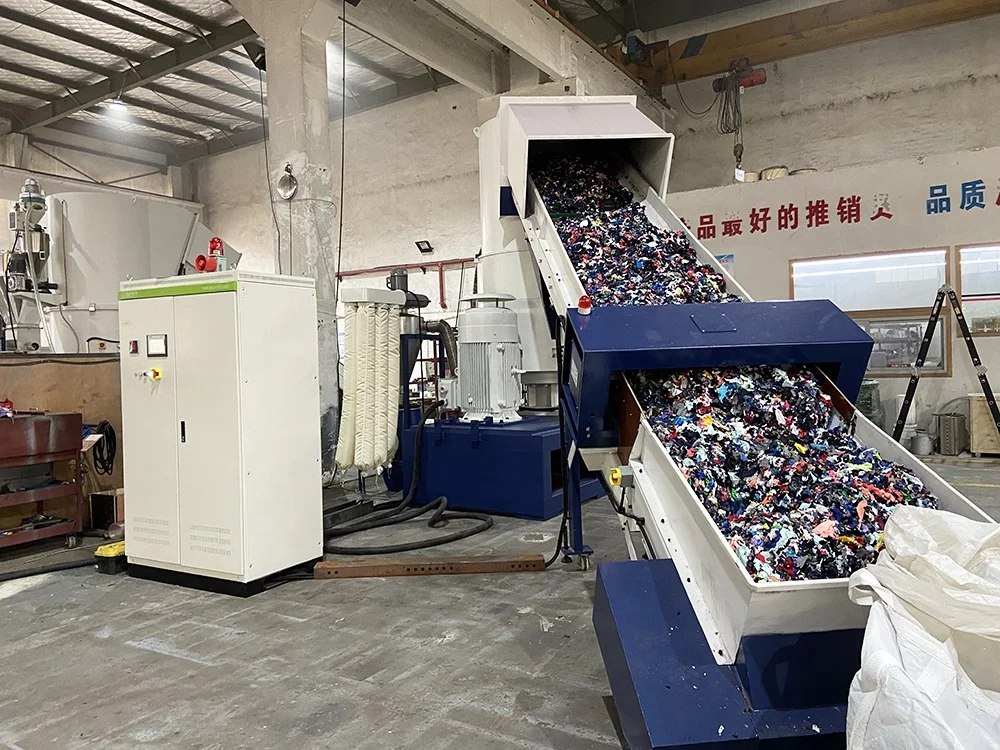

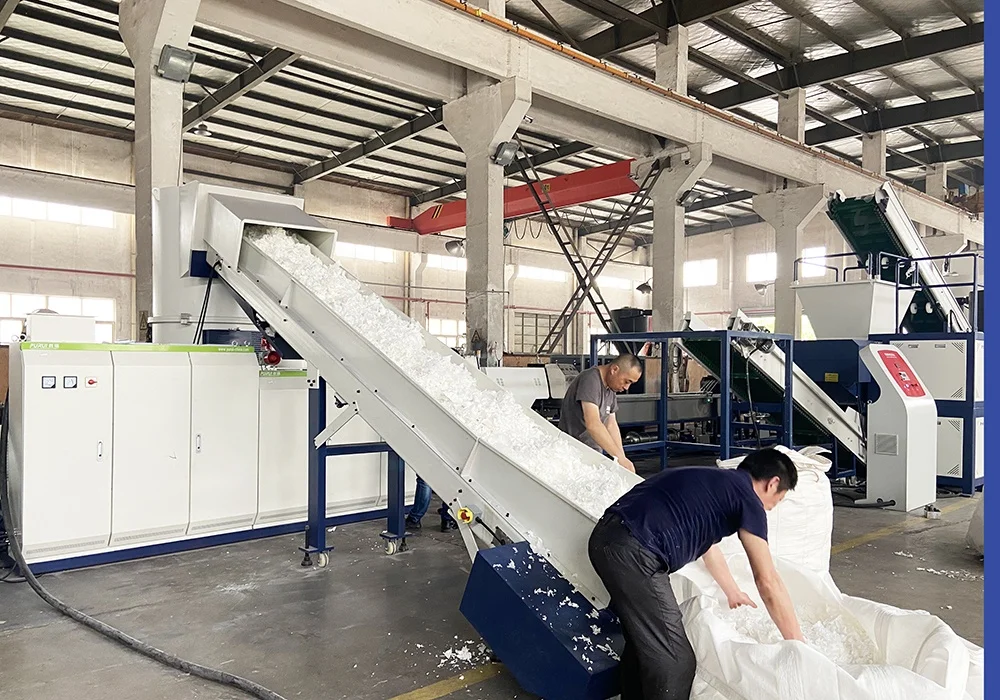

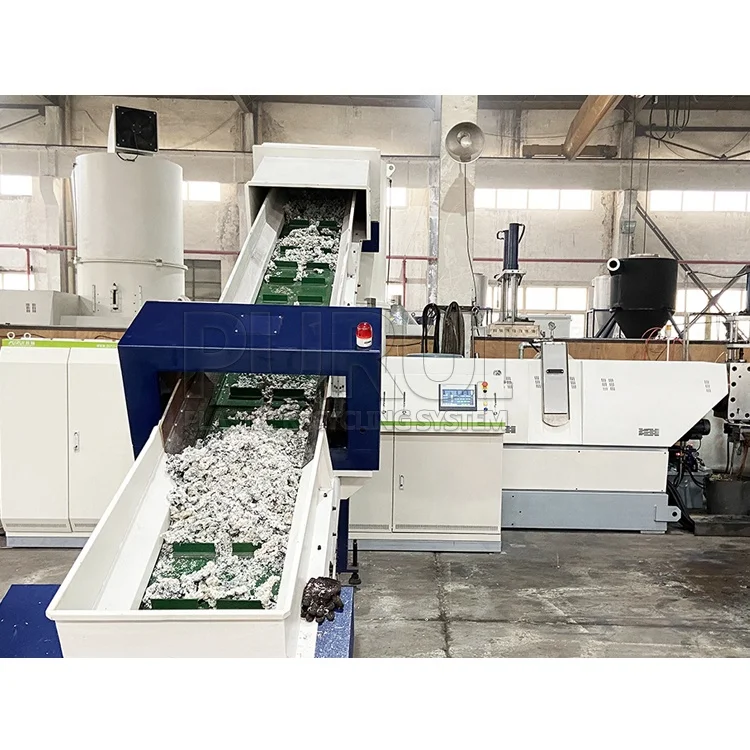

Belt Conveyor with S+S metal detector.
As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls’ scraps, roll hauling off device is an optional feeding method. Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor’s room is. Metal detector can be combined with belt conveyor, and can interlock with contrl system, to warn and stop the system, in case that metal is found in feeding.
Compactor
The rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high speed rotatory blades will heat and let scraps shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.
Pelletizing unit
Water-ring die-face/Strand cutting methods are usually adopted. In water-ring die-face cutting system, the rotary cutting blades will be pneumatically fit completely and closely to the die-face surface to ensure efficient cutting. Rotary speed of the blades is automatically adjusted by module system according to melt pressure at the die face
Plastic pelletizing system in plastic granulating line(hot cut die face water cooling water-ring cutting system)
Speed controlling by frequency conversion
Material:Stainless steel
Our engineer can help you to design the most suitable plastic pelletizing system as your raw material characteristic.So please feel free to contact us for design the most suitable plastic recycling machine solution for you.Air cooling rubs surface cutting system
Strand pull strips cutting system
Under-water cutting system
Single screw extruder in plastic granulating line
Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy: very strong and long life.
Gear box：high torque、low noise、external connect with cooling recycling system;
Film roller feeder
Feeding film roller by compactor
Vacuum system
Degassing system
Metal detector
Detect the metal
Filtering system in plastic granulating line -----Plate type filter
There are too many kinds of filtering system,such as plate type filter,plunger type filter,laser filter,without mesh filter,CPF filter etc.Our engineer can help you to design the most suitable filtering system as your raw material characteristic.So please feel free to contact us for design the most suitable plastic recycling machine solution for you.
Large area plunger screen changer
Without mesh filter
Automatic Laser filter
Dewatering Vibrator in plastic pellet machine line
Dewatering and choose the pellet
Material: Stainless steel
SIEMENS PLC controller for plastic granules making machine line
“RKC” or "OMRON" Temperature controlling system
Supply the line which connect the main machine and cabinet
Supply the line which connect the main machine and cabinet
Artificial intelligence control.
PLC-controlling is simple operation, save time and manpower.ot only that, but also intelligent fault detection function.
MACHINE PARAMETER
Single stage extruder & plastic pellets making machine technology parameter:
Model | Extruder motor | L/D | Output capacity | Screw Diameter | ||||
ML85 | 55kW | 36:1 | 50-200kg/h | 85mm | ||||
ML100 | 90kW | 36:1 | 200-400kg/h | 100mm | ||||
ML130 | 132kW | 33:1 | 400-600kg/h | 130mm | ||||
ML160 | 185kW | 33:1 | 600-800kg/h | 160mm | ||||
ML180 | 250kW | 30:1 | 800-1000kg/h | 180mm | ||||
Contact us for further more technology parameters and price | ||||||||
Double stage extruder & plastic pellets making machine technology parameter:
Model | First extruder | Second Extruder | Output Capacity | Screw diameter | ||||
ML85/SJ100 | 55kW | 22kW | 50-200kg/h | 85/100mm | ||||
ML100/SJ120 | 90kW | 37kW | 200-400kg/h | 100/120mm | ||||
ML130/SJ140 | 132kW | 45kW | 400-600kg/h | 130/140mm | ||||
ML160/SJ180 | 185kW | 55kW | 600-800kg/h | 160/180mm | ||||
ML180/SJ200 | 250kW | 75kW | 800-1000kg/h | 180/200mm | ||||
Contact us for further more technology parameters and price | ||||||||
COMPANY PROFILE
Purui is engaged in the design and manufacture of plastic recycling machinery.With more than 25 years of experience and unremitting efforts, Purui has accumulated rich production experience to offer the best plastic recycling solution. Our machine meets the requirements of national energy conservation and environmental protection.The machine has passed the European CE and CSA certification, we also have 13 patented technologies for the design of plastic washing and granulation machinery.
Purui is a competitive manufacturer in the field of producing plastic recycling machine. Such as plastic washing machine,plastic granulator,waste film recycling machine, agriculture film crushing and washing machine, rigid plastic recycling pelletizer machine,pp pe bopp pet plastic film granulating machine, waste hdpe pet bottle recycling machine, pp woven bag recycling (washing and granulator ) machine,non woven fabric pelletizing line, PA fiber pelletizing machine,twin screw compounding extruder, PET bottle flakes pelletizing line ,plastic crusher machine, plastic shredder machine etc.
Our machines are specialized in processing PP PE HDPE LDPE BOPP PET PA PVC ABS PS EVA and so on.
Our machines are specialized in processing PP PE HDPE LDPE BOPP PET PA PVC ABS PS EVA and so on.
We firmly believe that "Brand" is not only a trademark,a product,but also a quality.It uses good quality to maintain customers' trust in enterprises. With the joint efforts of our team, our recycling machines have been exported to the United States, Germany, Britain, Poland, Spain, Australia,Canada, Japan, South Korea, Malaysia, Indonesia, Thailand, Vietnam, India, Saudi Arabia and other countries all over the world,and the customer return rate is very high. Reliable quality enables customers to have higher cost performance.
PURUI promise,what we offer is not only the operation equipments with reasonable price,easy to operate, but also the perfect technical solutions and quicK after-sale service.
FAQ
Q:How to choose proper plastic recycling machine you want?
A:Please tell us as detail as what you want?For example:
* What’s your raw material?If you have the raw material photo,it will be very helpful for us to design the most suitable plastic washing line or plastic granulator machine.
* What capacity(kg/h)you want it performance?The capacity requirement decide our price directly. so it’s a import ant question.
Q:How to control the plastic recycling machine quality?
A:We have technical, engineer team design the suitable plastic recycling machinery before it enter into market
* Each component of plastic recycling machine before assembly needs strict control by inspecting personnel. All our workers have rich experience in this plastic recycling machine manufacturing field.
* We will running every plastic washing line or plastic pelletizing machine after finished before shipment.Customer can appoint a staff to come to checking the testing on spot.
* Optional choose by client running the machinery by material.
Q:Are you only a trading company or a real plastic recycling machinery manufacturer?
A:We are a professional plastic recycling machinery manufacturer in China and we can assure the quality of our plastic recycling crushing washing machine and plastic granulator machine.Welcome to visit our factory at any time!
Q:What’s your guarantee or the warranty of the quality if we buy your plastic recycling machines?
A We have one year warranty of the spare parts free of charge. If any quality problems on our side occured in this period ,we will can do some replacement.
A:Please tell us as detail as what you want?For example:
* What’s your raw material?If you have the raw material photo,it will be very helpful for us to design the most suitable plastic washing line or plastic granulator machine.
* What capacity(kg/h)you want it performance?The capacity requirement decide our price directly. so it’s a import ant question.
Q:How to control the plastic recycling machine quality?
A:We have technical, engineer team design the suitable plastic recycling machinery before it enter into market
* Each component of plastic recycling machine before assembly needs strict control by inspecting personnel. All our workers have rich experience in this plastic recycling machine manufacturing field.
* We will running every plastic washing line or plastic pelletizing machine after finished before shipment.Customer can appoint a staff to come to checking the testing on spot.
* Optional choose by client running the machinery by material.
Q:Are you only a trading company or a real plastic recycling machinery manufacturer?
A:We are a professional plastic recycling machinery manufacturer in China and we can assure the quality of our plastic recycling crushing washing machine and plastic granulator machine.Welcome to visit our factory at any time!
Q:What’s your guarantee or the warranty of the quality if we buy your plastic recycling machines?
A We have one year warranty of the spare parts free of charge. If any quality problems on our side occured in this period ,we will can do some replacement.
