Product Description






The KCT range of split core current transformers have been specifically designed to be small CT and easy to open and yet maintain the accuracy required for kwh meters. The benefit of a split core current transformer is that it can be placed into position easily and without disturbing or disconnecting the main cables it is monitoring. The KCT range of current transformers has two insulated terminal covers for connecting the S1 and S2 cables which lock down over the terminal screws fully insulating the connections. This makes it ideal to use Autometers cable hamesses which are colour coded and individually numbered on each conductor ensuring simple and easy connection from the current transformer to the electricity meter.

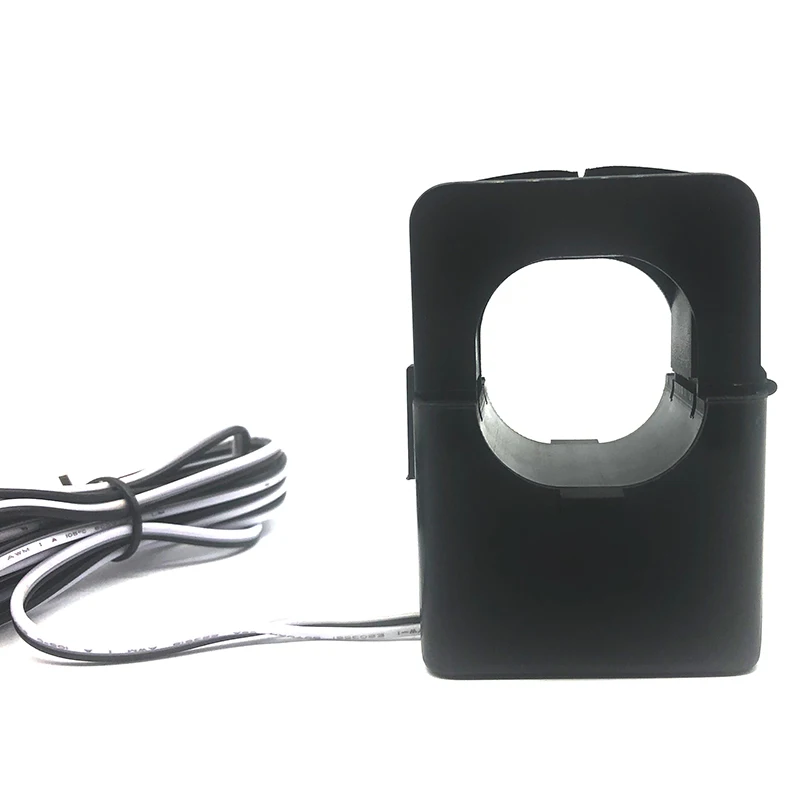

KCT-36 Display




Features

(1) The structure of the self-locking, safe, easy to install, portable
(2) Wide inner window, allowing clamping of big cables or bus-bars
(3) Wide range of sizes to accommodate all the existing installations
(4) Isolated plastic case recognized according to UL94-V0
(5) Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs


Model
KCT-36 Specification
Current Ratio
300A/100mA
400A/40mA
500A50mA
600A/60mA
300-600A/0.333V
Primary Current (A)
300A
400A
500A
600A
300A-600A
Max. Current (A)
360A
480A
600A
720A
720A
Output
100mA
40mA
50mA
60mA
0.333V
Load Resistance (Ω)
50Ω
50Ω
50Ω
50Ω
/
Turns Ration
/
/
/
/
/
Class
0.5/1.0
Protection Level
7.5V0-P
Insulation Category
CATIII
Operating Condition
 -20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition
-30℃ ~ +50℃, ≤85%RH, No condensation


Note: The Current Ratio above are common type, that's ok to customise the ratios according to customers' requirement.


KCT Application

(1) Current measurement, monitoring and protection for electrical wiring and equipment.
(2) Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation – control system.
(3) Current, power and energy monitoring device.
(4) Relay protection device.


Electrical Parameter
Mechanical Parameter
Frequency
50-2KHz
Case
PA/UL94-V0
Rated Input
5A-600A
Bobbin
PBT
Measuring range
10%In-120%In
Core
Silicon steel
Rated Output
0.333V(AC)or 0-500mA
Internal structure
Epoxy
Ratio
≤ ± 1.0%
Construction
Tie
Phase angle
≤ ±60min
Operation Temp
-25oC~+75oC
Dielectric strangth
2.5KV/1mA/1min
Operating Humidity
≤85%
Insulation Resistance
DC500V/100MΩ min
Output Connection
UL1015 20AWG Wire2.5m


ANA KCT Advantages




The KCT series split core current transformer does not break even by opening 50, 000 times.
Our lead Wire is thick and good quality that meets UL1015 22AWG 600V 105°c (L=600mm)




More choices in wire connectors, such as Wires plugs, Audio plugs, Power plugs and so on.




Outer Case of KCT split core current transformer  is Imported materials, PA.
Core is imported from Japan. Core section is Smooth as a mirror.
The plastic for packing is environmental and recyclable.


Rated Products


KCT-16

KCT-24

KCT-36





ANA Company








Packing & Delivery
