Product Description
Features
Three built in fixing methods: panel/din rail/busbar
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A
Description

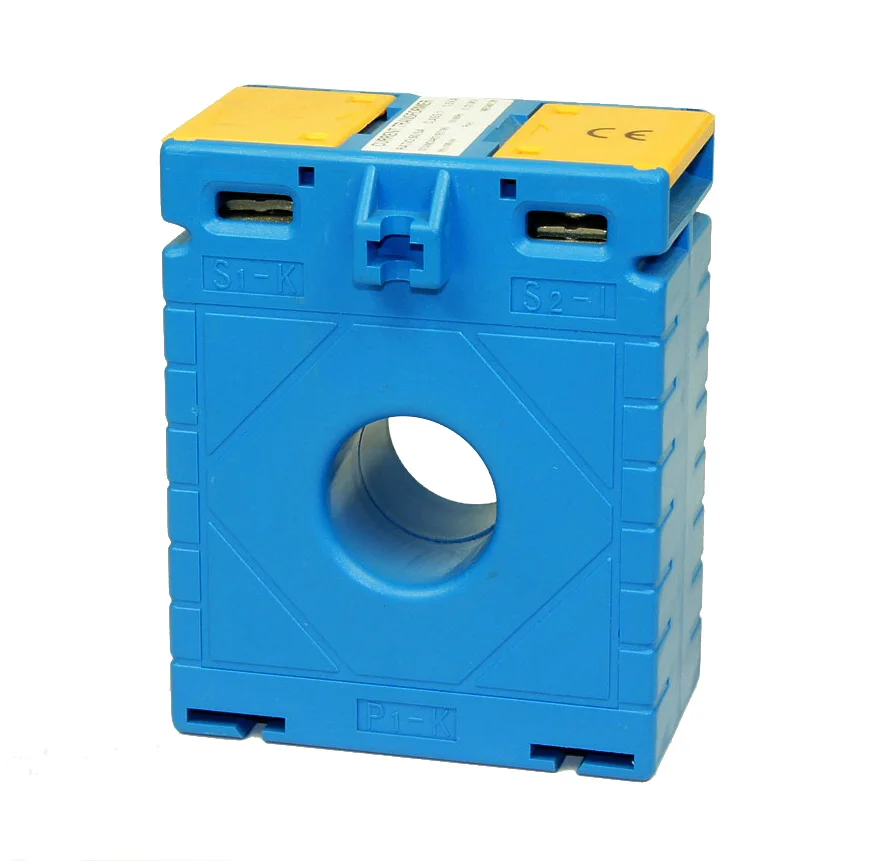

A range of compact plastic case current transformer.
Its volume is much smaller than general model.
Its integral hinged plate terminal cover and din rail mounting all make MES CT match requirements in space
limited panels.
Specifications
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | .-10 degree to 50 degree |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Standard
IEC60044-1 GB1208-2006
| Type | Ratio(A) | Burden(VA) | |
| Class:0.5 | Class:1.0 | ||
| MES-62/20 | 30/5 | - | 2.5(4T) |
| MES-62/20 | 40/5 | - | 2.5(3T) |
| MES-62/20 | 55/5 | - | 2.5(3T) |
| MES-62/20 | 60/5 | - | 2.5(2T) |
| MES-62/20 | 75/5 | - | 1.5 |
| MES-62/20 | 80/5 | - | 2.5 |
| MES-62/20 | 100/5 | 1.5 | 2.5 |
| MES-62/20 | 150/5 | 2.5 | 3.75 |
| MES-62/20 | 200/5 | 3.75 | 5 |
| MES-62/30 | 30/5 | - | 2.5(4T) |
| MES-62/30 | 40/5 | - | 2.5(3T) |
| MES-62/30 | 50/5 | - | 2.5(3T) |
| MES-62/30 | 60/5 | - | 2.5(2T) |
| MES-62/30 | 75/5 | - | 1.5 |
| MES-62/30 | 100/5 | 1.5 | 2.5 |
| MES-62/30 | 150/5 | 2.5 | 3.75 |
| MES-62/30 | 200/5 | 3.75 | 5 |
| MES-62/40 | 60/5 | - | 1.5(2T) |
| MES-62/40 | 75/5 | - | 1.5(2T) |
| MES-62/40 | 100/5 | - | 1.5 |
| MES-62/40 | 150/5 | - | 2.5 |
| MES-62/40 | 200/5 | 2.5 | 3.75 |
| MES-62/40 | 250/5 | 2.5 | 3.75 |
| MES-62/40 | 300/5 | 3.75 | 5 |
| MES-62/B | 5/5 | 1.5 | 2.5 |
| MES-62/B | 10/5 | 1.5 | 2.5 |
| MES-62/B | 15/5 | 1.5 | 2.5 |
| MES-62/B | 20/5 | 1.5 | 2.5 |
| MES-62/B | 25/5 | 1.5 | 2.5 |
| MES-62/B | 30/5 | 1.5 | 2.5 |
| MES-62/B | 40/6 | 1.5 | 2.5 |
| MES-62/B | 50/5 | 1.5 | 2.5 |
| MES-62/B | 60/5 | 1.5 | 2.5 |
| MES-62/B | 75/5 | 1.5 | 2.5 |
| MES-62/B | 100/5 | 1.5 | 2.5 |
| MES-62/B | 150/5 | 1.5 | 2.5 |
| MES-80/30 | 30/5 | - | 2.5(4T) |
| MES-80/30 | 50/5 | - | 2.5(2T) |
| MES-80/30 | 60/5 | - | 2.5(2T) |
| MES-80/30 | 75/5 | - | 1.5 |
| MES-80/30 | 100/5 | - | 2.5 |
| MES-80/30 | 150/5 | 2.5 | 3.75 |
| MES-80/30 | 200/5 | 3.75 | 5 |
| MES-80/40 | 100/5 | - | 2.5 |
| MES-80/40 | 150/5 | 2.5 | 3.75 |
| MES-80/40 | 200/5 | 3.75 | 5 |
| MES-80/40 | 250/5 | 3.75 | 5 |
| MES-80/40 | 300/5 | 5 | 5 |
| MES-80/40 | 400/5 | 5 | 10 |
| MES-80/40 | 500/5 | 5 | 10 |
| MES-100/60 | 400/5 | 3.75 | 5 |
| MES-100/60 | 500/5 | 5 | 10 |
| MES-100/60 | 600/5 | 10 | 10 |
| MES-100/60 | 750/5 | 10 | 15 |
| MES-100/60 | 800/5 | 10 | 15 |
| MES-100/60 | 1000/5 | 10 | 20 |
| MES-100/60 | 1200/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 400/5 | 3.75 | 5 |
| MES-100/60 | 500/5 | 5 | 10 |
| MES-100/60 | 600/5 | 10 | 10 |
| MES-100/60 | 750/5 | 10 | 15 |
| MES-100/60 | 800/5 | 10 | 15 |
| MES-100/60 | 1000/5 | 10 | 20 |
| MES-100/60 | 1200/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
