Compeptitive цена по прейскуранту завода-изготовителя Longi 540W 545W 550W 555W 560 Вт моно панели солнечных
- Категория: Solar Energy Products >>>
- Поставщик: Hefei,Pinergy,Solar,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.58 $* | 0.18 $* |
| Aug-15-2025 | 0.64 $* | 0.78 $* |
| Jul-15-2025 | 0.43 $* | 0.21 $* |
| Jun-15-2025 | 0.78 $* | 0.27 $* |
| May-15-2025 | 0.62 $* | 0.89 $* |
| Apr-15-2025 | 0.22 $* | 0.75 $* |
| Mar-15-2025 | 0.20 $* | 0.6 $* |
| Feb-15-2025 | 0.84 $* | 0.74 $* |
| Jan-15-2025 | 0.88 $* | 0.10 $* |
Характеристики
Products Description
Name | solar panel ,solar cell |
Material | Mono PREC |
Size | 2256*1133*35mm |
27.2Gross weight | 27.2Kg |
MOQ | 31 pcs |
1. Lowest LCOE solutions for ultra-large power plants
2. BOS analysis :
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
3. Smart soldering
Improved packing density, reliability and conversion efficiency LONGi's smart soldering technology uses integrated segmented ribbons. The triangular section maximizes light capturing while the flat section reliably connects cells with reduced gap. Smart soldering technology reduces the tensile stress of the cell by 20%, enabling higher reliability.
4. Gallium-doped technology
P-type module with lowest LID LONGi products use gallium-doped PERC cells. Better LID performance with stable, long-term power generation.
5. Double-glass with frame The strongest bifacial module
Hi-MO 5 adopts bifacial double-glass with frame which provides exceptional strength for higher load capacity. Qualified for 5400Pa static load on the front when there is no cross-beam on the back of the module (as shown in the figure). Avoids shading loss due to cross-beam at the back of the module.
6. Optimized electrical parameters Fully compatible with inverters
The operating current of LONGi Hi-MO 5 module is about 13A. Including bifacial gain, the operating current remains within the maximum input current range of advanced inverters, hence there is no power generation loss.
Electrical Characteristics | Test uncertainty for Pmax:±3% | |||||||||||
Model Number | LR5-72HBD-530M | LR5-72HBD-535M | LR5-72HBD-540M | |||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | ||||||
Maximum Power(Pmax/W) | 530 | 395.8 | 535 | 399.5 | 540 | 403.3 | ||||||
Open Circuit Voltage(Voc/V) | 49.20 | 46.03 | 49.35 | 46.17 | 49.50 | 46.31 | ||||||
Short Circuit Current(Isc/A) | 13.71 | 11.08 | 13.78 | 11.14 | 13.85 | 11.19 | ||||||
Voltage at Maximum Power(Vmp/V) | 41.35 | 38.55 | 41.50 | 38.69 | 41.65 | 38.83 | ||||||
Current at Maximum Power (Imp/A) | 10.80 | 8.65 | 10.87 | 8.70 | 10.93 | 8.76 | ||||||
Module Efficiency(%) | 20.7% | 20.9% | 21.1% | |||||||||
STC(Standard Testing Conditions):Irradiance 1000w/m²,Cell Temperature 25ºC,Spectra at AM1.5.NOCT(Nominal Operating Cell Temperature) | ||||||||||||

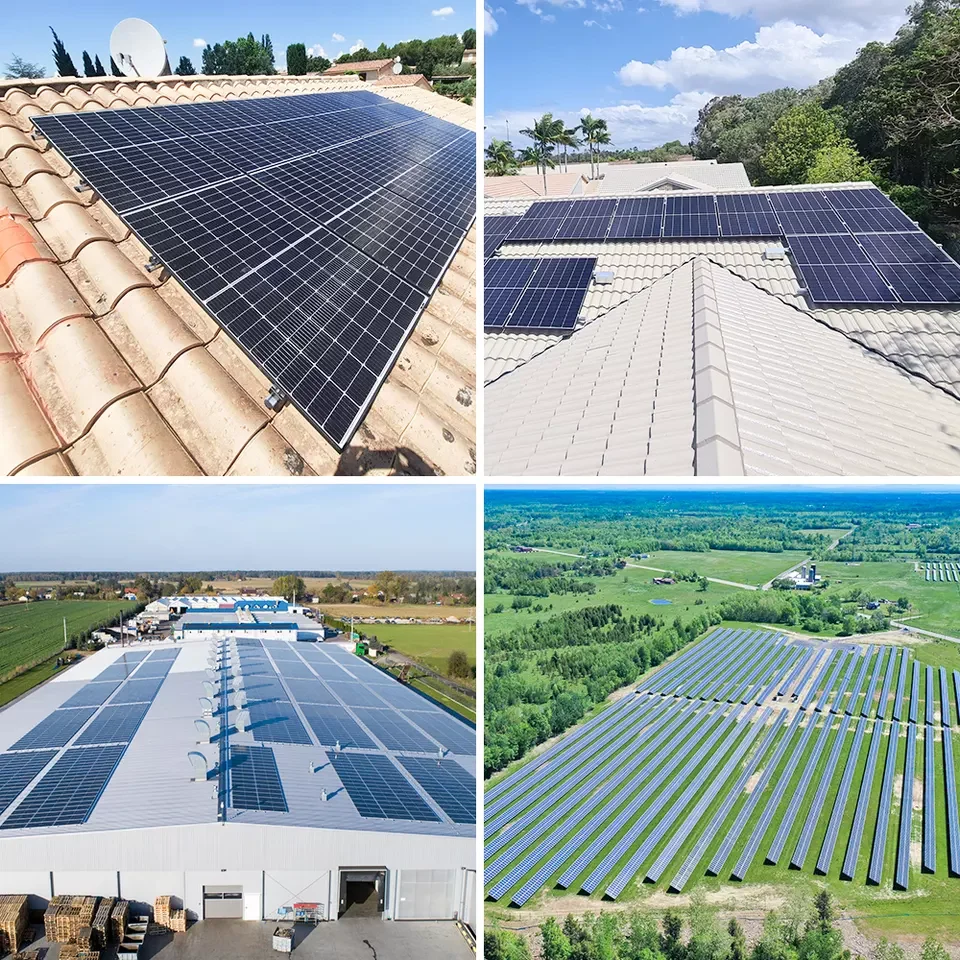

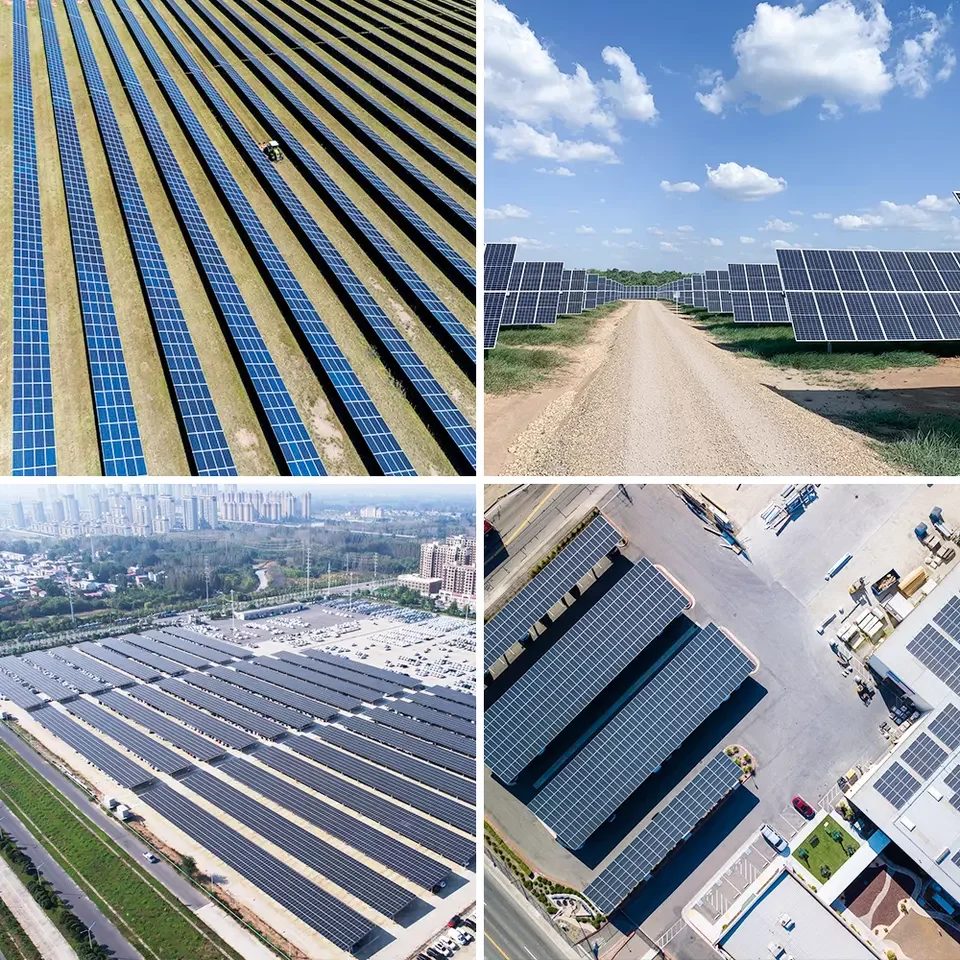

Successful Project

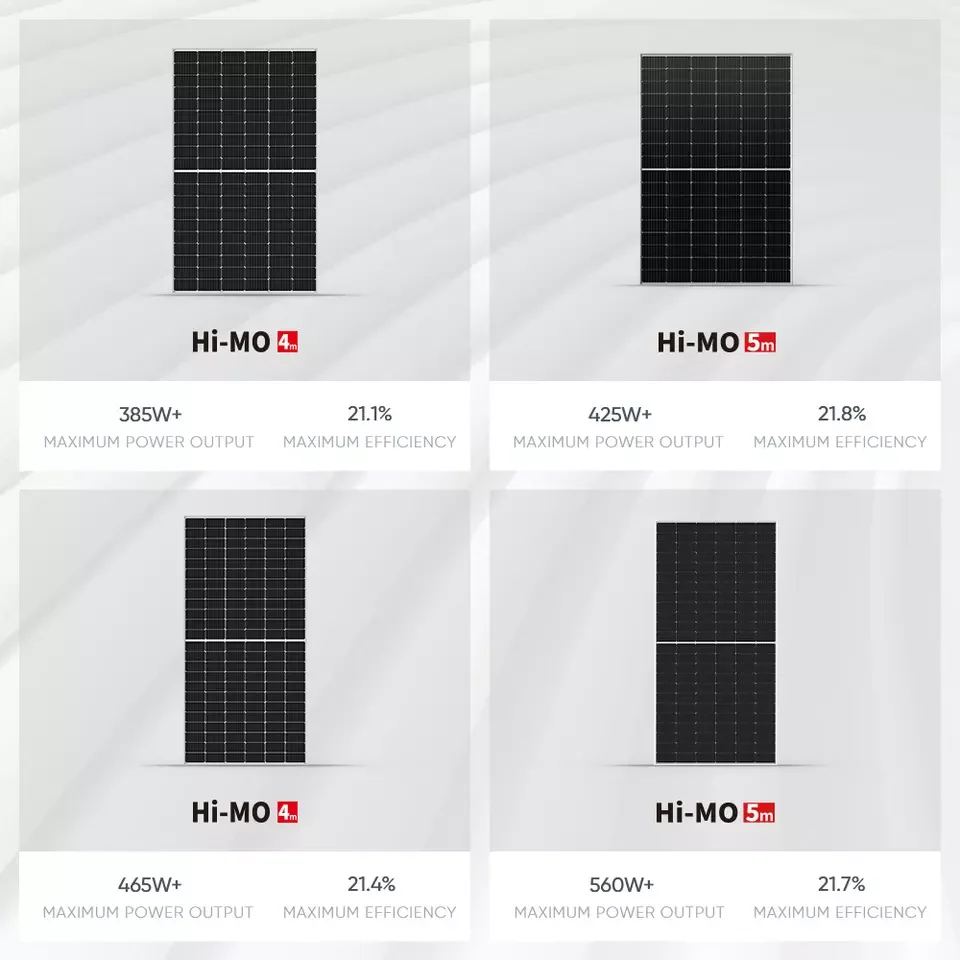

SIMILAR PRODUCTS
Company Profile
Production Process
Certifications

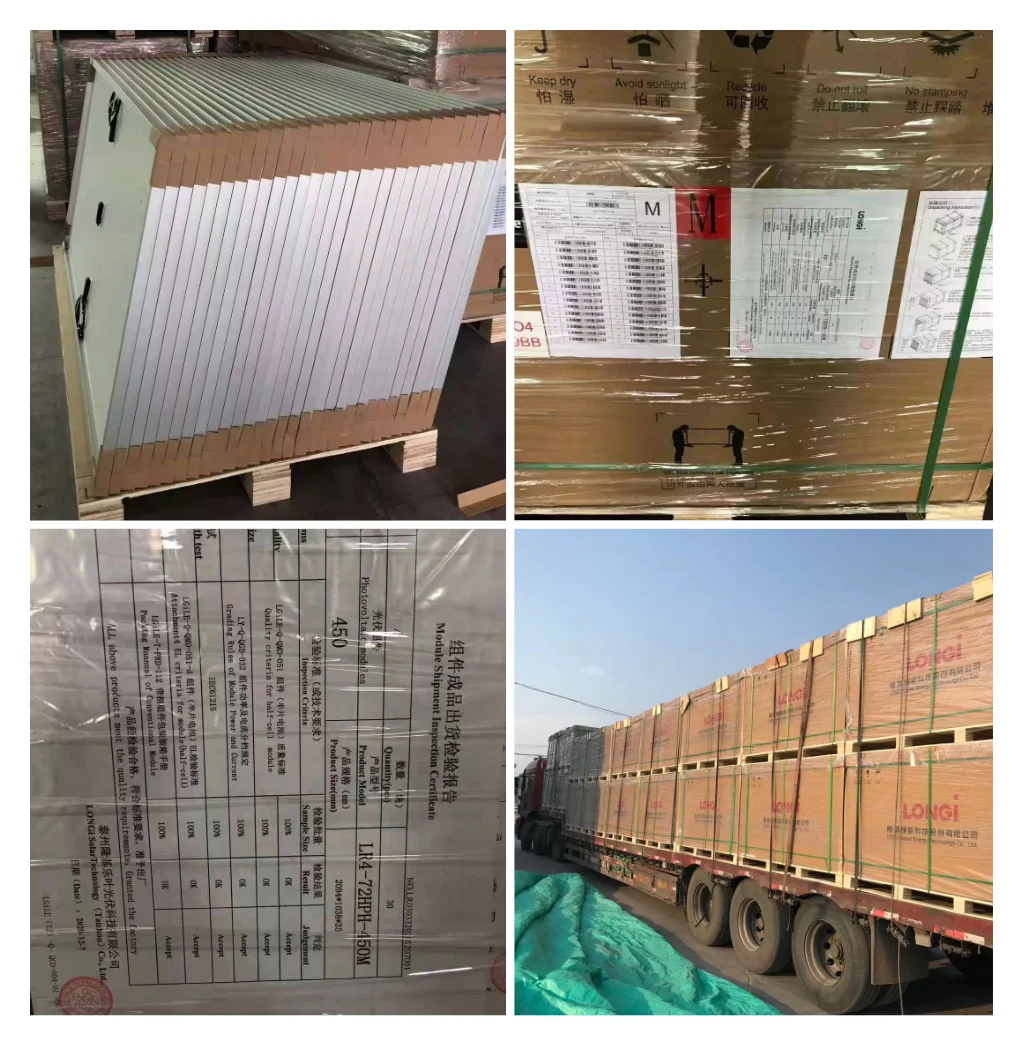

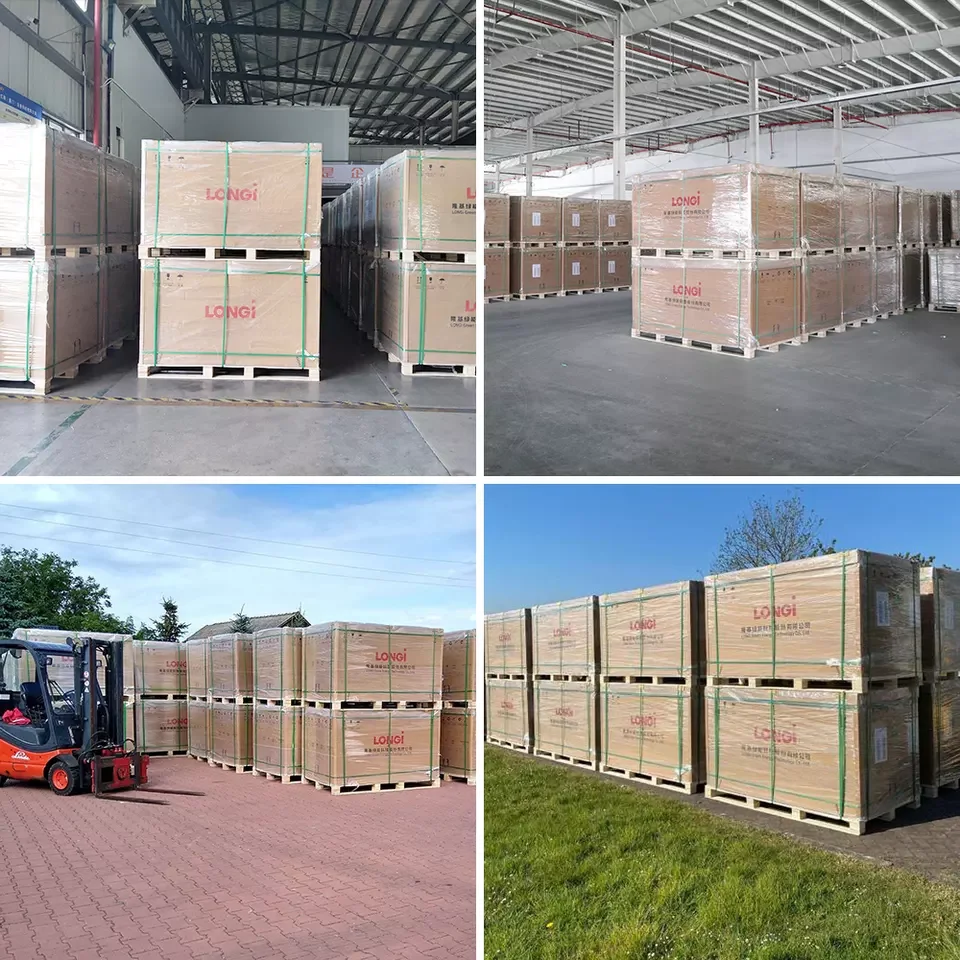

Packaging Transportation
FAQ
Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q2: What about the lead time?
A2: 10 days for<200kW requirements, we need to negotiate if your needs ≥200kW.
Q3: How can I make payment?
A3:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what's the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q2: What about the lead time?
A2: 10 days for<200kW requirements, we need to negotiate if your needs ≥200kW.
Q3: How can I make payment?
A3:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what's the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
