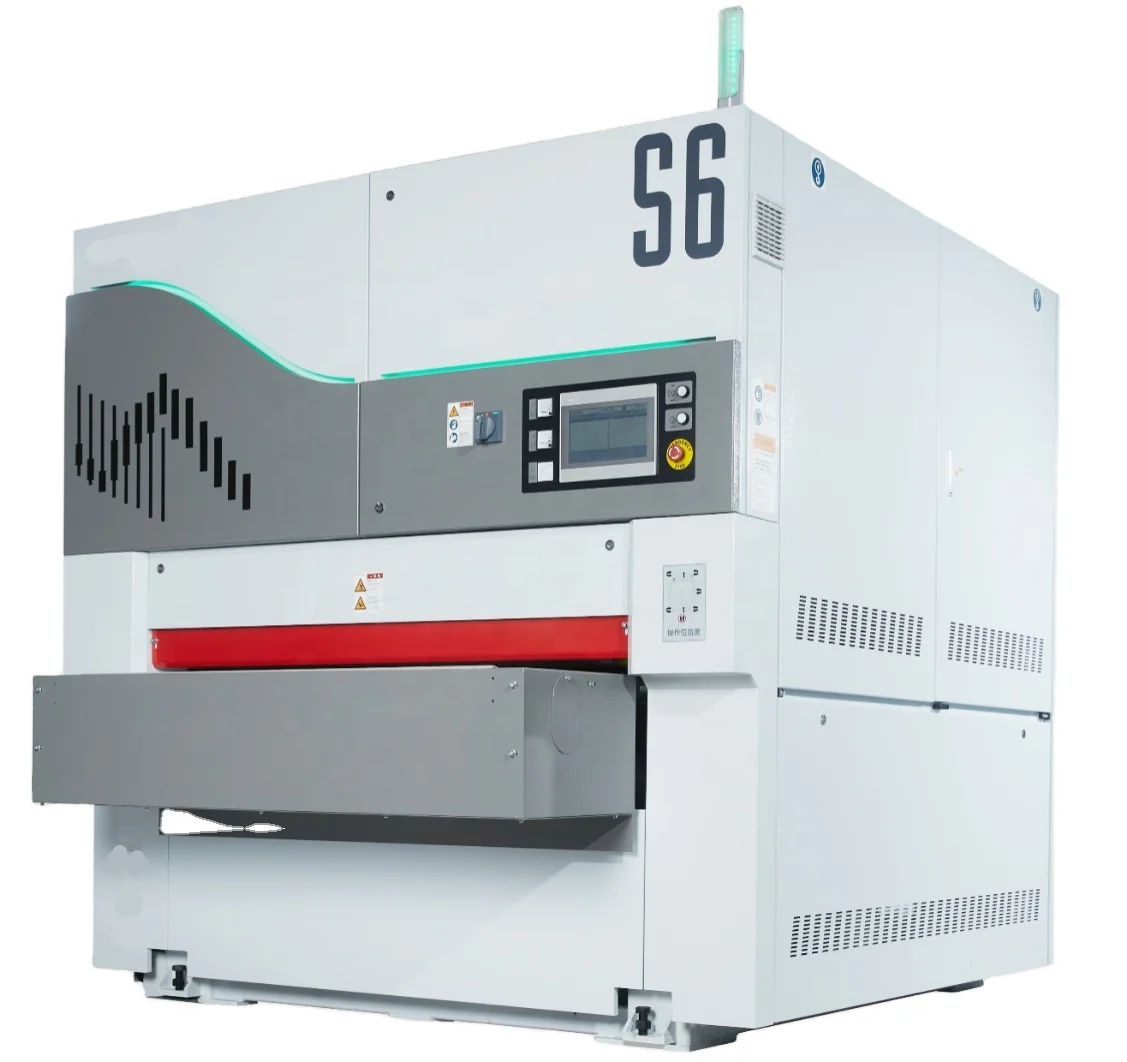

Автоматический станок для обработки древесины с ЧПУ шлифовальная машина 1300
- Категория: Other Woodworking Machinery >>>
- Поставщик: Shandong,STX,Machinery,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.91 $* | 0.85 $* |
| Aug-17-2025 | 0.55 $* | 0.29 $* |
| Jul-17-2025 | 0.79 $* | 0.77 $* |
| Jun-17-2025 | 0.30 $* | 0.49 $* |
| May-17-2025 | 0.71 $* | 0.99 $* |
| Apr-17-2025 | 0.17 $* | 0.69 $* |
| Mar-17-2025 | 0.10 $* | 0.55 $* |
| Feb-17-2025 | 0.69 $* | 0.50 $* |
| Jan-17-2025 | 0.82 $* | 0.62 $* |
Характеристики
Product Description
Features:
* The cutter shaft is imported from Taiwan, with a diameter of 180mm and a combination of 9 rotary tool rest.
* The second and third units adopts eccentric roller structure, which can realize the whole adjustment of both ends of the
roller body at the same time (manual), without displacement error.
* The circumference of the abrasive belt is 2620mm, which makes the heat dissipation of the sand belt and sand plate good, and
effectively prolongs the service life of the sand belt.
* Adding automatic edge finding compensation system to reduce the swing frequency of the sand belt to 4-6 times/min, so that the
sand trail is straight instead of S-type, and improve the effect of the top coating.
* The belt is equipped with an automatic rectifying system to prevent the belt from running off due to the bell mouth.
* Equipped with sanding belt cleaning device, which can extend the service life of sand belt by 20-30%.
* Equipped with conveyor belt cleaning system, which can effectively ensure the surface clean, save manual cleaning.
* Equipped with the work piece surface cleaning system, which can save the cost of a surface cleaning aircraft
* The second and third units adopts eccentric roller structure, which can realize the whole adjustment of both ends of the
roller body at the same time (manual), without displacement error.
* The circumference of the abrasive belt is 2620mm, which makes the heat dissipation of the sand belt and sand plate good, and
effectively prolongs the service life of the sand belt.
* Adding automatic edge finding compensation system to reduce the swing frequency of the sand belt to 4-6 times/min, so that the
sand trail is straight instead of S-type, and improve the effect of the top coating.
* The belt is equipped with an automatic rectifying system to prevent the belt from running off due to the bell mouth.
* Equipped with sanding belt cleaning device, which can extend the service life of sand belt by 20-30%.
* Equipped with conveyor belt cleaning system, which can effectively ensure the surface clean, save manual cleaning.
* Equipped with the work piece surface cleaning system, which can save the cost of a surface cleaning aircraft
Specification
Working Width | 1300mm |
Min Working Length | 490mm |
Working Thickness | 10 -150mm |
Feeding Speed | 4-20m/min |
Total Power | 91Kw |
Motor for First Unit | 37Kw |
Motor for Second Unit | 22Kw |
Motor for Third Unit | 22Kw |
Feeding Motor | 4.0Kw |
Lifting Motor | 0.75Kw |
Motor for Brush Roller | 1.5Kw |
Abrasive Belt Size | 1350×2620mm |
Volume of Dust Collection Device | 15000 m3/h |
Overall Dimensions | 2235×3050×2450～2600mm |
Net Weight | 7200Kgs |
Air Blower | Yes |
Height Above Ground | 900mm |
Details Images

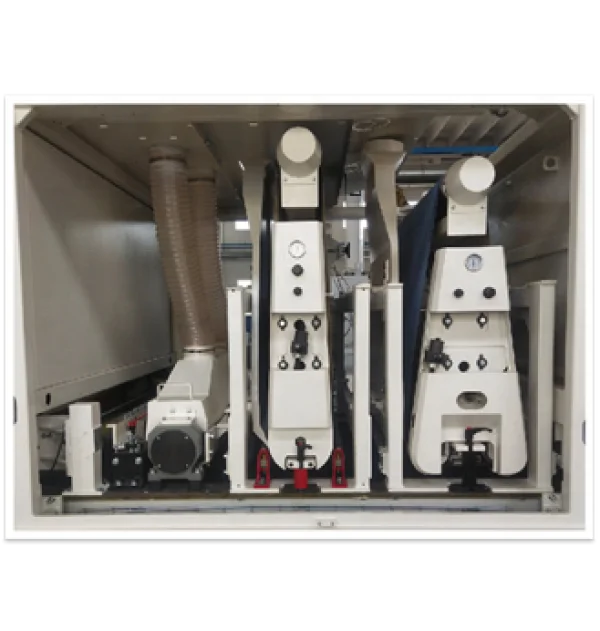

Stucture

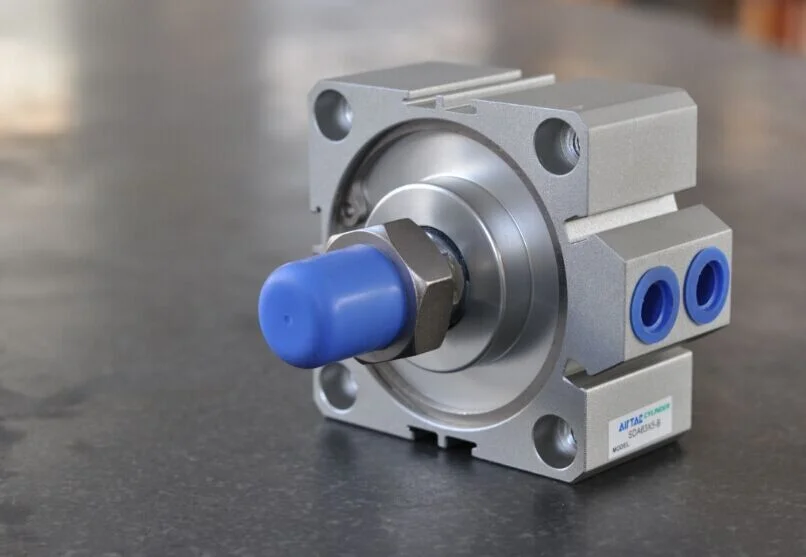

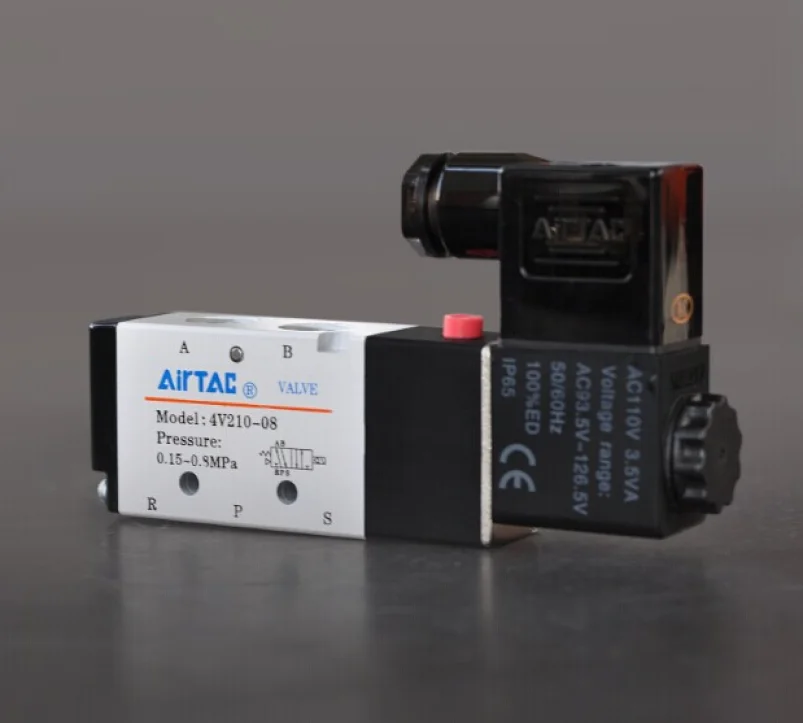

AIRTAC pneumatic control system:
maintenance free, good qualtiy and more stable.
AIRTAC pneumatic control system:
maintenance free, good qualtiy and more stable.
Omron limited switch

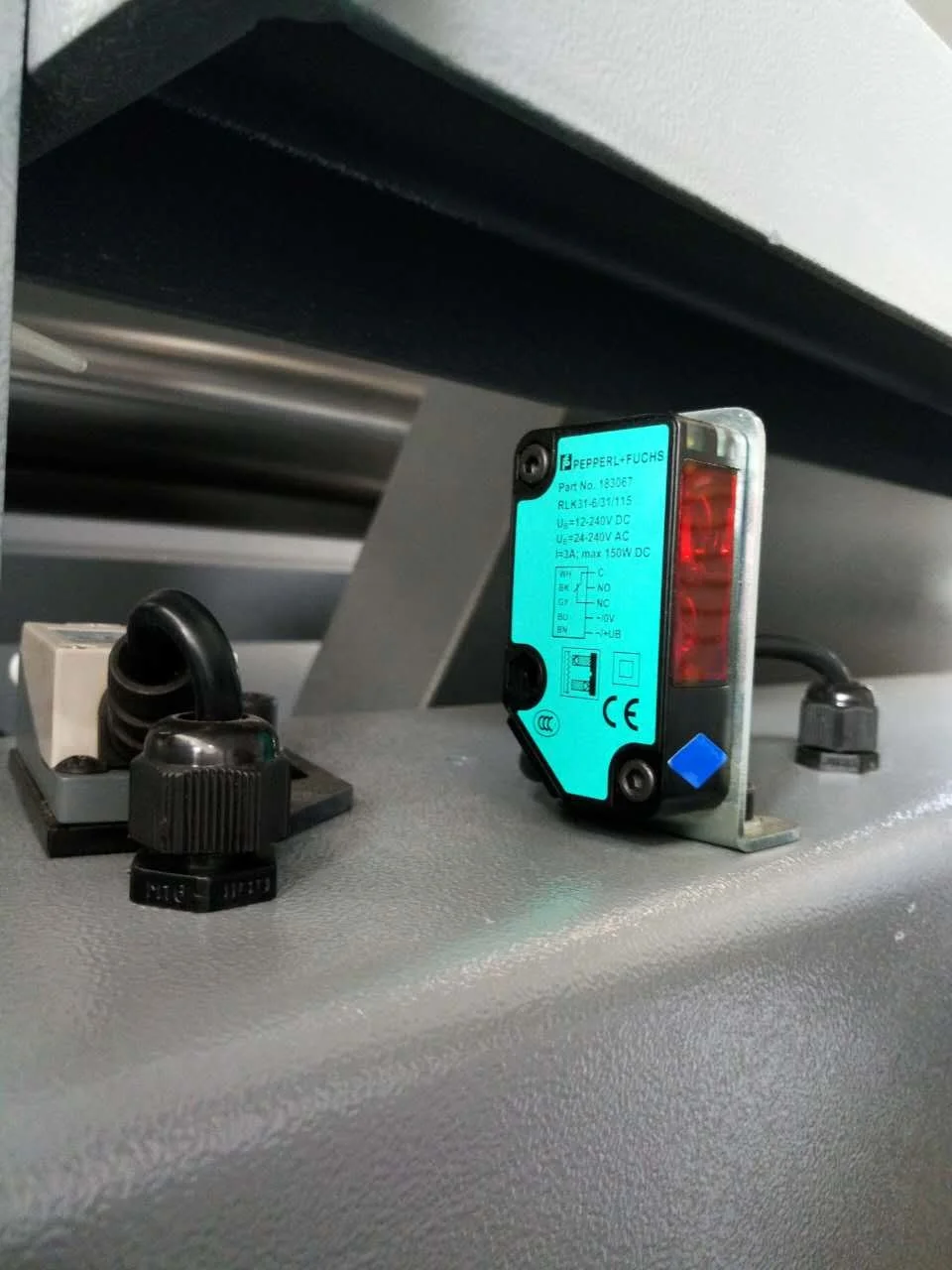

P+F photoelectric switch
to control the abrasive belt
to control the abrasive belt
Motor
IP54 dustproof
Packing & Delivery
Packing
Steel pallet
