Нинбо Deye солнце 8kw 10kw 12kw SG04LP3-EU трехфазный Гибридный
- Категория: Solar Energy Products >>>
- Поставщик: Jiangsu,Solarman,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2142.75 $* | 2249.55 $* |
| Aug-17-2025 | 2124.16 $* | 2230.50 $* |
| Jul-17-2025 | 1782.2 $* | 1871.51 $* |
| Jun-17-2025 | 2088.99 $* | 2192.42 $* |
| May-17-2025 | 1818.39 $* | 1909.98 $* |
| Apr-17-2025 | 2052.0 $* | 2155.47 $* |
| Mar-17-2025 | 2034.8 $* | 2136.53 $* |
| Feb-17-2025 | 2016.37 $* | 2117.75 $* |
| Jan-17-2025 | 1998.31 $* | 2098.60 $* |
Характеристики
Product Description
Deye Three Phase Hybrid Inverter
SUN-8/10/12K-SG04LP3-EU | 8-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN-8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Specification
Model | SUN-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Li-lon | |||||
Battery Voltage Range (V) | 40~60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | Optional | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
Rated PV Input Voltage (V) | 550V (150V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160V | |||||
Full Load DC Voltage Range | 350-650 | |||||
PV Input Current (A) | 13+13 | 26+13 | ||||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | ||||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 12000W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | |||||
Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | |||||
Grid Type | Current Harmonic Distortion | |||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage Protection | |||||
Surge protection | DC Type II / AC Type II | |||||
Certififications and Standards | ||||||
Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | |||||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | |||||
General Data | ||||||
Operating Temperature Range (℃ ) | -25~60℃ , >45℃ Derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | <30 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 36.8 | |||||
Size (mm) | 422W×658H×281D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 years | |||||
Why Choose Deye Solar inverters?
1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)
System Architechture
SUN 8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
① DC Breaker for battery ② AC Breaker for grid and backup load
SUN 8K-SG: 250A DC breaker SUN 8K-SG: 80A AC breaker
SUN 8K-SG: 250A DC breaker SUN 8K-SG: 80A AC breaker
SUN 10K-SG:300A DC breaker SUN 10K-SG:80A AC breaker
SUN 12K-SG:300A DC breaker SUN 12K-SG:80A AC breaker
③ AC Breaker for grid and backup load ④ AC Breaker for home load
SUN 8K-SG: 20A AC breaker Depends on household loads
SUN 12K-SG:300A DC breaker SUN 12K-SG:80A AC breaker
③ AC Breaker for grid and backup load ④ AC Breaker for home load
SUN 8K-SG: 20A AC breaker Depends on household loads
SUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
Our factory
Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.

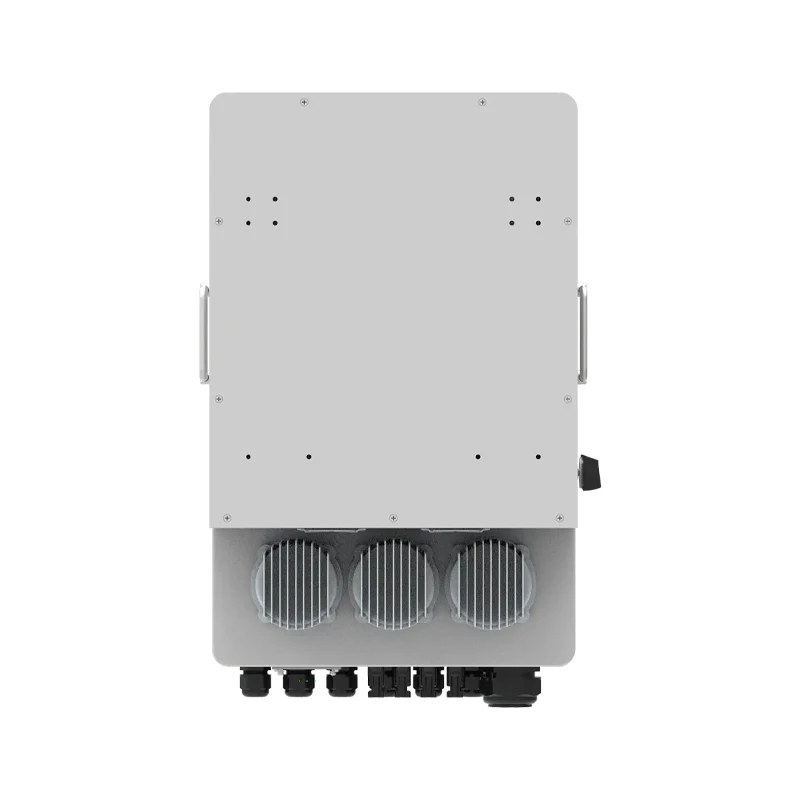

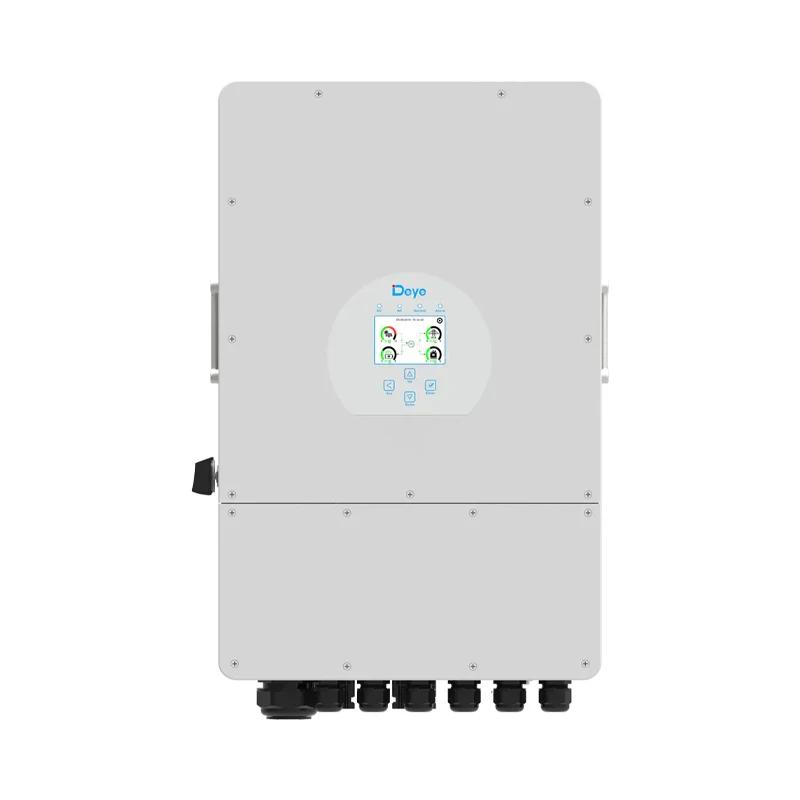

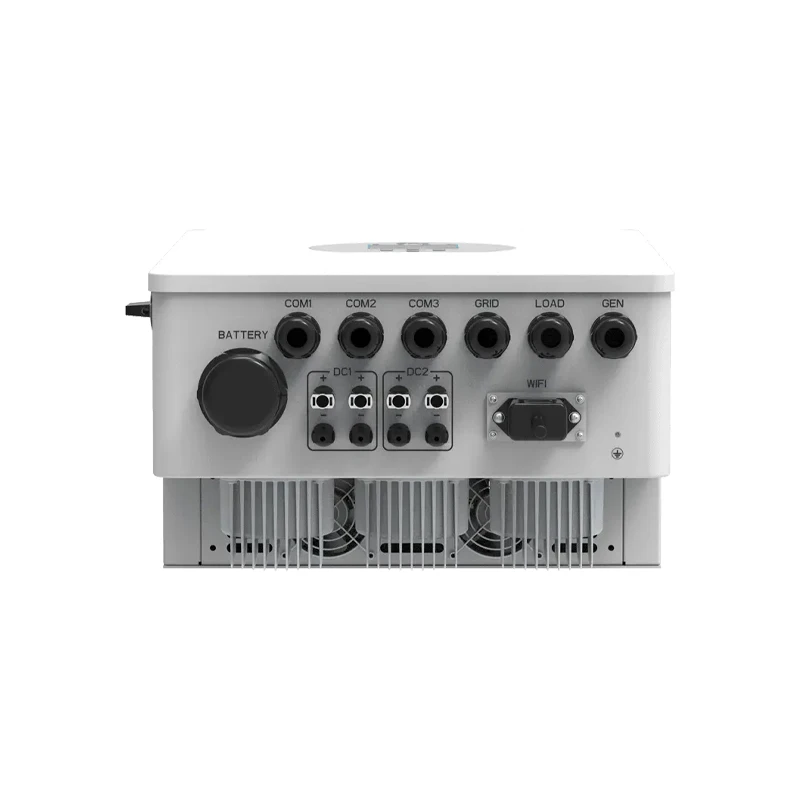

Product details
Certificate

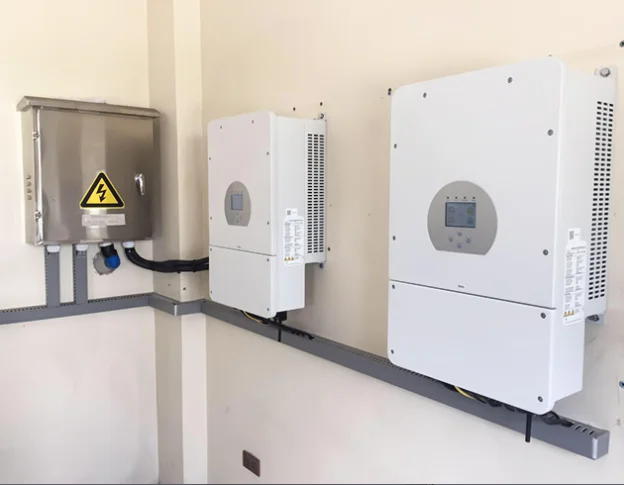

Projects cases

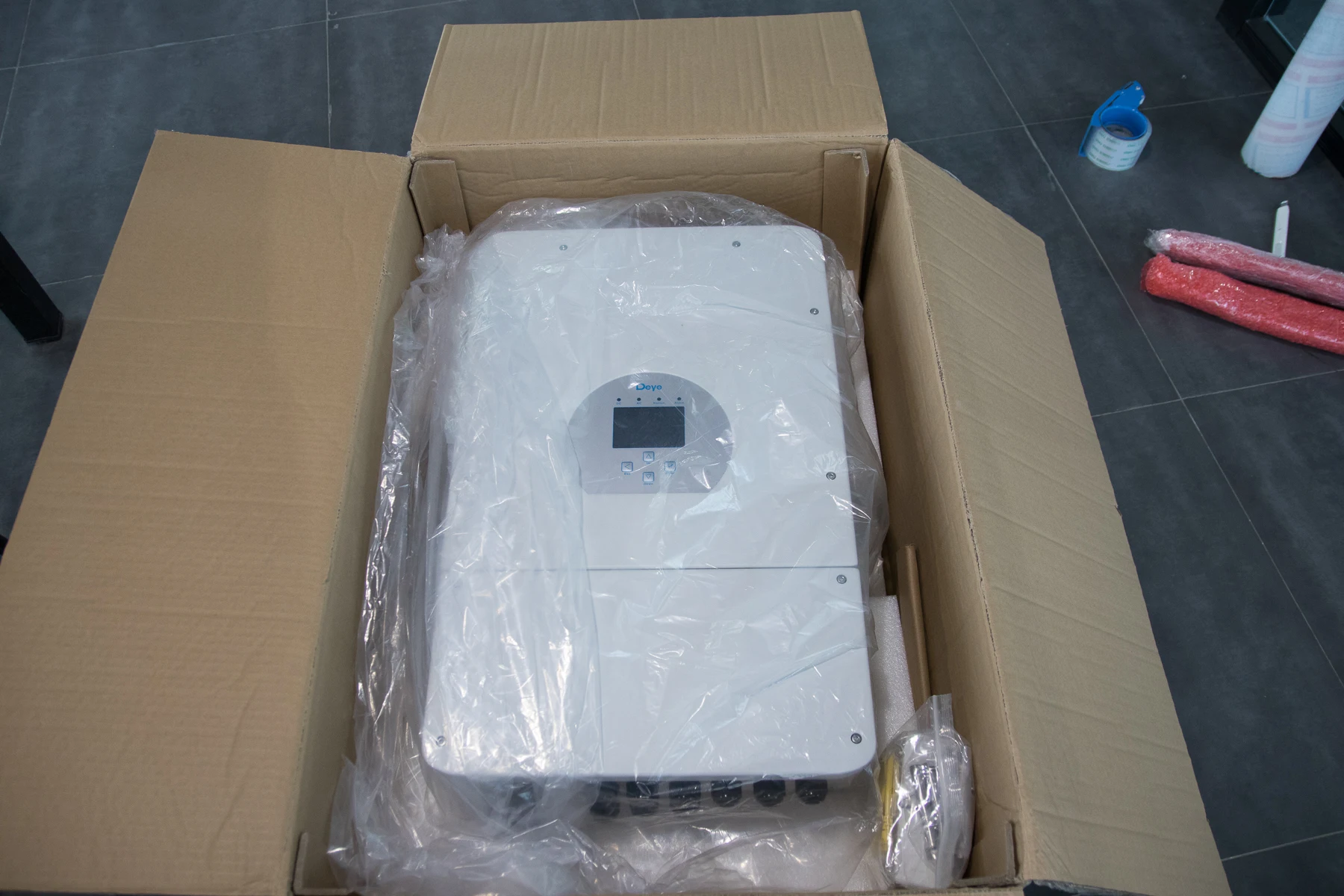

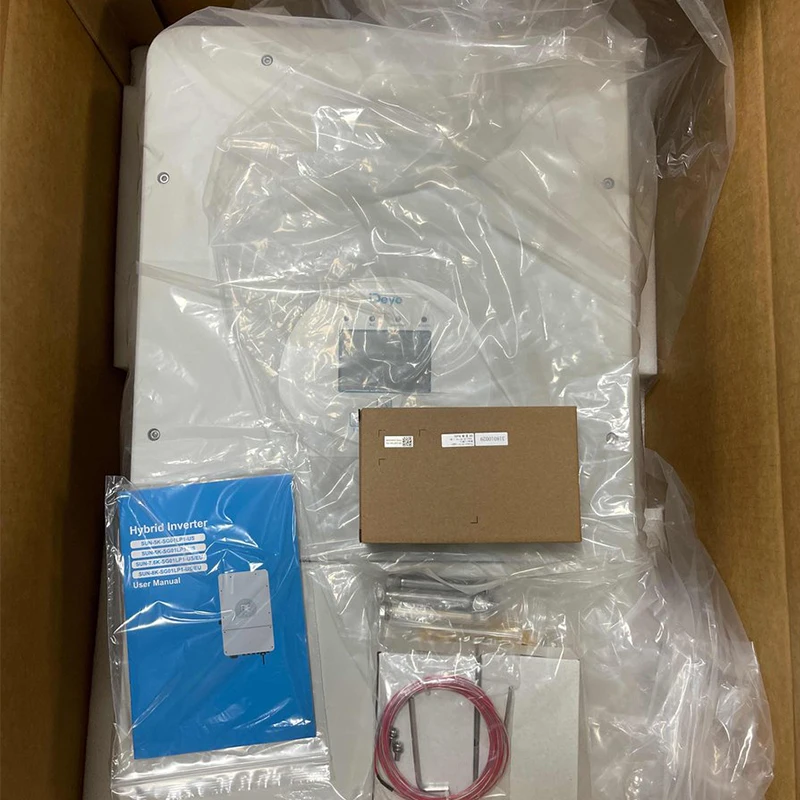

Product packaging
