В наличии Solis Гибридный инвертор 5kw 6kw 8kw 10kw 3 фазы solis солнечный RHI ES on off Сетка
- Категория: Solar Energy Products >>>
- Поставщик: Sunwe,power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1784.50 $* | 1820.21 $* |
| Jul-18-2025 | 1447.84 $* | 1476.43 $* |
| Jun-18-2025 | 1756.0 $* | 1791.8 $* |
| May-18-2025 | 1742.13 $* | 1777.73 $* |
| Apr-18-2025 | 1391.80 $* | 1419.25 $* |
| Mar-18-2025 | 1714.45 $* | 1748.98 $* |
| Feb-18-2025 | 1700.10 $* | 1734.97 $* |
| Jan-18-2025 | 1686.24 $* | 1720.60 $* |
Характеристики
Product Description
Specification
RHI-3P(5-10)K-HVES-5G | ||||||||
Specification | RHI-3P5K-HVES-5G | RHI-3P6K-HVES-5G | RHI-3P8K-HVES-5G | RHI-3P10K-HVES-5G | ||||
Input DC (PV side) | ||||||||
Recommended max. PV power | 8 kW | 9.6 kW | 12.8 kW | 16 kW | ||||
Max. input voltage | 1000V | |||||||
Rated voltage | 600V | |||||||
Start-up voltage | 160V | |||||||
MPPT voltage range | 200-850 V | |||||||
Max. input current | 13 A / 13 A | 6 | 26 A / 13 A | 26 A / 26 A | ||||
Max. short circuit current | 19.5 A / 19.5 A | 39 A / 19.5 A | 39 A / 39 A | |||||
MPPT number/Max. input strings number | 2/2 | 2/3 | 2/4 | |||||
Battery | ||||||||
Battery type | Li-ion | 110000W | 120000W | 125000W | ||||
Battery voltage range | 160-600 V | 121000VA | 132000VA | 137500VA | ||||
Max. charge / discharge power | 5 kW | 6 kW | 8 kW | 10 kW | ||||
Max. charge / discharge current | 25A | 174.6A | 190.5A | 198.5A | ||||
Communication | CAN | |||||||
Output AC (Grid side) | ||||||||
Max.efficiency | 5 kW | 6 kW | 8 kW | 10 kW | ||||
Max. apparent output power | 5.5 kVA | 6.6 kVA | 8.8 kVA | 10 kVA | ||||
Operation phase | 3/N/PE | |||||||
Rated grid voltage | 380 V / 400 V | |||||||
Rated grid frequency | 50 Hz / 60 Hz | |||||||
Rated grid output current | 7.6 A / 7.3 A | 9.2 A / 8.7 A | 12.2 A / 11.6 A | 15.2 A / 14.5 A | ||||
Max. output current | 8.4 A | 10 A | 13.4 A | 16.7 A | ||||
Power Factor | >0.99 (0.8 leading - 0.8 lagging) | |||||||
THDi | <2% | |||||||
Output AC (Back-up) | ||||||||
Rated output power | 5 kW | 6 kW | 8 kW | 10 kW | ||||
Peak apparent output power | 10 kVA, 60 sec | 12 kVA, 60 sec | 16 kVA, 60 sec | 16 kVA, 60 sec | ||||
Back-up switch time | < 40 ms | |||||||
Rated output voltage | 3/N/PE, 380 V / 400 V | |||||||
Rated frequency | 50 Hz / 60 Hz | |||||||
Rated output current | 7.6 A / 7.3 A | 9.2 A / 8.7 A | 12.2 A / 11.6 A | 15.2 A / 14.5 A | ||||
THDv (@linear load) | <2% | |||||||
Efficiency | ||||||||
Max. efficiency | 98.4% | |||||||
EU efficiency | 97.7% | |||||||
MPPT efficiency | 99.9% | |||||||
Protection | ||||||||
Anti-islanding protection | Yes | |||||||
Output over current protection | Yes | |||||||
Short circuit protection | Yes | |||||||
DC switch | Optional | |||||||
DC reverse-polarity protection | Yes | |||||||
PV over voltage protection | Yes | |||||||
Battery reverse protection | Yes | |||||||
General Data | ||||||||
Dimensions (W*H*D) | 535*455*185 mm | |||||||
Weight | 25.1 kg | |||||||
Topology | Transformerless | |||||||
Standby consumption | <15 W | |||||||
Operating ambient temperature range | -25 ~ +60°C | |||||||
Relative humidity | 0-100% | |||||||
Ingress protection | IP65 | |||||||
Cooling concept | Natural convection | |||||||
Max. operation altitude | 4000 m | |||||||
Grid connection standard | G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15/VFR:2019, RD 1699/RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA | |||||||
Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 | |||||||
Features | ||||||||
DC connection | MC4 connector | |||||||
AC connection | Quick connection plug | |||||||
Display | LCD | |||||||
Communication | RS485, Optional: Wi-Fi, GPRS | |||||||

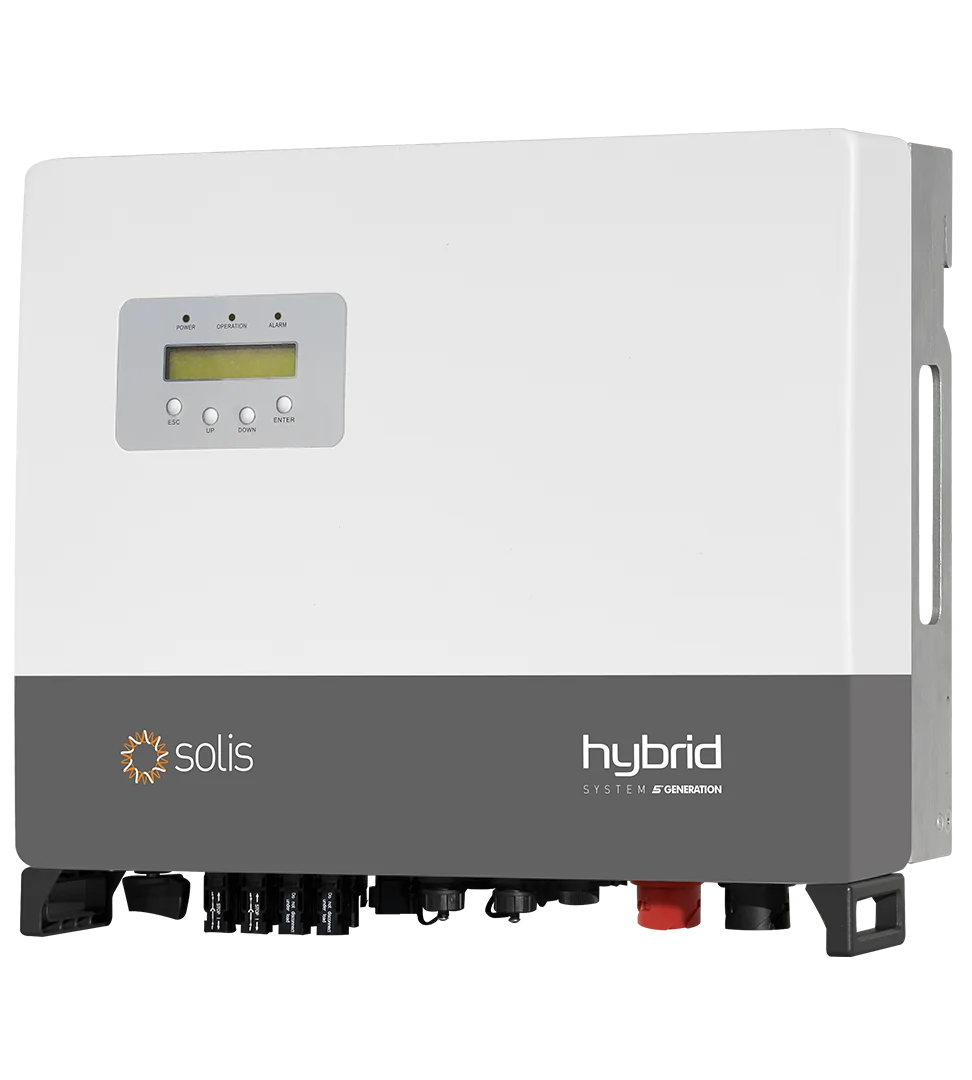

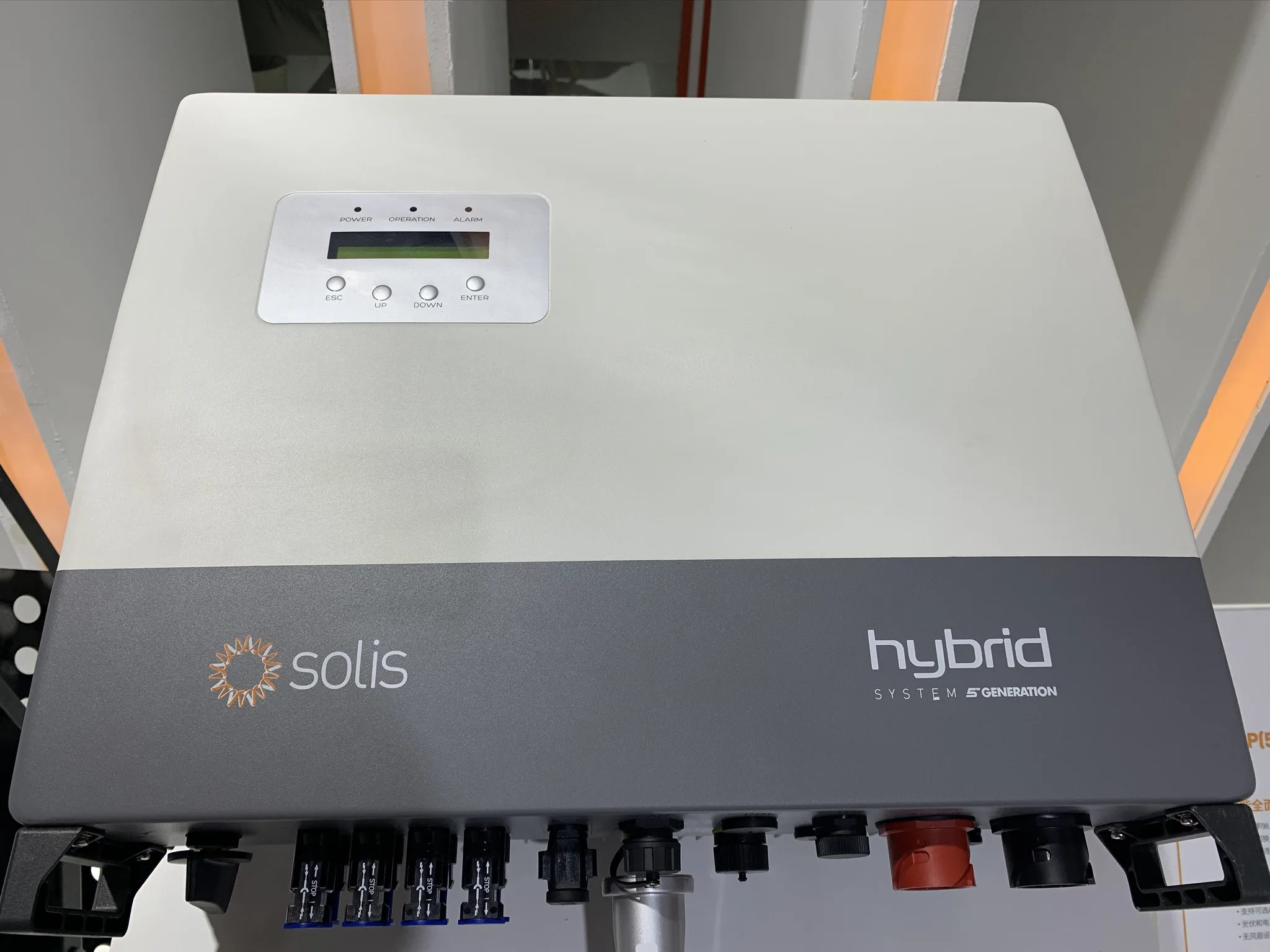

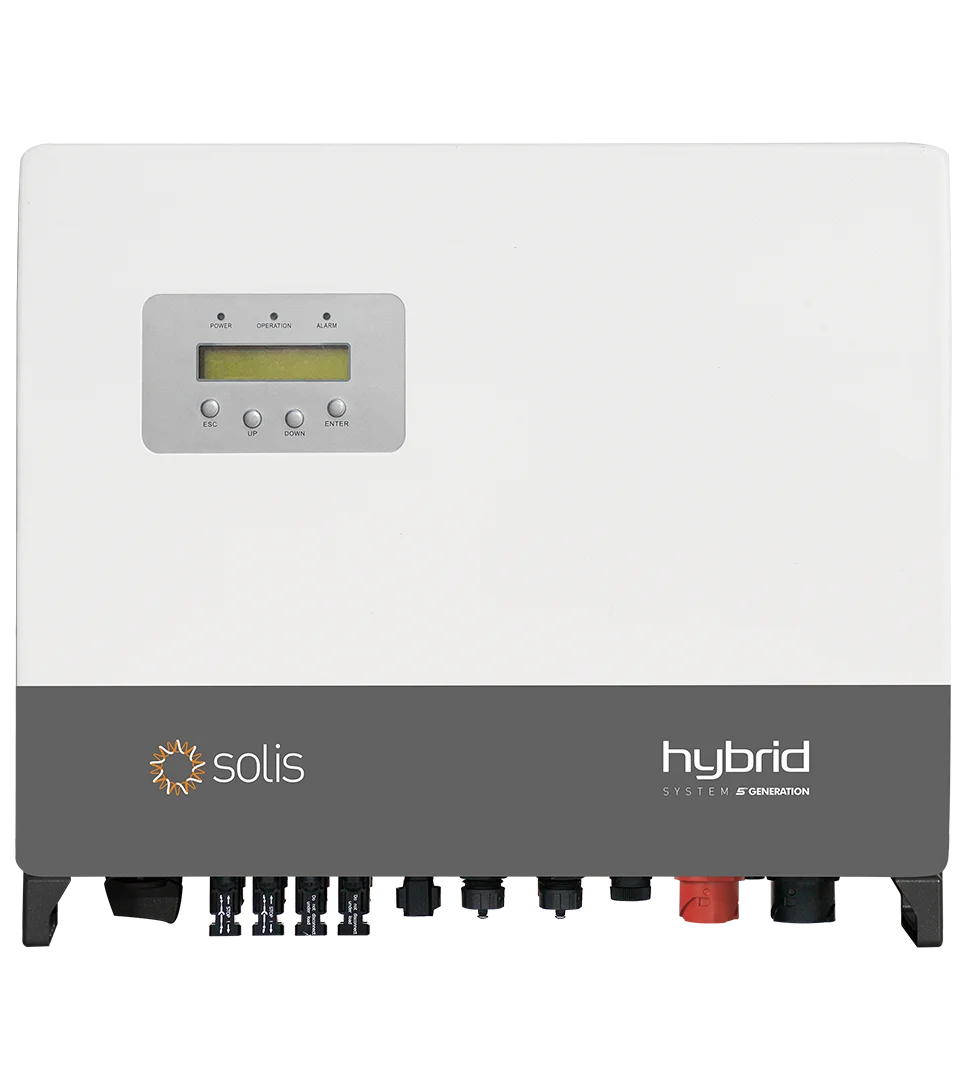

Detail photos
Packing
Global Projects
Why choose Sunwe
Ⅱ: Service: Professional sales technician, providing you with One to One service and fast reponse.
Ⅲ: Fast delivery,: Sunwe keeps stock for most main power products such us 10kw hybrid inverter: RHI-3P10K-HVES-5G, 5kw hybrid inverter: RHI-5K-48ES-5G. to ensure the delivery time within 7 days.
Ⅳ: Warranty guaranteed: Sunwe guarantees you that each Solis inverter you purchase from us will be provided with 5 years standard warranty.
Ⅴ: One-stop solution: We can also provide free design of the entire solar system that you need for your houses or projects.
Ⅵ: Cheaper shipping: We keep highly cooperated relationship with DHL, UPS, Fedex, SF Express to make sure you pay less shipping cost if you only need one or two pieces.
Contact us now
