Полный дизайн 10k гибридная домашняя солнечная энергетическая система 5 кВт
- Категория: >>>
- Поставщик: Shenzhen,Jinsdon,Lighting,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.69 $* | 0.90 $* |
| Aug-17-2025 | 0.91 $* | 0.9 $* |
| Jul-17-2025 | 0.20 $* | 0.29 $* |
| Jun-17-2025 | 0.3 $* | 0.3 $* |
| May-17-2025 | 0.92 $* | 0.61 $* |
| Apr-17-2025 | 0.73 $* | 0.56 $* |
| Mar-17-2025 | 0.17 $* | 0.84 $* |
| Feb-17-2025 | 0.96 $* | 0.69 $* |
| Jan-17-2025 | 0.75 $* | 0.58 $* |
Характеристики
Product Description
JSDSOLAR is a vibrant and fast-growing international company and as a leader in the solar system& solar lighting
industrial.Established in 2005 and located in Shenzhen city, JSDSOLAR is one of the earliest new-energy manufacturers, specialize in design&develop solar products and provide professional solar power system solutions.
JSDSOLAR has finished research and development of solar power home system, All In One solar power system, wall mounting, stackable and standing LiFePO4 battery, WIFI solar inverter, Pay As You Go system, IOT LoRa control solar street light and master the core innovative technology of whole solar products.
industrial.Established in 2005 and located in Shenzhen city, JSDSOLAR is one of the earliest new-energy manufacturers, specialize in design&develop solar products and provide professional solar power system solutions.
JSDSOLAR has finished research and development of solar power home system, All In One solar power system, wall mounting, stackable and standing LiFePO4 battery, WIFI solar inverter, Pay As You Go system, IOT LoRa control solar street light and master the core innovative technology of whole solar products.
JSDSOLAR focuses on the " integrity, professional, win-win" business philosophy, strive for a team, do a good job in every detail and come into being strict product inspection system, to make sure the highest quality and create best value for clients.

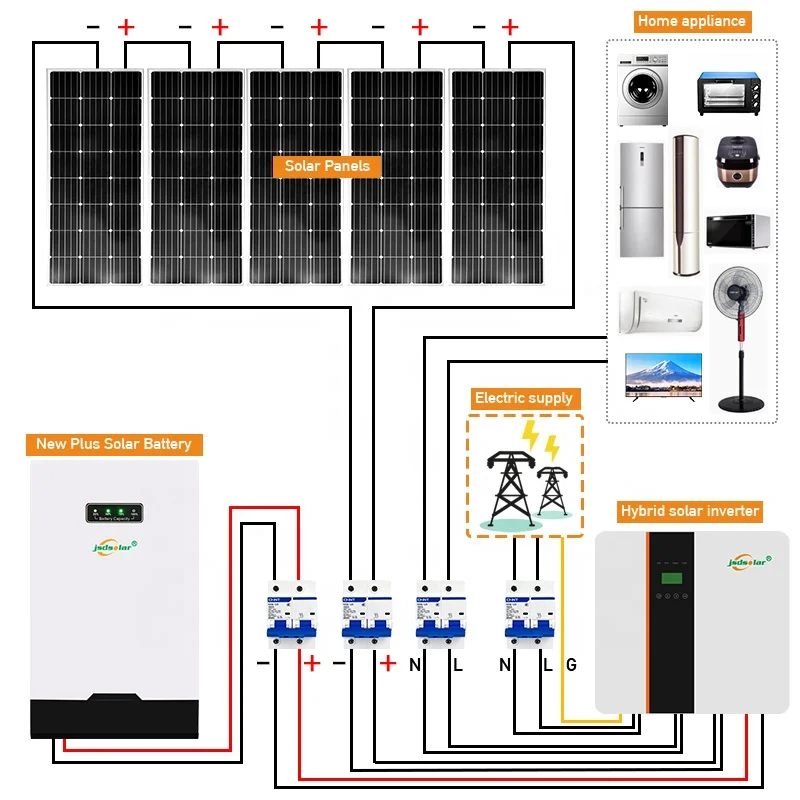

Solar system for home | ||||||||||||||
Parts | Description | Quantity | ||||||||||||
6kw | 12kw | 18kw | 24kw | 30kw | 36kw | |||||||||
mppt Controller Inverter | Model:48V/6000W Input：48VDC AC Output：220V/50Hz, 6000W Max Charge Current：120AWaterproof Level: IP65 | 1PC | 2 PCS | 3PCS | 4PCS | 5PCS | 6PCS | |||||||
Lifepo4 battery pack | Model:48V 100AH Rated Voltage：51.2V Rated Capacity：100AH Net Weight：48kg DOD depth：100% | 1PC | 2PCS | 4PCS | 5PCS | 8PCS | 9PCS | |||||||
PV Panel | Model:PV400P Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：400W； Size：1980*1002*40mm Weight：24.0 kg | 15PCS | 30PCS | 45PCS | 60PCS | 75PCS | 90PCS | |||||||
PV Panel Mounting Bracket | Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set | 1 Set | |||||||
Power Distribution Box | Customized,Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 1 Set | 2 Set | 3 Set | 4 Set | 5 Set | 6 Set | |||||||
Cable | Model:PV-1*6mm2 Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：-40℃-90℃ | 40 M | 80 M | 120 M | 160 M | 200 M | 240 M | |||||||
PV Waterproof Connector | Model:MC4 Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 10 Pairs | 20 Pairs | 30 Pairs | 40 Pairs | 50 Pairs | 60 Pairs | |||||||
Kidly Reminder, above systems configuration for initial designing, the system configuration are subject to changing depends on your final installation conditions and requirements. | ||||||||||||||

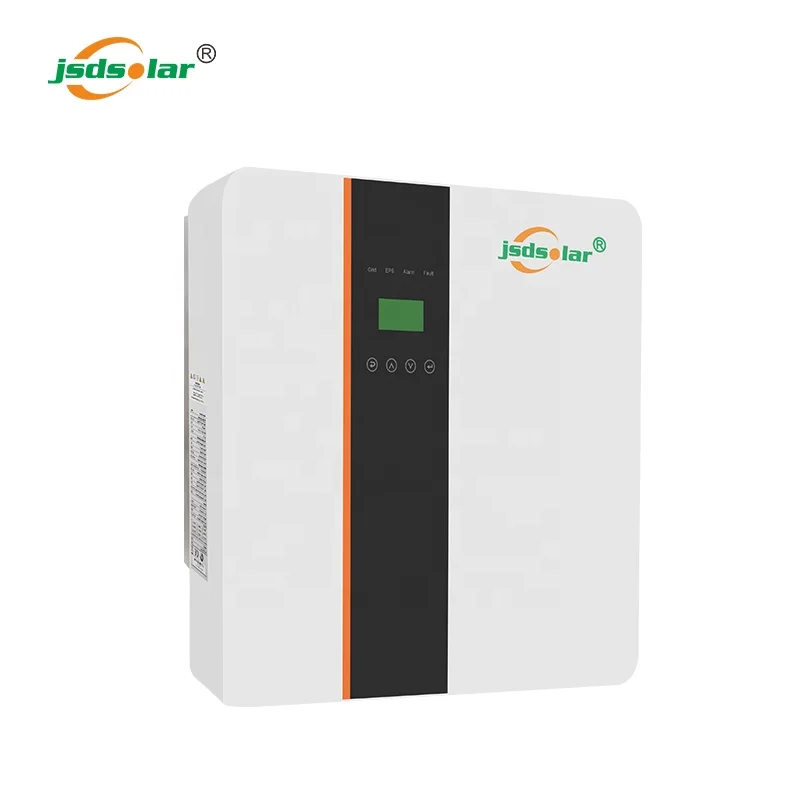

1. Pure sine wave inverter;
2. Inverter running without battery ;
2. Inverter running without battery ;
3. Built-in MPPT solar controller;
4. Configurable AC/Solar Charger priority via LCD setting;
5. Compatible to mains voltage or generator power
6. Auto restart while AC is recovering;
7. Overload/ Over temperature/ short circuit protection
8. Cold start function.
4. Configurable AC/Solar Charger priority via LCD setting;
5. Compatible to mains voltage or generator power
6. Auto restart while AC is recovering;
7. Overload/ Over temperature/ short circuit protection
8. Cold start function.
Lithium Ion Battery
1. Safety and Reliable
1) High safety level of lifepo4 battery cell;
2) Popular battery energy: 4kwh, 5kwh, 6kwh
3) Long life cycle time >6000cycles;
4) Advanced BMS protection functionality;
2. Flexibility and Compatible
1) Store energy from thr grid or solar;
2) Total energy extends to 90kwh by parallel battery packs :
3) Installation: Floor/Wall mounted;
4) Monitor and optimize by smartphone app.

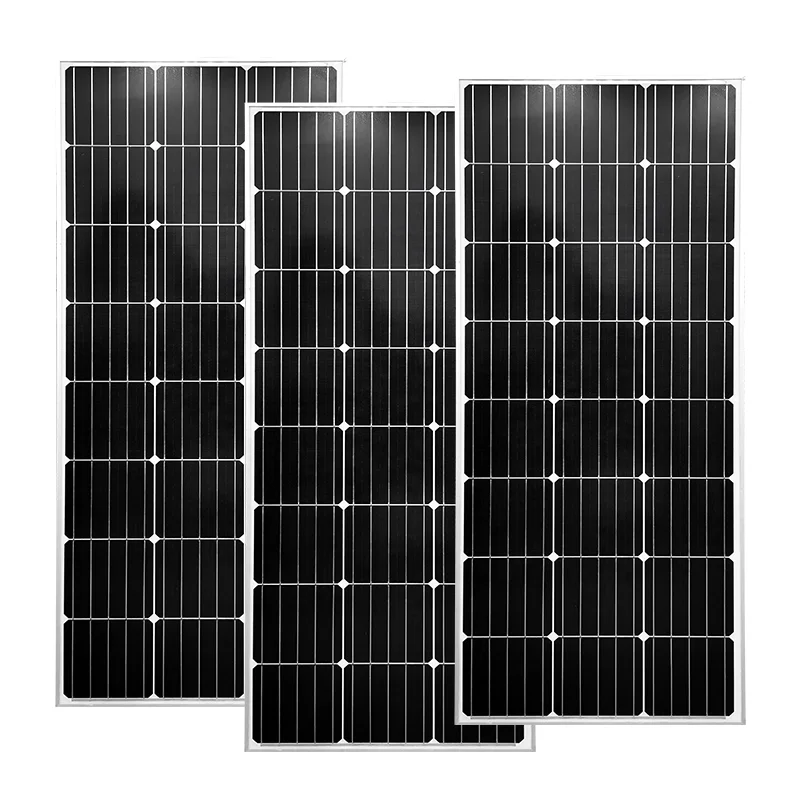

Solar Panels
1. 25 years Warranty
2. Highest conversion efficiency of 21%
3. Anti-reflective and anti-soiling surface power loss from dirt and dust
2. Highest conversion efficiency of 21%
3. Anti-reflective and anti-soiling surface power loss from dirt and dust

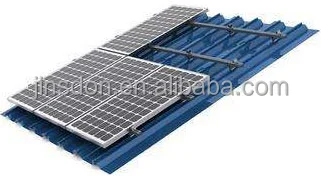

1. Residential Roof(Pitched Roof)
2. Commercial Roof(Flat roof&workshop roof)
3. Ground Solar Mounting system
4. Vertical wall solar mounting system
5. All aluminum structure solar mounting system
6. Car parking solar mounting system
2. Commercial Roof(Flat roof&workshop roof)
3. Ground Solar Mounting system
4. Vertical wall solar mounting system
5. All aluminum structure solar mounting system
6. Car parking solar mounting system

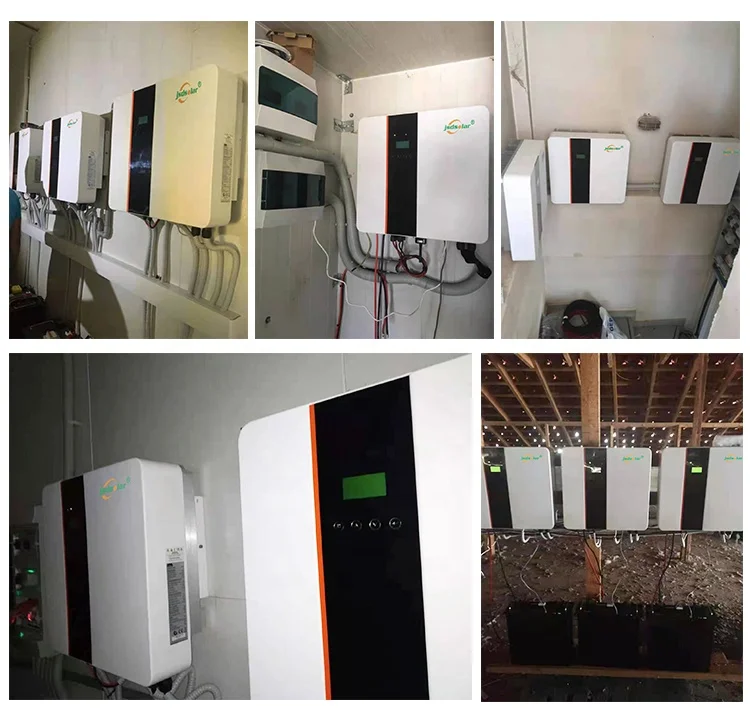

Projects
Related Products
Exhibition
Certificate

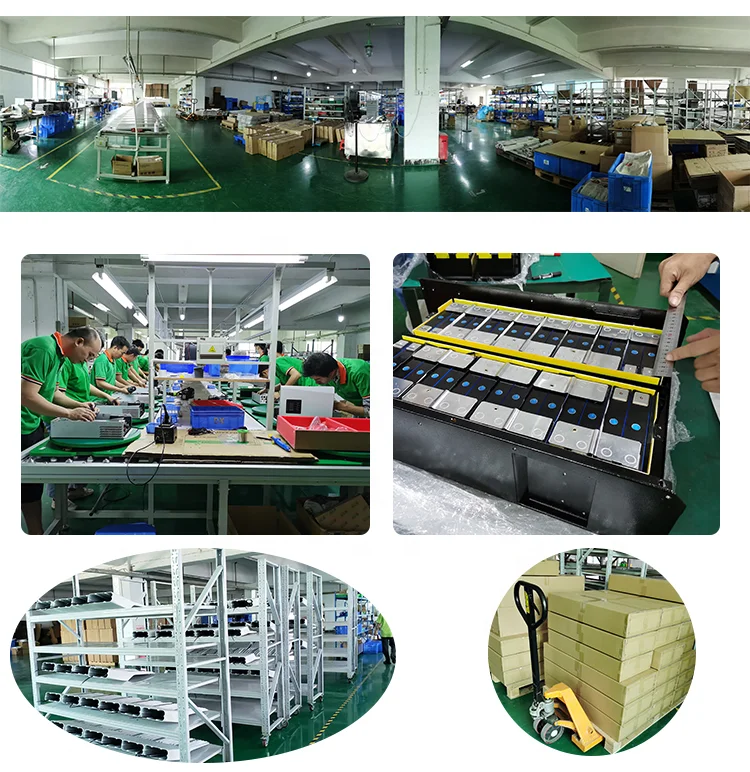

Company Profile
Shenzhen Jinsdon Lighting Technology Co., Ltd.
Shenzhen Jinsdon Lighting Technology Co., Ltd. is founded in 2010, located in Shenzhen China.We achieved ISO9001: 2008 quality management system certification in 2013 Our solar products have passed CE, FCC, RoHS
and National Inspection Certification also have several national patents.We exported to over 50 countries, such as Germany, Japan, UK, USA, South Africa and so on. Jinsdon adheres to the "integrity, professional, and win-win" business philosophy, strive for lean, do a good job in every detail, and make strict product inspection system, to ensure the highest quality and create greater value for customers.Our Mainly Products as below:Integrated solar street light. All in one solar LED street light, Integrated solar garden light with Bluetooth speaker, Integrated solar garden light, Solar Power Wall, Solar Energy Power Supply, Li-ion Battery Pack for solar power, IOT smart solar street light system.
