AC100-240V удобная проводка XB-809-4G подстветка
- Категория: Dimmers >>>
- Поставщик: Kunshan,Linkedled,Optoelectronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 107.43 $* | 112.80 $* |
| Aug-19-2025 | 106.39 $* | 111.72 $* |
| Jul-19-2025 | 89.89 $* | 93.43 $* |
| Jun-19-2025 | 104.57 $* | 109.71 $* |
| May-19-2025 | 91.25 $* | 96.38 $* |
| Apr-19-2025 | 103.70 $* | 108.88 $* |
| Mar-19-2025 | 102.26 $* | 107.27 $* |
| Feb-19-2025 | 101.46 $* | 106.89 $* |
| Jan-19-2025 | 100.31 $* | 105.48 $* |
Характеристики

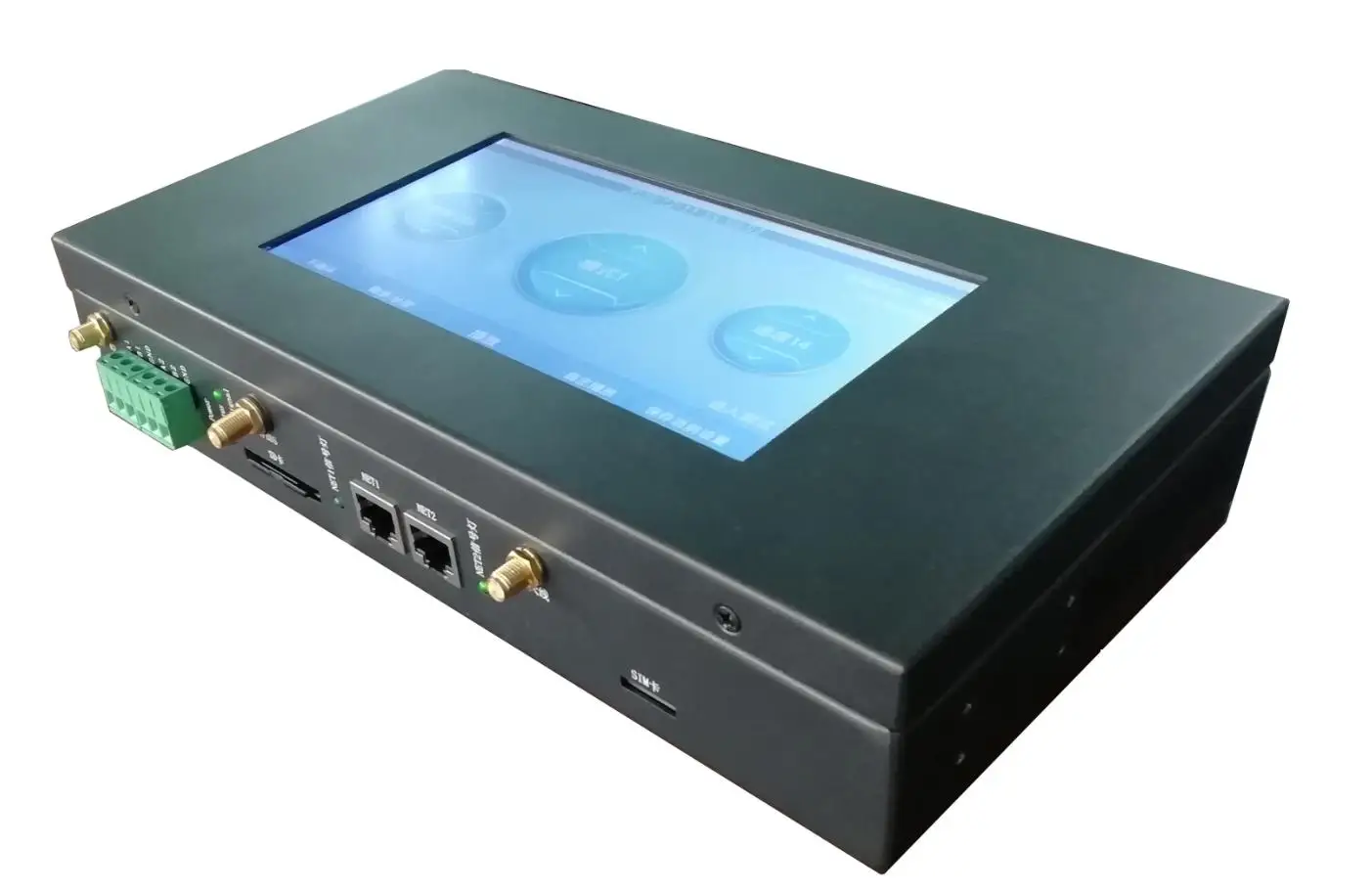

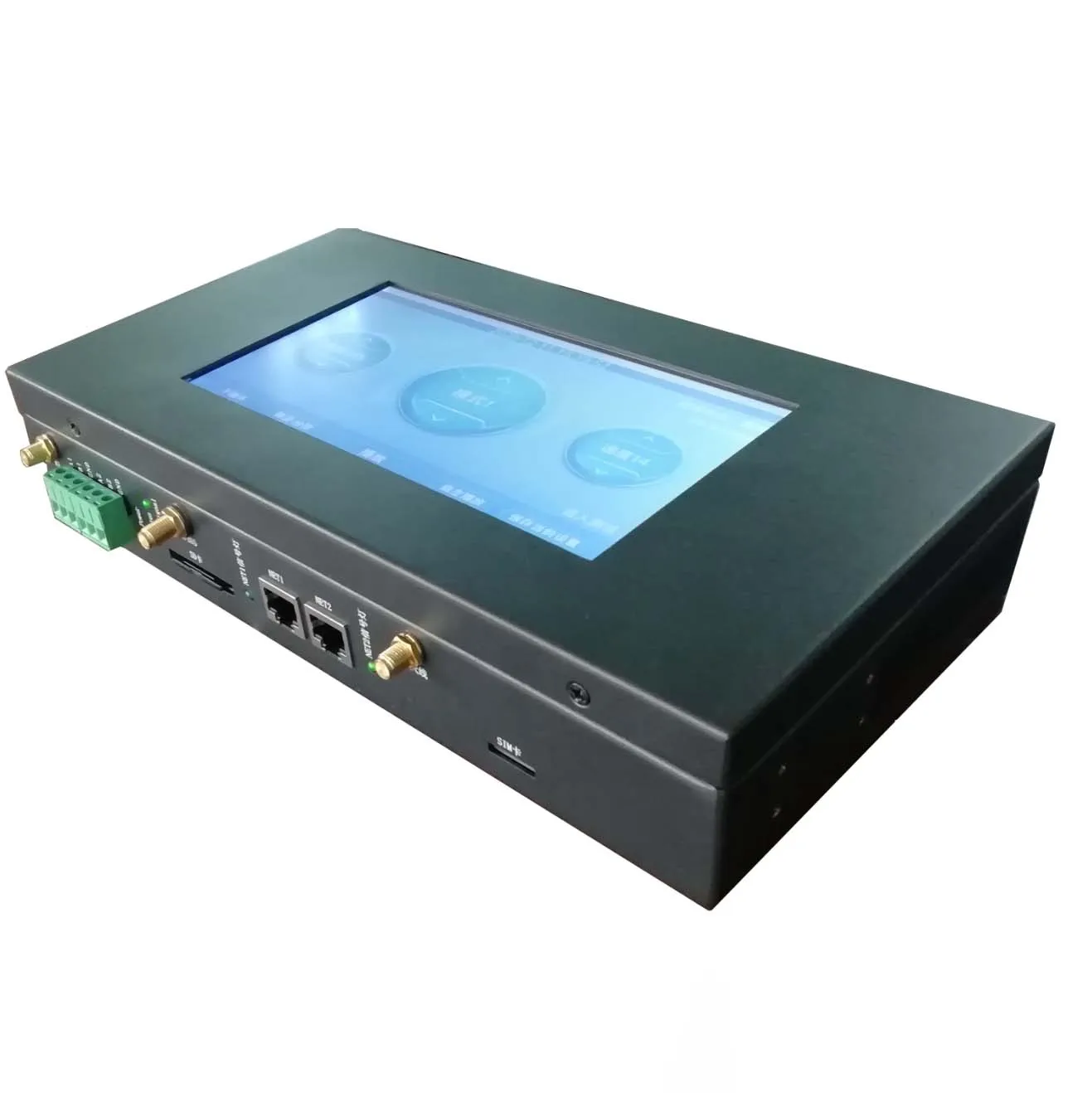

Products Description
Physical parameter
Working temperature | -20°C—65°C | ||||||
Power supply | AC100—240V | ||||||
Power consumption | 10W | ||||||
Weight | 2kg | ||||||
Data interface | network port | ||||||
Dimensions | L260mm * W160mm * H52mm | ||||||
Installation method | conventional installation/rack installation (equip with mounting bracket) | ||||||
Storage card
Type | SDHCcard | ||||||
Capacity | 16GB-32GB | ||||||
Format | FAT32 format | ||||||
Save file | *.BIN | ||||||
Salient features:
1. Large touch screen, quick and simple operation, real-time monitoring of controller status.2. Powerful performance, can support up to 160,000 pixels or 60 sub-controllers.
3. It integrates GPS/BDS satellite synchronization, radio frequency synchronization, 4G remote control, and offline playback functions into one, easy to use and reliable.
4. Support Bluetooth and remote 4G control; 4G network communication download and update effect function, real-time PC/mobile APP control
5. Support timing playback, multi-level encryption function.
6. Support MODBUS/UDP third-party control.
General features:
1.The playback content is stored in the SD card. The SD card can store upto 32 effect files. It supports single effect playback, effect loop playback, and effect acceleration/deceleration.2.The master control can automatically/manually number the sub-control IDs. Multiple controllers can be numbered together.
3.The master controller comes with built-in effects, which can test the loaded lamps (RGB/RGBW lamps are supported).
4.The controller has DMX512 address writing function and address test, single port or all ports load DMX512IC write address, and perform address test on lamps.
5.It can be used offline with ourT-700K/T-780/T-790, and can load up to 160,000 pixels or 60 controllers. It adopts standard TCP/IP network protocol, and the signal transmission is more stable; lOOM/Gigabit transmission rate are optional.
6.Support GPS/BDS dual-mode-satellite timing synchronization, support wireless radio frequency synchronization.
