Gdepri умный терминал для ce cb 3 фазы ATS поставщик ac 10 кВт 4p автоматический переключатель
- Категория: Other Switches >>>
- Поставщик: Gdepri,Power,Control,Systems,&,Equipment,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1176.94 $* | 1235.91 $* |
| Aug-18-2025 | 1166.76 $* | 1224.99 $* |
| Jul-18-2025 | 978.86 $* | 1027.32 $* |
| Jun-18-2025 | 1146.51 $* | 1203.24 $* |
| May-18-2025 | 998.78 $* | 1048.33 $* |
| Apr-18-2025 | 1126.7 $* | 1182.80 $* |
| Mar-18-2025 | 1116.35 $* | 1172.61 $* |
| Feb-18-2025 | 1107.51 $* | 1162.41 $* |
| Jan-18-2025 | 1097.42 $* | 1152.50 $* |
Характеристики
-6 schemes of dual- feeder automatic transfer switching suiting the various situation where switching between main/ backup source power supply is required
-Optional scheme for two or three incoming feeders with one or two bus sections
-7 inches LCD touch panel for dynamic real- time visualization of data and HMI
-Optional LED mimic panel for real- time status illustration of the primary circuit
-Modular 12- slots expandable system architecture for user configurable control, protection and measurement applications
-2x SFP, 1x CAN, 1x RS232/ 485 ports, Wi- Fi and 2/ 4G communication, support IEC870- 5- 101/ 3/ 4,IEC61850,DNP3. 0,DNP Security,Modbus protocols
-Optional PT100 temperature signal input for contactor and bushing temperature measurement
-Compatible with ANSI and DIN, constructed in a compact size aluminum alloy casing that suits installation in all popular control cubicles
-Support safe and reliable operation in the temperature range of - 40 to 80 ℃
S751-ATS | ||||||||

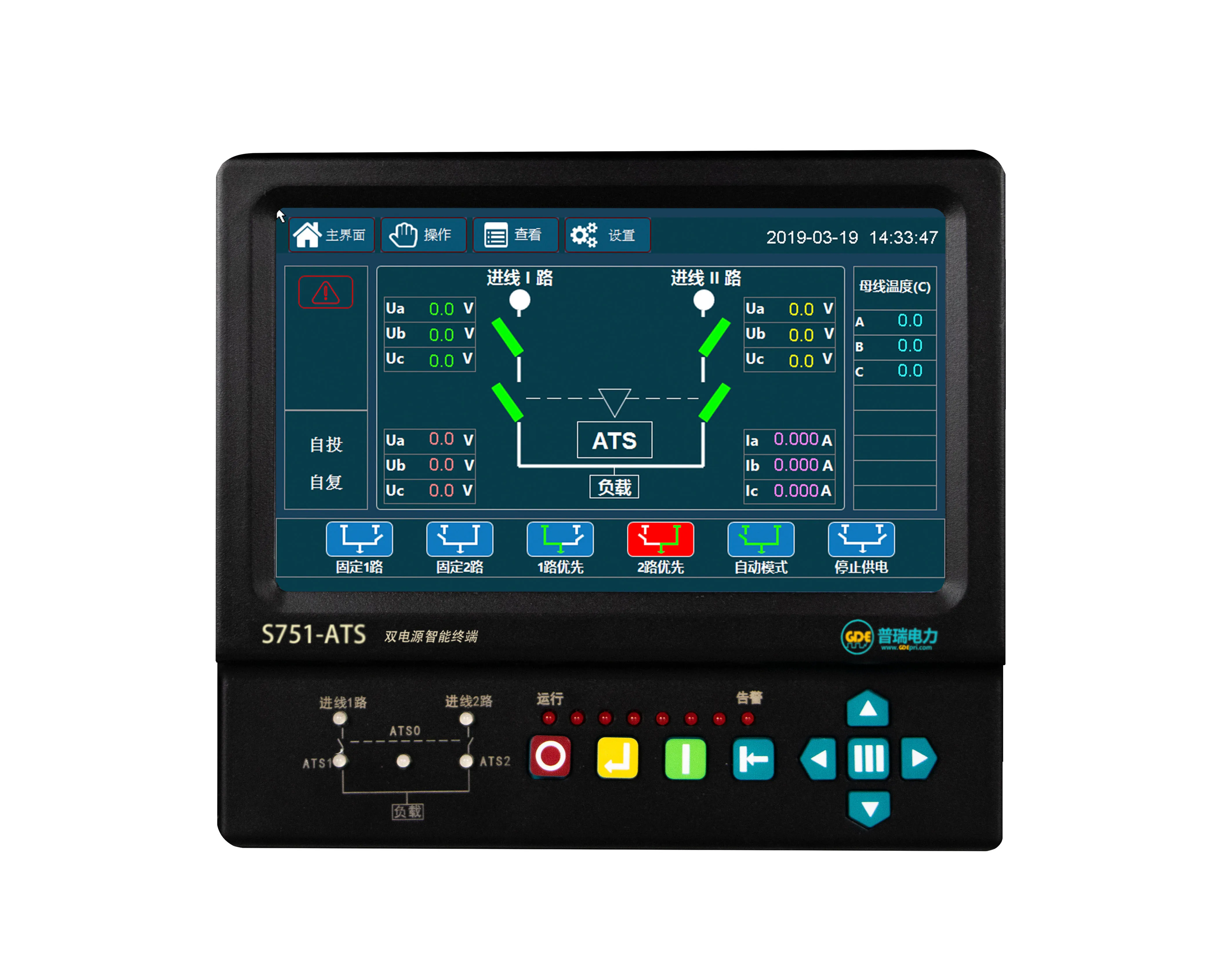

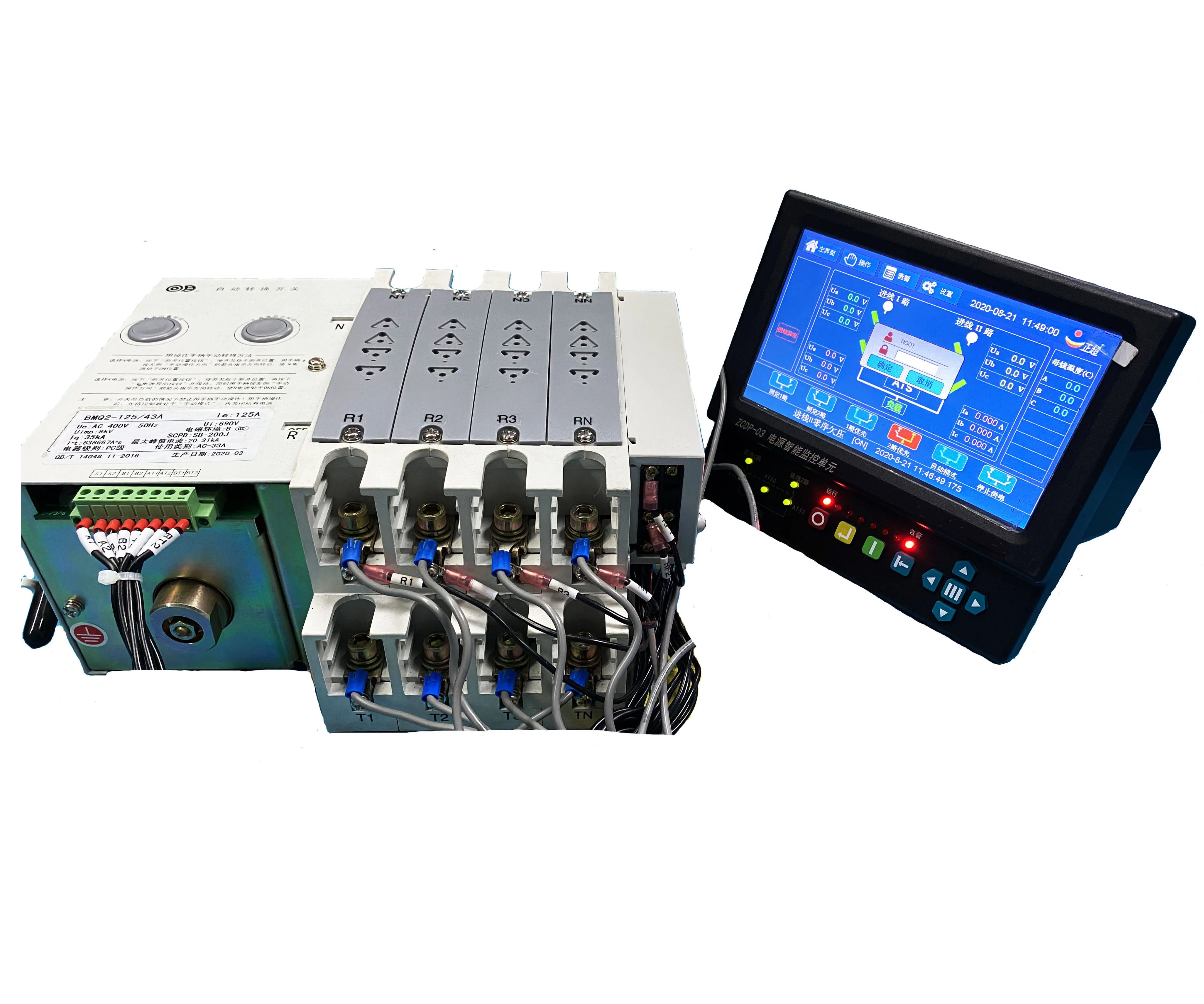

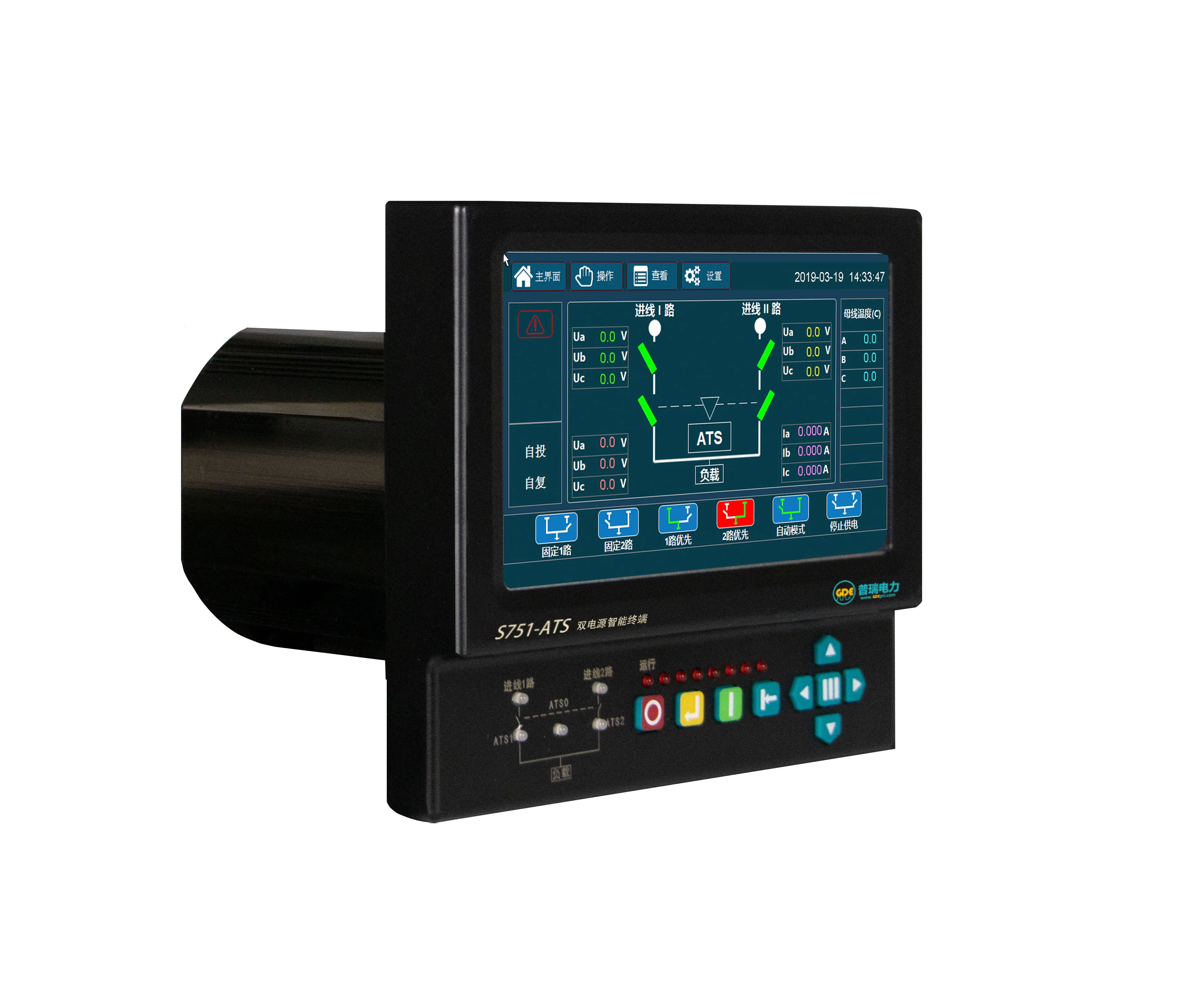

S751- ATS smart terminal device with built- in 7 inches LCD touch panel | ||||||||
Optional LED primary circuit mimic panel | ||||||||
12- channel voltage monitoring for two 3- phase incoming feeders and outgoing feeder | ||||||||
4- channel current monitoring for 3- phase + neutral/ residual current measurement | ||||||||
16 status inputs for monitoring the circuit breaker status of the feeders | ||||||||
15 control output for ATS control, watchdog and alarms | ||||||||
15 control output for ATS control, watchdog and alarms | ||||||||
4 indication LED for visual alarms, device status, ATS status, ATS action | ||||||||
Illustrating the electrical status of the primary circuit covering the dual source power feeders and the outgoing feeder | ||||||||
Displaying the real time status of the concerned circuit breakers | ||||||||
Showing the S751- ATS ( Auto Transfer Switching) status | ||||||||
Providing audio alarm via the internal buzzer module | ||||||||
Turning the mimic panel backlight via the built- in proximity sensor when user put hands near- by | ||||||||
Q1:Does your company provide customized manufacturing?
A: Yes, OEM service is available. Please confirm with our sales team formally before production and confirm the design firstly based on our sample.
Q2: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-20 working days for the items out of stock. For OEM orders, the delivery is about 20 working days after data confirmed and payment received.
Q3:Are you manufacturer or trading company?
A:We are manufacturer for over 20 years.Our factories are located in Huangpu District of Guangzhou City of Guangdong Province.
Q4:What is your terms of payment?
A: For regular orders, Terms of payment 30% deposit, full payment before delivery the goods.
Q5:What is your terms of packing?
A:The standard packing is 1pc item in a brown inner box, then into standard export carton. Or you can customize the carton with your logo
Q6:How to solve the quality problems after sales?
A: Take photos or videos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
