Солнечная панель Greensun монокристаллическая 400 Вт 500 550 560 600 1000 солнечная для
- Категория: Solar Energy Products >>>
- Поставщик: Hefei,Greensun,Solar,Energy,Tech,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.24 $* | 0.3 $* |
| Aug-19-2025 | 0.10 $* | 0.84 $* |
| Jul-19-2025 | 0.76 $* | 0.23 $* |
| Jun-19-2025 | 0.80 $* | 0.34 $* |
| May-19-2025 | 0.87 $* | 0.52 $* |
| Apr-19-2025 | 0.16 $* | 0.68 $* |
| Mar-19-2025 | 0.18 $* | 0.93 $* |
| Feb-19-2025 | 0.34 $* | 0.25 $* |
| Jan-19-2025 | 0.80 $* | 0.59 $* |
Характеристики
Product Description
PV Module | GSMxxx-72/HC (xxx = Peak Power Watts) | ||||||||
Nominal Power (Pmax) | 540W | 545W | 550W | 555W | 560W | ||||
Voltage at Nominal Power (Vmp) | 41.01V | 41.15V | 41.28V | 42.41V | 42.54V | ||||
Current at Nominal Power (Imp) | 13.17A | 13.24A | 13.32A | 13.40A | 13.48A | ||||
Open Circuit Voltage (Voc) | 49.53V | 49.67V | 49.8V | 49.93V | 50.06V | ||||
Short Circuit Current (Isc) | 13.85A | 13.93A | 14.01A | 14.09A | 14.17A | ||||
Module Efficiency (%) | 21 | 21.2 | 21.4 | 21.6 | 21.8 | ||||
Operating Temperature | -40°C to +85°C | ||||||||
Nominal Power (P max) | 402W | 406W | 410W | 414W | 418W |
Voltage at Nominal Power (Vmp) | 38.19V | 38.32V | 38.46V | 38.60V | 38.74V |
Current at Nominal Power (Imp) | 10.52A | 10.58A | 10.64A | 10.70A | 10.76A |
Open Circuit Voltage (Voc) | 46.75V | 46.88V | 47.00V | 47.12V | 47.24V |
Short Circuit Current (Isc) | 11.19A | 11.25A | 11.32A | 11.39A | 11.46A |
Grade A Material
Higher Transmittance EVA
Higher GEL Content
Good durability can resist high temperature, moisture, ultraviolet and so on.
PERC 10BB 182mm Mono Solar Cells
More than 22% Efficiency
Anti-Pid
IP68 Water proof Junction Box
Innovative full-glue-filled junction box
Outstanding sealability
Outstanding sealability
Sliver and Black Color Optional
Aluminum Alloy
120N Tensile Strength Frame
4mm2 Qualified cable with MC4
500N Tensile Strength
500N Tensile Strength
QC System
100% Solar Cells Sorting
Color and performance selection
To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and lack of process performance.
Middle Test
EVA and appearance inspection
Ensure PT / EVA size meets technical requirements
Ensure that the product is free of scratches, creases, debris, etc.
Overall inspection
PV Module appearance
Ensure that the product has no color difference and no burrs.
Make its reach Grade A standard.
EL Testing
Solar panel power inspection
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.
Product Packaging
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
Our Factory
More than 800MW production capacity per year
5BB PERC, Half-cut, 9BB half-cut solar panel production line
Strict quality control procedures
Export more than 160 countries
OEM service accept.

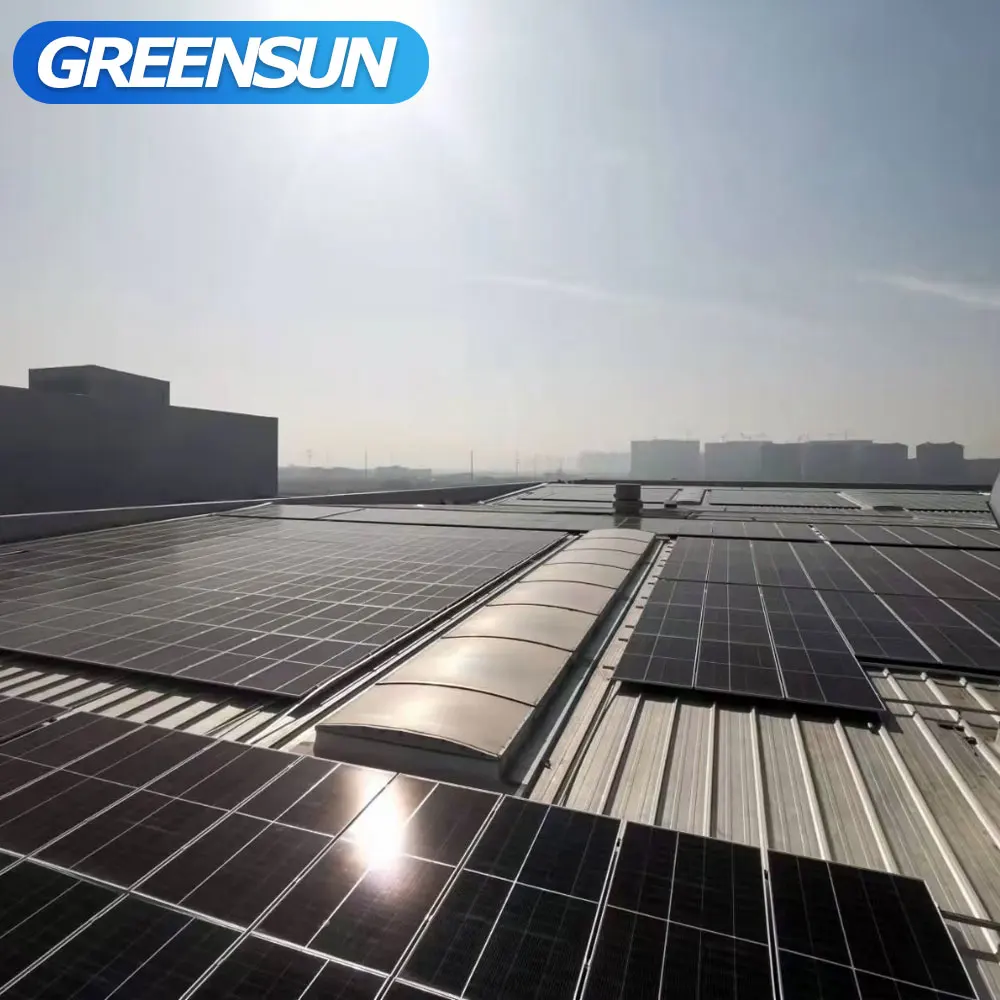

Project Cases
800KW Solar Power System For Mall in Argentina
16KW Solar Power System for Home Use in Canada
500KW Storage Solar System in South Africa
