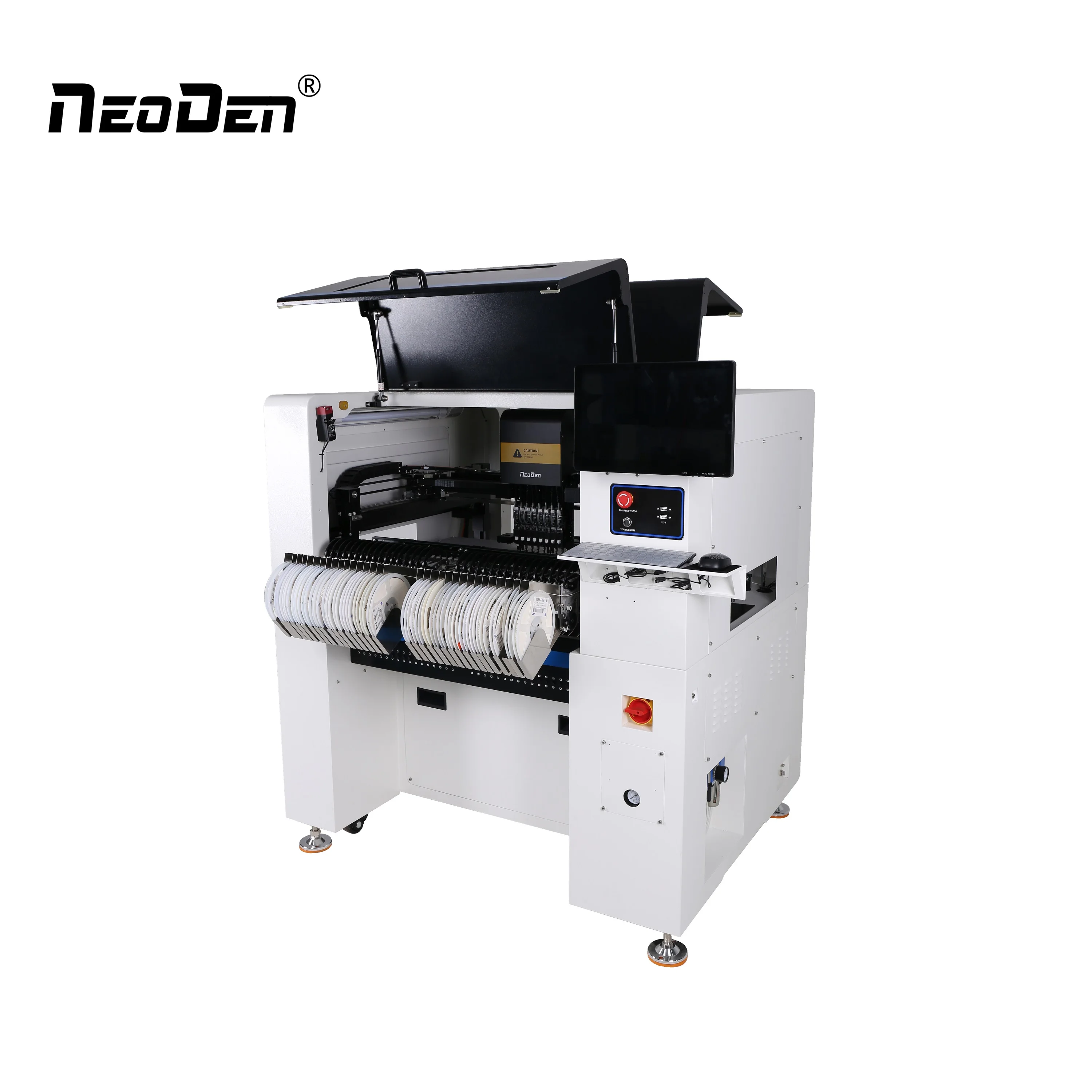

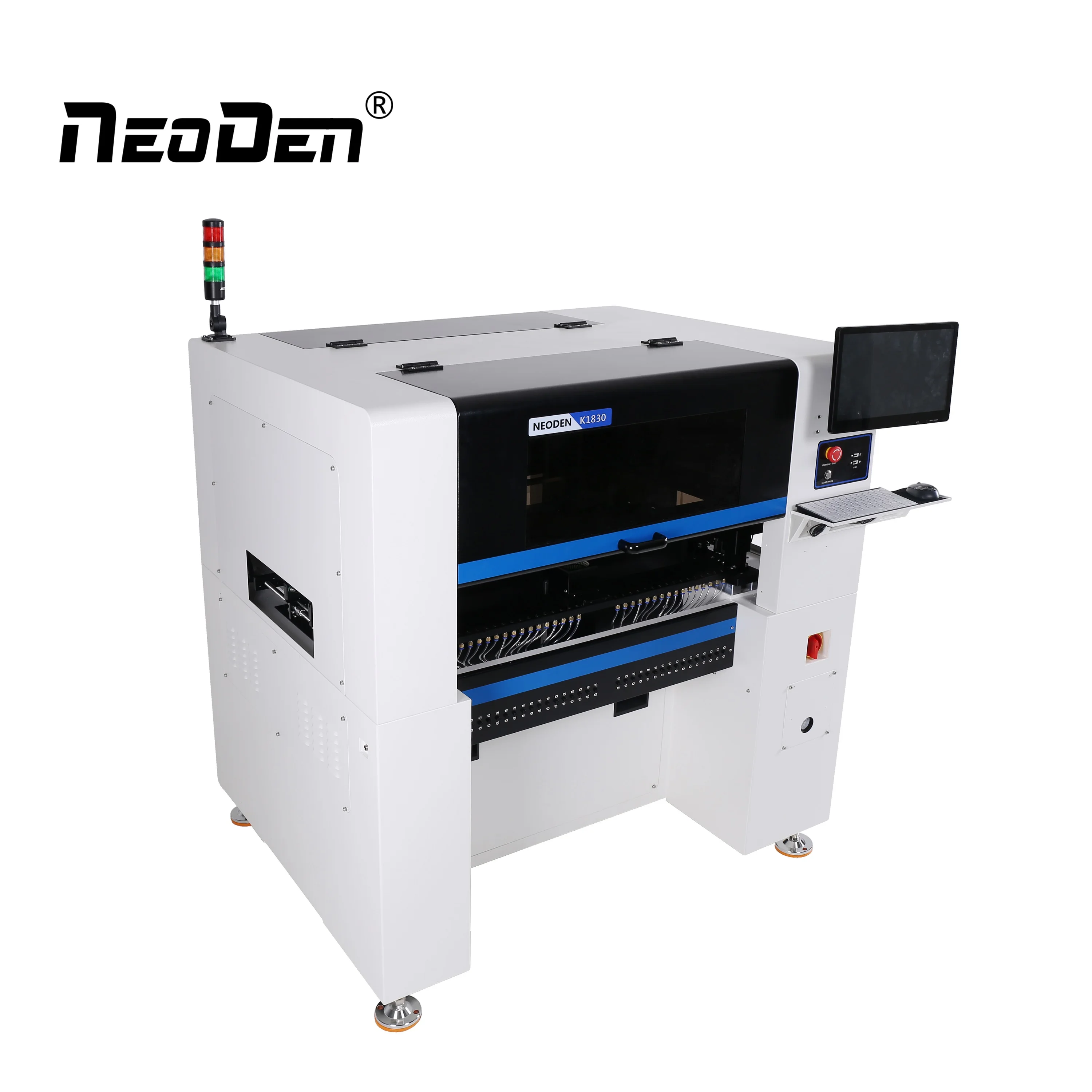

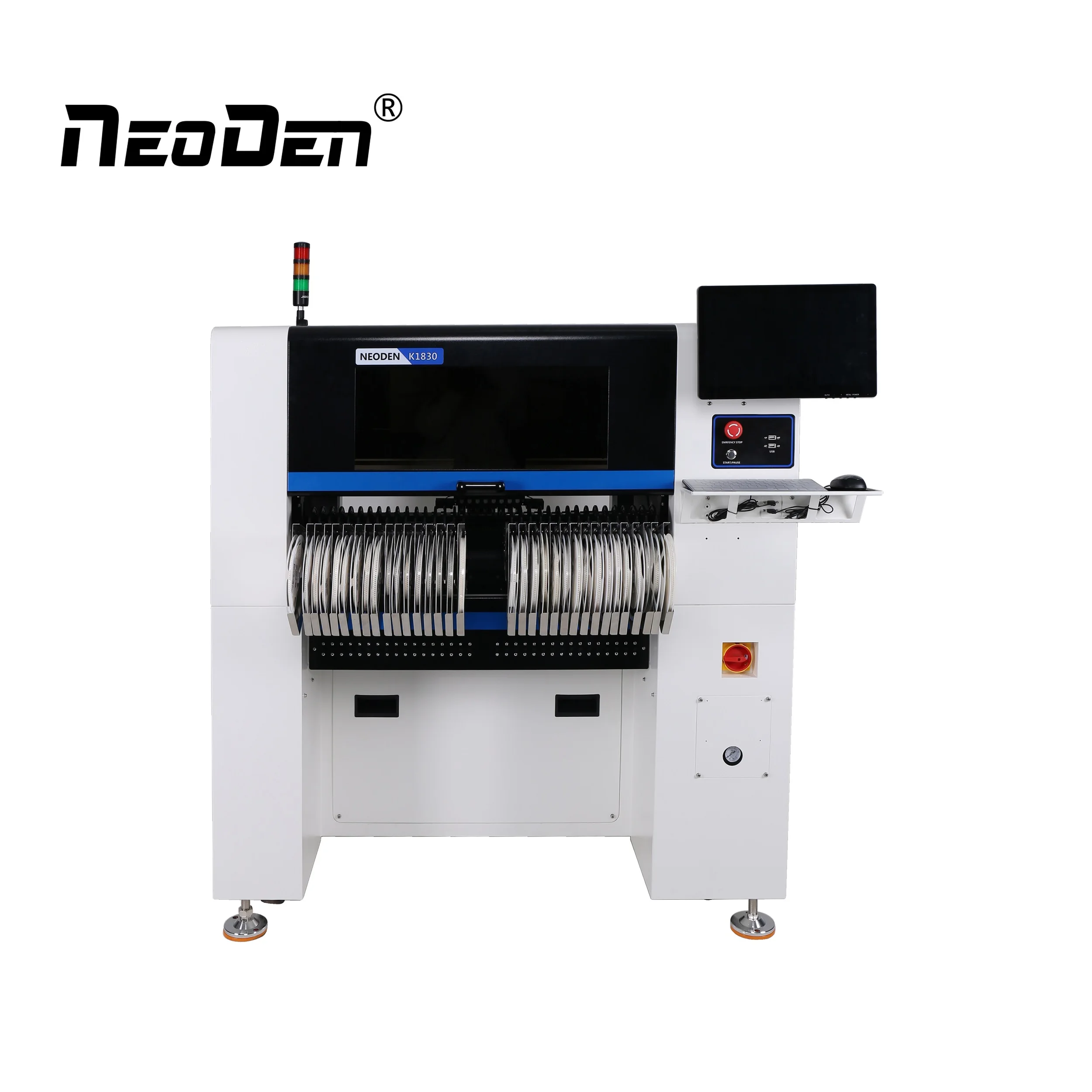

Neoden K1830 NeoDen 8 th generation smt pick and place machine for neoden pcb assembly line
Product Description

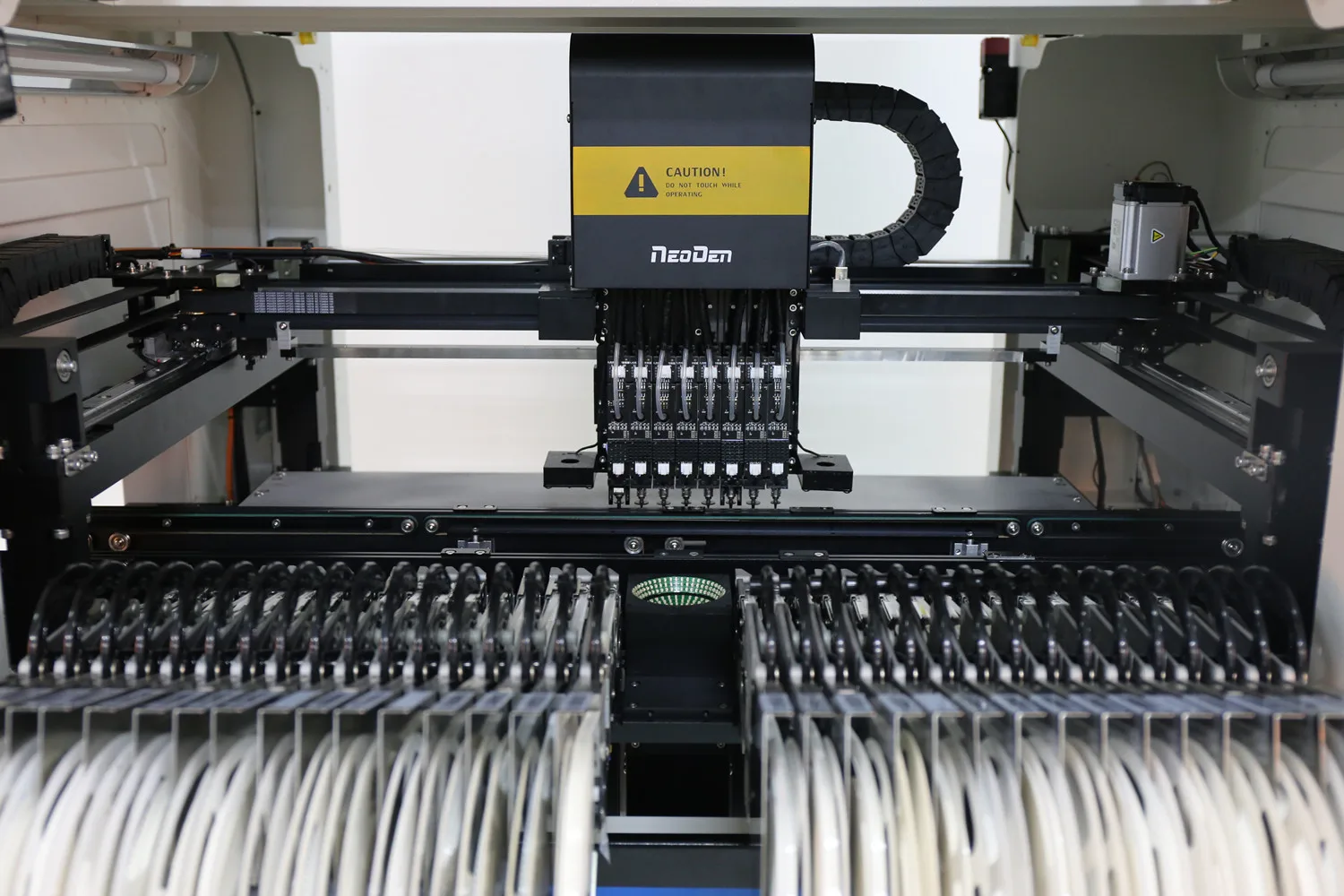

NeoDen K1830 features with 8 simultaneous pick-up heads, 66 tape reel feeder capacity, upgraded vision system and positioning system, which is suitable for scale pcb assembly production with fast speed and high accuracy.
smt pick and place machine price smt machine smd pick and place machine manufacturers smd machine pnp machine
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for 0201 component, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
pick place machine pick and place smt machine pick n place smt placement machine pick and place robot project
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
automatic pick and place machine robot pick and place pick n place machine pick and place smt machine
smt pick and place machine price smt machine smd pick and place machine manufacturers smd machine pnp machine
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for 0201 component, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
pick place machine pick and place smt machine pick n place smt placement machine pick and place robot project
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
automatic pick and place machine robot pick and place pick n place machine pick and place smt machine
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.

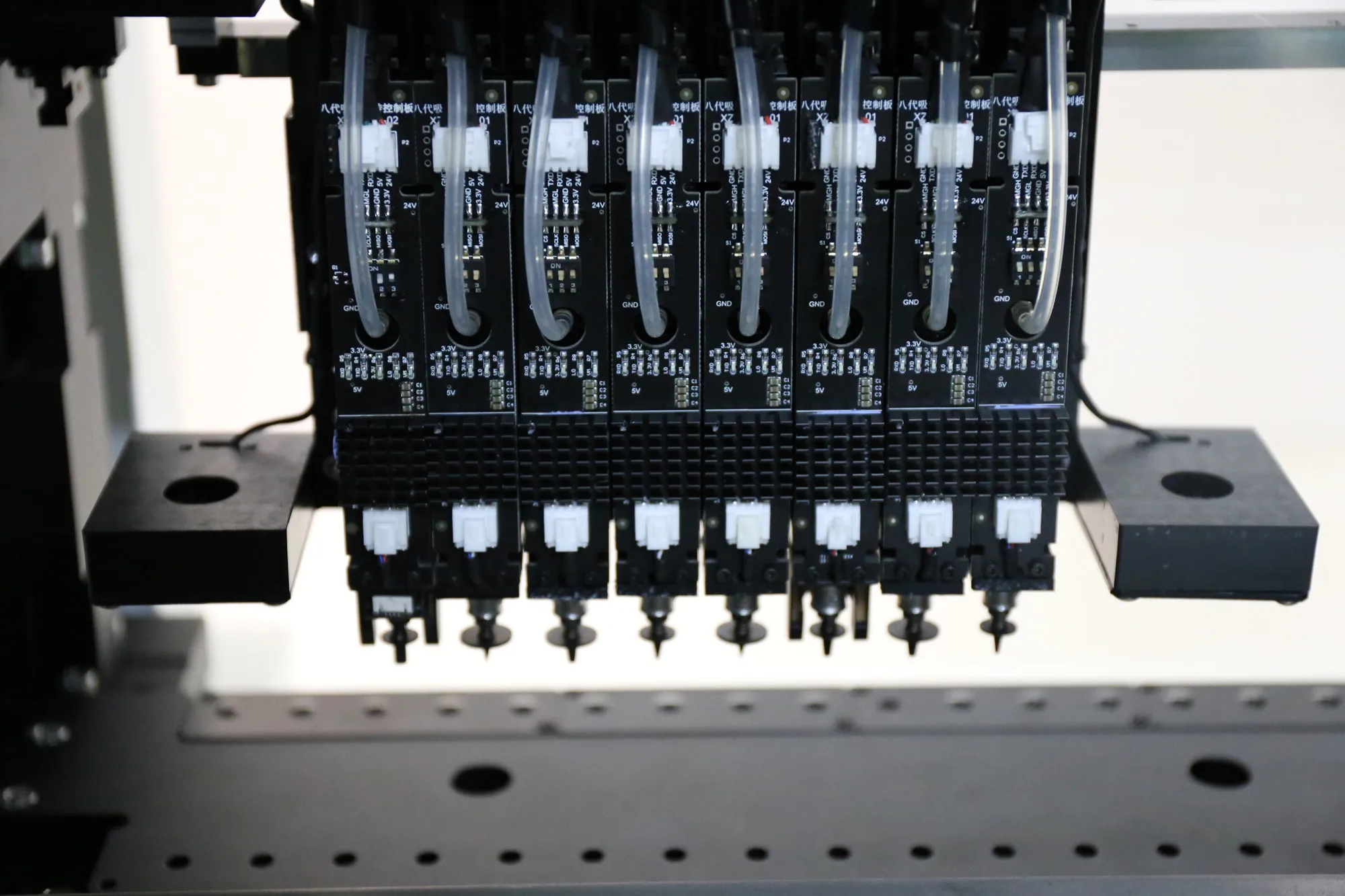

1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed;
2. Machine runs on highly stable and secure Linux operating system;
3. Double mark cameras to reach at extreme end feeders for better calibration;

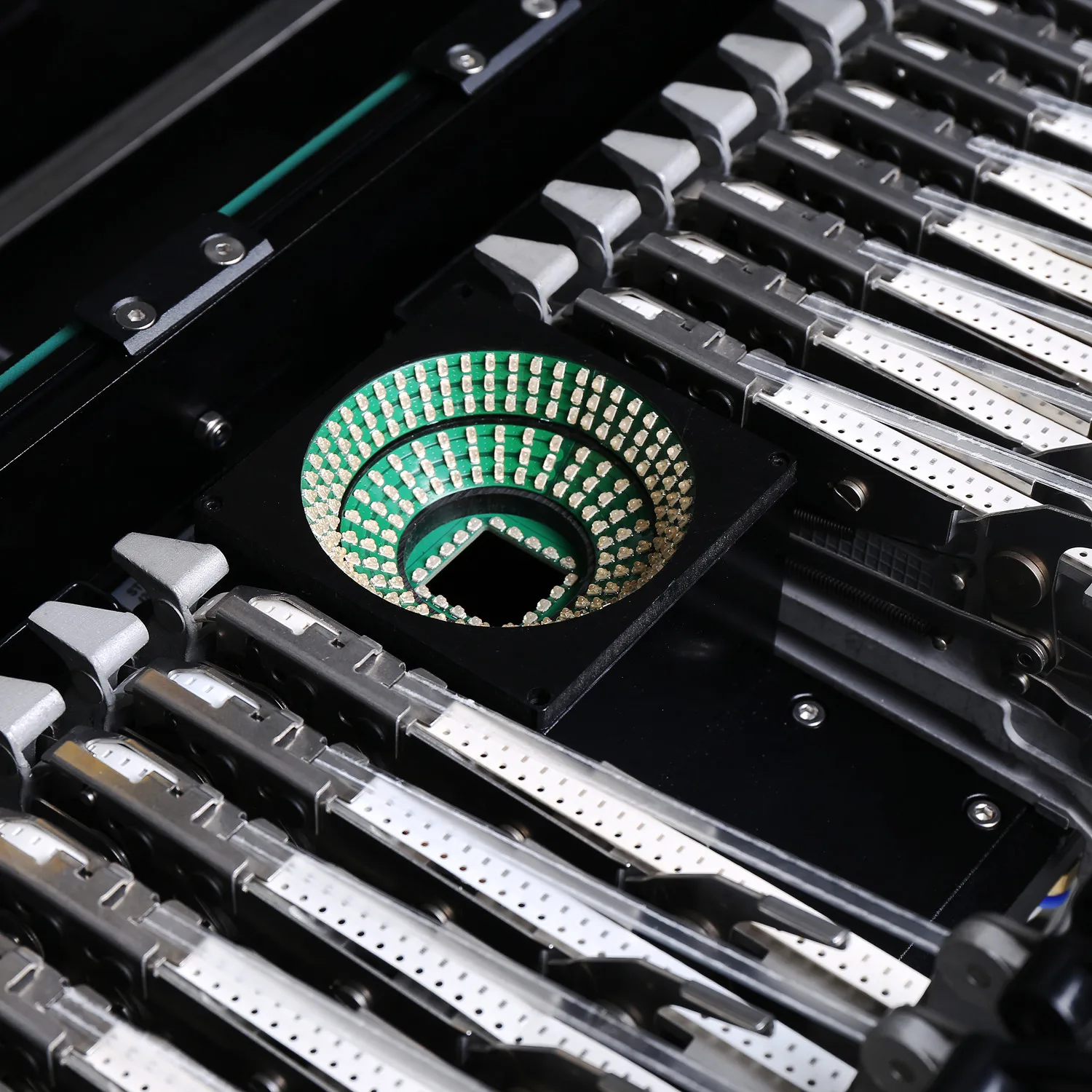

4. High resolution and high speed component camera system improves the overall speed of the machine;
5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible;
6. Closed loop Servo control system with feedback makes the machine to function more accurate;
7. Picking height & placing height can be detected automatically,components attribute can be set promptly,to ensure the easy operation and high accuracy;
8. Picking location of pneumatic feeder can be calibrated automatically and promptly,to ensure easy operation and high efficiency;
9. PCB location can be calibrated automatically and promptly,based on the correct and specific placement request.
2. Machine runs on highly stable and secure Linux operating system;
3. Double mark cameras to reach at extreme end feeders for better calibration;
4. High resolution and high speed component camera system improves the overall speed of the machine;
5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible;
6. Closed loop Servo control system with feedback makes the machine to function more accurate;
7. Picking height & placing height can be detected automatically,components attribute can be set promptly,to ensure the easy operation and high accuracy;
8. Picking location of pneumatic feeder can be calibrated automatically and promptly,to ensure easy operation and high efficiency;
9. PCB location can be calibrated automatically and promptly,based on the correct and specific placement request.
Details
Specification
Model | NeoDen K1830 | ||||||
Nozzle Qty | 8 nozzles | ||||||
Reel Tape Feeder Qty(Max) | 66 (Electric / Pneumatic) | ||||||
IC Tray Feeder Qty | 10 (In Succession) | ||||||
Max PCB size | 540*300mm(In Single Step) | ||||||
Smallest Component Size | 0201(Electric Feeder Available) | ||||||
Applicable IC Package | QFP, SSOP, QFN, BGA | ||||||
Placement Accuracy | 0.01mm | ||||||
Max Component Height | 18mm | ||||||
Max Placement Speed | 16,000CPH | ||||||
Component Recognition | High resolution flying vision camera System | ||||||
PCB Fiducial Recognition | High precision mark camera | ||||||
PCB Loading | Synchronized 3 Stages Internal Conveyor | ||||||
PCB Transfer Direction | Left→Right | ||||||
Air Supply | >0.6MPa | ||||||
Power | 500W | ||||||
Voltage | 220V/50HZ & 110V/60HZ | ||||||
Net Weight | 280kgs | ||||||
Gross Weight | 418kgs | ||||||
Machine Dimensions | 1288×1062×1291mm(Without Tri-color light) | ||||||
Packing Dimensions | 1420×1220×1665mm | ||||||
SMT Line
Placement Effect
Packing & Delivery
Related Products
Reflow Oven IN12
SMT Pick and Place Machine
NeoDen4
SMT Pick and Place Machine
NeoDen9
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show
Workshop
Exhibition
Certification
Payment & Shipping
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, NeoDen K1830 needs air supply.
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, NeoDen K1830 needs air supply.
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
