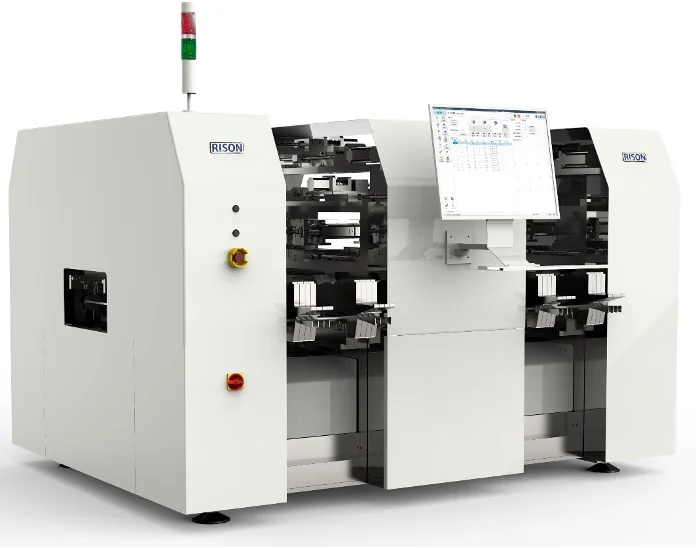

               R8 High Speed LED Bulb Lamp Chip Mounter



Creative 8 cantilever structure

R8 series chip mounter employs creative 8 cantilever structure, compact cantilever structure, dispersed nozzle layout improve nozzle utilization and realizes flexible and efficient mounting.

Each cantilver can optionally install ordinary 4-nozzle head or high-density 6-nozzle head.



Mount capacity

0402 Mount capacity

0402 (imperial) ±30µm @ 3σ CPK≥1



Mount speed

Octopus 4N

Theoretical speed: 94,000 cph

Actual speed: 71,000 cph

Octopus 6N

Theoretical speed: 120,000 cph

Actual speed 95,000 cph



Mount height

Maximum mount: height: 8mm

Mount pressure: 5N-15N



Unique optical vision system

The unique optical vision system of Octopus series chip mounter realizes rapid Mark point positioning and high-speed image acquisition and recognition of multiple nozzles with a single camera.

The smart design simplifies the complex and redundant vision system, in addition, it allows for using multiple cantilevers and realizes the vision correction of up to 48 nozzles in single host system, therefore improving ease of use of the equipment significantly, while reducing the maintenance workload of the equipment.



Proprietary Software System



Thanks to plenty of production practical applications in factory, Octopus series chip mounter has been optimized. The software system is easy to use, strict in logic, and the entire system is very robust.

Proprietary system increases the convenience of upgrade or function addition, while significantly reducing the unknown fault due to incompatiability. In addition, the software is customizable to specific production requirements of the customer.

Bilingual operating system in Chinese and English, and optional configuration supports MES system.

Lifelong free software upgrade and maintenance.



Specifications

Model	Octopus-4N	Octopus-6N
Theoretical speed	94,000 cph	120,000 cph
Actual speed	71,000 cph	95,000 cph
Number of cantilevers	8
X, Y axis drive mechanism	Servo motor, screw drive
Number of mount nozzles	4*8 totally 32 nozzles	6*8 totally 48 nozzles
Mount accuracy	0402    ±30µm @ 3σ CPK≥1
Mount pressure	5~15N
Maximum mount height	8mm
Mount mode	Group pick and separate mount, separate pick and separate moun, group pick and group mount, group pick and separate mount
Nozzle change	Manual
Rail structure	3-section, left to left; right to left, customized by user
Substrate size	Maximum 300MM*400mm; minimum 50mm*50mm
Substrate thickness	0.6~4mm
Substrate positioning camera	4 high-precision cameras
Component camera	8 flight cameras: front: 4; back: 4
Number of feeders	8*8 stack positions
Feeder type	Tray tape feeder, special 4-6 trough 8mm tape feeder
Feeder drive	Electric, pneumatic
Operating system	Windows7, Windows10
Equipment weight	2700Kg
Equipment measurements	2200mm*1860mm*1600mm  (length * width * height)
Requirements of power supply	AC220V±10%   50/60Hz   5.0KW
Compressed air requirements	Pressure: 5~7Kgf/cm²; Flow rate: 80L/min	Pressure: 5~7Kgf/cm²; Flow rate: 100L/min
