Термостат переключатель температурный контроль KSD9700 5A/250V
- Категория: Home Appliance Parts >>>
- Поставщик: Wuhan,Zhenguan,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.47 $* | 0.51 $* |
| Aug-15-2025 | 0.81 $* | 0.6 $* |
| Jul-15-2025 | 0.32 $* | 0.15 $* |
| Jun-15-2025 | 0.89 $* | 0.1 $* |
| May-15-2025 | 0.78 $* | 0.27 $* |
| Apr-15-2025 | 0.70 $* | 0.81 $* |
| Mar-15-2025 | 0.82 $* | 0.87 $* |
| Feb-15-2025 | 0.64 $* | 0.10 $* |
| Jan-15-2025 | 0.43 $* | 0.95 $* |
Характеристики
Product Details

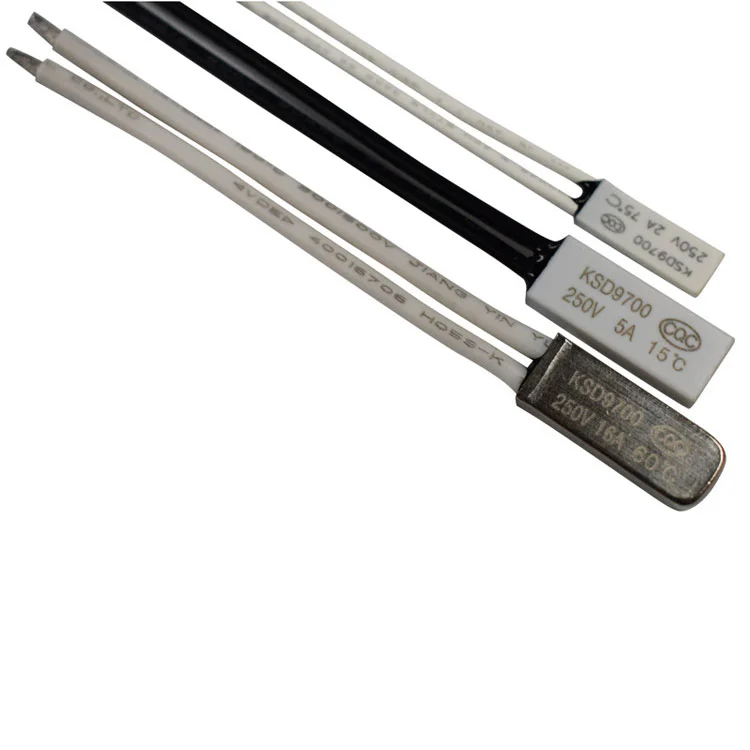

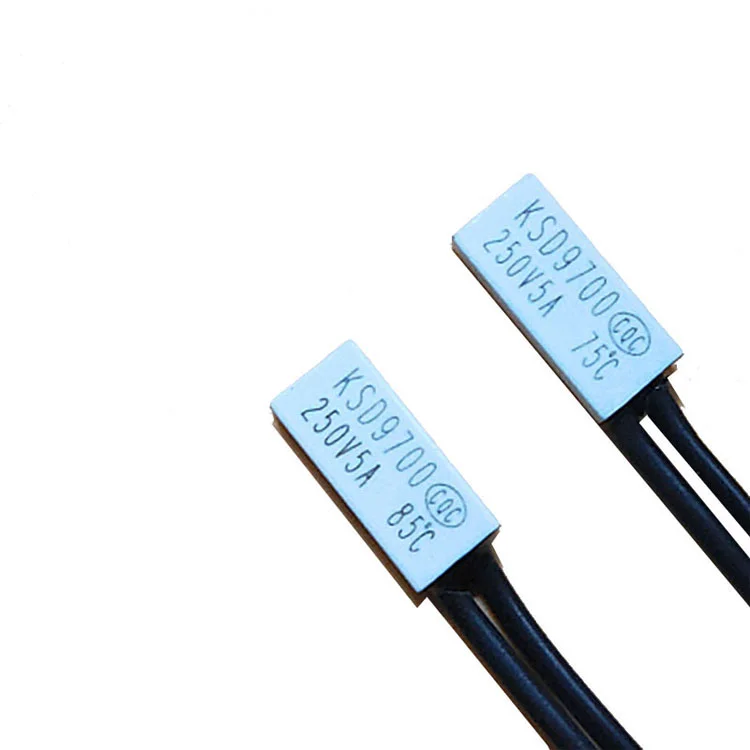

Thermostat switch temperature control switch KSD9700 5A/250V thermal protector
Product name: KSD9700 bimetal thermal switch plastic/metal case thermostat 250V 5A 16A for electric appliance
Discription:
KSD9700 serial protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable.
Typical Applications:
- Various motors
- Pumps, air compressors and cleaners
- Fluorescent ballasts and lightings
- Heating pad and electrical blankets
- Electrical tools, chargers and transformers
- Home and heating appliances
Performance data
NC:normally closed,contact open when temperature rises to set point
NO:normally open,contact closed when temperature rises to set point
Thermal protector KSD9700 thermostat for motor
1, Service life:6000 cycles;
2, Electrical strength: AC1500V 1min, no flashover, no breakdown;
3, Contact resistance: <50mΩ;
4, Insulation resistance: > 100MΩ ,
5, Forms, NC type: rising temperatures, contacts disconnected, manual reset, NO type: rising temperatures, contacts through manual reset;
6, Grotection grade: IP00;
