Китайский роторный фрезерный станок с ЧПУ деревообрабатывающее оборудование машина для резьбы по


Поделиться:


Цена:1 350,00 $ - 2 400,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 1607.32 $* 1687.4 $*
Aug-19-2025 1593.48 $* 1673.61 $*
Jul-19-2025 1337.74 $* 1404.58 $*
Jun-19-2025 1566.0 $* 1644.50 $*
May-19-2025 1364.5 $* 1432.83 $*
Apr-19-2025 1539.31 $* 1616.19 $*
Mar-19-2025 1526.67 $* 1602.70 $*
Feb-19-2025 1512.6 $* 1588.39 $*
Jan-19-2025 1499.98 $* 1574.11 $*

Характеристики

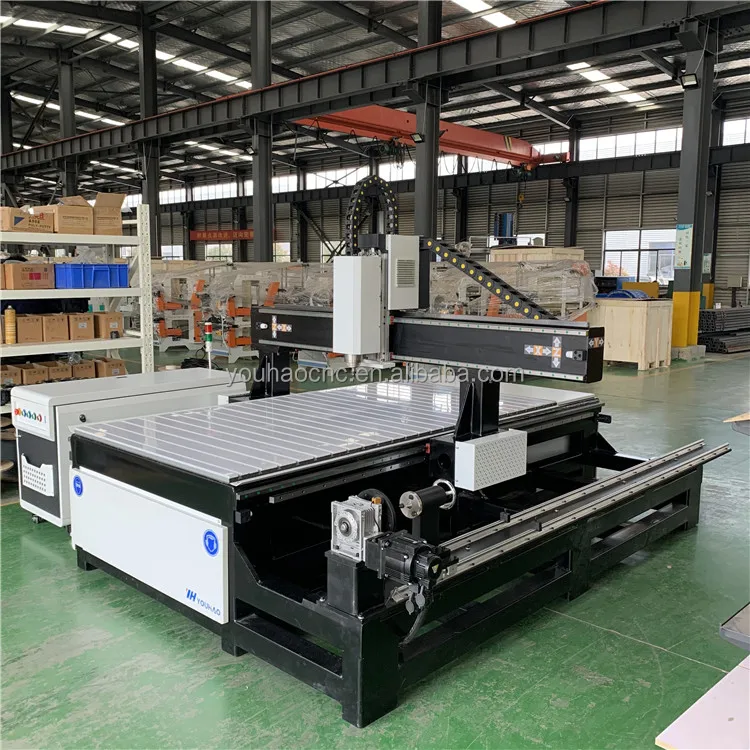

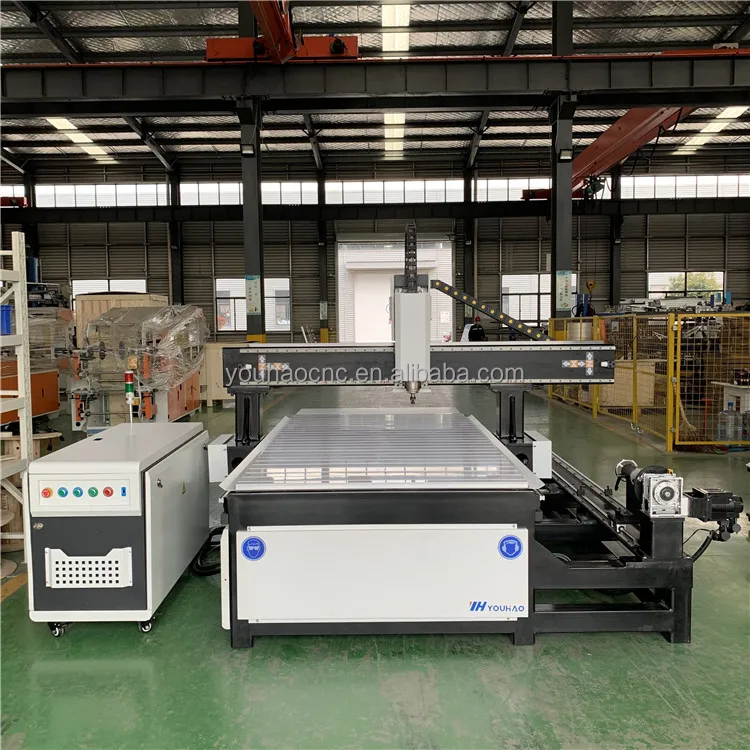

China rotary cnc router woodworking machinery with cnc wood carving machine


Product Description





Features of China rotary cnc router woodworking machinery with cnc wood carving machine

1. Equipped with automatic tool change, instead of traditional manual tool change, saving time and higher efficiency.

2. Adopting world-renowned CNC kits, which are mainly used for complex wood processing such as wood carvings, cabinets, doors, etc.

3. Japan shimpo reducer is the original Japanese reducer, which has higher precision, longer life and good stability.

4. Rugged machine frame to avoid vibration and ensure the working performance of the machine.

5. Taiwan HIWN linear square guide rail, Leadshine servo motor, imported control system, so that the machine can maintain the best condition even after many years of work.

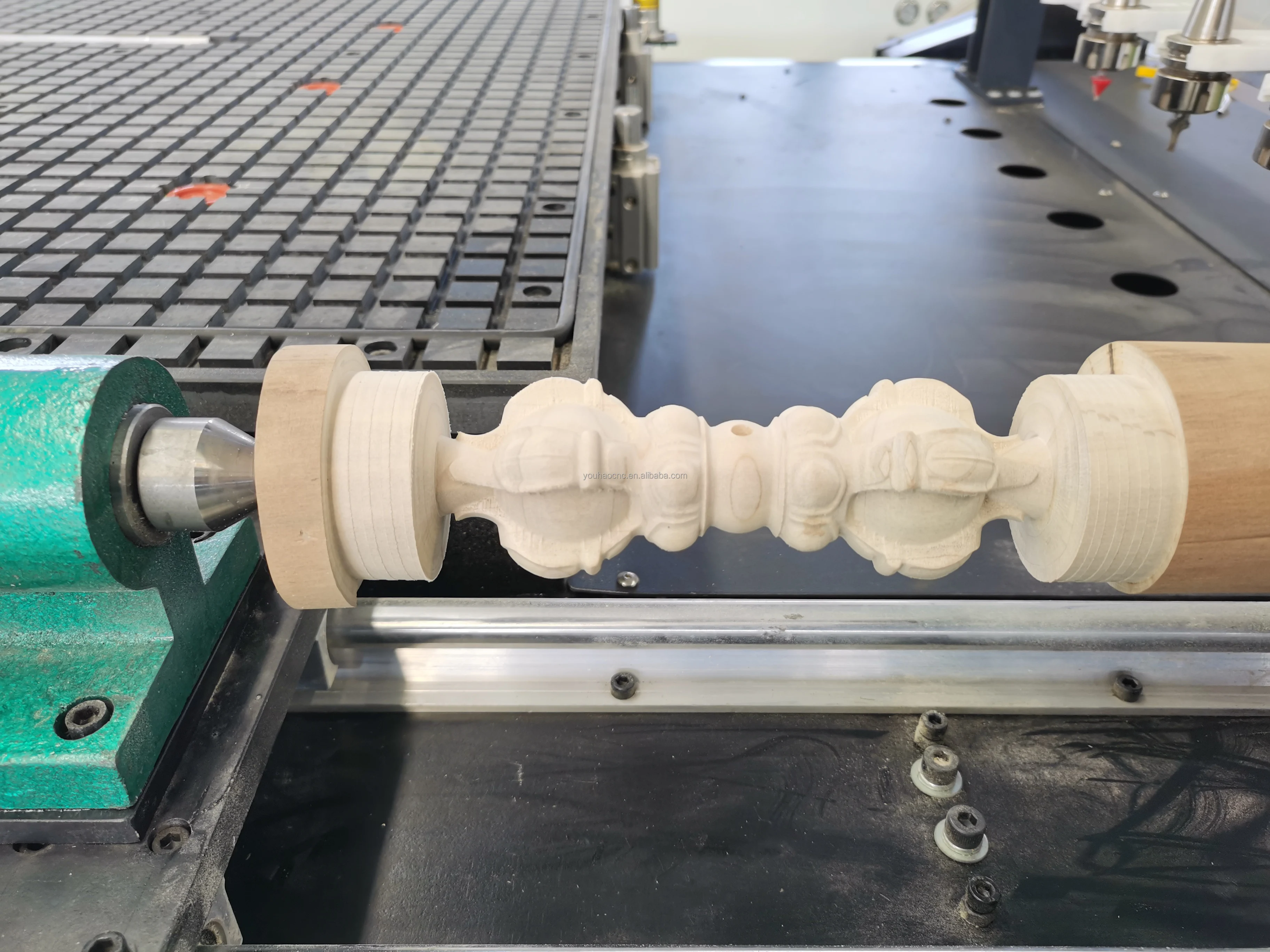

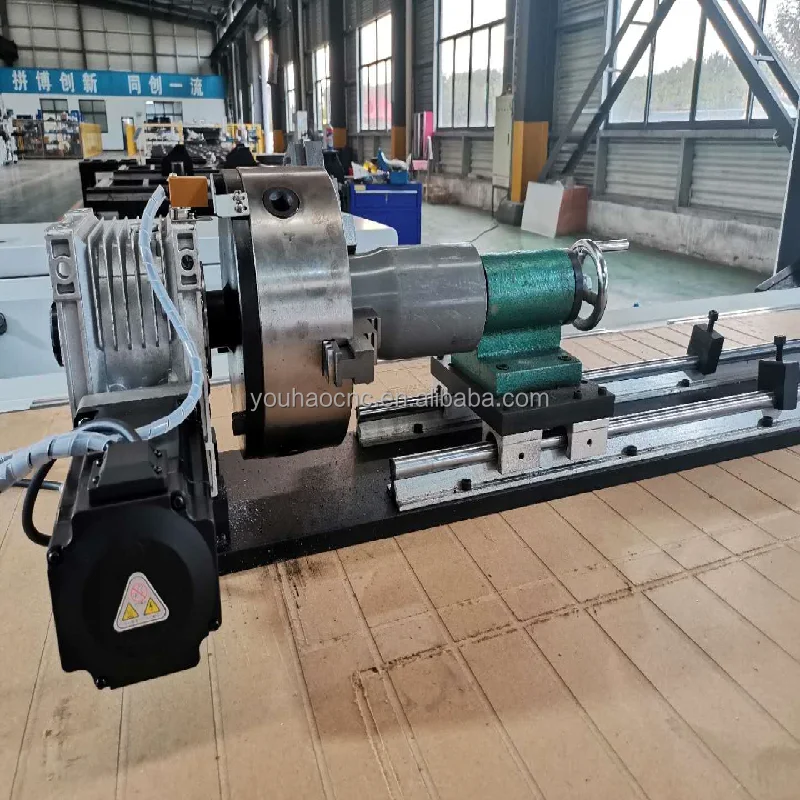

The rotary attachment can be added




Specification


Number
Description
Parameter
1
X,Y,Z Working Area
1300x2500x200mm
2
X,Y,Z Traveling Positioning Accuracy
±0.05mm
3
X,Y,Z Re-positioning Accuracy
±0.05mm
4
Table Surface
Vacuum table and T slot
5
Frame
Welded body Structure(6mm), cast iron for gantry (8mm)
6
X, Y Structure
HIWIN Square orbits and helical rack
7
Z Structure
HIWIN square orbit and TBI Ball Screw
8
Max. Rapid Travel Rate
25000mm/min
9
Max. Working Speed
20000mm/min
10
Spindle Power
3.5kw Air Cooling Spindle
11
Spindle Speed
24000RPM
12
Drive Motor
Stepper motor
13
Working Voltage
AC380V/50Hz,3 Phase
14
Command Language
G Code
15
Operating System
DSP/Ncstusio/Mach3
16
Computer Interface
USB
17
Collet
ER32
18
X,Y,Z Resolution
<0.05mm
19
Software Compatibility
Type3/UcancameV10/Artcam/Artengraver (optional)
20
Running Environment Temperature
0 - 45 Centigrade
21
Relative Humidity
30% - 75%
22
Packing Size
3200 x 2150 x 1650mm
23
N.W.
1200KG
24
G.W.
1300KG
25
Optional Parts
Spindle power
Aluminum and PVC table
Rotary System
Servo motor
Delta/ Panasonic Servo motors

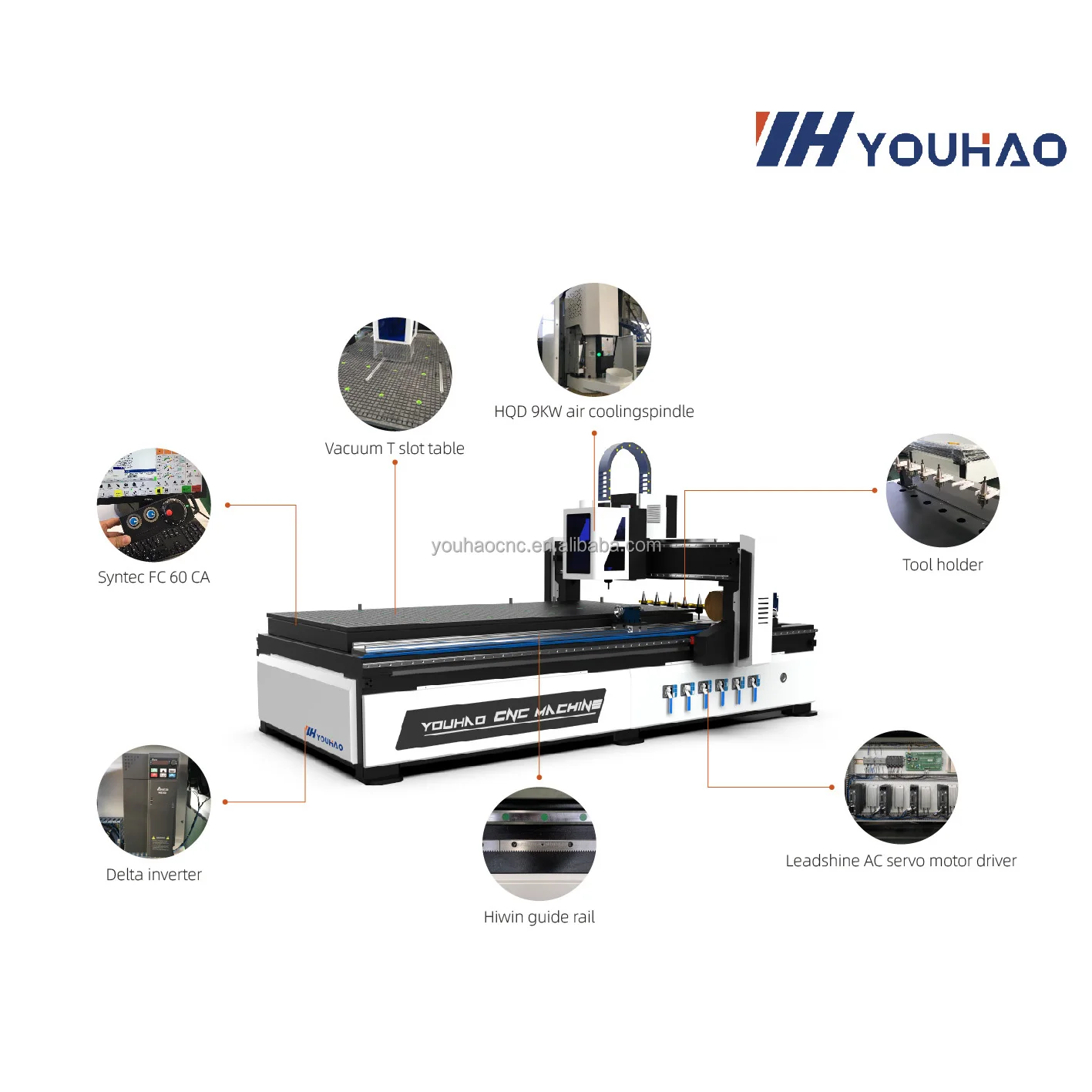

Details Images


Title goes here.
Hybrid Vacuum and T-slot table

TheYouHao CNC Router has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported.


XY Helical rack and pinion

The Alpha ABS Series CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the stepper motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.


Richauto A11 dsp controller



don't need contact the PC. simple and easy for the freshman to learn and operate the machine ,IT can supply the G code drawing


TBI BALL SCREW

one best brand in the world , can bear heavy impact force with high precision.no need maintanence , can be used long time and hard working

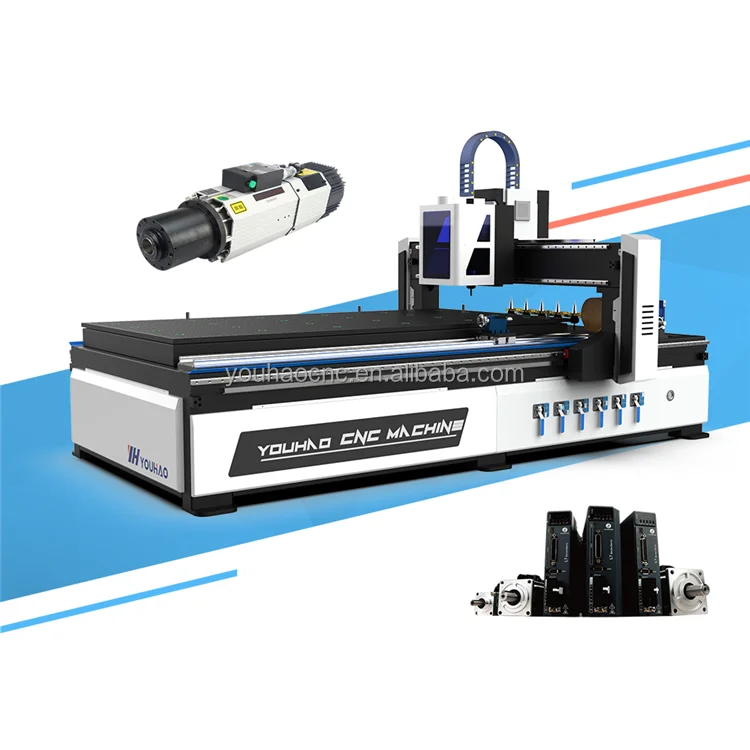

3.2kw water cooling spindle (air cooling option)



low cost ,small noise,better cooling effect .very suitable for solid wood stone and soft metals



lead shine stepper motor and drive .speed performance increased about 30% ,adopt current control system technology. save power consumption





Applications


1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.








Packaging and delivery




Our Advantages


1. service before sales: our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do. then we will offer our best solution for your requirement. then it can confirm each customer can get their real needed machine.

2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give their suggestions.

3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.

4. service after shipping: we will check when the machine arrive your sea port and estimated date of arrival. so customers can know when it will arrive and make enough preparation.

5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .

6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technician to help them to install and teach how to use through skype ,calling, vedio or mail.

7. service of warranty: we offer 12 month warranty for whole machine. if any parts of our machine is broken. we will replace it for free.

8. service in longterm: we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 3 or more years, they can contact us. we will always here waiting for you.


Customer feedback







Shandong Youhao Energy Technology Co., Ltd as a professional CNC factory, is constantly devoted in research and development and manufacture of intelligent panel production line, intelligent drilling and cutting machine for customized wardrobes cabinets,Five-side drilling machine ,laser mode side drilling machine, assembled solid doors process center and wood cnc process center
our company obtained CE certification have established several branches and agencies and developed into the leading cnc company . in overseas , our cnc machine have been exported to USA , UK , France , Germany , Canada , Mexico , India , Southeast Asia , Middle East to worldwide in more than 18 countries and areas.

China rotary cnc router woodworking machinery with cnc wood carving machine





FAQ


Q1: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q2: How to install and run the machine?
A: Our technician have installed and Full test before shipping. , we will send detail training video , user’s manual along with the machine. 95% customers can learn by themselves.

Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
1325 wood cnc router machine for wood engraving and cutting
