Характеристики
High quality induction brazing/welding equipment for drill bits, saw blade, copper tubes/pipes joint
Induction brazing machine:
The composing of the induction brazing/welding equipment:
1. All-digital handheld induction heating equipment
2. Robotic arm (coaxial soft cable and the handheld part)
3. Inductor
4. Water cooling system(optional)
1. All-digital handheld induction heating equipment
2. Robotic arm (coaxial soft cable and the handheld part)
3. Inductor
4. Water cooling system(optional)
Hand-held induction brazing/welding equipment series:
Heating head’s leading wire is 2-10 meters long. The device’s power is 10-100KW, frequency is 20-80KHZ.
Application of handheld induction brazing/welding equipment:
The device can be used for copper tube welding, surface heating, surface coating, mechanical local maintenance and other on-site heating.
Application of handheld induction brazing/welding equipment:
The device can be used for copper tube welding, surface heating, surface coating, mechanical local maintenance and other on-site heating.
Specifications and technical parameters | ||||||||||

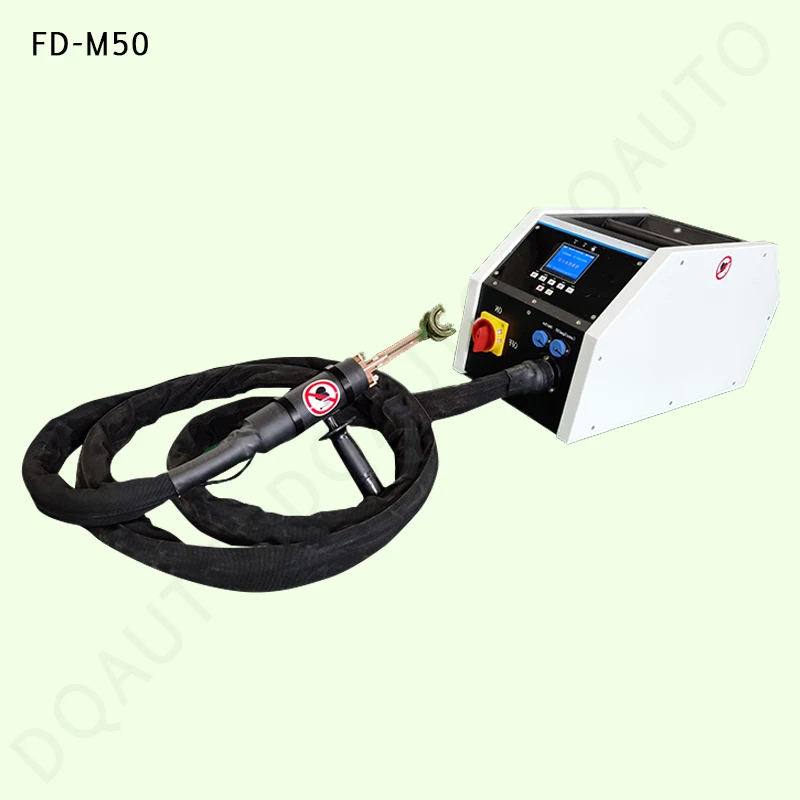

Model | FD-M25 | FD-M40 | FD-M50 | FD-M60 | ||||||
Input power | Input voltage （50HZ） | 360-420V | 360-420V | 360-420V | 360-420V | |||||
Continuous input current | 15A | 24A | 30A | 36A | ||||||
Intermittent input current | 25A | 40A | 50A | 60A | ||||||
Power output | Continuous output power | 10 KW | 15 KW | 20 KW | 25 KW | |||||
Max output power | 15 KW | 25 KW | 32 KW | 40 KW | ||||||
Output frequency | 20-50KHZ | 20-50KHZ | 20-50KHZ | 20-50KHZ | ||||||
Cooling water parameters | Cooling water flow | 2 L/min | 4 L/min | 6 L/min | 7 L/min | |||||
Cooling water pressure | 4-8bar | 4-8bar | 4-8bar | 4-8bar | ||||||
Max inlet water temperature | 32℃ | 32℃ | 32℃ | 32℃ | ||||||
Cooling water quality requirements | Scale free purified water | Scale free purified water | Scale free purified water | Scale free purified water | ||||||
Generator parameters | Generator size | 600*306*328mm | 600*306*328mm | 600*306*328mm | 600*306*328mm | |||||
Generator weight | 30 kg | 32 kg | 38 kg | 40 kg | ||||||
Coaxial transformer parameters | Transformer size | φ50*160mm | φ50*160mm | φ50*160mm | φ80*160mm | |||||
Transformer weight | 2.5kg | 2.6kg | 2.8kg | 4.5kg | ||||||
Flexible cable length | 2-10m | 2-10m | 2-10m | 2-10m | ||||||
Advantages of handheld induction brazing/welding equipment:
Small size, compact structure, both fixed and mobile. This is a new design and a completely new induction heating system. By integrating the frequency converter and coolant system into a single housing, it is used in a wide variety of applications, providing maximum flexibility for heating tasks in small space. It makes induction brazing, annealing, quenching, coating and stripping much easier. And our company can provide devices in different powers and specifications.

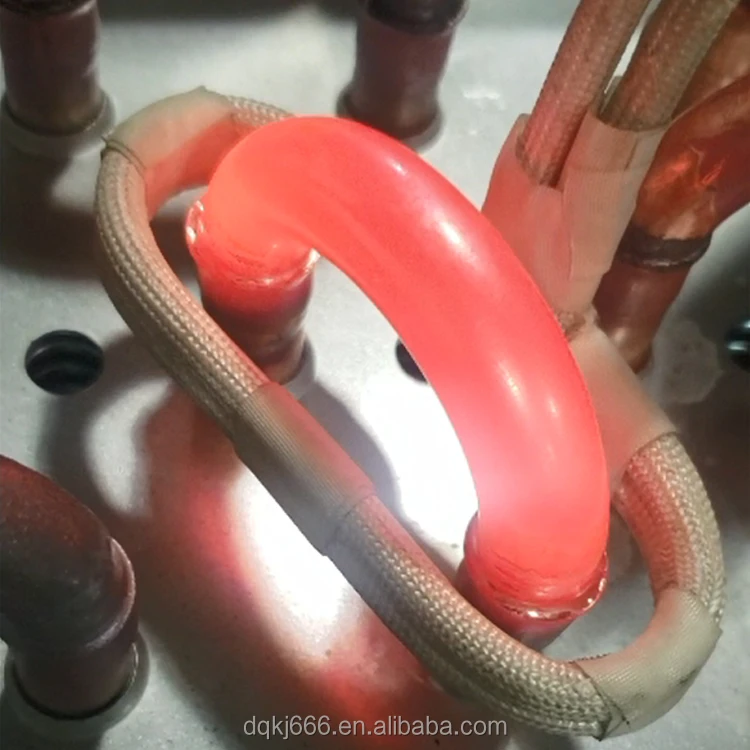

pipe brazing

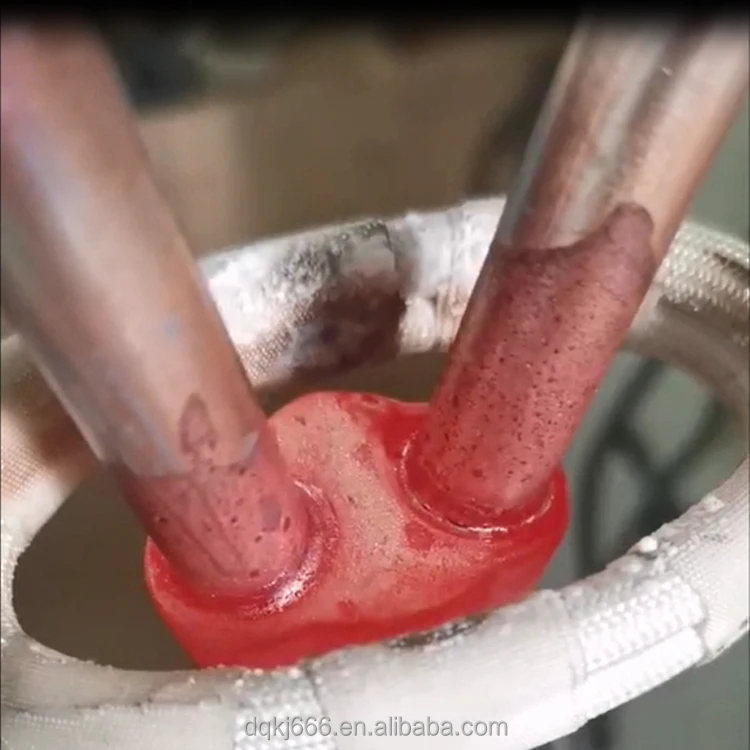

copper pipe brazing
portable induction brazing
Inductors are important part of induction heater, so it is precisely designed, manufactured by good quality material, and tested many times before outgoing, it is detachable, and can be customized accoridng to your needs:
Pre-sale service:
1. Pack the induction heating machine with wrapping film for waterproof;
1. Immediate reply to your inquiry.
2. Experienced sales answer all questions in fluent English.
3. Customized design is available.
4. Detailed information of our products, and our company if needed.
After-sale service:
1. Technical support, or alternative accessories if necessary.
2. Freely guide installation, commissioning and test run.
3. One year’s warranty. Once there is a trouble within one year, professional engineers and sales will be promptly appointed to help.
As for packaging:
1. Pack the induction heating machine with wrapping film for waterproof;
2. Put it into a standard exporting plywood or wooden case;
3. Put foam around it for shockproof;
4. Fasten the case with nails.
As for shipping:
1. If you have a shipper in China, we can send the induction heating machine to him or her for free.
2. If you want us to send the induction heating machine to you directly, we can send it to any main port of China promptly.
1. Are you a trading company or manufacturer?
We are manufacturer located in Zhengzhou, China, specialized in induction heating power for many years.
We are manufacturer located in Zhengzhou, China, specialized in induction heating power for many years.
2. What's the delivery time for sample and bulk order?
Normally we have stock of the mini and medium items, 5 work days for sample order.
3. What's your quality guarantee period?
12 months warranty
4. Can I get a lower price if I order large quantities?
Of course. Cheaper price with larger quantity.
5. Can you customize the machine for us?
Yes, of course, we can customize the machine, inductor, coil, etc according to your need, just tell me your detailed requirement, so I can suggest you most suitable project.
If you are interested in our products, please feel free to contact us. We will offer you the best products and service.
