Характеристики
Product Overview
How much do you know about FRP water tank?

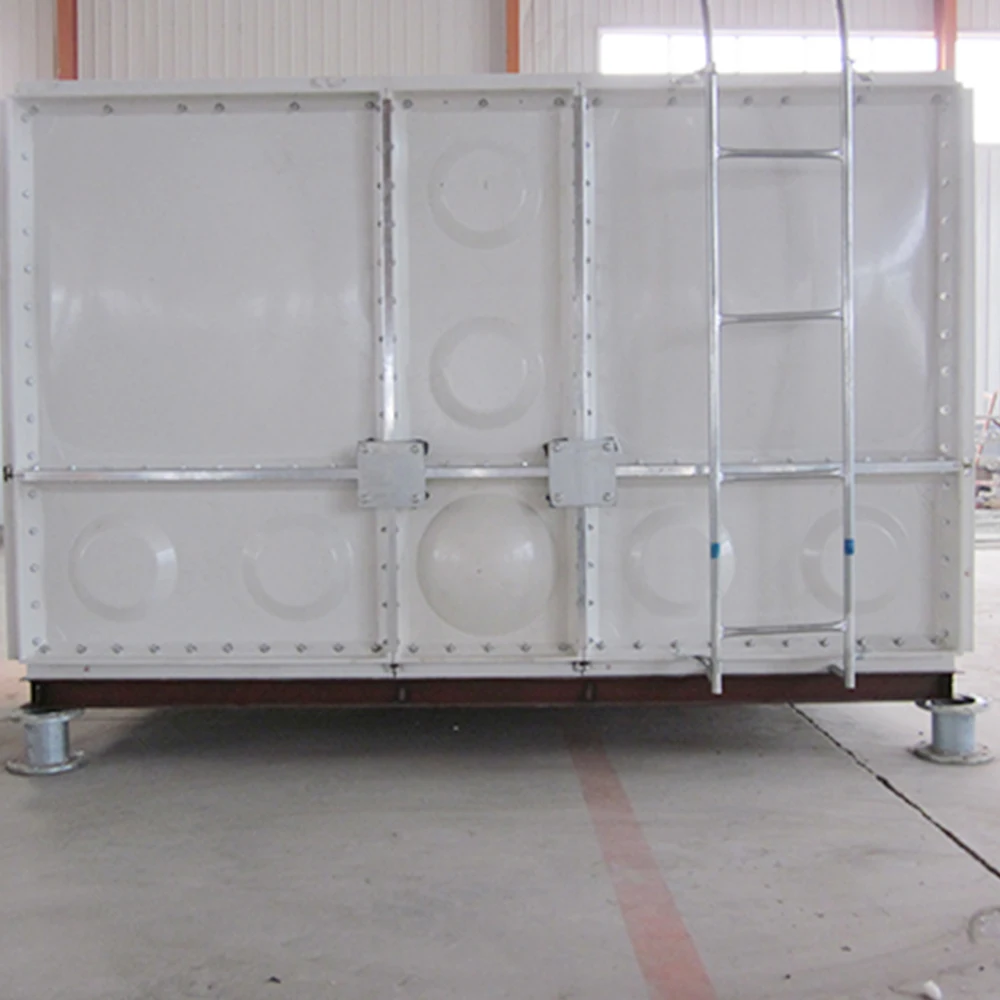

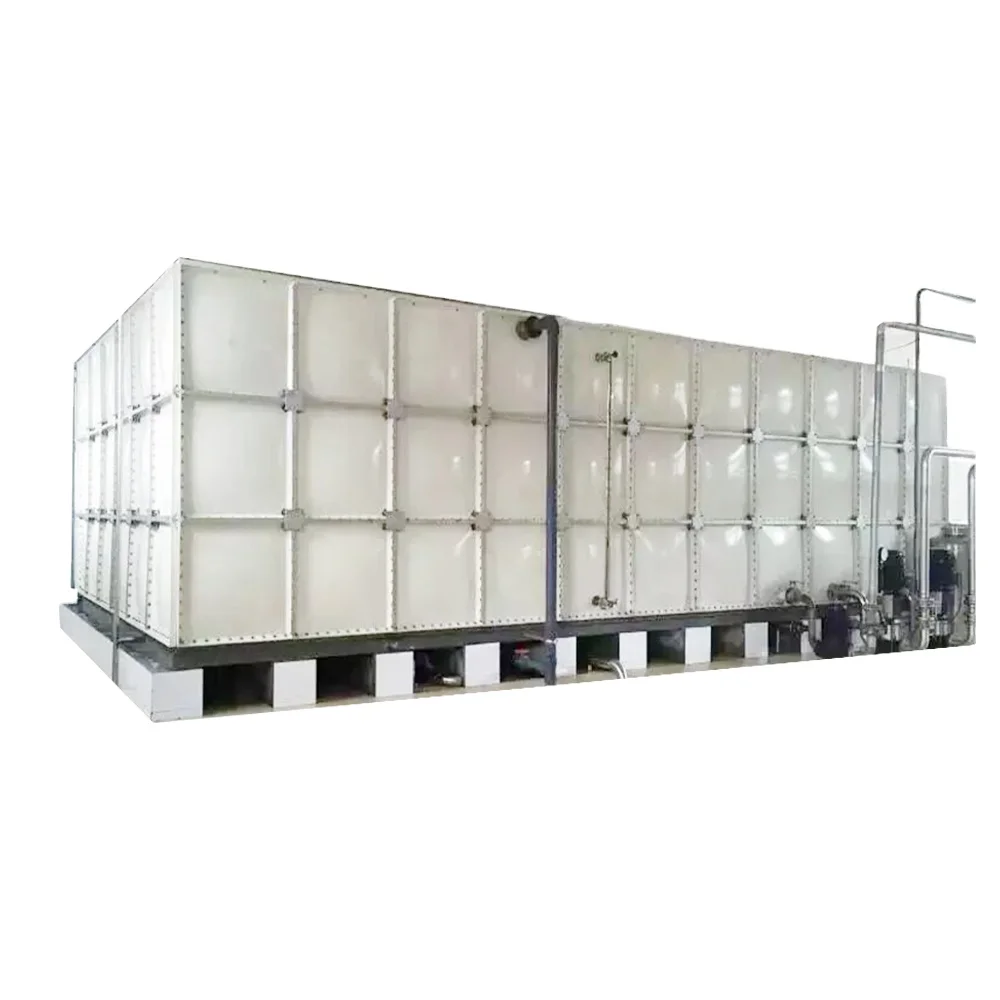

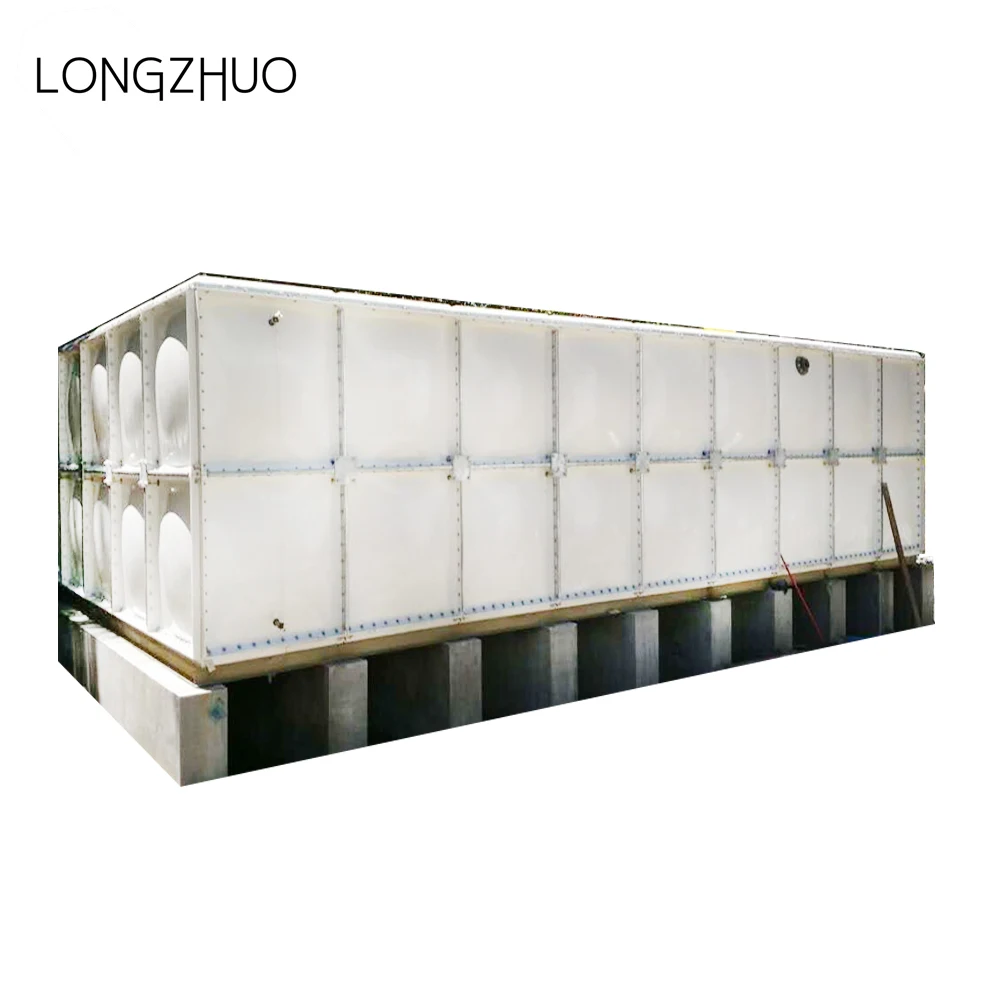

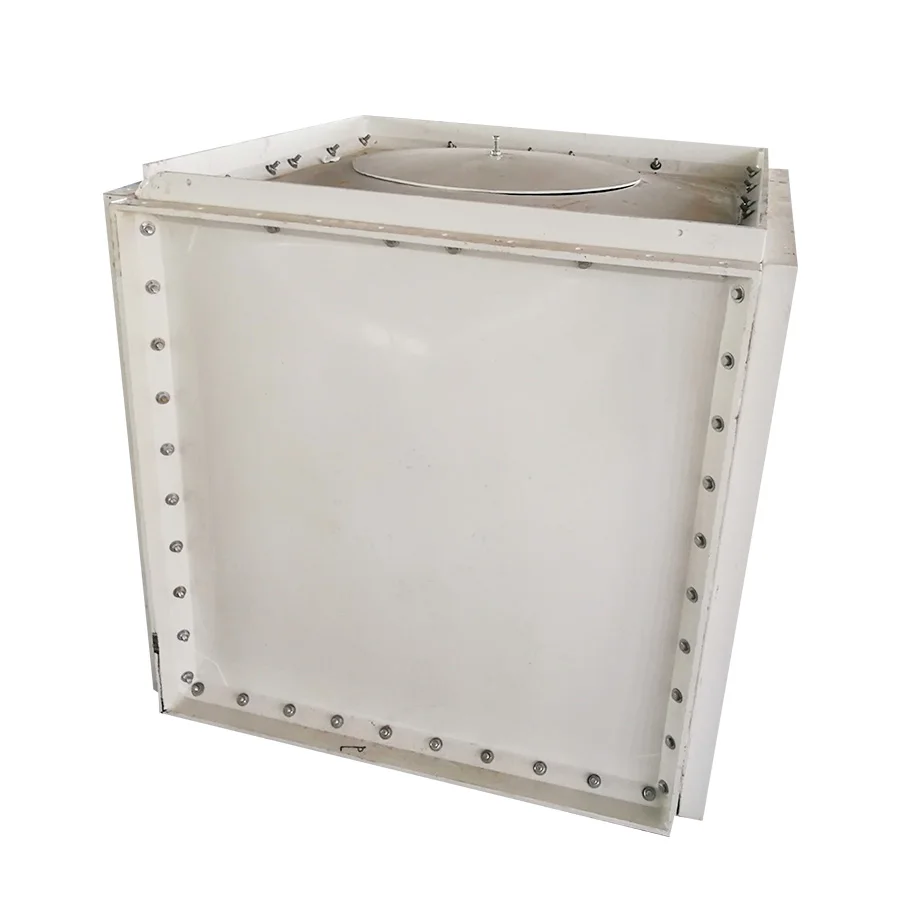

FRP Water tank also known as assembled panel water tank, which is a new type water tank that widely used in the world. It is assembled by the high-quality SMC water tank plate. It adopts the food-grade resin, so it can guarantee the water quality and prevent the pollution. It has high strength, light weight, corrosion resistant, beautiful appearance, long service life, convenient to maintain and other features.
SMC combined water tank is widely used in industrial and mining enterprises, enterprises and institutions,residence, hotel and other buildings. It can used as water storage facilities in drinking water, fire water and so on.
FEATURES AT A GLANCE
--Food grade water tank panel
--Long life span(15-18years)
--Easy installation
--Easy to maintain
--Customized length, width and height
--Fast delivery
PRODUCT SPECIFICATIONS
Water tank height | Thickness of each panel | ||||||||||||
Bottom | Side 1 | Side 2 | Side 3 | Side 4 | Side 5 | Top | |||||||
1000mm | 10mm | 10mm | / | / | / | / | 5mm | ||||||
1500mm | 10mm | 10mm | 8mm | / | / | / | 5mm | ||||||
2000mm | 12mm | 10mm | 8mm | / | / | / | 5mm | ||||||
2500mm | 12mm | 12mm | 10mm | 8mm | / | / | 5mm | ||||||
3000mm | 14mm | 14mm | 12mm | 8mm | / | / | 5mm | ||||||
3500mm | 16mm | 14mm | 12mm | 10mm | 8mm | / | 5mm | ||||||
4000mm | 18mm | 18mm | 14mm | 12mm | 10mm | / | 5mm | ||||||
4500mm | 20mm | 18mm | 16mm | 14mm | 12mm | 10mm | 5mm | ||||||
5000mm | 20mm | 20mm | 16mm | 14mm | 12mm | 10mm | 5mm | ||||||
Water tank accessories
1. Support for Panels: The panels shall be supported externally or internally by an adequate support system.
2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and
technology on SMC products.
3. Bolts, nuts and washers for the assembly of panels
4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304.
5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports.
6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage.
7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter.
8. Man-hole opening & Inspection Hatches: the size can be customized;
9. ABS roof vent with PE insect screen.
10. Float level indicator, optional SS304 for internal and external support structure are available on request.
2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and
technology on SMC products.
3. Bolts, nuts and washers for the assembly of panels
4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304.
5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports.
6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage.
7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter.
8. Man-hole opening & Inspection Hatches: the size can be customized;
9. ABS roof vent with PE insect screen.
10. Float level indicator, optional SS304 for internal and external support structure are available on request.

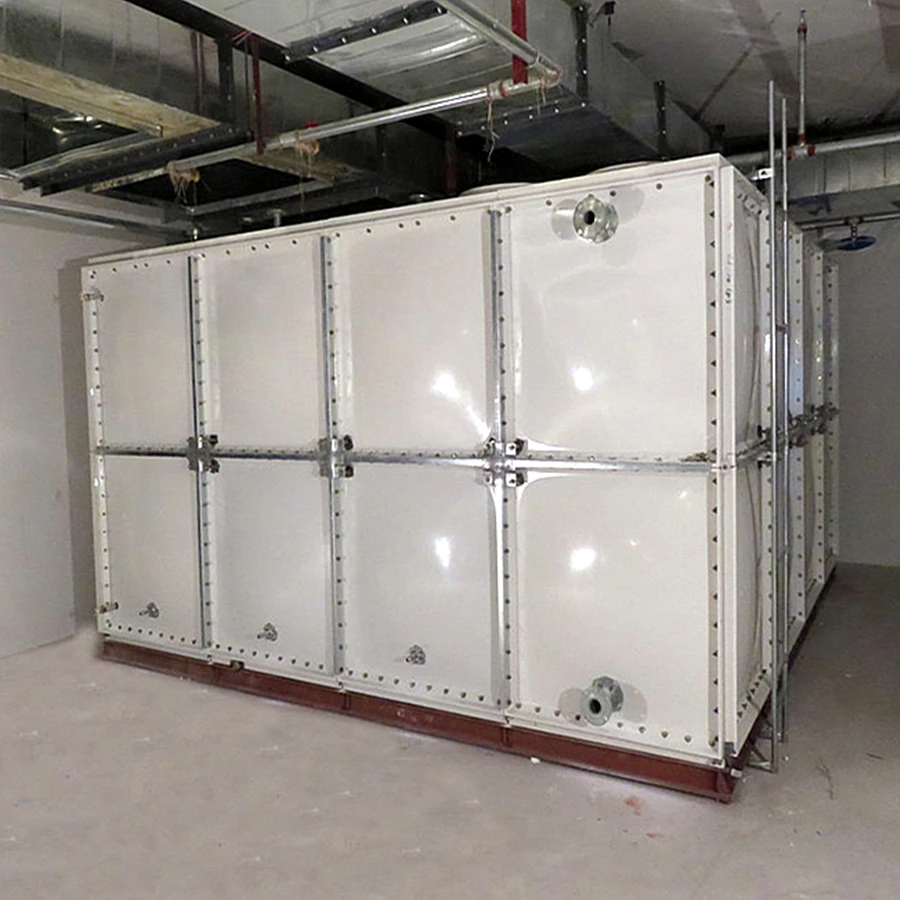

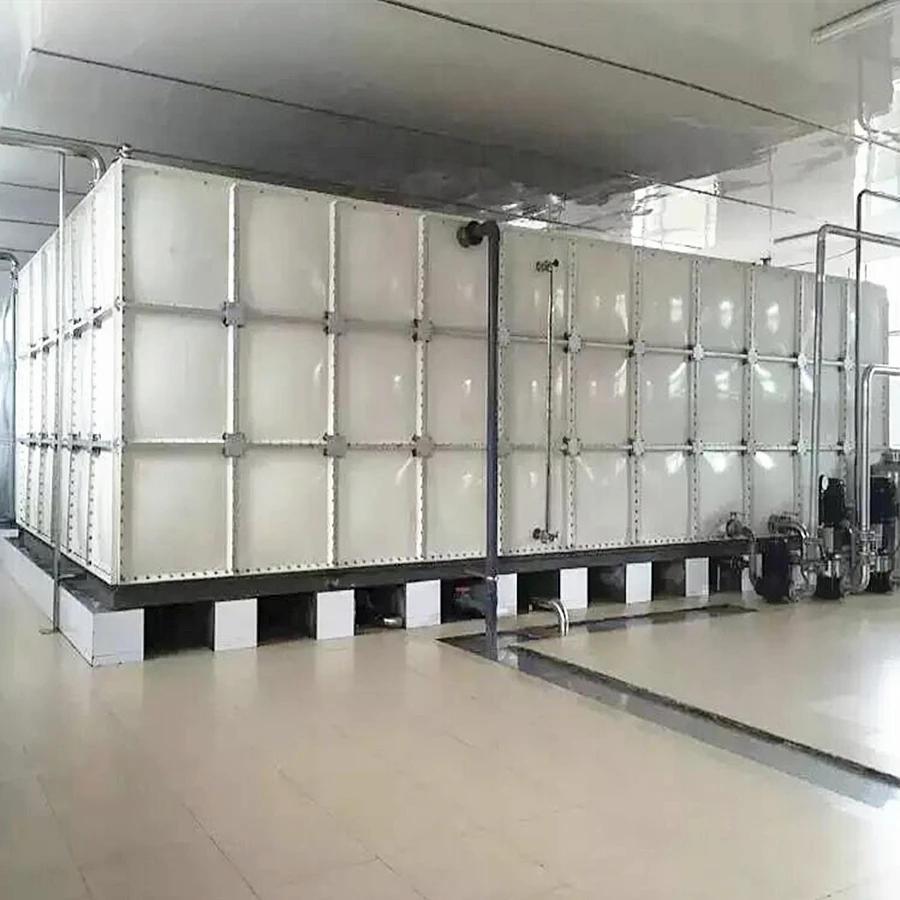

Successful Project
SIMILAR PRODUCTS
Different material of water tank can be applied into different projects:
--Drinking water storage: GRP water tank(low budget) or stainless steel water tank (high budget)
--Farm water storage: GRP water tank or galvanized steel water tank
--Fire fighting water storage: galvanized steel water tank
--Special chemical liquid storage: galvanized steel water tank with corrosion resistance bituminous painting
Our Workshop
Product packaging
Water tank panels are packed with iron frame to protect the edges.
Accessories are packed with plywood box
FAQ
1. What is MOQ?
1 CBM is acceptable.
2. Can you do cutomized sizes for the water tank?
Yes, our water tank panel size is 1x1m or 1x0.5m, so you can ask for any sizes for the water tank you need.
3. How I get any instruction on water tank installation when I get the water tank panels and accessories?
Yes, we will send you the installation video to support you on-site installation
4. How long will the water tank use?
Usually it can use 15-18 years.
5. What about the guarantee time?
Our water tank guarantee time is 12 months since you received the goods.
6. How about your after sales service?
We've been in this industry for more than 10 years, selling out the water tank is not end of service, we will be your assistance 24 hours a day/7 days a week.
